AR-125 High Quality Pneumatic 125mm Rotary Tailstock for CNC Rotary Table

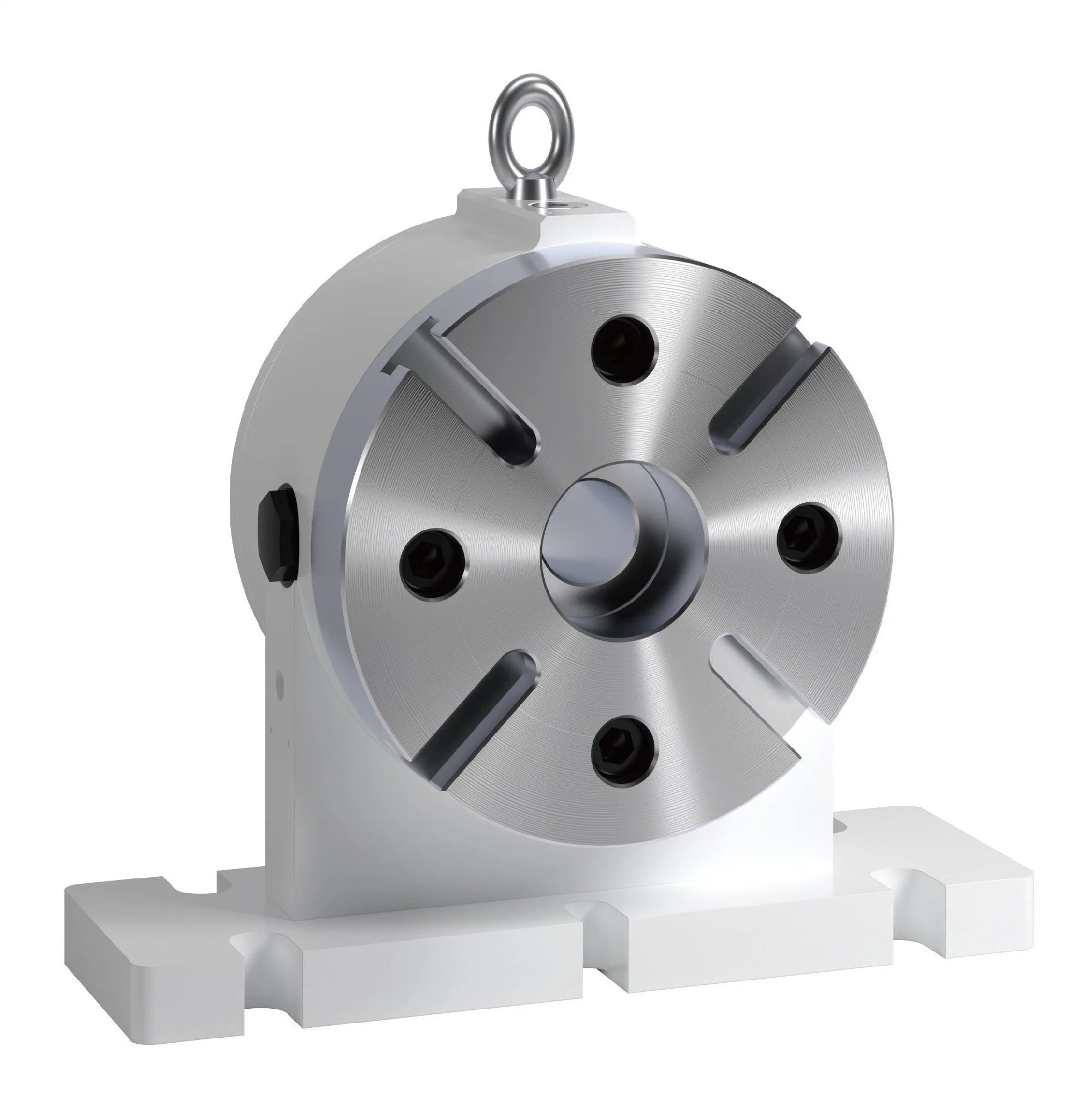

Introduction to the AR-125 Pneumatic Rotary Tailstock

The AR-125 Pneumatic 125mm Rotary Tailstock for CNC Rotary Table, manufactured by Raydafon, plays a crucial role in mechanical processing. It is designed to work in tandem with the CNC rotary table, ensuring optimal performance and precision in various machining tasks.

Structure and Functionality of the AR-125 Tailstock

Our tailstock is composed of several essential components, including a pressure adjustment device, a fixation device, and a support device. Each part serves a unique role in the overall functionality of the tailstock, contributing to its efficiency and reliability.

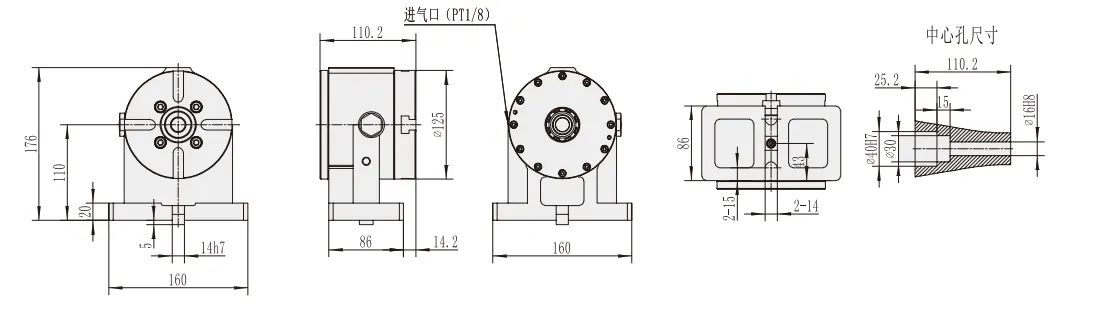

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Width of bottom guide key	Weight
AR-125	125mm	40H7mm	16mm	110mm	12H7mm	14H7mm	18Kg

Working Principle of the AR-125 Tailstock

The tailstock operates by securing workpieces in place, adjusting their position as needed, and coordinating with other mechanical components on the CNC rotary table. This ensures that all machining tasks are conducted with precision and efficiency.

Materials and Manufacturing of the AR-125 Tailstock

The AR-125 tailstock is typically made from stainless steel, a robust and durable material. The manufacturing process involves various techniques, including casting, machining, and heat treatment to ensure its durability and performance.

Applications and Benefits of the AR-125 Tailstock

Our tailstock is widely employed in industrial production due to its versatility and value. It offers numerous advantages, such as accommodating different sizes and shapes of workpieces and providing indexing functionality.

Choosing the Right Tailstock

When selecting a tailstock, consider the size and shape of your workpieces, the materials they are made from, your technical requirements, and your budget. The AR-125 tailstock is versatile, making it a suitable choice for a wide range of applications.

Raydafon: Your Trusted Supplier of CNC Turntables

Raydafon is a leading supplier of CNC turntables, known for its innovative R&D and advanced production technology. We design and produce a range of high-precision rotary tables, including 4-axis and 5-axis models, to meet the diverse needs of our customers in various processing fields such as 3C, automotive, energy, military, and aerospace.

Frequently Asked Questions (FAQs)

Are you a manufacturer or a trading company?

Raydafon is a manufacturer with more than 15 years of experience in the industry.

Can the product and the package be customized?

Yes, we offer customization services for both the product and the package.

What is the quality guarantee?

We provide a one-year quality guarantee for all our products.Edited by Zqq.
