Arm Cylinder For Dasin DS35

Arm Cylinder For Dasin DS35

Introduction

The Arm Cylinder for Dasin DS35 is a hydraulic cylinder specifically designed to provide linear motion and force to the arms of various machinery such as excavators, cranes, and robotic arms. These cylinders are crucial for the movement and control of additional tools or attachments.

Definition and Overview

An arm cylinder, also known as an arm oil cylinder, is a type of hydraulic cylinder that is responsible for providing straight line motion and force to the arms of different machines. It plays a vital role in hydraulic systems by enabling the movement and control of attached tools or equipment.

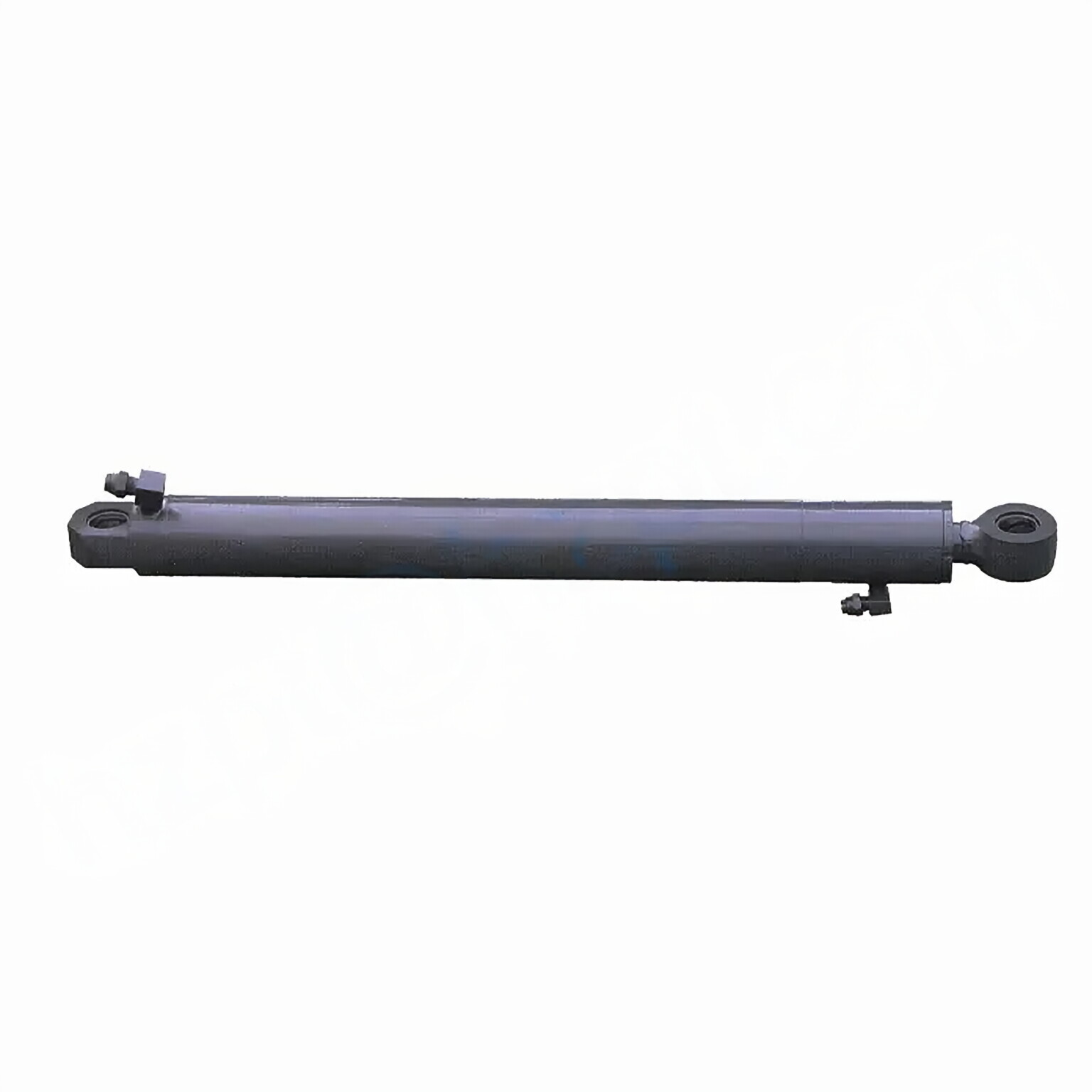

Product Image

Features

• High Strength and Durability: Typically made from high-strength steel or aluminum, these cylinders can withstand high pressure and heavy loads, making them suitable for harsh working environments. They are designed to be wear-resistant and corrosion-resistant, thus extending their lifespan.
• Efficient Hydraulic Operation: By utilizing the pressure of hydraulic oil, the arm cylinder ensures smooth extension and retraction movements, rapid response to control commands, and provides powerful pushing and pulling forces. This makes it suitable for handling heavy objects and complex operational tasks.
• Various Types: Arm cylinders can be selected as single-acting (hydraulic pressure used in one direction) or double-acting (hydraulic pressure used in both directions) based on specific operational requirements. Some models are telescopic, allowing for greater extension without increasing external dimensions, thus ideal for applications with limited space.
• Precise Control: The arm cylinder provides precise control over the angle and height of the arm, accommodating different work requirements. When combined with a hydraulic control system, it enables complex movements and enhanced operational flexibility.
• Perfect Replacement: Our product can perfectly replace existing hydraulic cylinders, offering the same functionality and reliability.

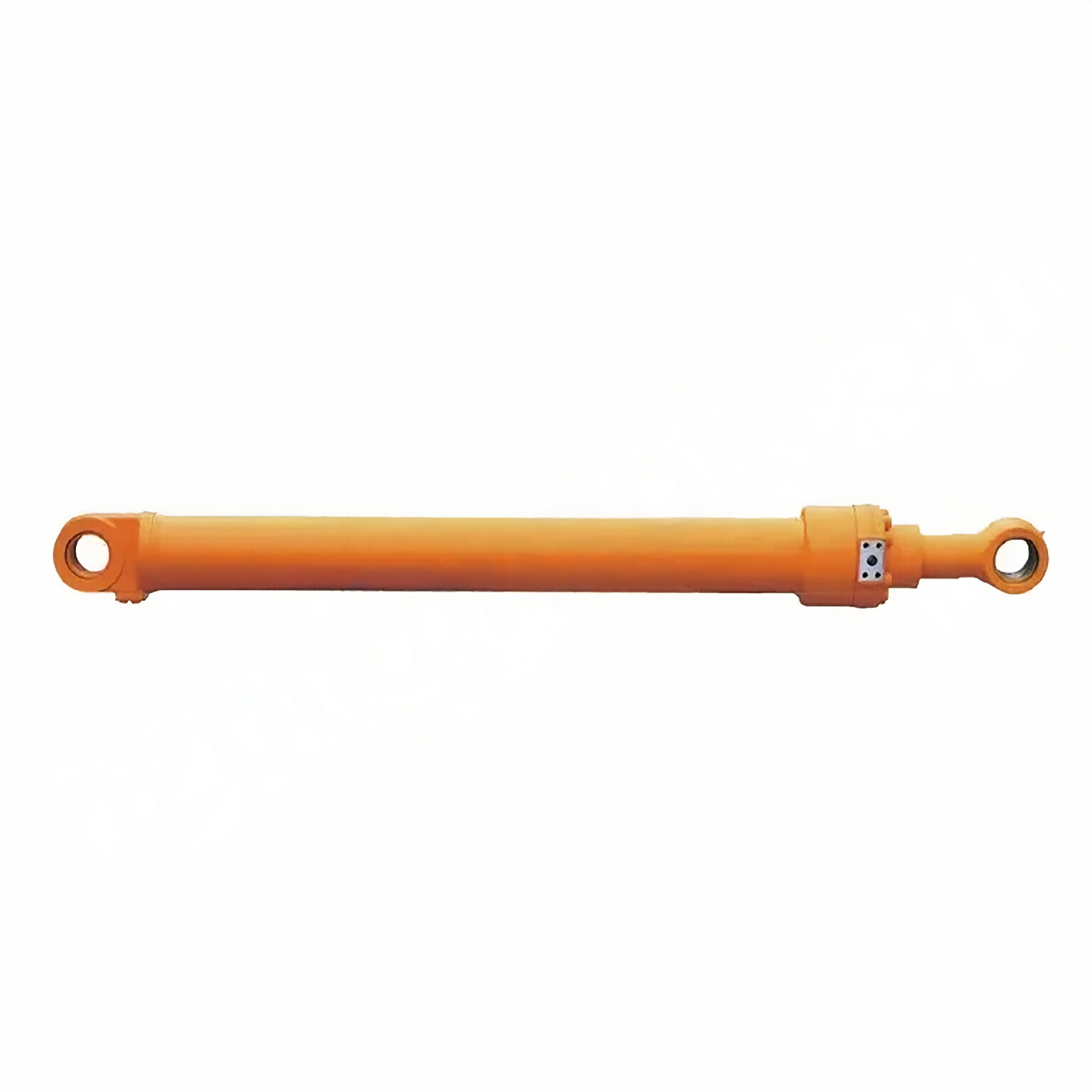

Product Image

Applications

The arm cylinder finds extensive applications in various fields:

Construction Equipment

In excavators, arm cylinders are crucial for digging and lifting materials. In cranes, they enable precise positioning of loads.

Agricultural Machinery

Used in loaders and harvesters, arm cylinders manipulate tools and effectively collect crops.

Industrial Equipment

Arm cylinders are employed in robotic arms on assembly lines, enabling precise execution of repetitive tasks.

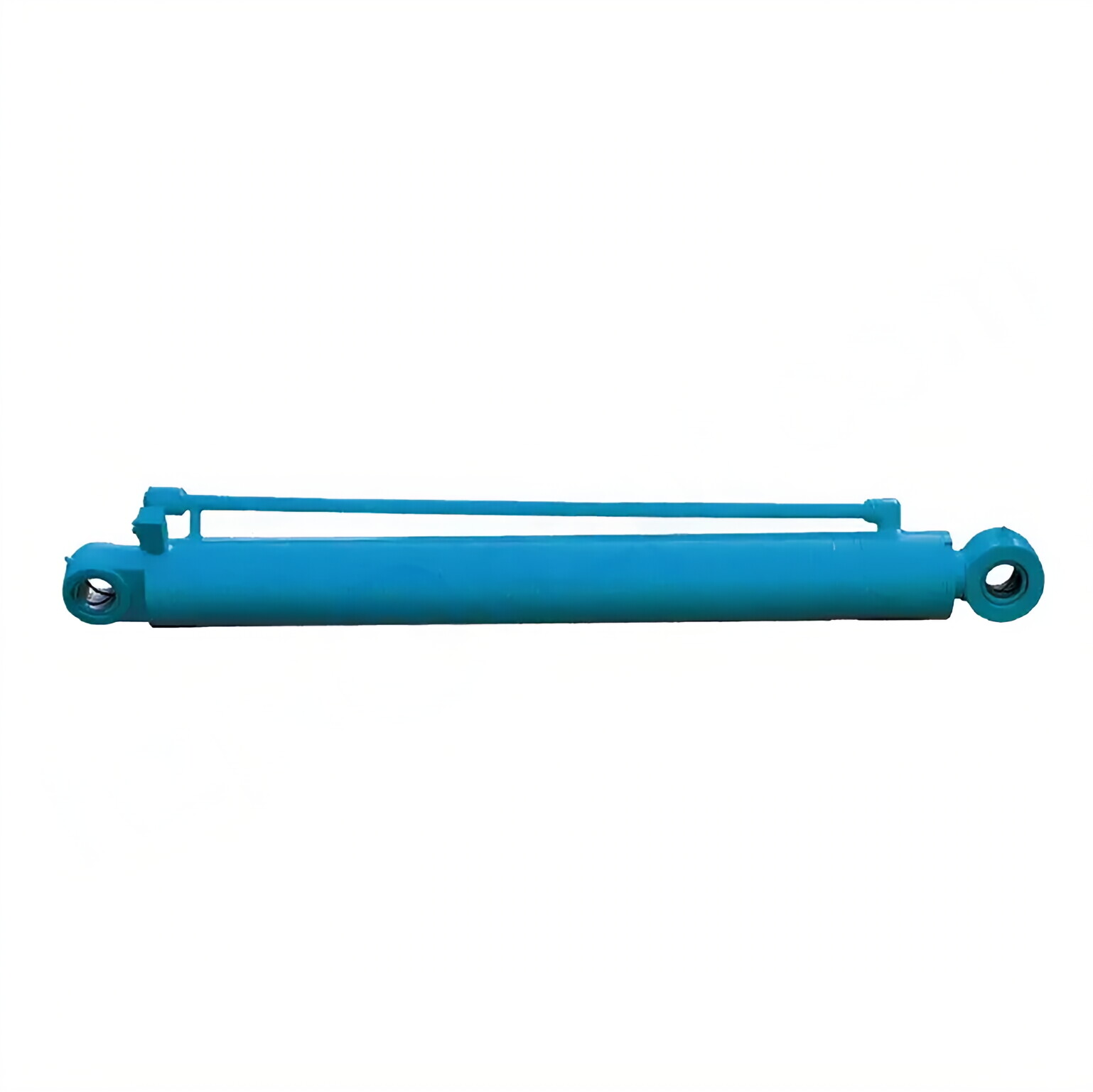

Product Image

Design Considerations and Selection Criteria

• Bearing Capacity: The arm cylinder is designed to withstand and support heavy loads.
• Sealing: Various sealing components such as piston seals and rod seals are used to ensure effective sealing. These seals are made from wear-resistant materials such as polyurethane and nitrile rubber.
• Durability: The cylinder body and threaded ends undergo precision treatment to enhance wear resistance.
• Safety: Design considerations include safety features to prevent accidents during operation.
• Maintainability: The arm cylinder is designed for easy maintenance and repair.

Product Image

Sealing and Lubrication

The arm cylinder utilizes various sealing components, such as piston seals and rod seals, which are made from wear-resistant materials like polyurethane and nitrile rubber. The cylinder body and threaded ends undergo precision treatment to improve wear resistance. Regular lubrication with the appropriate amount of hydraulic oil is necessary to ensure smooth operation.

Regular Inspection and Preventive Maintenance

• Regularly inspect the arm cylinder for any signs of damage or wear.
• Check the hydraulic system for proper functioning and leakage.
• Perform preventive maintenance tasks such as cleaning and lubrication as per the manufacturer's guidelines.
• Replace worn-out seals or components promptly to prevent further damage to the cylinder.
• Keep a record of maintenance activities for future reference.

Installation Guide

Follow these steps to properly install the arm cylinder:

1. Ensure the machine is turned off and the hydraulic system is depressurized.
2. Remove the old cylinder, if applicable.
3. Clean the mounting area and ensure it is free from debris.
4. Position the new arm cylinder in place and align it with the mounting holes.
5. Tighten the bolts securely to ensure proper attachment.
6. Connect the hydraulic hoses according to the manufacturer's instructions.
7. Test the cylinder for proper function before operating the machine.

Safety Considerations and Environmental Factors

When using the arm cylinder, it is important to follow safety measures to prevent accidents. Adequate training and knowledge of safety protocols are essential. Additionally, considering environmental factors such as fluid spills and waste disposal is crucial for maintaining a safe and eco-friendly work environment.

Troubleshooting and Common Issues

Common issues that may occur with the arm cylinder include:

• Leakage of hydraulic fluid
• Slow or unresponsive movement
• Excessive noise during operation
• Irregular or jerky movement
• Inconsistent holding force

To address these issues, follow these troubleshooting tips:

• Check for loose connections and tighten them if necessary.
• Inspect the seals for damage and replace them if needed.
• Ensure an adequate supply of hydraulic fluid.
• Clean or replace clogged filters.
• If the problem persists, consult a professional for further assistance.

Preventive measures can help minimize potential problems:

• Regularly inspect and maintain the arm cylinder.
• Follow proper lubrication and cleaning procedures.
• Adhere to the manufacturer's guidelines for usage and maintenance.
• Train operators on proper handling and operation.

Product Image

Company Introduction

We are a leading manufacturer and wholesale distributor of hydraulic cylinders, specializing in the production of replacement cylinders. Our company offers a wide range of products, making us one of the top manufacturers and distributors in the domestic and international markets. We strive for excellence in quality and employ industrial production management strategies, leveraging skilled technicians, advanced digital manufacturing equipment, and professional testing systems. This allows us to continuously improve our manufacturing platform and ensure the production of high-efficiency, high-precision, and high-quality products that meet diverse customer demands.

Professionalism

We pride ourselves on our professionalism and expertise in the field of hydraulic cylinders.

International Certifications

Our products have obtained international certifications, ensuring their quality and reliability.

Customization Services

We offer customization services to meet specific customer requirements and provide tailored solutions.

Production Equipment

We have a wide range of advanced production equipment to support efficient and precise manufacturing processes.

After-sales Service

We provide comprehensive after-sales services, including technical support and assistance, to ensure customer satisfaction.

Company Image
