| Model | Normal torque(N.m) | Max. intermittent torque(N.m) | Maximum axial force of output shaft(KN) | Maximum radial force at the midpoint of the output shaftn2*h=30000(KN) | Output shaft | Reduction ratio | |||

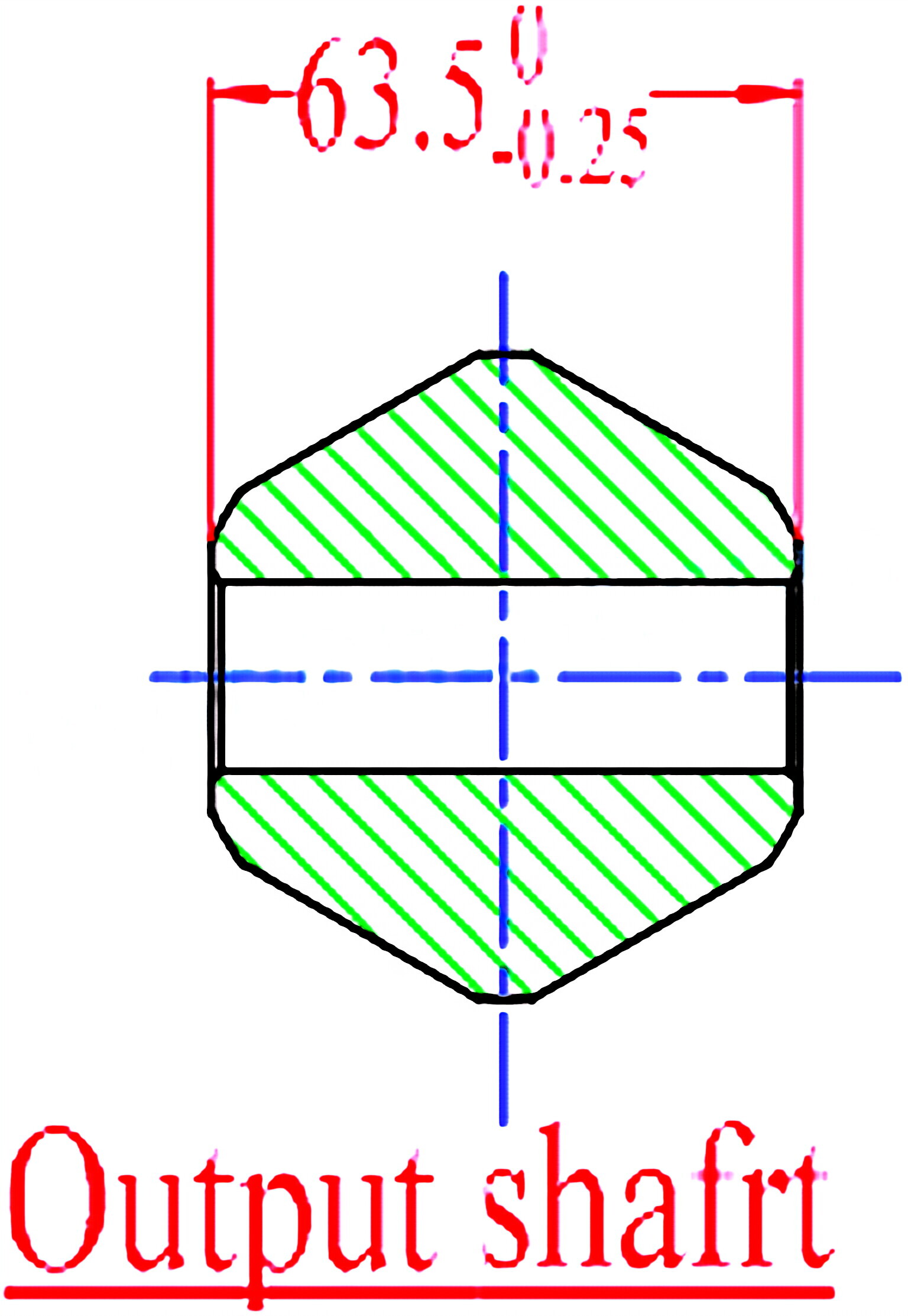

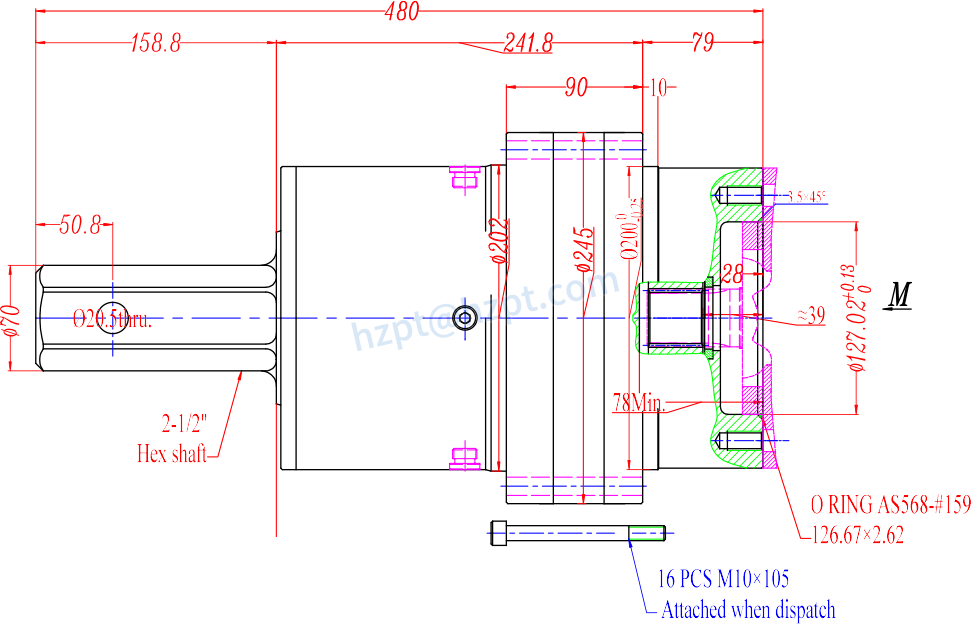

| EPT-995A | 5000 | 10000 | 143 | 55 | 2-1/2 hex shaft | 5:01 | |||
| *NORMAL INPUT SPEED 1000rpm | |||||||||

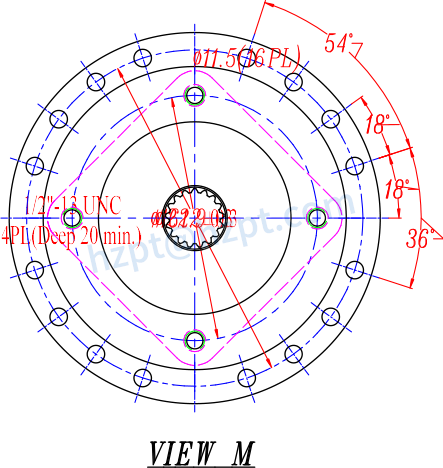

| * INPUT MOTOR: SAE C FLANGE, DP12/24, Z17, 4 HOLES | |||||||||
| * WITHOUT LUBRICANTS | |||||||||
| * ONLY WITH PRIMER, WITHOUT TOP COAT | |||||||||
| * OUTPUT SHAFT DOWN MOUNTED | |||||||||
Applications:
