AZ42706 Double Finger For John Deere Combine Header

AZ42706 Double Finger For John Deere Combine Header

▍Application

A spare part for the finger beam of the header of the John Deere combine.

▍Destination

A spare part for the finger beam which provides cutting of the stalks of grain crops during translational motion of the knife. This spare part is used for replacing worn out or damaged parts during repairs.

▍Properties

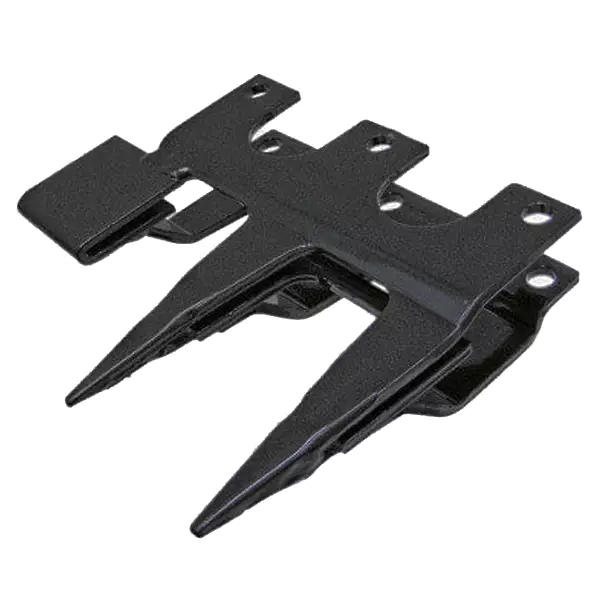

A forged steel component of complex solid shape in the form of a bident. At the base of the head 2 openings are made for attaching it to the finger beam. In the teeth a slot is made, when the knife passes it, it cuts down the stems of the plants due to crossing of sharp edges.

▍Features

The paint coating is black.

▍Parameters

Weight , W	kg	1.15
Number of mounting holes , N		3+3
Mounting holes diameter , Dm	mm	10.5
Length , L	mm	207
Height , H	mm	44
Distance between Inner Plates , b1	mm	24
Distance between mounting holes , b	mm	76
Mounting holes dimentions , Dm	mm	10.5х10.5
Width , B	mm	163
Material thickness , S	mm	5



▍Usage of Z11508 T17 sprocket

• Header John Deere: 810 812 814 816 818 820

▍Related Products

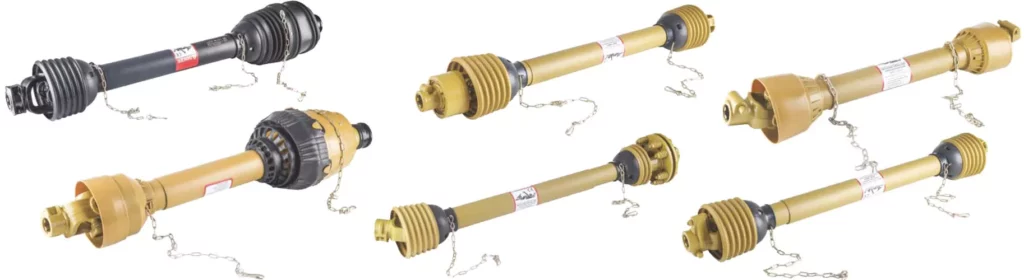

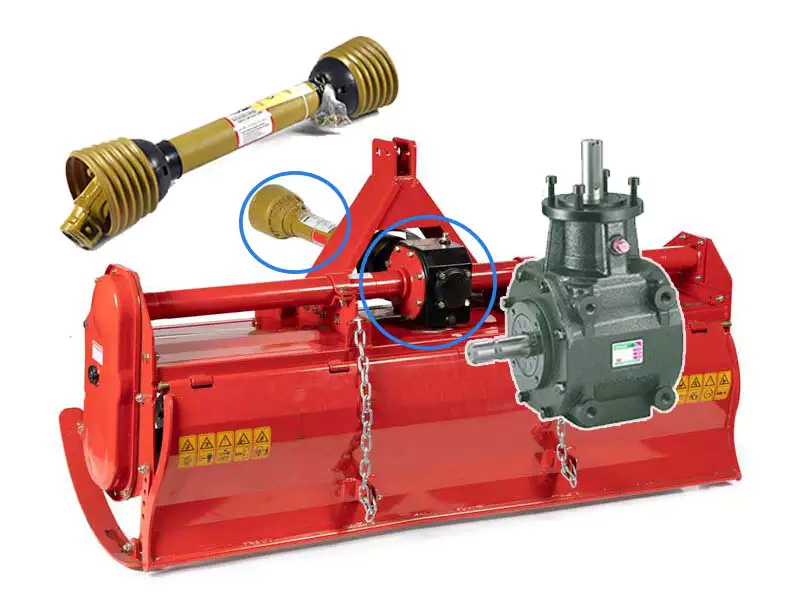

▍We Also Supply PTO Shafts & Agricultural Gearboxes
