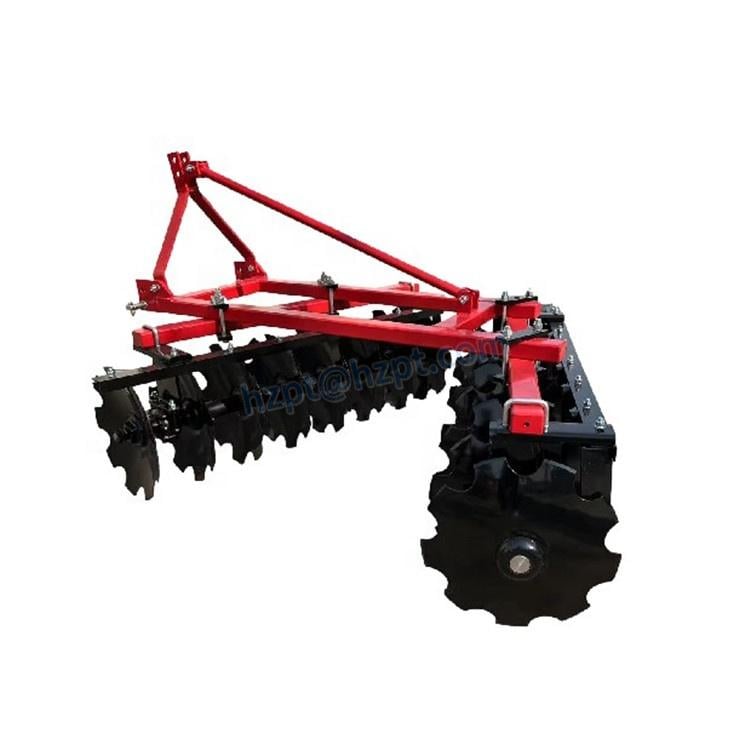

Big Tractor Trailed Offset Disc Harrow

Introducing the Big Tractor Trailed Offset Disc Harrow, a highly productive agricultural implement designed for efficient and effective land cultivation. This machine runs on tractor power and is primarily used for hard soil tillage operations on farms and in manufacturing plants. The offset disc harrow is brand new with a one-year warranty and an additional six-month warranty on core components. It weighs 1450kg and measures 4888*2420*1340mm in dimensions. The harrow disc blade is made of boron and the assembly includes a square shaft and RSP sealed bearing. The 1BZ-2.2 model has a working width of 2200mm and can penetrate soil to a depth of 200-250mm. It is optimized for tractors with 90-100hp power and features 20 harrow disc blades, each measuring 26'' (660mm) in diameter. The harrow is hydraulically trailed with the tractor for seamless operation.The Big Tractor Trailed Offset Disc Harrow is a revolutionary agricultural tool designed to streamline soil tillage operations. This machine operates based on the principle of cutting, breaking, and turning over the soil using its disc blades. The disc blades penetrate the soil, breaking it up and turning it over to prepare the land for planting. Installation involves hitching the disc harrow to the tractor using its hydraulic trailing system. To uninstall, simply disengage the hydraulic system and detach the harrow from the tractor. Maintenance of this machine is quite straightforward; regular inspection of the blades for any signs of wear and tear is recommended. Also, ensure the hydraulic system is functioning optimally and apply lubricants when necessary to prevent rust and enhance durability.

Model	1BZ-2.2
Working width	2200mm
Working depth	200-250mm
Size of harrow disc blade	26'' (660mm) x 5mm
No. of harrow disc blade	20pcs
Weight	1450kg
Macthed power	90-100hp
Square shaft size	40*40mm, shaft with heat treatment
Bearing	RSP sealed bearing pedestal ,with oi hole
No. of tires	2pcs
Type of tires	7.50-16 , this tires is wlaking effect
Linkage	Hydraulic trailed with tractor

At Raydafon, we pride ourselves on delivering high-quality, durable, and efficient agricultural solutions. Our Big Tractor Trailed Offset Disc Harrow is no exception. Designed with high productivity as a key selling point, this machine is your best bet for efficient and effective soil tillage operations. It is perfect for heavy clay soil, wastelands, and weedy fields. Whether you're preparing the land for planting or breaking hardened soil, this disc harrow is up to the task. We invite you to learn more about our top-of-the-line Big Tractor Trailed Offset Disc Harrow and discover how it can revolutionize your farming operations. With its high productivity, robust design, and easy maintenance, this machine is a worthy investment for any farm or agricultural enterprise. Contact us today to place your order and take your farming operations to the next level.
