Blueline PTO Shaft Replacement B4 710 P6/P5

BLUELINE pto shaft

Further information

Universal joint size A profile (mm):

27 x 74,6

Universal joint size B profile (mm):

27 x 74,6

Size:

B4

Tractor version:

1 3/8" 6 splines

Implement version:

1 3/8" 6 splines

Lz (mm):

710

Profile:

Italian system

Locking system:

Quick-release pin/quick-release pin

Profile pair:

P6/P5

A (profile):

1 3/8" 6 Z?hne

B (profile):

1 3/8" 6 Z?hne

Additional information:

Operating instructions included

Weight:

9.90 kg

EAN codes:

4059139305681

To be found in category:

PTO shafts & drive technologySearch filters: PTO shaftsStandard PTO shafts

Introduction to PTO Shaft

The Power Take-Off (PTO) shaft is a critical component in the operation of farm machinery, industrial equipment, and transportation vehicles. Here are some key features of a PTO shaft:

• It transmits power from the tractor to the implement.
• It features universal joints at both ends to allow for angular motion.
• It is typically encased in a protective casing for safety purposes.
• It can be adjusted in length to accommodate different distances between the tractor and the implement.
• It is often fitted with a quick-release system for easy attachment and detachment.

Our PTO Shaft

Our PTO shafts are designed and manufactured to the same specifications as the Blueline PTO shaft, making them a perfect replacement. The dimensions and installation method align perfectly with the Blueline shaft, ensuring a seamless fit for your machinery.

Selecting a Suitable PTO Shaft

When choosing a PTO shaft, several factors need to be considered:

1. Length: This is the distance between the power transmission device and the receiving device.
2. Rated Power: The power that the PTO shaft can transmit effectively without failure.
3. Shaft Type and Connection Mode: Different types of PTO shafts and their connection modes offer varying levels of efficiency and compatibility.
4. Torque Transmission Capacity: This refers to the maximum amount of torque that the PTO shaft can transmit.
5. Environmental Requirements: The PTO shaft should have features such as protective covers, sealing performance, and durability that match the working environment.
6. Safety Features: Reliable anti-cardan devices, anti-cardan pins, etc. ensure the safety of the PTO shaft.
7. Compatibility: The PTO shaft must be compatible with both the tractor and the implement.

8. Certification: Certifications such as CE mark indicate compliance with relevant standards.

Our PTO Shaft and CE Certification

Our PTO shafts hold the CE certification, which signals adherence to European Union regulations and standards. This ensures that the design, manufacture, and usage of our PTO shafts meet the requirements of the European market, providing a basic safety guarantee. The CE certification is a necessity for selling PTO shafts in the European market and provides a reliable guarantee of the safety performance of our PTO shafts. It also instills confidence in the quality and safety of our products.

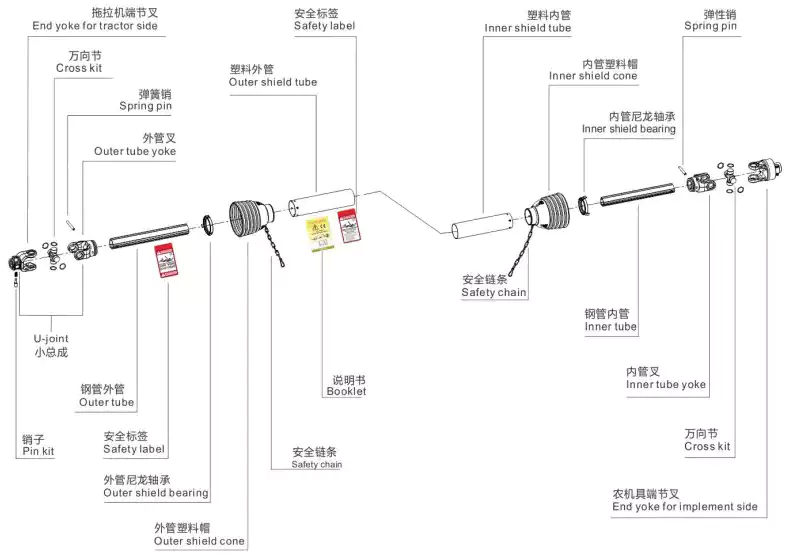

PTO Shaft Structure

The PTO shaft is composed of a housing, drive shaft, universal joint, protective cover, and connectors. Each part is made from high-quality materials to ensure durability and efficiency. We also sell individual parts for those who only need specific components.

Applications of PTO Shaft

PTO shafts have a wide range of applications:

1. Agricultural Machinery: They are commonly used to connect tractors and agricultural equipment such as mowers, harvesters, straw crushers, sprayers, mixers, etc.
2. Industrial Equipment: PTO shafts are used to drive various rotating equipment, such as pumps, generators, centrifuges, mixers, etc.
3. Transportation Equipment: PTO shafts are also used to drive certain transportation equipment, such as trailers, semi-trailers, and tow trucks.
4. Solar System: PTO shafts are typically used to rotate and adjust tracker photovoltaic panels.

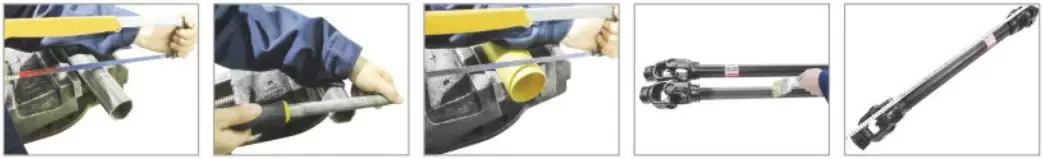

Adjusting the Length of a PTO Shaft

Adjusting the length of a PTO shaft involves removing the plastic protective cover, shortening the inner and outer tubes as needed, removing burrs with a file, shortening the inner and outer plastic tubes as needed, oiling the inner steel tube, and reinstalling the drive shaft plastic protective cover.

About Raydafon Group

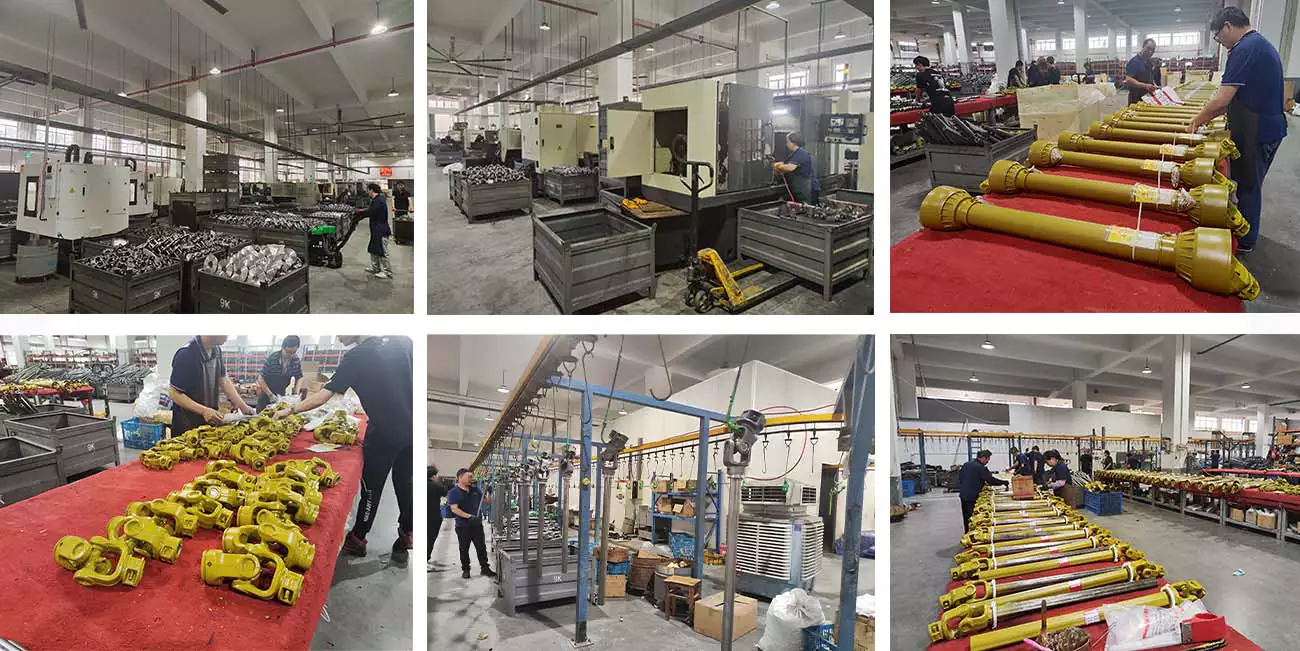

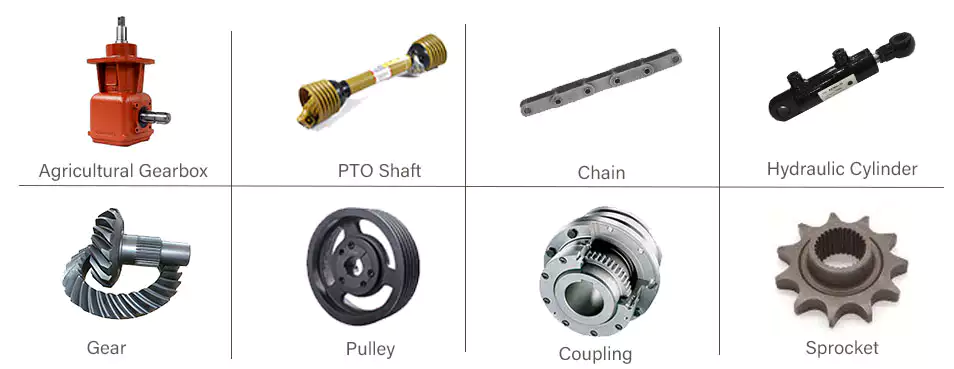

As a leading player in the PTO Shaft market in China, Raydafon Group is engaged in the development, manufacture, and marketing of power output shafts, industrial universal joints, and automotive drive shafts. Our products enjoy a good reputation among customers in Europe, the United States, Asia, Australia, and North America. We support customization and contract manufacturing, with laser printing of logos. We are among the top three professional OEM suppliers to numerous agricultural machinery factories, with CE, TS/16949, and ISO 9001 certifications. Our systematic production equipment and team guarantee our quality and delivery. In addition, we also supply related products such as agricultural gearboxes, chains, sprockets, pulleys, couplings, and other transmission components and agricultural machinery parts. Customers are welcome to order customized designs from drawings or samples.

Author: Miya
