PTO Shaft Universal Joint

PTO Shaft Universal Joint

You can find a PTO Shaft Universal Joint from Raydafon, a mature PTO shaft universal joint manufacturer and factory in China. There are a variety of types of PTO shaft universal joints. Each type offers various series options and several choices for bearing diameter. If you need a universal joint PTO shaft for your farm machinery, contact us now!Universal joints are commonly used in tractor PTO shafts that transmit rotary motion. These are available in a variety of sizes. The first step to choosing the right PTO shaft universal joint size is to take notice of the shape of the shaft. Some implements have standard output splined shafts. Some implements use round shafts with keyways. To determine the appropriate size, you need to measure from locking groove to locking groove.The length of the universal joint PTO shaft will vary depending on the make and model of the tractor. You can measure the closed length of the shaft using a measuring tape. The length of the universal joint PTO shaft should be at least one inch longer than the opening of the shaft. If the length is too short, you need to replace the part. If the length is too long, the shaft may not fit correctly. In this case, you should buy an appropriately sized shaft.

U-joints

The most common symptoms of a bad universal joint are a squeaking noise when accelerating and driving, heavy clunking noise when shifting, and a shuddering sensation when braking. If you experience any of these symptoms, take your vehicle to a reputable mechanic immediately. If you don't fix a bad PTO shaft universal joint on time, you may damage your drive shaft and end up paying a fortune for repair.There are a variety of sizes of universal joints available. The first step is to note the shape of the tubing that your agricultural universal joint is installed on. Round shafts with keyways are common in many implements. The preferred measurement is from locking groove to locking groove. A splined shaft is the simplest to install, but a U joint may be necessary if the PTO shaft is made of a different material. Here is the tractor PTO u joint size chart.

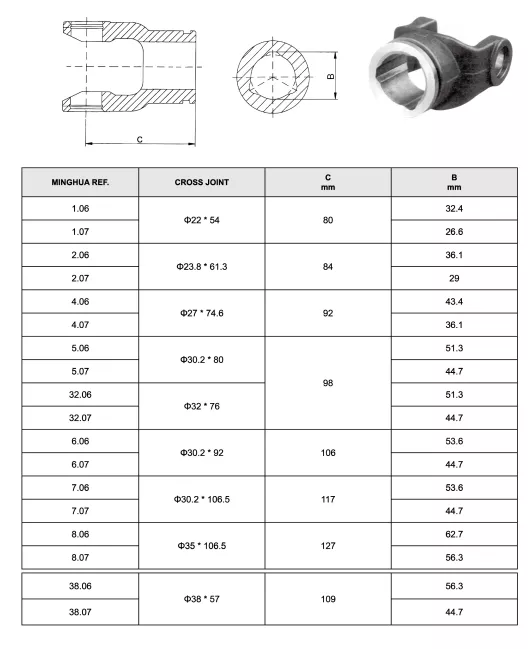

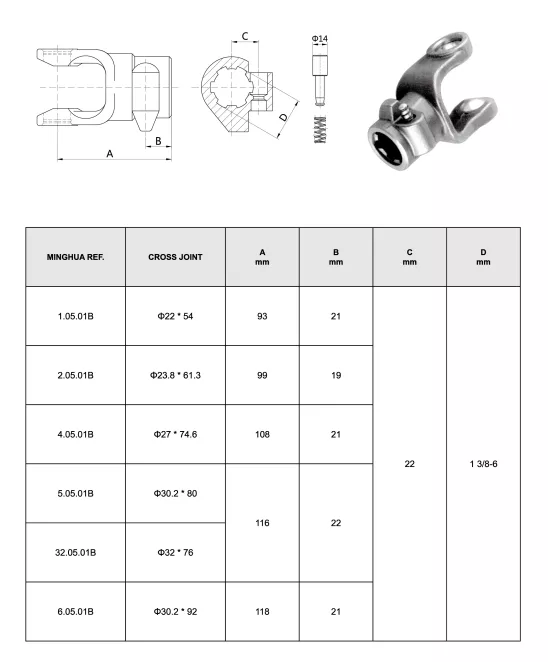

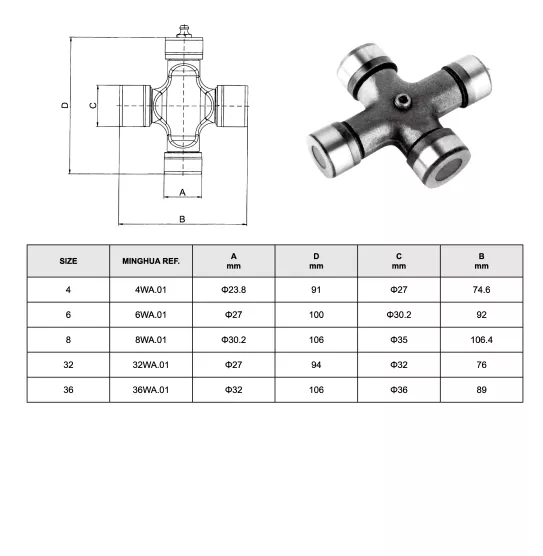

Tractor PTO U Joint Size Chart

Hooke's joint

A universal joint is a type of planetary gearbox, composed of a spider and four grease-filled roller bearings. These types of joints are capable of transmitting high torques at low friction. Their construction allows them to operate efficiently with little noise and wear. These universal joints are highly durable and can withstand extreme temperature and pressure changes. In addition, they are easy to install and disassemble, making them a good choice for agricultural applications.The working principle of the Hooke's joint is based on the rotation of the driven and output shafts in opposite directions. The input shaft is inclined downward, while the driven shaft is vertical. The input shaft will be at its maximum output position after 90 degrees of rotation. A further quarter turn will return the joint to its initial position. Thus, it is highly efficient for farming machines. The rotary motion of a universal joint PTO shaft is a key component of any agricultural machinery.

Thompson coupling

The Thompson coupling universal joint is a type of planetary transmission that uses a ball-and-socket coupling. The ball is located in the center of the piston and is attached to a spring-loaded lever arm that moves the cylinder. The spring-loaded lever arm moves the cylinder by a fixed amount. This is an ideal solution for small-scale agriculture and forestry operations.

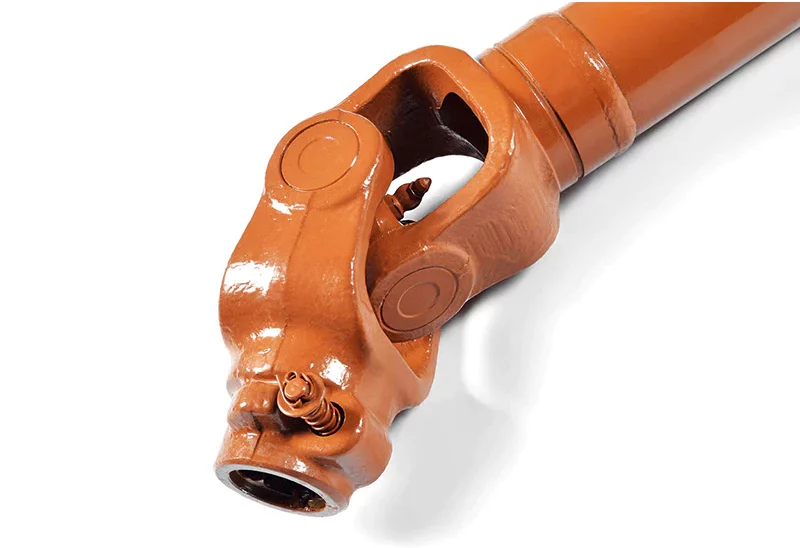

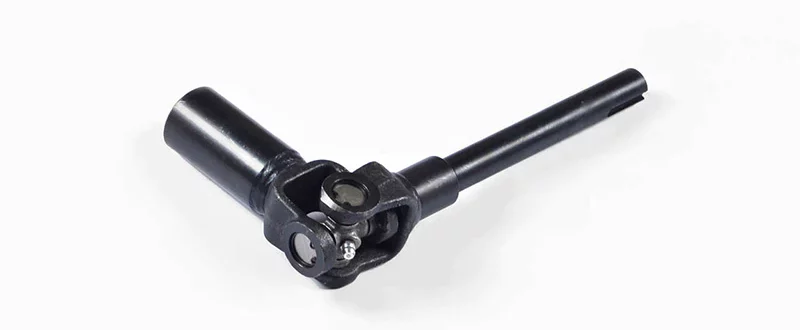

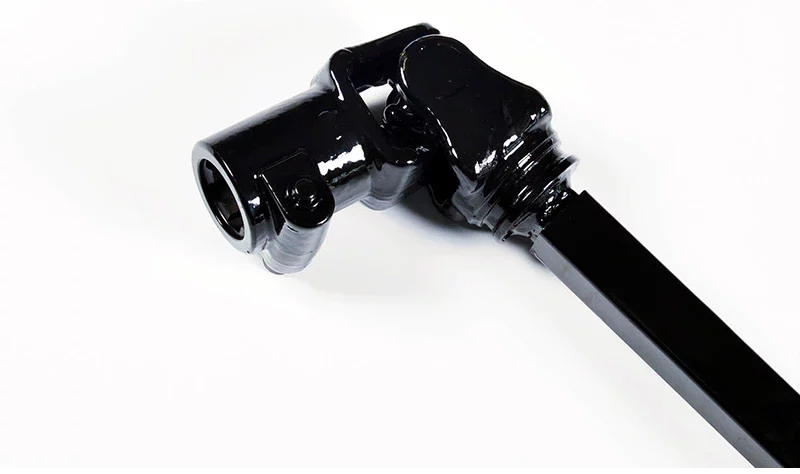

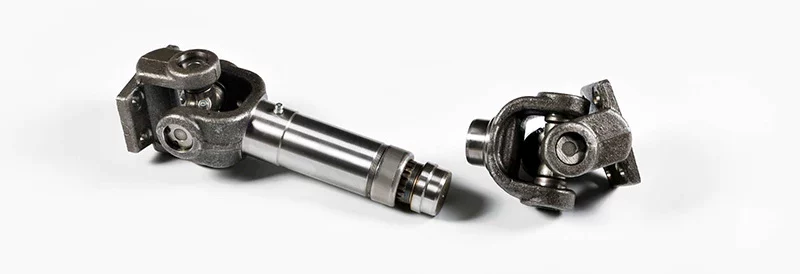

Raydafon Universal Joint PTO shaft

Raydafon offers a variety of universal joints for your power take-off needs. These universal parts feature a black oxidization finish, which improves their corrosion resistance. The universal joints are suitable for a variety of PTO drive shafts, including mowing attachments, tillers, cutters, and other agricultural equipment. The Raydafon universal joint PTO shaft is a high-quality power take-off model that works perfectly even at maximum speed and rotations.Our PTO drive shaft universal joints are made of high-strength steel. The durability and high-end construction make them the ideal unit for any tractor or power equipment application. The grease zerk is centrally located for easy grease application and comes with a grease lubricant.

How is a Tractor PTO Shaft Universal Joint Measured?

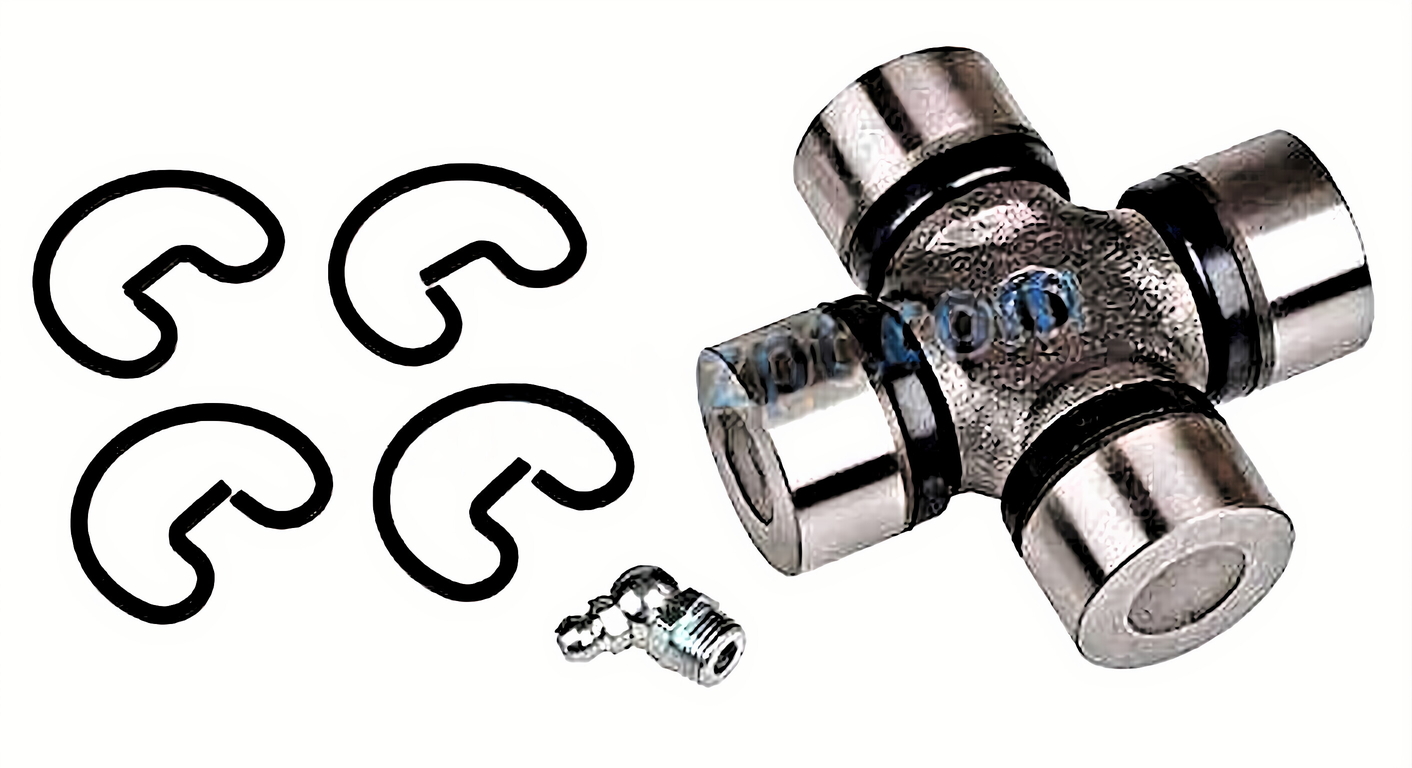

To determine the series of your PTO, take two measurements of the cross and bearing kit at the tractor-end driveline. Measure the outside diameters for the PTO drive shaft u-joint caps using calipers. This would be equivalent to measuring the inner holes for the yoke ears.`

What You Need to Know More About a Tractor PTO Shaft Universal Joint

If you're in the market for new tractor PTO shaft universal joints, you've come to the right place. Learn about the dimensions, design, material, and maintenance of PTO shaft universal joint before making your final decision. Then, get a free quote from us and we can help to guide you to install it. Let’s have the inside scoop on this important component of a tractor's drive train.

Dimensions of PTO Shaft Universal Joint

When comparing tractor PTO shaft dimensions to those of other implements, the distance from the end of the PTO shaft to the point at which it attaches to the implement must be approximately equal. The distance from the end of the universal joint PTO shaft to the hitch point is generally over 14 inches. In some cases, the distance between the hitch and the universal joint PTO shaft must be adjusted in order to achieve the right angle.If you're unsure of the proper size for your tractor, you can measure the u-joint's outside diameter using calipers. You can also use a pair of calipers to measure the inside diameter of the yoke ear's locking groove. After you've made your measurements, compare them to the cross and bearing identification chart to confirm that the correct size was purchased.

Design of PTO Shaft Universal Joint

The design of the tractor universal joint PTO shaft is the critical factor in preventing vibration. The universal joint PTO shaft of a tractor is long enough to extend from the hitch point to the input shaft of an implement, but not too long to cause bottoming out. Ideally, a tractor PTO shaft should extend 14 inches or more, but that can be too short for some implements. A longer shaft also prevents the two parts of the PTO shaft from seperating when the tractor is cornering.The modern drivelines are complicated engineering marvels with astounding horsepower output. Each part of the driveline transmits torque over three dimensions, which is the basis of trigonometry. Similarly, a tractor's PTO shaft should be designed to withstand the expected torque load. The design of tractor PTO shaft universal joint should be sturdy and durable, and be able to withstand the torque loads imposed by the tractor.

Material of PTO Shaft Universal Joint

There are several different types of parts in a tractor universal joint PTO shaft. You can find them in all kinds of different machines, from low-end salons to mid-range models. These parts are also used in off-road vehicles and agriculture machinery, as well as heavy-duty vehicles and specific-purpose vehicles. To find the right one for your tractor, you should first determine what it is made from. These parts are made of rubber, metal, plastic, or plastic composite.The first step in choosing the right PTO Shaft universal joint is to measure the length of the PTO shaft. The closed length of the shaft will help you determine the correct series size for your tractor's horsepower. Then, you can find out what type of implement end the shaft has. Then, use the PTO yoke size chart to choose the correct one.

Maintenance of PTO Shaft Universal Joint

If you're planning to use your tractor for an extended period, you'll need to perform regular maintenance on your PTO shaft. To extend the lifetime of your tractor universal joint PTO shaft, you should lubricate it at least once a year. Regular grease changes prevent the universal joint PTO shaft from seizing, and should be done after 20 hours of continuous use. If you'd like to do this yourself, there are several steps you can take.The first step is to remove the protective plastic shield from the driveline shaft. To remove the cover, insert a flat-bladed screwdriver into the retention slot on each side of the plastic tube. Then, slide the plastic tube and bell housing back onto the shaft until they click into place. If they do get loose, replace them immediately. You can repeat the process as necessary. After the removal process, you'll need to make sure that the driveline shield has no deteriorating areas.

Universal Joints PTO Shaft for Agricultural Gearbox

Raydafon, a reliable PTO shaft manufacturer and factory in China, offers various series options and several choices for bearing diameter. If you need a universal joint PTO shaft for your agricultural gearbox and other farm machinery, contact us now!
