T Series PTO Drive Shaft Triangular Tube

RaydaFon Group's T Series PTO Drive Shaft Triangular Tube delivers superior power transmission for industrial and agricultural equipment, featuring a robust triangular design that enhances torque capacity and durability. Its high-strength steel construction ensures reliable performance in demanding environments, ideal for farmers, machinery operators, and maintenance professionals. Experience smoother operations and reduced downtime with this innovative shaft, standing out with precision engineering and compatibility. Feel confident in your equipment's efficiency—invest in RaydaFon's trusted solution for long-lasting, high-performance power transfer.

Send Inquiry

Product Description

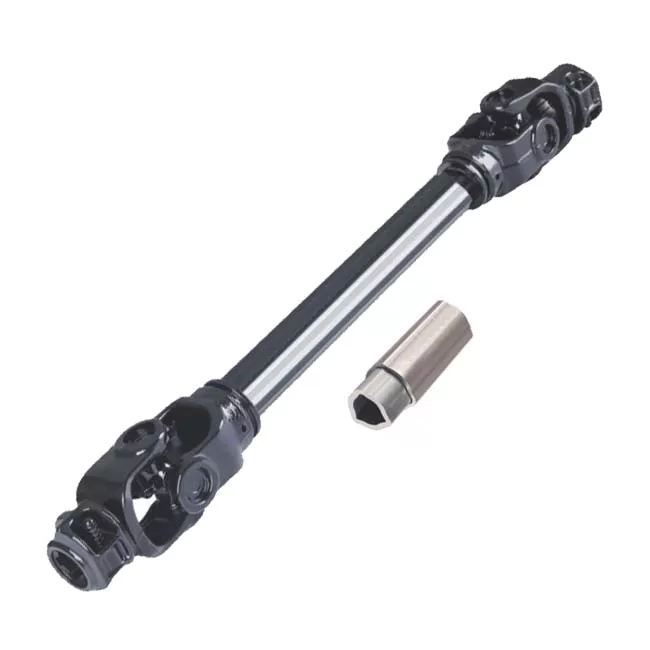

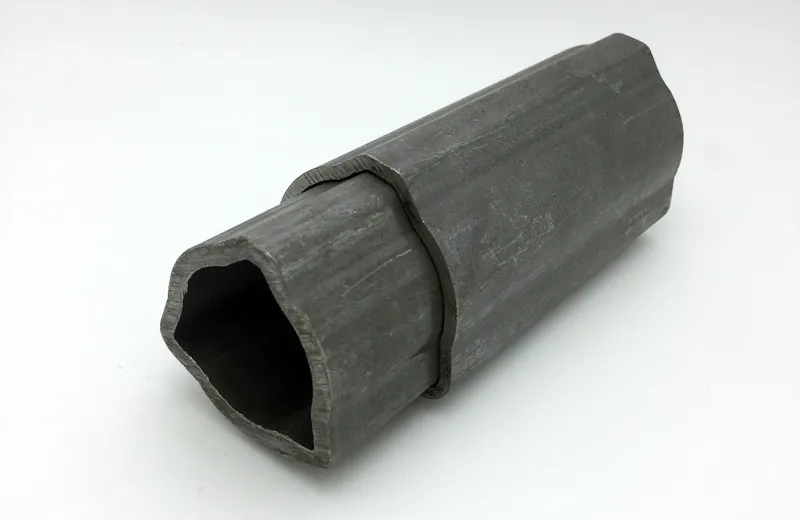

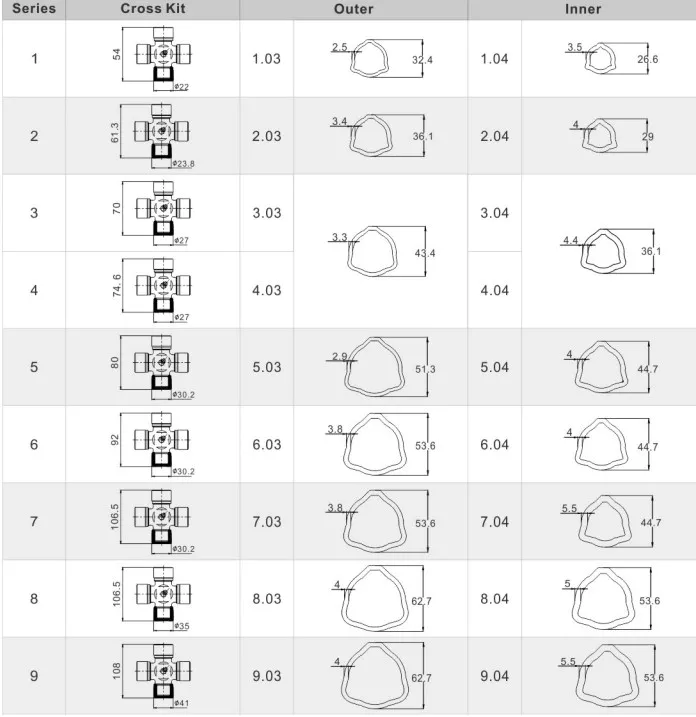

Triangular PTO Shaft Tube T1 T2 T3 T4 T5 T6 T7 T7N T8 T38 T9 T10

The PTO shaft is one of the very important pieces of tractor equipment used to transmit power from the tractor to the equipment behind the tractor. Whether you are going to use a haymaker, tiller, or any other equipment, please note the importance of the correct sizing of the PTO shaft. A triangular tube is one of the tubing types that we can offer. T Series PTO Drive Shaft Triangular Tube

Benefits of T series Triangular PTO Shaft

Premium quality PTO shafts.
Unique lever release PTO shaft cover.
PTO universal joint with long-life triple lip internal seals.

Series	540 tr./min			1000 tr./min			MP(NM)
Series	Kw	Pk	Nm	Kw	Pk	Nm	MP(NM)
T1	12	16	210	18	25	172	320
T2	15	21	270	23	31	220	450
T3	22	30	390	35	47	330	640
T4	26	35	460	40	55	380	780
T5	35	47	620	54	74	520	1050
T6	47	64	830	74	100	710	1450
T7	55	75	970	87	118	830	1800
T7N	55	75	970	87	118	830	1800
T8	70	95	1240	110	150	1050	2250
T38	78	105	1380	123	166	1175	2500
T9	88	120	1560	140	190	1340	2800
T10	106	145	1905	170	230	1650	3500

PTO Shaft Triangular Tube

PTO Shaft Tube Type from Raydafon

At Raydafon, we connect our customers with the right PTO shaft tube components for their equipment. We stock our warehouses with only the safest and most reliable farm equipment and parts on the market, and our team will provide expert guidance when choosing the right products. We take every measure to help our customers find products that meet their needs.Within our selection of high-quality PTO shaft tubes, you can choose from dozens of inner and outer PTO shaft tube components. Our PTO shaft tube comes in various sizes and models, so you can easily find an option that accommodates your machines’ requirements.We offer shapes, including lemon PTO shaft tubing, PTO star tubing, triangular PTO shaft tubing (also known as tri-lobe), hexagonal PTO shaft tube, rectangle PTO shaft tubing, and spline tubing options. Our PTO shaft tube selections can be used in farm vehicles ranging from basic tractors to heavy-duty fertilizer equipment. Certain products in this line are interchangeable with Replacement of Bondioli & Pavesi and Replacement of Walterscheid components.

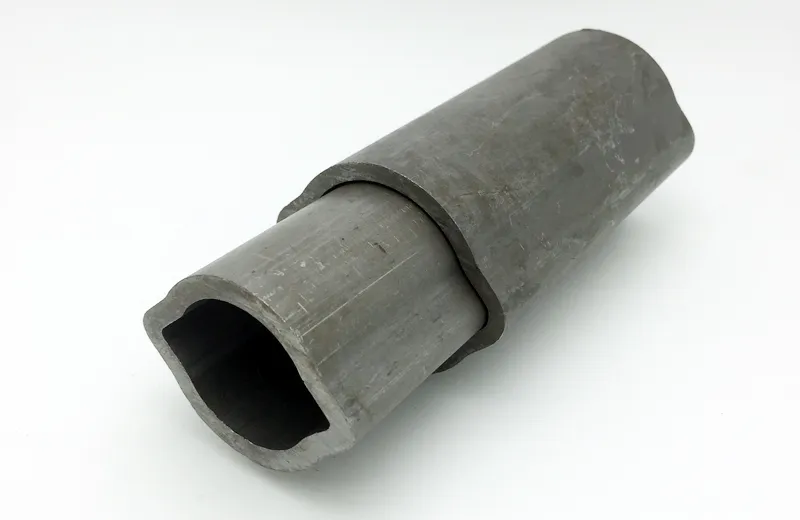

Triangular PTO Shaft Tubing	Lemon PTO Shaft Tubing

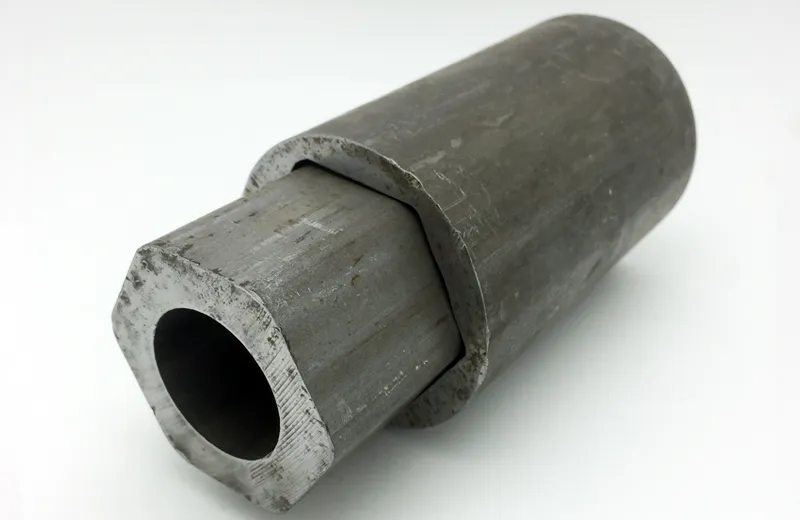

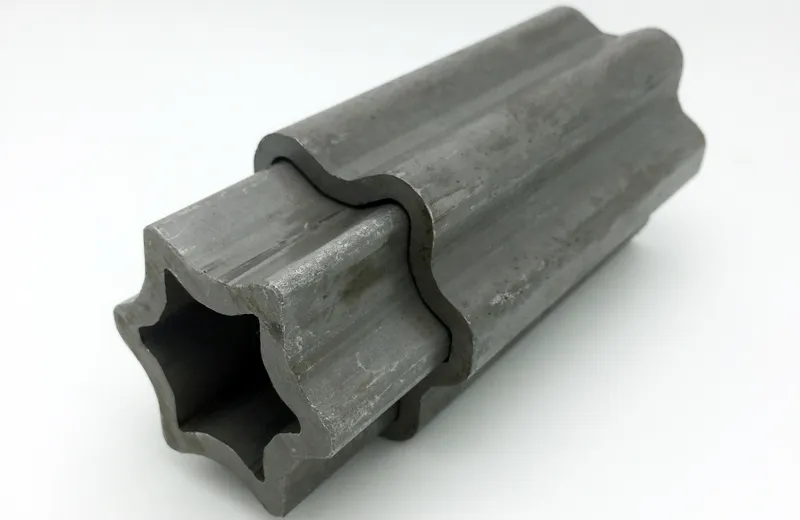

PTO Star Tubing	Hexagonal PTO Shaft Tube

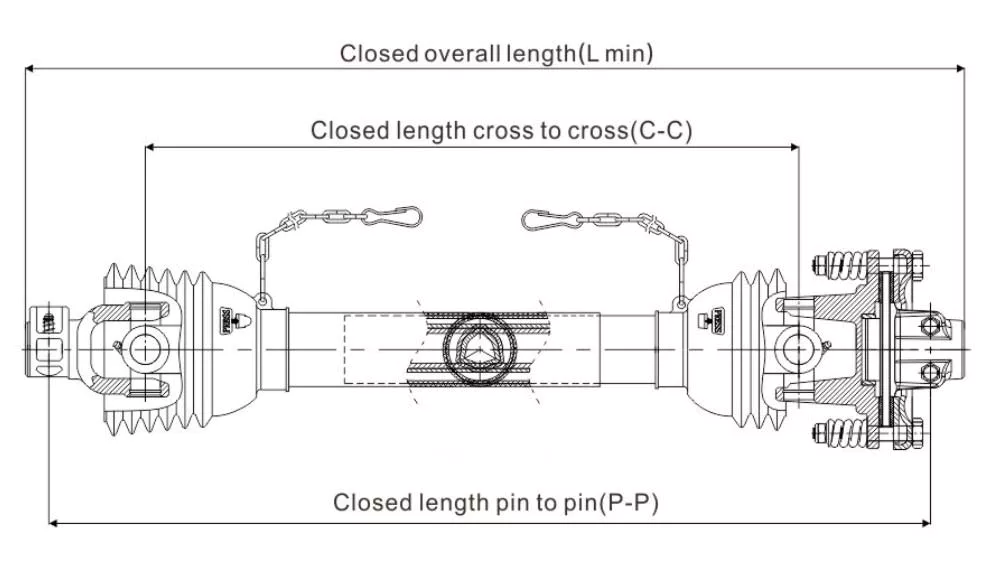

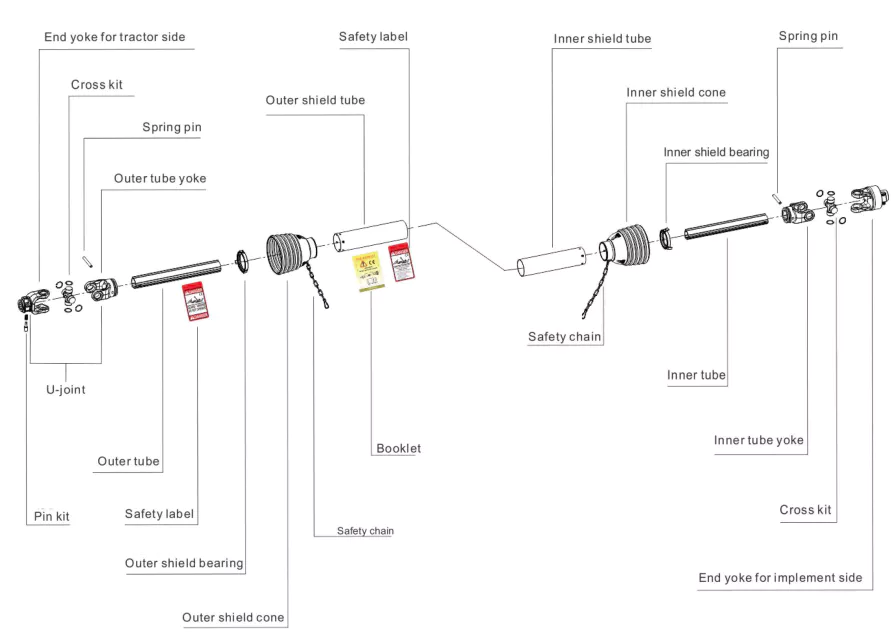

Agricultural PTO Shaft Parts Diagram

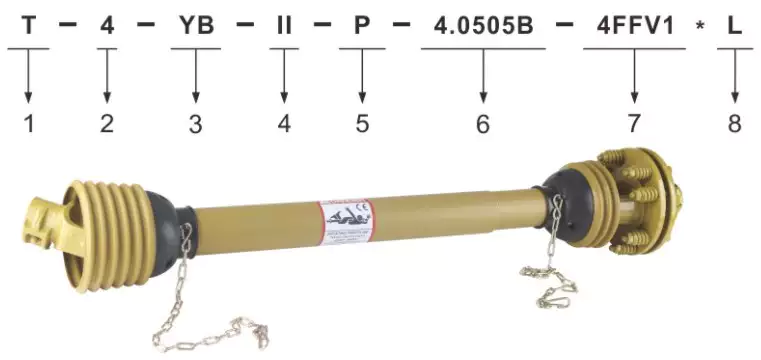

PTO Drive Shaft Code Explanation

Product # in picture	Description
1	The Types of Tubes(e.g: T: L, ST: G)
2	The series of cross kits
3	The Code of Color(YB=Yellow+Black)
4	The Code of Safety Shield Structure
5	Connection Method Pin Connected
6	The Tractor End Yokes
7	The Implement End Yokes
8	Minimum Overall length

PTO Shaft Specification Parameter

Function	Drive Shaft Parts & Power Transmission
Usage	Kinds of Tractors & Farm Implements
Yoke Type	Double push pin, Bolt pins, Split pins, Pushpin, Quick release, Ball attachment, Collar…..
Processing Of Yoke	Forging
Plastic Cover	YW; BW; YS; BS; Etc
Color	Green; Orange; Yellow; Black, Ect.
Series	T1-T10; L1-L6; S6-S10;10HP-150HP with SA, RA, SB, SFF, WA, CV Etc
Tube Type	Lemon, Triangular, Star, Square, Hexangular, Spline, Special Ect
Processing Of Tube	Cold drawn
Spline Type	1 1/8″ Z6;1 3/8″ Z6; 1 3/8″ Z21 ;1 3/4″ Z20; 1 3/4″ Z6; 8-38326 8-42367; 8-48428;

PTO Shaft Installation Instruction

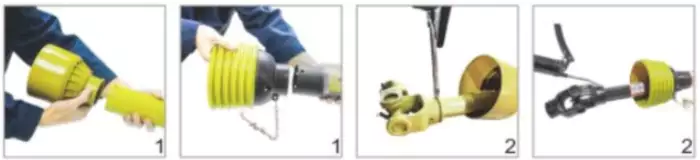

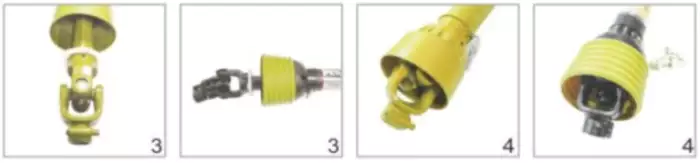

Install Assembly

1. Press-fit plastic pipe and plastic cap.2. Fill the groove on the horn with oil.

3. Slide the nylon bearing into the groove.4. Align nylon bearing and plastic protective cover. T Series PTO Drive Shaft Triangular Tube

Disassembly

1. remove the nylon bearing clamp (three places) with a screwdriver, and then separate the steel pipe and plastic protective cover.2. Take off the nylon bearing from the groove of the yokes.3. repeat the above-mentioned steps for the other side. T Series PTO Drive Shaft Triangular Tube

How to Shorten a PTO Shaft?

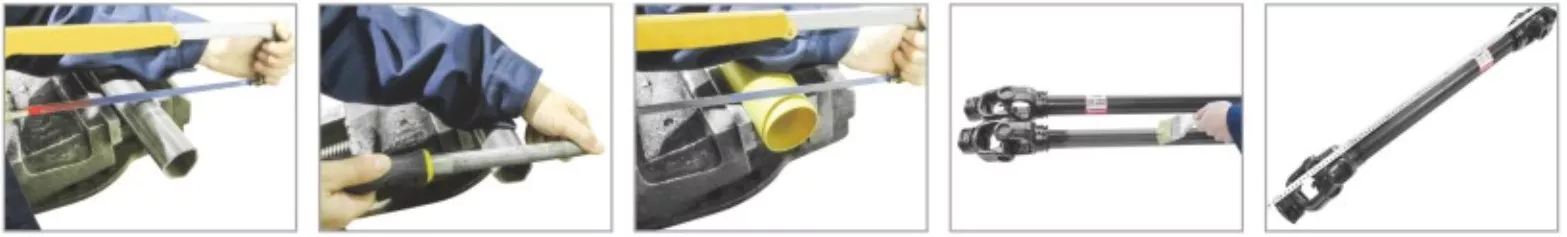

1. Remove the safety shield.2. Shorten the inner and outer tubes according to the required length, and the inner and outer tubes shall be shortened by the same length at one time3. Deburr the edges of the drive tubes with a file and removes all filings from the tubes.4. Shorten the inner and outer plastic pipes according to the required length, and the inner and outer plastic pipes shall be shortened by the same length at one time.5. Grease the internal drive tubes and reassemble them with a safety shield.Check the minimum and maximum length of the driveshaft installed on the machine. In working conditions, the drive tubes should overlap 2/3 length, and the plastic tube should never be separated. T Series PTO Drive Shaft Triangular Tube

PTO Shaft Lubrication

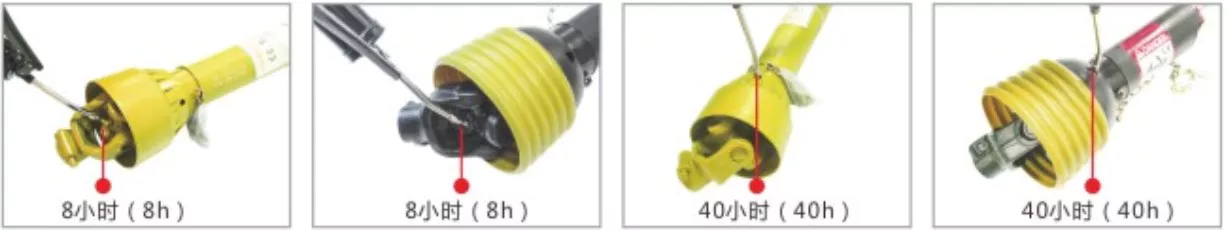

Frequent lubrication is required. Grease the driveline shaft parts at hourly intervals as indicated on the drawing left. T Series PTO Drive Shaft Triangular Tube

The same assembly method is used for both types of safety shields.

PTO Shaft for Agricultural Gearboxes

Agricultural gearbox and PTO shaft work together to transfer mechanical power between farm tractors. A PTO shaft converts engine energy into hydraulic pressure. This is what allows the tractor to pull heavy loads. When properly functioning, it reduces the risk of damage to the tractor and to the operator. When used properly, it is an important component of a tractor, but it can also become defective. When choosing an agricultural gearbox, consider the durability and mechanism of the product, as well as its materials. A durable gearbox will last for many years, avoiding repeated replacements. A high-quality agricultural gearbox will be durable for many years to come, and you don't want to end up replacing it for a while. This can be costly, so consider your needs when purchasing an agricultural gearbox and PTO shaft. T Series PTO Drive Shaft Triangular Tube
