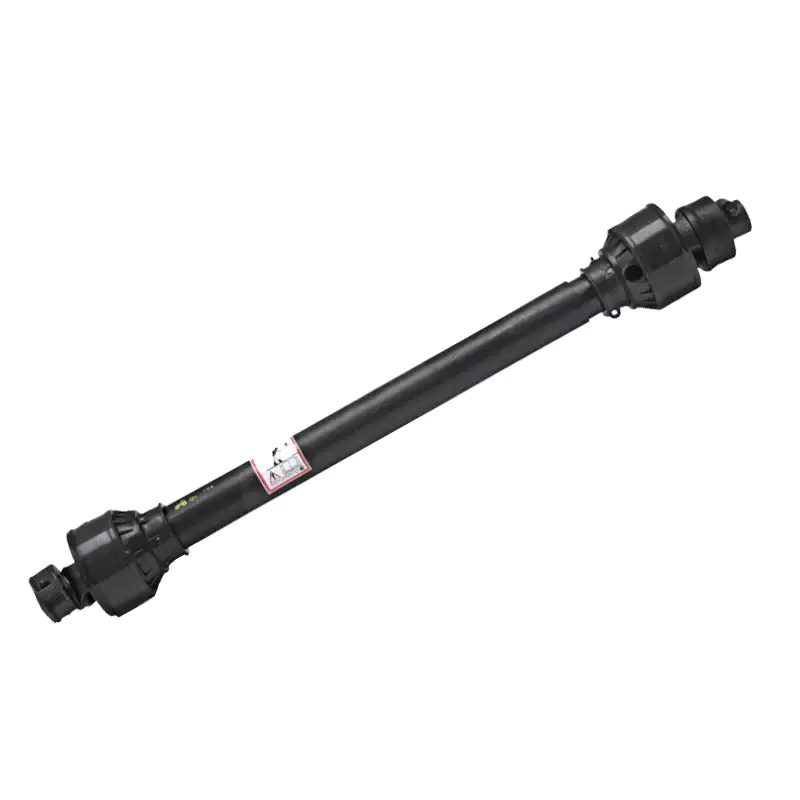

BONDIOLI & PAVESI PTO Shaft Replacement G7 860mm

Part no.: 4157G7N086CE007N47

Introduction to PTO Shaft

Power Take-Off (PTO) shafts are essential components in various machinery. They transfer power from the engine to the implement. Let's look at the main features of a PTO shaft:

• Universal joint size A profile (mm): 30,2 x 91,5
• Universal joint size B profile (mm): 30,2 x 91,5
• Tractor version: 1 3/8" 6 splines
• Implement version: 1 3/8" 6 splines
• Lz (mm): 860

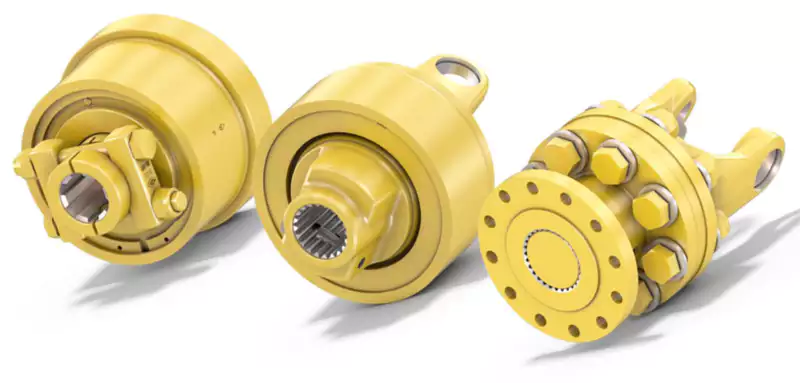

Understanding Overload Clutch

An overload clutch is a type of connection that protects the PTO shaft and related equipment in case of excessive load or overload. The key functions of an overload clutch are:

• Protecting the transmission system by reducing torque transfer when the system encounters abnormal or excessive load.
• Preventing accidents which can occur when the system loses control under excessive load.
• Adapting to load fluctuations, maintaining smooth operation of the transmission system.
• Adjusting and protecting the power source when load suddenly increases.

Choosing the Right PTO Shaft

When choosing the right PTO shaft, several parameters should be considered:

• Length: Distance from the transmission device to the receiving device.
• Rated Power: The power that the PTO shaft is capable of transmitting.
• Type and Connection Method: The type of shaft and the way it connects to the machinery.
• Torque Transmission Capacity: The amount of torque that the shaft can transfer.
• Environmental Requirements: The protective sleeve, sealing performance, and durability.
• Safety Features: Reliable card sleeve devices, card pins, etc.
• Compatibility: How well the PTO shaft fits with your machinery.
• Certification: CE certification is important for ensuring safety and quality standards.

Importance of CE Certification

A CE certified PTO shaft offers several benefits:

• Compliance with the relevant regulations and standards of the European Union.
• Necessary condition for entering the European market.
• Reliable guarantee of the safety performance of the PTO shaft.
• Confidence in product quality and safety for the customers.

Safety in Using PTO Shafts

It is crucial to maintain safety when using a PTO shaft:

• Wear appropriate personal protective equipment.
• Familiarize yourself with the operating manual.
• Regularly inspect and maintain the PTO shaft.
• Avoid getting clothing entangled in the shaft.
• Keep people away from the shaft when it is operating.

Our PTO Shafts

At Raydafon Group, we offer PTO shafts that are CE, TS/16949, ISO 9001 certified. Our PTO shafts are designed with the same dimensions and installation methods as BONDIOLI & PAVESI, making them perfect replacements.

Structure of PTO Shafts

A PTO shaft consists of several key parts:

• Housing: The outer cover that protects the internal components.
• Drive Shaft: The main component that transfers power.
• Universal Joint: Allows the drive shaft to move in different directions.
• Protective Cover: A cover that protects the drive shaft and the user.
• Connectors: Connect the PTO shaft to the machinery.

Applications of PTO Shafts

PTO shafts have various applications:

• Agricultural machinery such as mowers, harvesters, straw crushers, sprayers, mixers, etc.
• Industrial equipment such as pumps, generators, centrifuges, mixers, etc.
• Transportation equipment like trailers, semi-trailers, and tow trucks.
• Solar systems where PTO shafts are used to rotate and adjust tracker photovoltaic panels.

Adjusting PTO Shaft Length

PTO shaft length can be adjusted by following these steps:

• Remove the plastic protective cover.
• Shorten the inner and outer tubes according to the required length.
• Remove burrs with a file.
• Shorten the inner and outer plastic tubes according to the required length.
• Oil the inner tube of the steel pipe and then reinstall the protective cover.

About Raydafon Group

Raydafon Group is a leading manufacturer and marketer of pto shafts, industrial universal joints, and automotive drive shafts in China. Our products are highly acclaimed by customers in Europe, the United States, Asia, Australia, and North America. We offer customization and OEM services, with the capability to laser print logos. We are among the top three professional OEM suppliers for many agricultural tool factories. Our production equipment and team guarantee our quality and delivery.

Author: Miya
