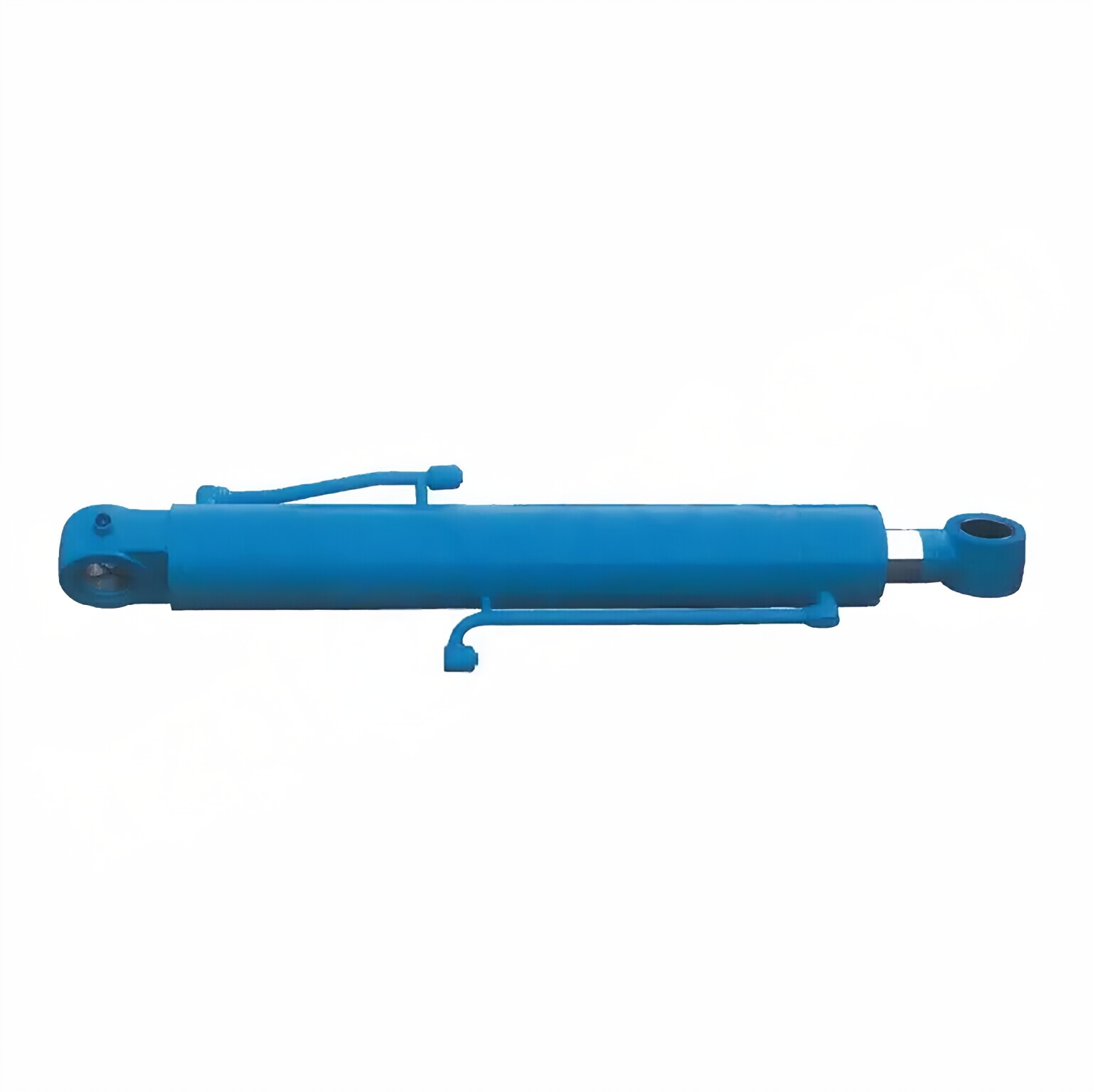

Boom Cylinder For Volvo Small Excavator EC170D

Boom Cylinder For Volvo Small Excavator EC170D

Introduction

The boom cylinder for Volvo small excavator EC170D is an important hydraulic component that provides stability and control to the excavator arm. The boom cylinder is responsible for the movement and positioning of the arm, which is crucial for any excavation or construction project.

Features

• High Strength and Durability: Usually made of high-strength steel or aluminum, the boom cylinder can withstand harsh working environments and heavy loads. The design considers wear resistance and corrosion resistance, extending its service life.
• Efficient Hydraulic Operation: Using hydraulic oil pressure to achieve smooth extension and retraction, the boom cylinder can quickly respond to controls, providing powerful pushing and pulling forces suitable for handling heavy objects and complex tasks.
• Various Types: Choose from a single-acting cylinder (which uses hydraulic in only one direction) or a double-acting cylinder (which uses hydraulic in two directions) to meet different operational needs. Some models have telescopic design, allowing for greater extension without increasing external dimensions.
• Precise Control: Provides precise control over the arm's angle and height, adapting to different operational needs. Combined with a hydraulic control system, it can achieve more complex actions and higher operational flexibility.
• Perfect Replacement: Our product can perfectly replace these hydraulic cylinders.

Applications

The boom cylinder is commonly used in construction, forestry, and material handling industries.

Construction

The boom cylinder is often used in cranes, excavators, and backhoes to lift and position materials.

Forestry

The boom cylinder is used in loader machines to expand the range of the boom to pick up and move the logs.

Material Handling

In forklifts, the boom cylinder is used to lift and lower forks or attachments, improving efficiency in warehouses and loading docks.

Design Considerations and Selection Criteria

• Bearing Capacity: The boom cylinder must be able to withstand the load capacity required for the specific application.
• Sealing: Various seals, such as piston seals and rod seals, are used to ensure that hydraulic oil does not leak out of the cylinder.
• Durability: The cylinder body and piston rod are made of high-strength materials to resist wear and corrosion, ensuring long-term durability.
• Safety: Proper installation, maintenance, and safety measures can ensure the safe operation of the boom cylinder.
• Maintenance: Regular maintenance, including checking and replacing seals, lubricating, and inspecting, can extend the life of the boom cylinder.

Sealing and Lubrication

Various seals are used in the boom cylinder to prevent hydraulic oil from leaking out. The seals are made of wear-resistant materials such as polyurethane and nitrile rubber. The cylinder body and the threaded end surface are finely processed to improve wear resistance. Proper lubrication is also essential to ensure the smooth operation of the boom cylinder. Regular oil checks and lubrication can prolong the life of the boom cylinder.

Maintenance and Repair

Regular maintenance and inspection of the boom cylinder can prevent potential problems. Maintenance tasks include checking and replacing seals, adjusting the cylinder, and lubricating moving parts. If needed, repair or replacement of parts may be necessary. Proper installation and alignment of the boom cylinder are also critical for safety and efficient operation.

Safety and Environmental Considerations

Proper safety measures must be taken when installing and operating the boom cylinder. Operators should be trained on safe operation and handling of the excavator. Environmental considerations should also be taken into account, such as proper disposal of hydraulic oil and other hazardous substances.

Fault Diagnosis and Troubleshooting

Common problems with the boom cylinder include leakage, insufficient extension or retraction, and abnormal noise. Proper maintenance and inspection can prevent these problems. If problems occur, diagnosis and troubleshooting should be performed to identify the root cause and implement the appropriate solution.

About Our Company

We are a manufacturer of hydraulic cylinders that can replace the original equipment manufacturer's products. Our company has a complete range of products and has become one of the leading manufacturers and wholesale distributors of hydraulic cylinders in the domestic and international markets. We adhere to the principle of excellent quality and rely on the industrialized production management strategy of fine manufacturing workshops. We continuously improve our manufacturing platform by investing in technology, high-end manufacturing equipment, and professional testing systems. We have a strong ability to create high-efficiency, high-precision, and high-quality products to meet the diverse needs of our customers.

We offer professional services, international certification, customized services, production equipment, and after-sales services. We strive to provide customers with the best products and services to ensure customer satisfaction.

Author: lyl
