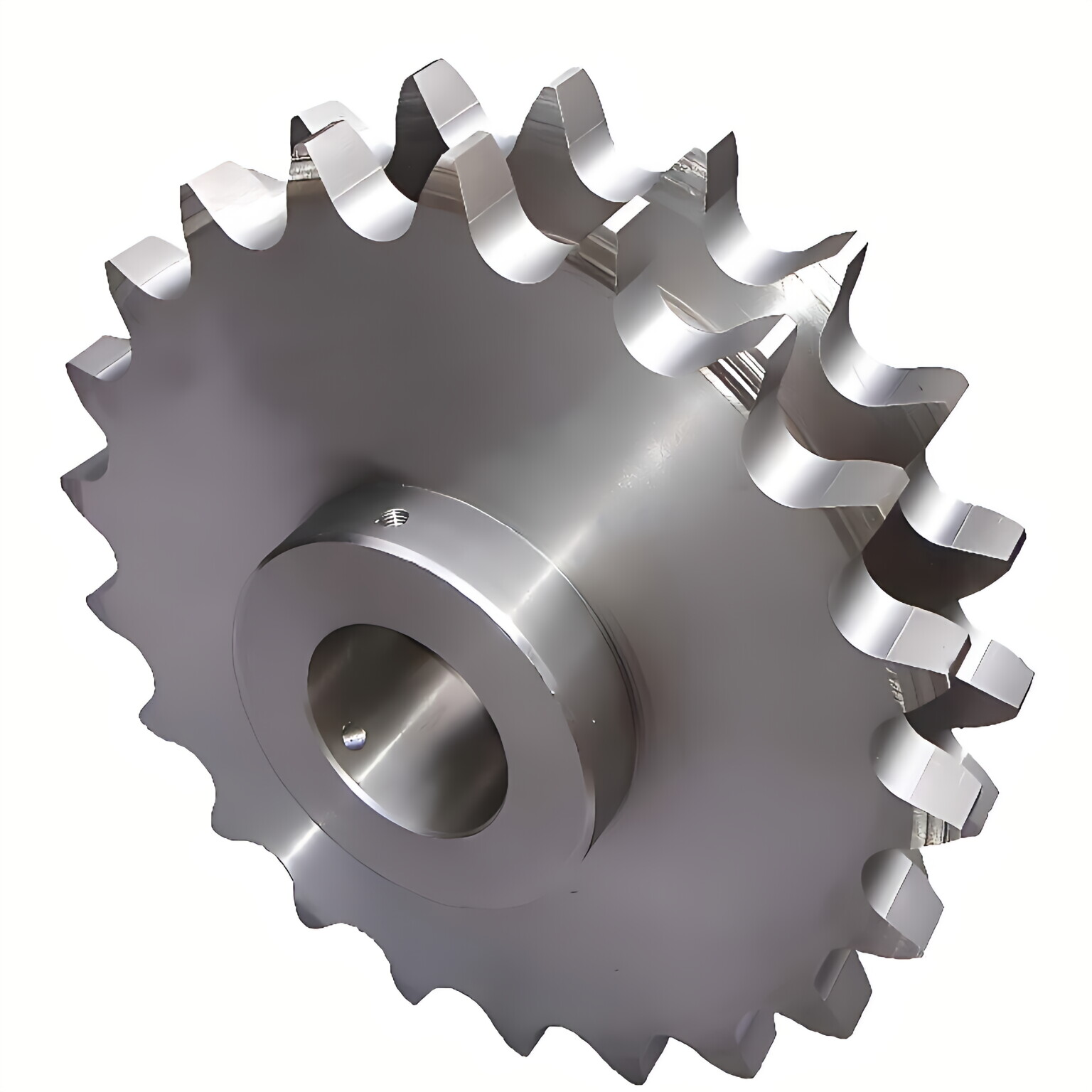

C2082H Double Pitch Sprockets

Discover the precision of Raydafon Group's C2082H Double Pitch Sprockets, engineered for heavy-duty industrial applications with advanced materials and innovative design. These sprockets ensure reliable power transmission in conveyor systems, reducing downtime and boosting efficiency. Perfect for manufacturing and logistics professionals seeking durable solutions, they deliver smooth operation and long-lasting performance. Stand out with superior strength and reduced maintenance needs compared to standard models. Elevate your machinery's reliability today!

Send Inquiry

Product Description

Our in-stock standard double pitch sprockets are manufactured out of SAE-1045 case hardened steel with extra-hardened teeth and coated with black oxide. These sprockets are extremely durable, high-strength, and manufactured to high precision tolerances. Stock double pitch sprockets include standard roller and carrier roller style.Below is a chart of all of the standard C2082H double pitch roller chain sprockets. We also stock a full line of high quality C2082H roller chain. C2082H Double Pitch Sprockets

Stock C2082H Roller Chain Sprockets

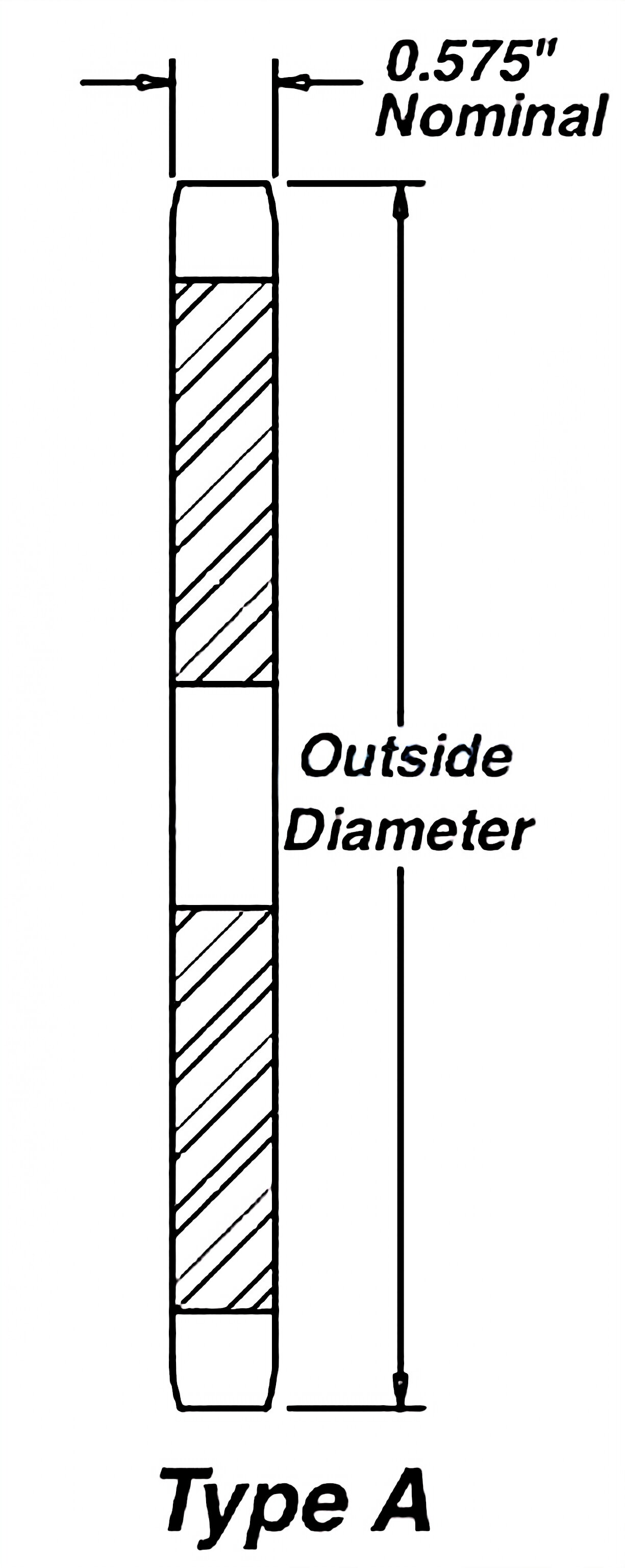

Sprocket Size	Tooth Count	Outside Diameter	Stock Bore	Maximum Bore	Length Thru Bore	Weight
*2082A11*	11	8.010"	15/16"	--	--	5.7 LBS
*2082A12*	12	8.660"	15/16"	--	--	6.8 LBS
*2082A13*	13	9.310"	1-3/16"	--	--	7.7 LBS
*2082A14*	14	9.960"	1-3/16"	--	--	9.1 LBS
*2082A15*	15	10.610"	1-3/16"	--	--	10.7 LBS
*2082A16*	16	11.250"	1-3/16"	--	--	12.4 LBS
*2082A17*	17	11.900"	1-3/16"	--	--	14.1 LBS
*2082A18*	18	12.540"	1-3/16"	--	--	15.4 LBS
*2082A19*	19	13.190"	1-3/16"	--	--	18.0 LBS
*2082A20*	20	13.830"	1-3/16"	--	--	19.2 LBS
*2082A21*	21	14.470"	1-1/4"	--	--	20.8 LBS
*2082A22*	22	15.110"	1-1/4"	--	--	23.7 LBS
*2082A23*	23	15.750"	1-1/4"	--	--	24.9 LBS
*2082A24*	24	16.390"	1-1/4"	--	--	27.6 LBS
*2082A25*	25	17.030"	1-1/4"	--	--	30.2 LBS
*2082A26*	26	17.670"	1-1/4"	--	--	32.8 LBS
*2082A28*	28	18.950"	1-1/4"	--	--	38.6 LBS
*2082A30*	30	20.230"	1-1/4"	--	--	43.8 LBS
*2082B8*	8	6.030"	1"	2-17/32"	1-3/4"	6.4 LBS
*2082B9*	9	6.700"	1"	2-3/4"	1-3/4"	8.2 LBS
*2082B10*	10	7.360"	1"	2-3/4"	1-3/4"	9.2 LBS
*2082B11*	11	8.010"	1"	2-3/4"	1-3/4"	10.1 LBS
*2082B12*	12	8.660"	1"	2-3/4"	1-3/4"	11.2 LBS
*2082B13*	13	9.310"	1-1/4"	3-1/4"	2"	15.0 LBS
*2082B14*	14	9.960"	1-1/4"	3-1/4"	2"	15.8 LBS
*2082B15*	15	10.610"	1-3/16"	3-1/4"	2"	17.8 LBS
*2082B16*	16	11.250"	1-3/16"	3-1/4"	2"	19.3 LBS
*2082B17*	17	11.900"	1-3/16"	3-1/4"	2"	21.4 LBS
*2082B18*	18	12.540"	1-3/16"	3-1/4"	2"	22.9 LBS
*2082B19*	19	13.190"	1-3/16"	3-1/4"	2"	24.4 LBS
*2082B20*	20	13.830"	1-3/16"	3-1/4"	2"	26.7 LBS
*2082B21*	21	14.470"	1-1/4"	3-1/4"	2"	28.4 LBS
*2082B22*	22	15.110"	1-1/4"	3-1/4"	2"	30.8 LBS
*2082B23*	23	15.750"	1-1/4"	3-1/4"	2"	32.2 LBS
*2082B24*	24	16.390"	1-1/4"	3-1/4"	2"	34.9 LBS
*2082B25*	25	17.030"	1-1/4"	3-1/4"	2"	37.8 LBS
*2082B26*	26	17.670"	1-1/4"	3-1/2"	2"	41.5 LBS
*2082B28*	28	18.950"	1-1/4"	3-1/2"	2"	47.7 LBS
*2082B30*	30	20.230"	1-1/4"	3-1/2"	2"	54.5 LBS
