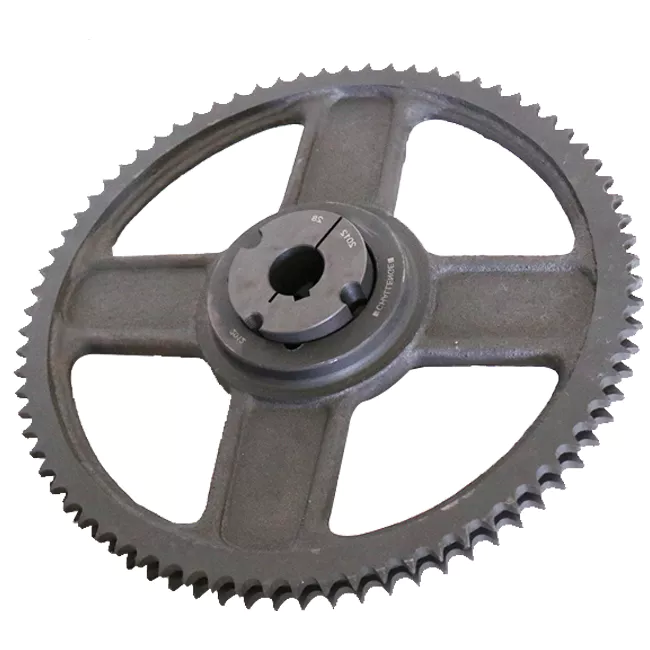

Cast Iron Sprocket

Cast Iron Sprocket

• Selection of materials - Large and small sprockets are formed by stamping with high-quality carbon structural steel.
• Processing and treatment technology - adopt advanced gear milling technology to make the tooth profile more accurate. The whole sprocket is quenched and tempered, significantly improving its comprehensive mechanical properties, and the tooth hardness is above 68-72HRA
• Product series - economical and practical ordinary and superior quality chain wheel.
• Each procedure in the production process is strictly controlled.

  Feature of the cast iron sprocket:

• Multiple materials availableIt can be customized according to the user's demand: carbon steel, stainless steel, and other materials.
• Heat treatment processingThe sprocket is processed by heat treatment to make it have qualified hardness.
• The edges and corners are neat and free from burrs.The chain wheel is machined with a machine tool, with neat edges and no burrs.
• Long service lifeStrict material selection, high hardness, stable operation, and long service life
• Stable operationIt can withstand fast operation speed and stable operation without jitter.

Cast iron sprocket list：

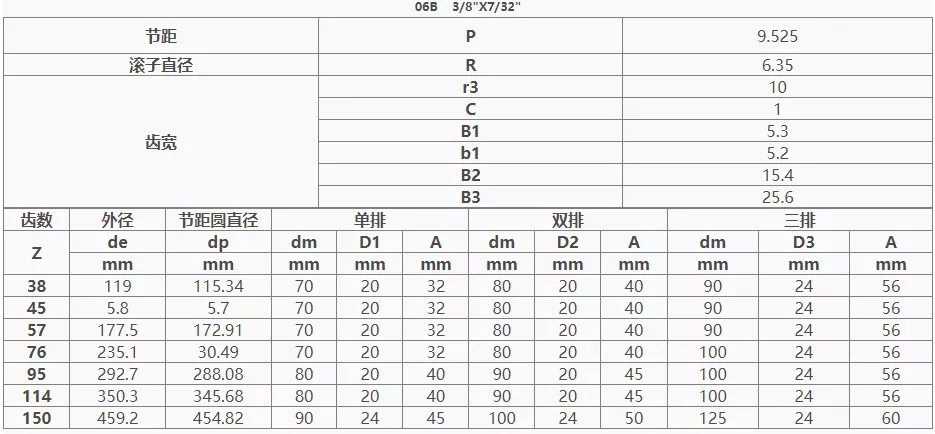

06B cast iron sprocket

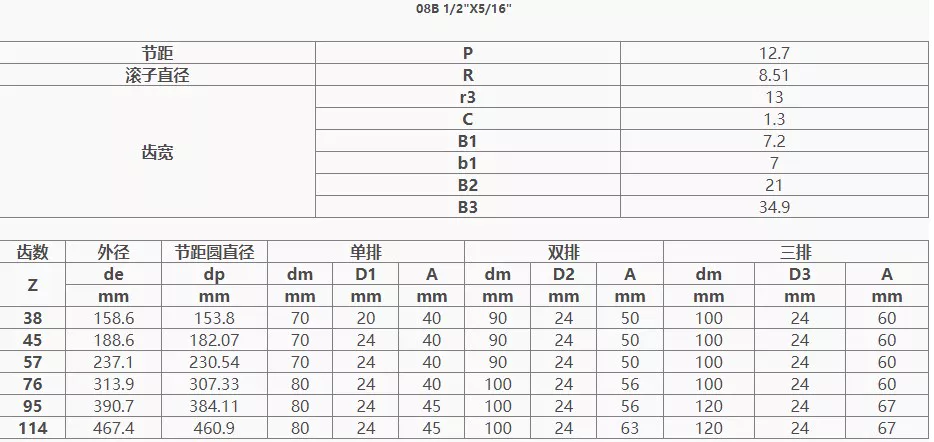

08B cast iron sprocket

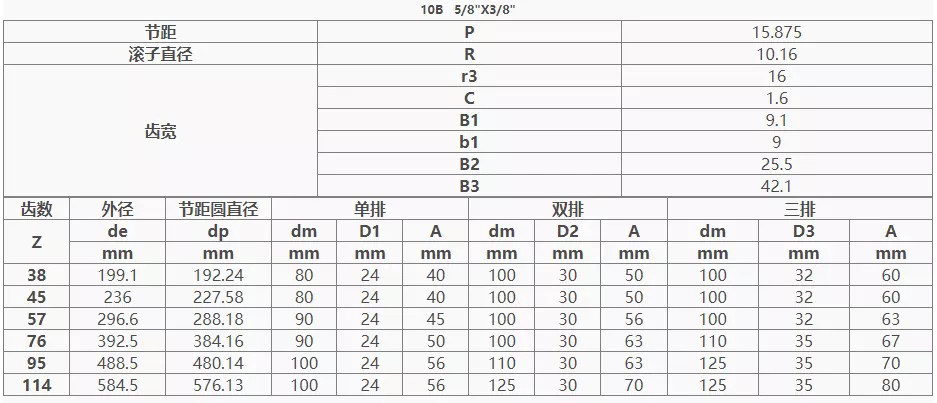

10B cast iron sprocket

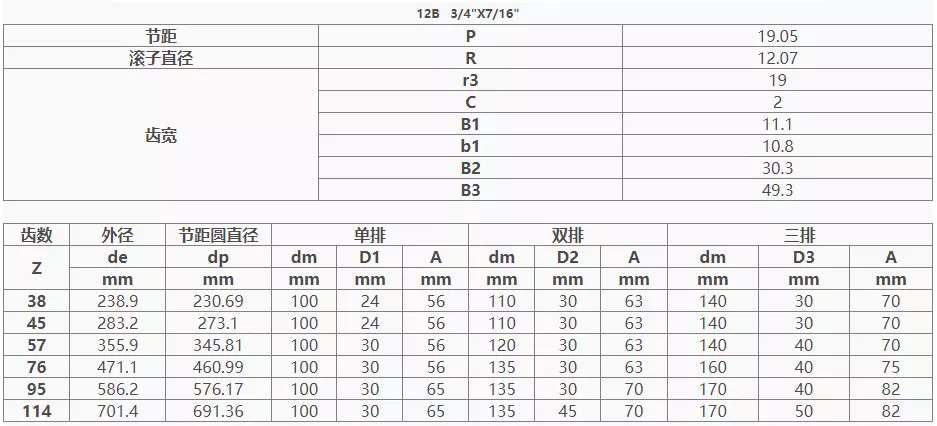

12B cast iron sprocket

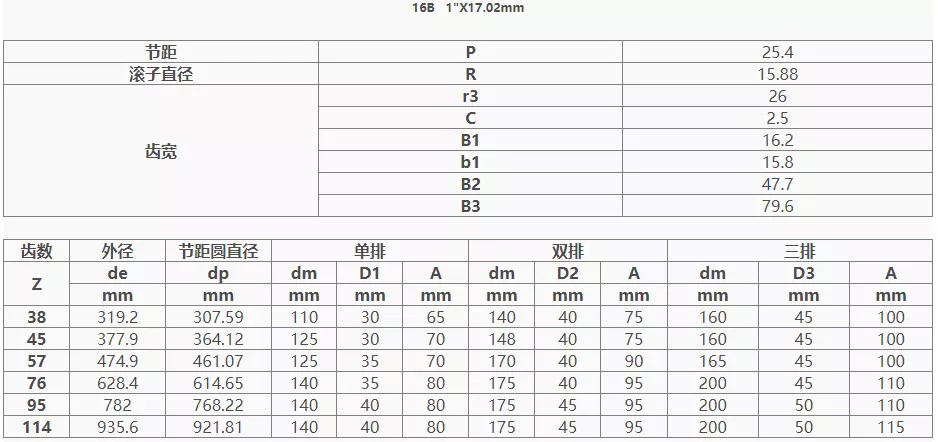

16B cast iron sprocket

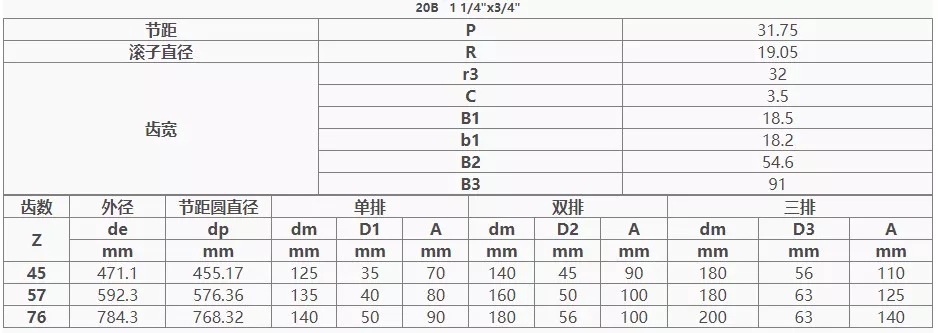

20B cast iron sprocket

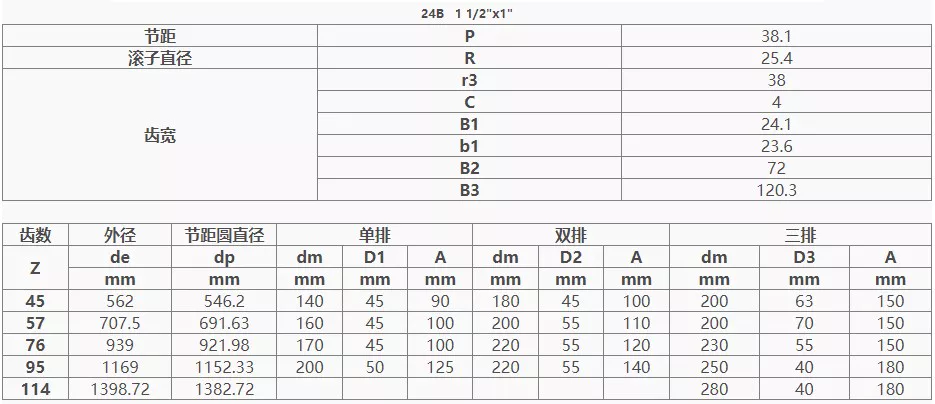

24B cast iron sprocket

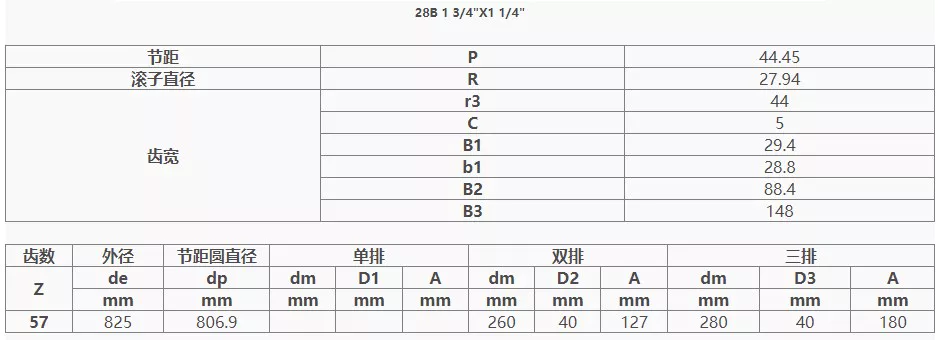

28B cast iron sprocket

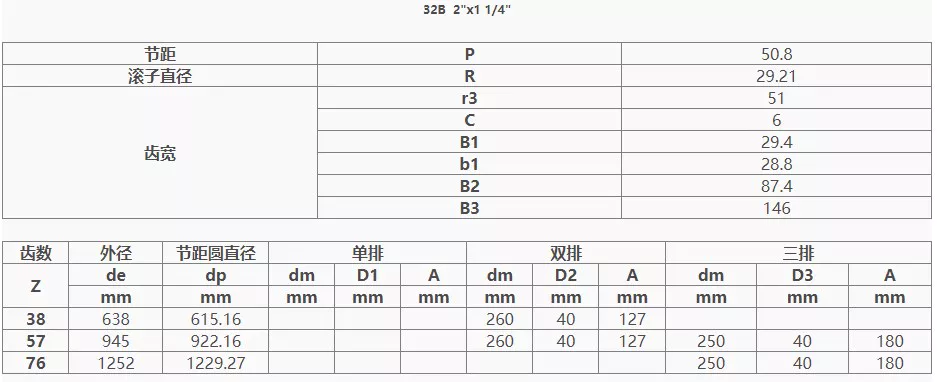

32B cast iron sprocket

How to select sprocket material

What are the sprocket materials? How to select the fabric of the sprocket. The chain wheel is a kind of transmission part that is used together with the chain.The standard material of a sprocket is 45 # steel, and the sprocket made of this material can meet the service conditions of a standard sprocket. Of course, some people choose 40Mn (40 manganese steel) and 45Mn (45 manganese steel). Compared with the 45 # sprocket, the manganese steel sprocket significantly differs in hardness and wear resistance. Of course, the choice of sprocket materials depends on the user's requirements. If the speed is low. The tension is slight. In selecting sprocket materials, 45 # steel sprocket materials with a high cost-performance ratio can be selected. The material selection of the sprocket is mainly based on the factors such as speed, tension, and environment. If corrosive gas or liquid is in the background, special requirements for corrosion resistance are required.The standard stainless steel materials for stainless steel sprockets are 201 stainless steel, 304 stainless steel, and 316 stainless steel. The most prominent one is 304 stainless steel. In terms of corrosion resistance, 304 can meet the requirements for sprocket materials; the sprocket made of 201 material is inferior to that made of 304 material in terms of corrosion resistance - one "316 material sprocket is used in a strong acid and alkali environment. The 316 material sprocket has strong corrosion resistance to salt substances.
