Clutch disc transmission 679996 replaced for Claas harvester

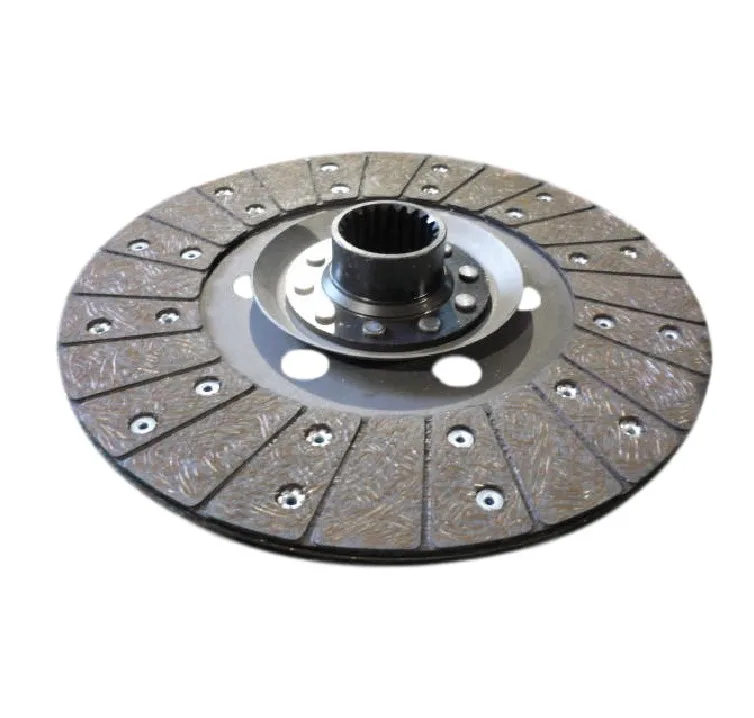

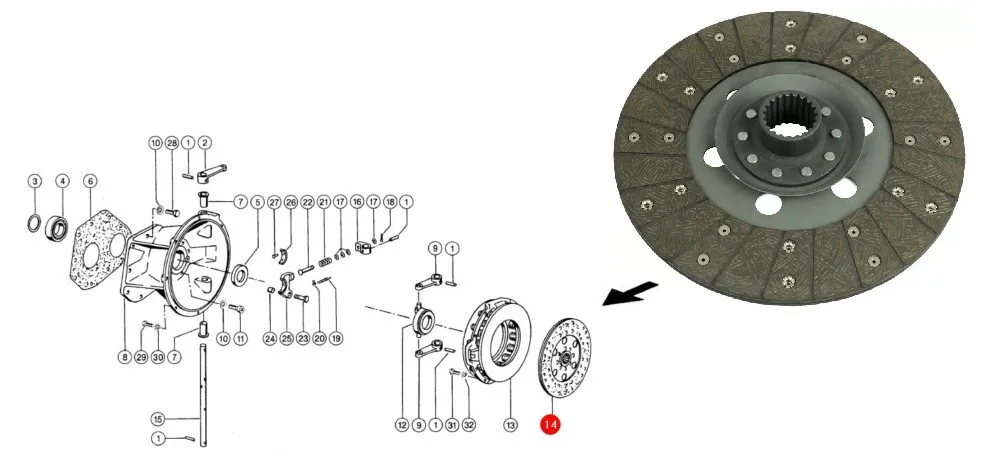

Clutch disc transmission 679996

ApplicationTransmission spare part for Claas combines.DestinationTemporarily disconnection of the motor shaft and gearbox while switching the speed or braking.Used to replace worn or damaged spare parts during repair works. PropertiesAssembly unit that combines a metal plate in the form of disk brake with installed friction pads on the surface and bushing with slots for installation on the shaft. PRODUCT SPECIFICATIONS

Item name	Clutch disc transmission
NO.	4C6821
ReplacedOEM No.	679996
Compatible Models	Combine harvester Claas: Dominator 130, Dominator 140 Dominator 150, Dominator 56 Dominator 66, Dominator 68 Dominator 68R, Dominator 68SR Dominator 76, Dominator 78 Dominator 80, Dominator 85 Dominator 86, Dominator 88 Forage harvester Claas: Jaguar 682, Jaguar 800
Additional Information	Inner diameter: 42mmOuter diameter: 280mmThickness: 9mmHeight: 38mmNumber of splines: 21



Clutch Disc Transmission 679996 Replaced for Claas Harvester

The clutch disc transmission 679996 is a crucial component for the Claas harvester. It is responsible for transmitting power from the engine to the transmission system, enabling smooth and efficient movement of the machine.

Product Description and Function

The clutch disc transmission 679996 is located in the transmission system of the Claas harvester. Its primary function is to engage and disengage power between the engine and transmission, enabling the harvester to move forward or backward as needed.

Our Production and Replacement Parts

We specialize in producing and supplying replacement parts that are compatible with a wide range of harvester brands and models. Our clutch disc transmission 679996 replacement parts are made to the highest quality standards and are designed for easy installation. Our three key advantages are:

• High-quality replacement parts at competitive prices
• Fast and reliable shipping
• Excellent customer service

Compatible Brands and Models

Brand	Model
Claas	Lexion, Dominator, Medion, Mega, Tucano, Jaguar
New Holland	CR, CX, TX, TF
John Deere	T, W, S, C, X

Other Replacement Parts for Harvesters

In addition to clutch disc transmission 679996, we provide a wide range of other replacement parts for agricultural machinery. Our inventory includes agricultural chains, agricultural gearbox, pulleys, sprockets, couplings, pto shafts, and concaves. Whatever parts you need, you can find them here.

Commonly Worn Parts on Harvesters

Harvesters have several components that are prone to wear and tear. These include:

1. Blades/Cutting parts: including main cutting blades, protective knives, and cutting blade drive belts.
2. Threshing drum and concave.
3. Separation screens and cleaning fan blades.
4. Conveyor chains and sprockets.
5. Rubber tracks or tires.
6. Hydraulic components: including hydraulic cylinders, hoses, and seals.
7. Bearings.
8. Filters: air filters, fuel filters, and oil filters.

Signs that Replacement Parts are Needed

Here are some signs that indicate the need for replacement parts on a harvester:

1. Poor harvesting performance: Too much crop residue after harvesting or incomplete grain separation may indicate severe wear and tear of the threshing drum and concave.
2. Power reduction or overheating: Lack of engine power or high operating temperatures may be due to a clogged air filter or cooling system failure, indicating the need to replace air filters or repair the cooling system.
3. Decreased harvesting efficiency: Slow cutting blade operation or slow material delivery may be due to worn-out drive belts, stretched chains, or worn-out drive gears. In this case, the corresponding belts, chains, or gears should be checked and replaced as needed.
4. Difficulty moving or increased noise: For rubber track harvesters, loose or cracked tracks need to be replaced; for tire harvesters, excessively worn tires or tire punctures needs to be replaced. Furthermore, if there is abnormal noise during movement, it may be due to worn or damaged bearings, which needs to be replaced.
5. Unstable hydraulic system operation: If the lifting or turning is slow or weak, it may be due to problems with hydraulic pumps, oil cylinders, valves, or seals. Relevant parts should be checked and replaced as soon as possible.
6. Large-scale oil leakage: Whether it is oil, hydraulic oil, or fuel leakage, it indicates that the seals have failed or other components are damaged and the damaged seals or components should be replaced in time.
