CMNGL-40F High Temperature Refrigerated Compressed Air Dryer

Background and Importance of High Temperature Refrigerated Compressed Air Dryer

High temperature refrigerated compressed air dryer technology plays a crucial role in various industries where dry and clean compressed air is essential. Understanding the background and importance of this technology is vital for optimizing air quality and system performance.

1. Background

In industrial applications, compressed air is often used as a power source for machines and equipment. However, compressed air contains moisture, oil, and contaminants that can negatively impact the efficiency and reliability of pneumatic systems. Traditional methods of drying air, such as hot air drying and vacuum drying, have their limitations in terms of effectiveness and energy consumption.

2. Importance

High temperature refrigerated compressed air dryers offer an advanced and efficient solution to remove moisture and impurities from compressed air. By maintaining a consistent low dew point, these dryers ensure that the compressed air remains dry and clean, preventing corrosion, clogging, and malfunctioning of pneumatic components. This leads to improved system performance, reduced maintenance costs, and increased productivity.

Technical Parameters

Parameters Model	CMNGL-40F
Processing capacity (m3/min)	4.8
Power supply	220V/1p
Cooling power (HP)	1 1/2
Pipe diameter	G1 1/2''
Dimensions L*W*H (mm)	910*890*500
Equipment weight (KG)	160
Pressure dew point	2℃～10℃ (normal pressure dew point -17℃～-23℃)
Refrigerant	R-22

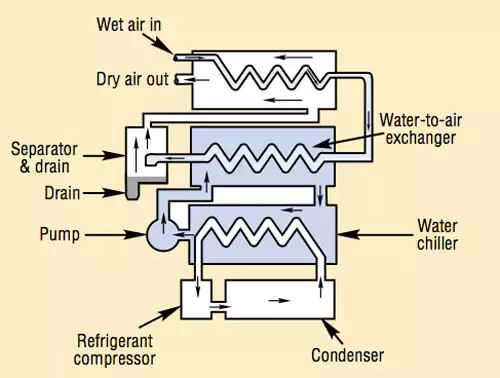

What is a High Temperature Refrigerated Compressed Air Dryer and How Does It Work?

A high temperature refrigerated compressed air dryer is a specialized device used to remove moisture and contaminants from compressed air by cooling and condensing them. The working principle of this dryer involves a series of steps to achieve effective drying.

1. Cooling Stage

The compressed air enters the dryer and passes through a heat exchanger, where it is cooled by the refrigerant. The cooled air causes the moisture and contaminants to condense into liquid form.

2. Separation Stage

The condensed liquid is separated from the cooled air using a separator or drain trap. This ensures that only dry air continues through the system.

3. Reheating Stage

The dry air is then reheated by the outgoing warm air, preventing any condensation from occurring downstream in the compressed air lines.

4. Filtration Stage

The reheated and dried air passes through a filtration system to remove any remaining impurities, ensuring clean and dry compressed air for various applications.

Advantages of High Temperature Refrigerated Compressed Air Dryer

When compared to traditional drying methods like hot air drying and vacuum drying, high temperature refrigerated compressed air dryers offer several significant advantages:- Energy Efficiency: These dryers consume significantly less energy compared to hot air and vacuum dryers.- Consistent Performance: The dew point remains consistently low, ensuring reliable and dry compressed air.- Compact Design: High temperature refrigerated dryers are compact in size, making them suitable for various installation requirements.- Low Maintenance: With fewer moving parts and efficient filtration systems, these dryers require minimal maintenance.- Cost-effective: The efficient drying process and reduced maintenance result in overall cost savings for the system.

Work Process and Key Components of High Temperature Refrigerated Compressed Air Dryers

1. Preprocessing Stage

In the preprocessing stage, the compressed air undergoes filtration and separation processes to remove larger particles and liquid contaminants before entering the dryer.

2. Sublimation Drying Stage

In the sublimation drying stage, the cooled and condensed moisture undergoes sublimation, transforming from a liquid to a gas state without passing through the liquid phase.

3. Desorption Drying Stage

In the desorption drying stage, the remaining moisture and impurities are removed from the compressed air through the desorption process. This ensures a low dew point and dry compressed air.

Key Components

The key components of high temperature refrigerated compressed air dryers include a heat exchanger, separator or drain trap, reheater, and filtration system. Each component plays a crucial role in the efficient drying process and ensuring the quality of the compressed air.

Applications and Case Studies of High Temperature Refrigerated Compressed Air Dryers

High temperature refrigerated compressed air dryers find applications in various industries, including:- Manufacturing: Ensuring dry and clean compressed air for pneumatic tools and equipment.- Food and Beverage: Preventing moisture-related issues in food processing and packaging.- Pharmaceuticals: Maintaining the integrity of compressed air used in pharmaceutical manufacturing.- Electronics: Protecting sensitive electronic components from moisture damage.- Automotive: Optimizing air quality in painting and spraying applications.

Purchasing and After-sales Service Guide

1. Consider Air Flow and Pressure Requirements

Before purchasing a high temperature refrigerated compressed air dryer, consider the specific air flow and pressure requirements of your application to ensure compatibility.

2. Consult with Experts

Consulting with experts or manufacturers can provide valuable insights into selecting the right dryer for your needs and budget.

3. Compare Features and Pricing

Compare different models of high temperature refrigerated compressed air dryers based on features, energy efficiency, and pricing to make an informed decision.

4. Warranty and Service Contracts

Ensure that the dryer comes with a warranty and explore the availability of service contracts for maintenance and after-sales support.

5. Installation and Proper Maintenance

Follow the manufacturer's guidelines for installation and regular maintenance to ensure optimal performance and longevity of the dryer.Author: Miya
