Cutter Suction Dredger Traveling Cylinder

Cutter Suction Dredger Traveling Cylinder

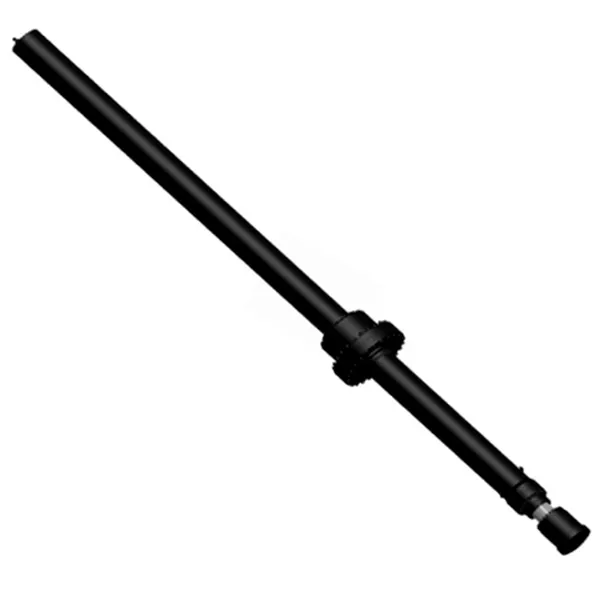

A cutter suction dredger traveling cylinder is a hydraulic cylinder that is used to move the cutter head of a cutter suction dredger along the seabed. It is the main executive element of the walking mechanism of the dredger. The traveling cylinder is attached to the cutter head and to the hull of the dredger. When the cylinder is extended, it pushes the cutter head down into the seabed. When the traveling cylinder is retracted, it lifts the cutter head up.The cutter suction dredger traveling cylinder is a critical component of the cutter suction dredger. It allows the dredger to excavate material from the seabed and transport it to a disposal area. The traveling cylinder must be able to withstand the high pressures and forces that are generated during dredging operations. The capacity of a cutter suction dredger is determined by the size of the cutter head, the power of the dredge pumps, and the depth of the water.The cutter suction dredger traveling cylinder is a critical component of the dredger, and its failure can result in the loss of the dredger or damage to the seabed. The traveling cylinder is, therefore subject to strict maintenance and inspection procedures.

Cutter Suction Dredger Traveling Cylinder Specifications:

Product Name	Cutter Suction Dredger Traveling Cylinder
Features:	Is the main executive element of the traveling mechanism of the cutter-suction dredger
Bore diameter:	Up to 480mm
Rod diameter:	Up to 360mmStroke up to 9400mm
Pressure:	up to32MPa
Thrust force:	Maximum 2900KN
Applications:	Cutter Suction Dredger

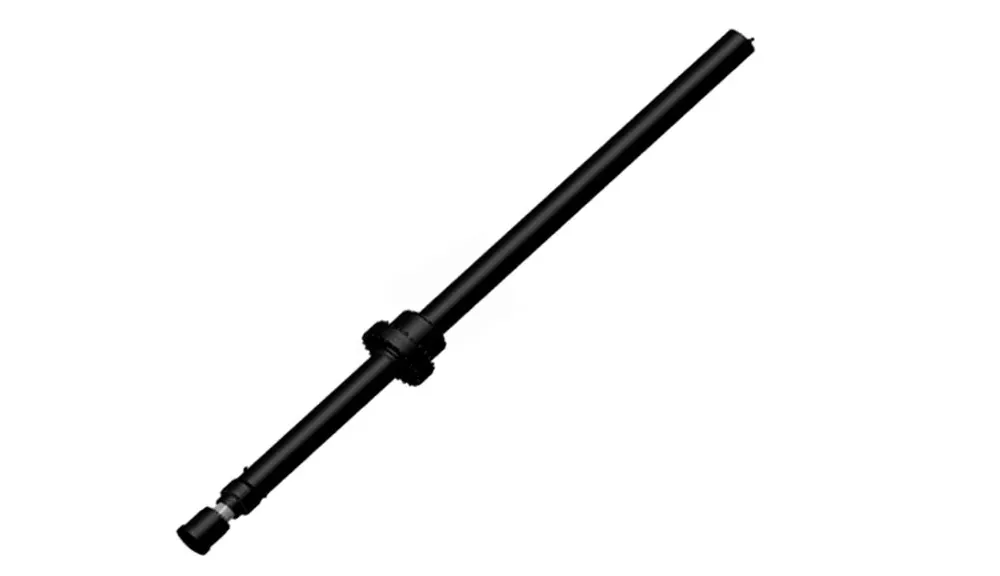

Cutter Suction Dredger Traveling Cylinder Advantages:

The traveling cylinder is a critical component of a cutter suction dredger, which is a type of hydraulic dredging equipment used to excavate and remove sediment from bodies of water. The cutter suction dredger traveling cylinder has several advantages in the operation of a cutter suction dredger:1. Precise control of ladder movement: The cutter suction dredger traveling cylinder allows for precise control of the movement of the ladder, which carries the cutter head and suction pipe. This control is essential for accurate positioning and excavation of the dredger. The cylinder enables smooth and controlled vertical movement of the ladder, ensuring efficient dredging operations.2. Enhanced maneuverability: The traveling cylinder enables the cutter suction dredger to move horizontally along the dredging area. By extending and retracting the cylinder, the dredger can traverse the working area, covering a larger surface and reaching targeted locations with ease. This maneuverability is crucial for effective dredging in various water depths and locations.3. Adjustable dredging depth: The cutter suction dredger traveling cylinder is responsible for adjusting the dredging depth of the cutter suction dredger. By controlling the extension and retraction of the cylinder, operators can modify the position and depth of the cutter head and suction pipe, allowing for precise excavation based on the project requirements.4. Improved dredging efficiency: The traveling cylinder's ability to control the ladder movement and dredging depth contributes to enhanced efficiency during dredging operations. Operators can optimize the dredger's performance by adjusting the cylinder's extension and retraction to match the sediment conditions and maximize the dredging productivity.5. Flexibility in dredging applications: The cutter suction dredger traveling cylinder offers versatility in dredging applications. It allows the cutter suction dredger to adapt to different types of sediments, seabed profiles, and environmental conditions. The adjustable dredging depth and maneuverability provided by the cylinder make the cutter suction dredger suitable for various projects, including port maintenance, land reclamation, and channel deepening.

Cutter Suction Dredger Traveling Cylinder Applications:

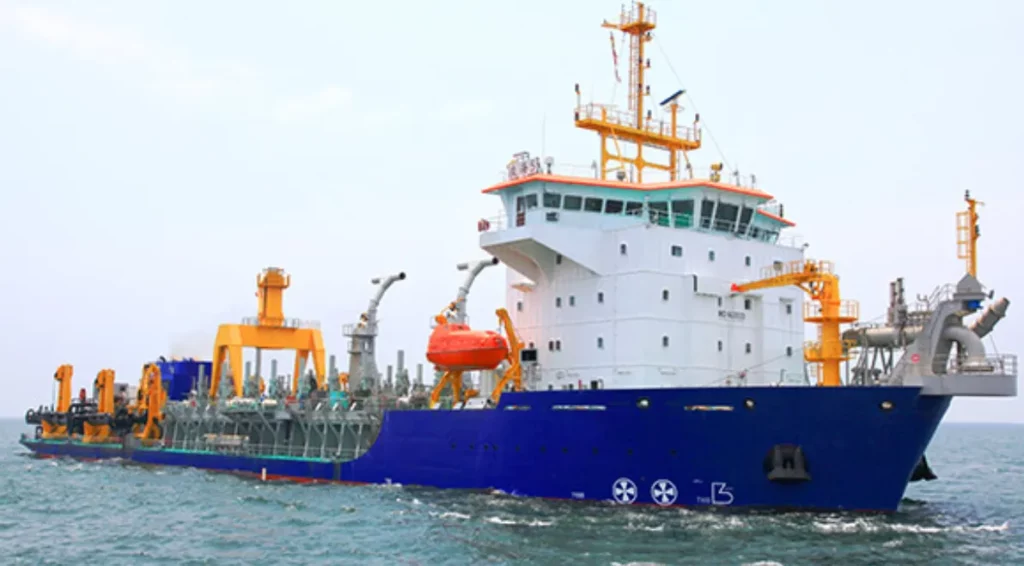

The traveling cylinder of a cutter suction dredger is a vital component that is responsible for lifting and transporting the dredged material. It is a long, cylindrical structure that is mounted on a rotating frame and is powered by a hydraulic system. The traveling cylinder has a number of applications, including:

• Lifting and transporting dredged material: The traveling hydraulic cylinder is used to lift the dredged material from the bottom of the water and transport it to the discharge point.
• Cutting through hard materials: The traveling cylinder is equipped with cutting teeth that can cut through hard materials, such as rock and coral.
• Clearing obstructions: The traveling cylinder can be used to clear obstructions from the bottom of the water, such as sunken ships and debris.
• Dredging in shallow water: The traveling cylinder can be used to dredge in shallow water, where other types of dredgers cannot operate.
• Dredging in confined spaces: The traveling cylinder can be used to dredge in confined spaces, such as channels and harbors.

The traveling cylinder is a versatile and essential component of a cutter suction dredger. It is used in a variety of applications to remove sediment and other materials from the bottom of the water.

Here are some specific examples of the traveling cylinder's applications:

• In the construction of ports and harbors, the traveling cylinder is used to dredge channels and berths.
• In the maintenance of navigation channels, the traveling cylinder is used to remove silt and other debris.
• In the remediation of contaminated sediments, the traveling cylinder is used to remove polluted material from the bottom of the water.
• In the construction of dams and levees, the traveling cylinder is used to dredge material for the foundations of these structures.
• In the mining industry, the traveling cylinder is used to dredge material from underwater mines.

The traveling cylinder is a powerful and versatile tool that is used in a variety of applications. It is an essential component of many dredging operations and plays a vital role in keeping our waterways safe and navigable.

China Dredger Tank Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, industrial engineering hydraulic cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.
