CX Series Homotaxial Compact Hydraulic Cylinder

CX Series Homotaxial Compact Hydraulic Cylinder

The CX series homotaxial compact hydraulic cylinder is a cutting-edge hydraulic component designed to provide efficient and reliable power transmission in a wide range of industrial applications. With its compact design, superior performance, and durability, this hydraulic cylinder offers precise control and versatility. Whether used in manufacturing, material handling, or construction, the CX series homotaxial compact hydraulic cylinder is engineered to optimize hydraulic operations and enhance productivity.CX series compact cylinders are used for clamping cylinders. Its installation is small. Our factory has advanced hydraulic equipment, including a vertical horizontal machining center, and medium and large hydraulic cylinders. Thin cylinder production technology is excellent.

CX Series Homotaxial Compact Hydraulic Cylinder Model Description:

CX Series Homotaxial Compact Hydraulic Cylinder Features:

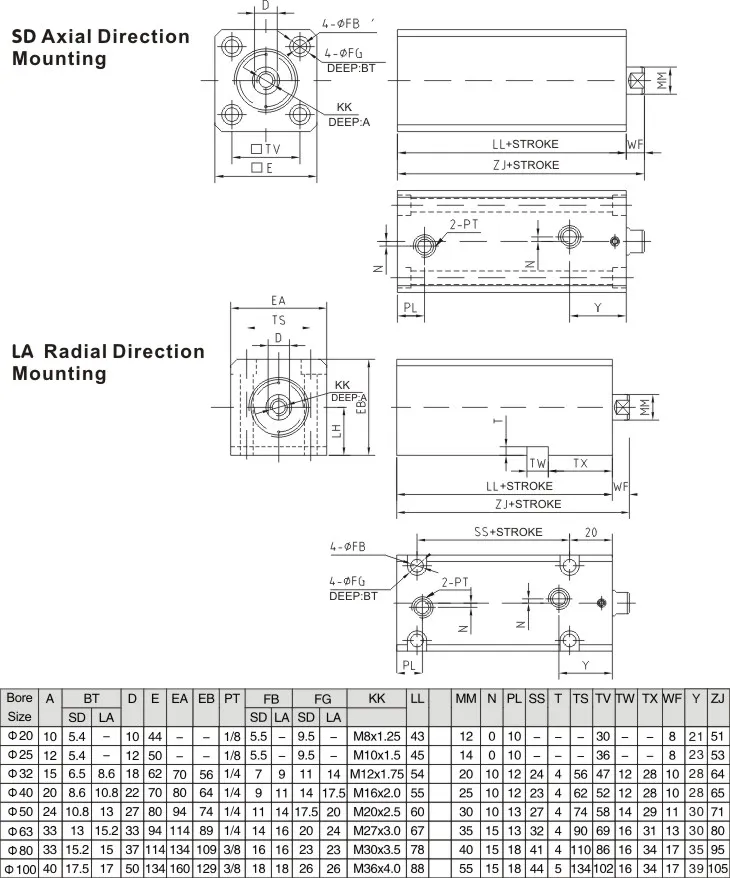

CX Series Homotaxial Compact Hydraulic Cylinder Parameter:

Key Features and Benefits Of CX Series Homotaxial Compact Hydraulic Cylinder:

1. Compact Design:
   • The CX series homotaxial compact hydraulic cylinder is designed to occupy minimal space, making it ideal for applications with limited mounting areas.
   • Its compact size allows for seamless integration into various equipment and machinery setups.
2. Precise Control:
   • This hydraulic cylinder offers exceptional control over movement and positioning, enabling accurate and efficient operations.
   • The precise control mechanism ensures smooth and controlled motion, enhancing overall productivity.
3. High Performance:
   • The CX series homotaxial compact hydraulic cylinder is engineered to deliver high-performance power transmission capabilities.
   • It can handle heavy loads and demanding industrial applications, ensuring reliable and consistent performance.
4. Versatile Applications:
   • With its versatile design, the CX series homotaxial compact hydraulic cylinder suits various industries, including manufacturing, material handling, and construction.
   • It can be utilized in various equipment such as presses, compactors, loaders, and more.

Usage Method Of CX Series Homotaxial Compact Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the appropriate mounting position for the CX Series Homotaxial Compact Hydraulic Cylinder based on the specific requirements of your equipment or machinery.
   • Ensure that the mounting surface is sturdy, level, and capable of securely supporting the weight and load of the cylinder.
2. Hydraulic System Connection:
   • Connect the hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Align and secure the connections properly to prevent leaks and ensure optimal performance.
3. Operating the Cylinder:
   • Activate the hydraulic system to initiate the movement of the CX Series Homotaxial Compact Hydraulic Cylinder.
   • Utilize the hydraulic control system to precisely control the cylinder's extension, retraction, and positioning for efficient operations.

How Does A Hydraulic Cylinder Work?

A hydraulic cylinder is a mechanical actuator that converts energy into linear mechanical force and motion. It operates based on fluid mechanics principles and utilizes the pressure exerted by a confined fluid to generate power.Here's a simplified explanation of how a hydraulic cylinder works:

1. Basic Components:
   • Cylinder Barrel: This is the main body of the hydraulic cylinder, which houses the piston and the fluid.
   • Piston: The piston is a cylindrical component that divides the cylinder barrel into two chambers: the rod and the cap sides.
   • Rod: The rod is attached to the piston and extends outside the cylinder barrel, providing a connection point for the load or external mechanism.
2. Hydraulic Fluid:
   • The hydraulic cylinder is filled with a specialized hydraulic fluid, typically oil or a synthetic fluid.
   • The fluid is incompressible and is sealed within the cylinder to create a closed system.
3. Fluid Flow and Pressure:
   • A pump supplies pressurized fluid into the cylinder through a hydraulic hose or pipe.
   • The fluid enters the cap or rod sides of the cylinder, depending on the desired direction of motion.
4. Piston Movement:
   • When pressurized fluid enters one side of the cylinder, it applies force on the piston, causing it to move in the opposite direction.
   • The piston's movement is linear, extending or retracting from the cylinder barrel.
5. Force and Motion:
   • As the piston moves, it pushes or pulls the rod connected to the load or external mechanism.
   • The force generated by the hydraulic pressure multiplied by the piston area creates significant mechanical force.
   • This force is transferred through the rod and used to perform various tasks, such as lifting, pushing, or pulling heavy loads.
6. Control:
   • A valve system controls the flow of hydraulic fluid and the direction of piston movement.
   • Valves can be manually operated or controlled electronically, allowing precise control over the cylinder's motion and force.
7. Return Stroke:
   • To complete a full cycle, the fluid on the opposite side of the piston needs to return to the reservoir.
   • This is achieved by redirecting the fluid flow through the valve system, allowing it to return to the hydraulic reservoir or pump.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of compact hydraulic cylinders. It maintains a leading position in China's market segment of hydraulic cylinders. In 2020, the domestic market share was around 29%. We produce Industrial vehicle compact hydraulic cylinders, Aerial work vehicle compact hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The compact hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
