D963R-Series Sprockets

Raydafon Group's D963R-Series Sprockets deliver robust power transmission for industrial machinery, featuring precision-engineered durability and smooth performance. Ideal for engineers and manufacturers, these sprockets reduce downtime and enhance efficiency, offering superior wear resistance compared to standard models. Experience reliable operation and lasting value with Raydafon Group's trusted quality.

Send Inquiry

Product Description

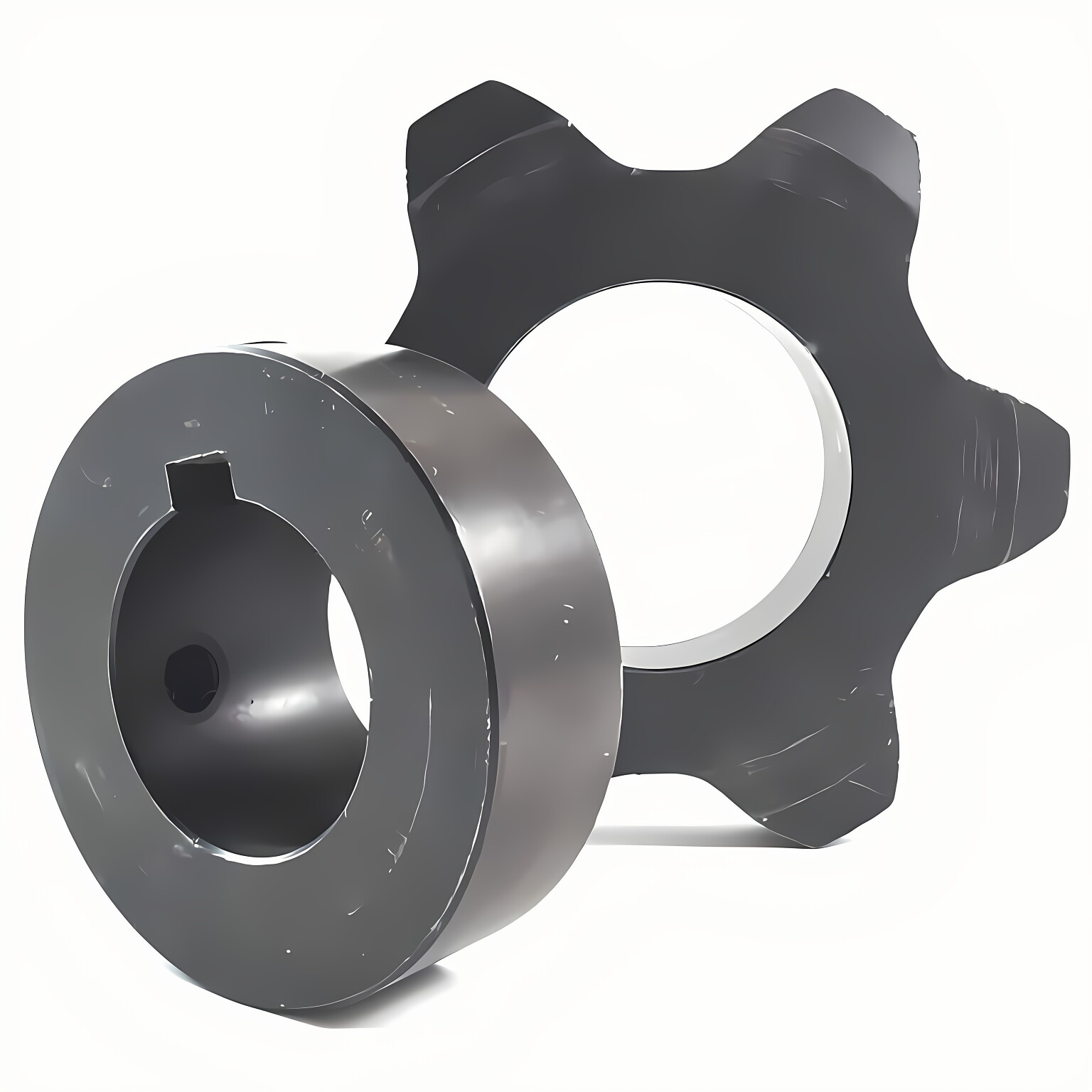

D963R series engineer class sprocket is used for a wide verity of chain sizes. These sizes include D-963R and 963 size chains. These sprockets are typically supplied as cast material but we can also supply them as steel for longer operation. The below chart shows the standard tooth counts as well as dimensions for each size.

Cast D963R-Series Sprockets

Tooth Face at Pitch Line: 1.750" - Roller Diameter: 3.500"

Sprocket Size	Tooth Count	Pitch Diameter	Style	Hub Diameter	Length Thru Bore	Maximum Bore	Weight (LBS)
D963C8	8	23.52"	C	10.00"	8.00"	6.44"	170.0 LBS
D963C9	9	26.31"	C	10.00"	8.00"	6.44"	182.0 LBS
D963C10	10	29.12"	C	10.00"	8.00"	6.44"	198.0 LBS
D963C11	11	31.95"	C	10.00"	8.00"	6.44"	215.0 LBS
D963C12	12	34.77"	C	10.00"	8.00"	6.44"	230.0 LBS

We aslo offer a full range of both precision roller chain and engineered.Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
