Double Pitch Sprocket 2060A with standard roller

Introduction

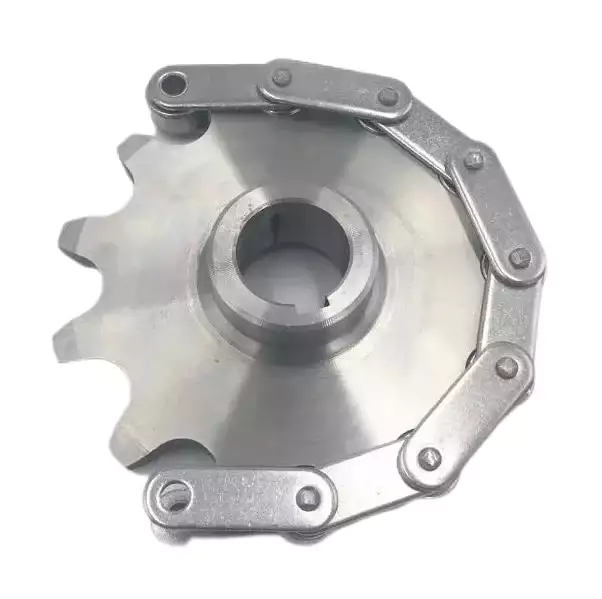

Double Pitch Sprocket 2060A with standard roller is a type of sprocket widely used in power transmission systems. It is designed with a larger tooth pitch than standard roller chain sprockets, providing higher load capacity and smoother operation. Here is an image of the Double Pitch Sprocket 2060A with standard roller:

Definition and Basic Structure

Double pitch sprocket refers to a type of sprocket with a larger tooth pitch compared to standard sprockets. It is characterized by having two tooth pitches, with one being twice the length of the other. The basic structure of double pitch sprocket consists of a hub, a rim, and teeth. The rim is where the chain engages with the sprocket, while the hub is connected to the shaft. The teeth are designed to mesh with the chain, transmitting power from the driver to the driven shaft.

Main Features

• Increased Tooth Pitch: Double pitch sprockets have a larger tooth pitch, providing more space for the chain rollers to engage with the teeth, resulting in a smoother and quieter operation.
• Higher Load Capacity: Due to the larger tooth pitch, double pitch sprockets have a higher load capacity compared to standard sprockets.
• Smooth Operation: The larger tooth pitch and the resulting larger chain roller diameter contribute to a smoother operation of the power transmission system.

Here is an image of the double pitch sprocket's main features:

Material Selection

Double pitch sprockets can be made from various materials, including carbon steel, alloy steel, and stainless steel. Carbon steel sprockets are the most commonly used due to their affordability, while alloy steel and stainless steel sprockets are preferred in applications requiring higher corrosion resistance and strength.

Manufacturing Process

The manufacturing process of double pitch sprockets includes the following steps:

• Raw Material Preparation: The selected material is cut into the desired size and shape.
• Forging or Casting: The material is heated and formed into the sprocket shape through either forging or casting.
• Machining: The sprocket is then machined to achieve the desired dimensions and finish.
• Rolling: The sprocket teeth are then rolled to improve their surface finish and precision.
• Heat Treatment: The sprocket is heat-treated to improve its strength and durability.
• Surface Treatment: The sprocket is coated or plated to improve its corrosion resistance and appearance.
• Quality Control: The sprocket undergoes rigorous quality control testing to ensure its compliance with industry standards.

Here is an image of the manufacturing process:

Customization Services

We offer customization services for double pitch sprockets, including material selection, tooth profile design, bore and keyway options, and surface treatment. Our team of experts can work with you to design and manufacture a sprocket that meets your specific requirements.

FAQ

1. Q: What is the difference between double pitch sprocket and standard sprocket?
   A: Double pitch sprocket has a larger tooth pitch, providing higher load capacity and smoother operation compared to standard sprocket.
2. Q: What materials can double pitch sprockets be made from?
   A: Double pitch sprockets can be made from carbon steel, alloy steel, and stainless steel.
3. Q: Can double pitch sprockets be customized?
   A: Yes, we offer customization services for double pitch sprockets.
4. Q: What is the manufacturing process of double pitch sprockets?
   A: The manufacturing process includes raw material preparation, forging or casting, machining, rolling, heat treatment, surface treatment, and quality control.
5. Q: What are the main features of double pitch sprocket?
   A: The main features include increased tooth pitch, higher load capacity, and smooth operation.
