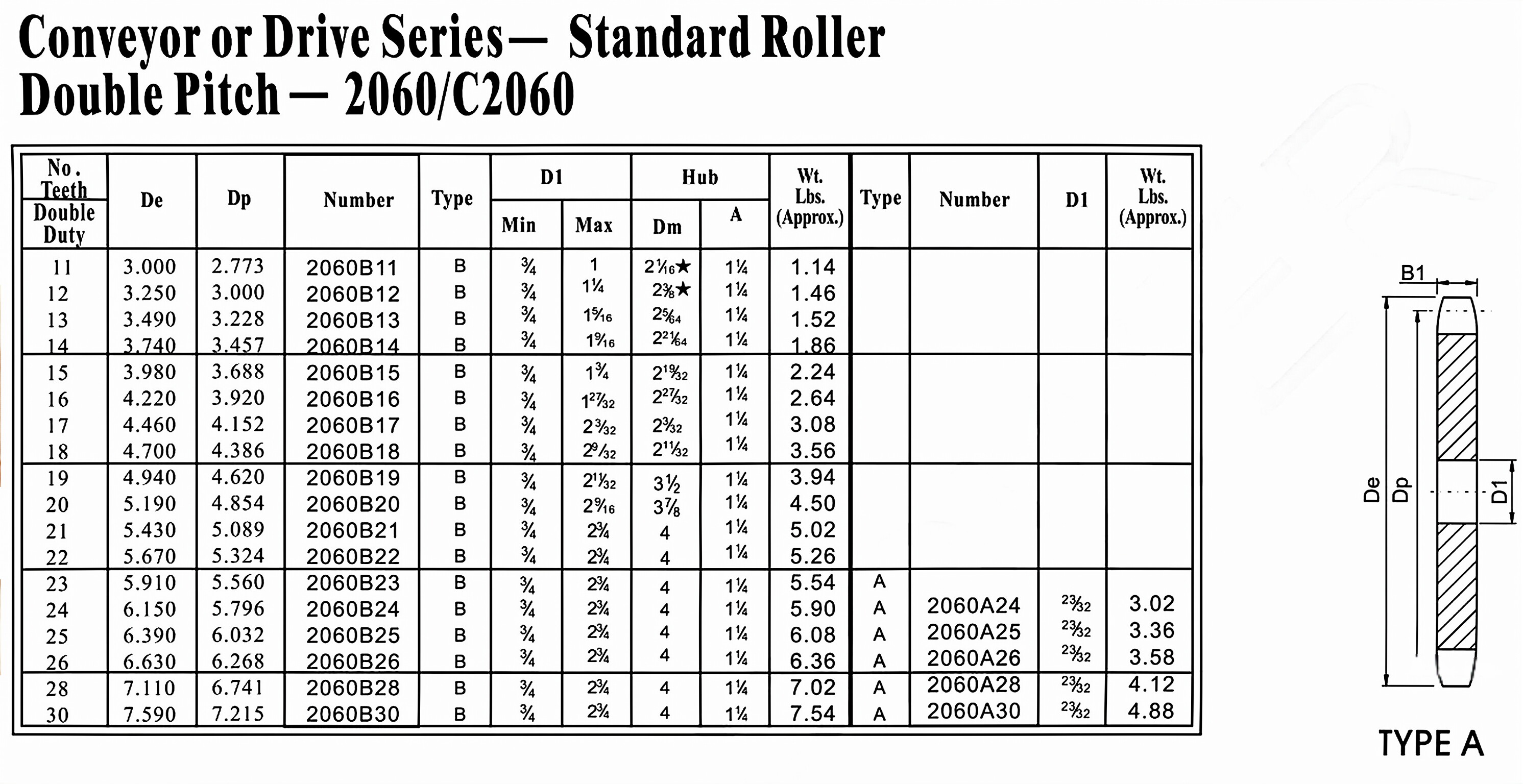

Double Pitch Sprocket 2060B with standard roller

Introduction to Double Pitch Sprocket 2060B with standard roller

The Double Pitch Sprocket 2060B with standard roller is a type of sprocket commonly used in transmission systems. It is designed with a double pitch concept, which means that the distance between the teeth is twice the standard pitch. This unique design offers various advantages in terms of performance and functionality.

Definition and Basic Structure

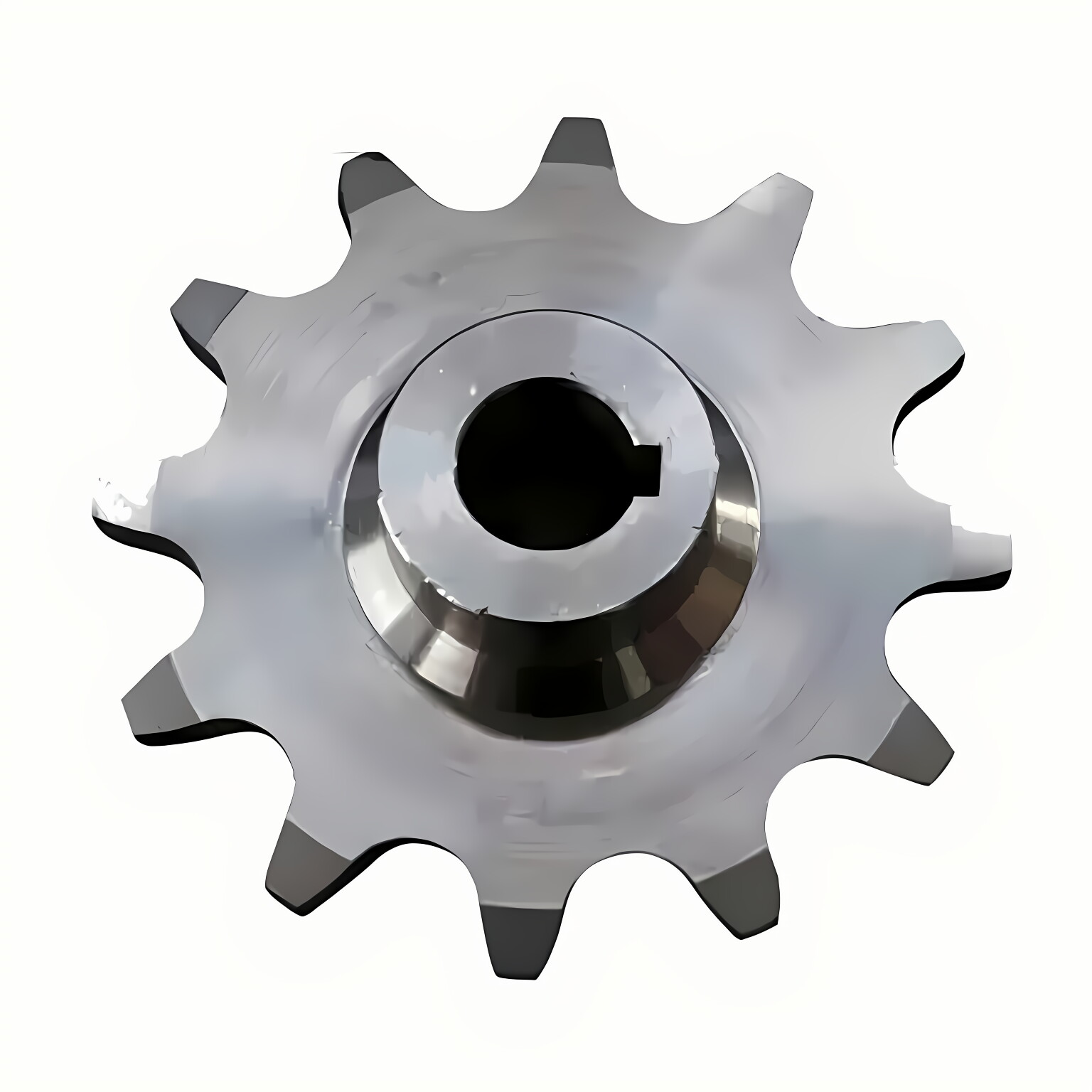

The Double Pitch Sprocket is defined as a sprocket with a tooth pitch that is twice the standard pitch. It consists of a central hub with teeth that engage with the chain. The teeth are evenly spaced and designed to ensure smooth and efficient power transmission.

Main Features of Double Pitch Sprocket 2060B

• Increased tooth spacing: The double pitch design allows for larger gaps between the teeth, reducing the chances of chain jamming.
• Higher load capacity: The sprocket is built to withstand heavier loads, making it suitable for demanding applications.
• Smooth operation: The design and precision manufacturing ensure smooth and reliable performance.

Material Selection

The Double Pitch Sprocket can be made from different materials depending on the specific requirements. The three common material options are:

1. Carbon steel: Offers good strength and affordability, suitable for most general applications.
2. Alloy steel: Provides higher strength and improved resistance to wear and fatigue, ideal for heavy-duty operations.
3. Stainless steel: Offers excellent corrosion resistance, making it suitable for applications where exposure to moisture or chemicals is expected.

Manufacturing Process

1. Raw material preparation: The selected material is carefully inspected and prepared for the manufacturing process.
2. Forging or casting: The material is shaped into the desired form through forging or casting methods.
3. Machining: The sprocket undergoes precise machining to achieve the required dimensions and tooth profile.
4. Tooth rolling: The teeth are formed by rolling the sprocket with a specialized tool.
5. Heat treatment: The sprocket is heat-treated to enhance its hardness and durability.
6. Surface treatment: The sprocket may undergo processes like plating or coating to improve its surface properties.
7. Quality testing: The finished sprocket undergoes rigorous quality checks to ensure it meets the required standards and specifications.

Customization Services

Our company offers various customization options for Double Pitch Sprockets, including:

1. Material selection: Customers can choose from different materials based on their specific needs and operating conditions.
2. Tooth profile design: We provide assistance in designing the tooth profile to optimize performance and reduce noise.
3. Bore diameter and keyway: The sprocket can be customized to match the desired bore diameter and keyway specifications.

Frequently Asked Questions (FAQ)

1. Q: What are the advantages of using Double Pitch Sprockets in a transmission system?
   A: Double Pitch Sprockets offer increased tooth spacing, higher load capacity, and smooth operation.
2. Q: Which material is suitable for corrosive environments?
   A: Stainless steel is the best choice for applications exposed to moisture or chemicals.
3. Q: Can I customize the tooth profile of the sprocket?
   A: Yes, we provide customization services for tooth profile design.
4. Q: What is the recommended maintenance for Double Pitch Sprockets?
   A: Regular cleaning and lubrication are essential for maintaining optimal performance.
5. Q: Can Double Pitch Sprockets be used with standard chains?
   A: Yes, Double Pitch Sprockets are compatible with standard roller chains of corresponding pitch.

Author: Miya
