Double Single Metric Sprockets

Discover Raydafon Group's Double Single Metric Sprockets: a precision-engineered solution for seamless industrial motion control. Crafted with durable materials and advanced design, these sprockets enhance efficiency and reliability for engineers and manufacturers in demanding mechanical systems. Experience smoother operations and reduced maintenance, setting new standards with their innovative metric compatibility. Choose Double Single Metric Sprockets to elevate your projects effortlessly.

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

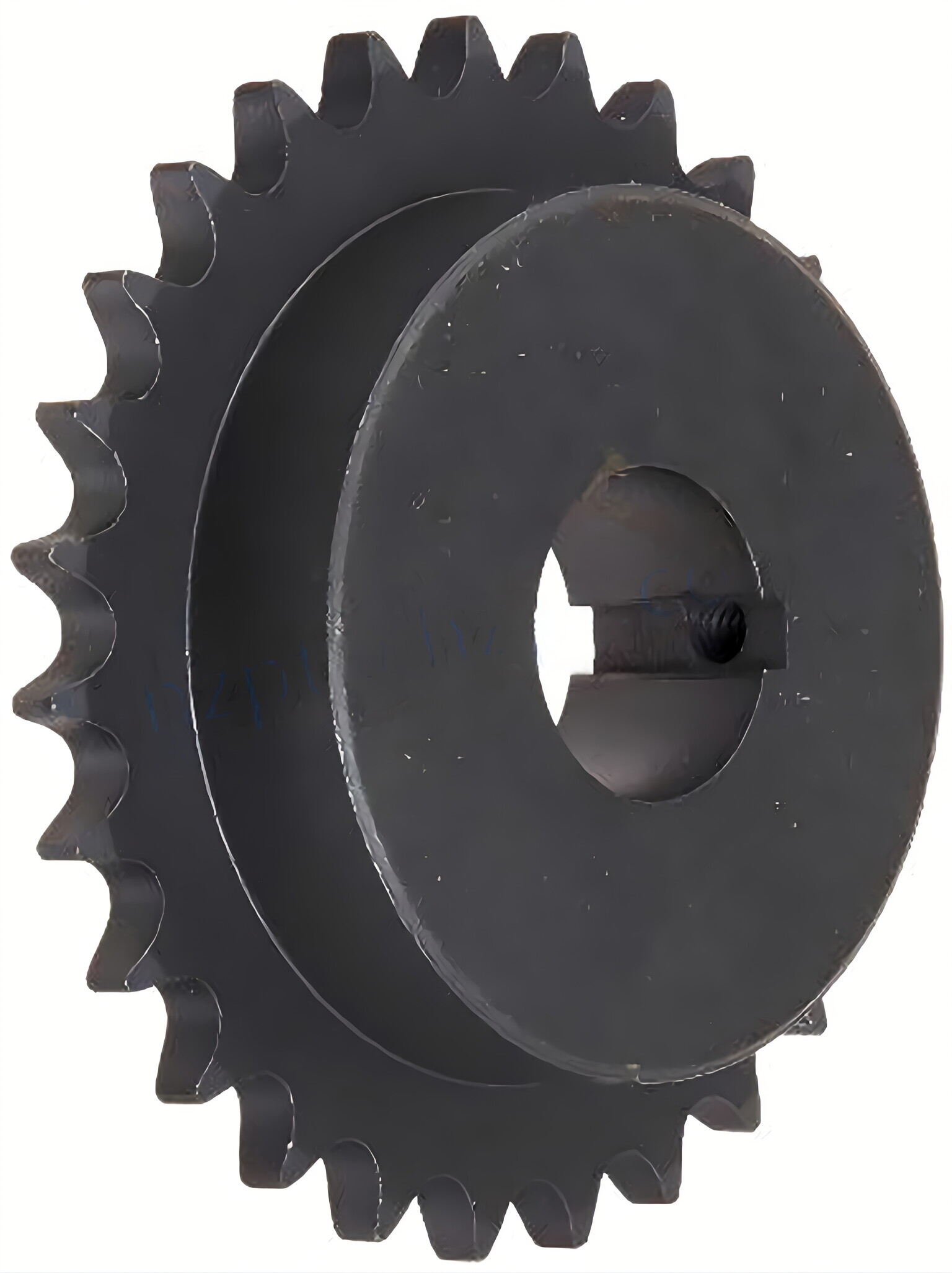

Double single sprockets are manufactured to run two strands of single roller chain. Our metric double-single sprockets are made from premium quality steel and conform to all ISO and DIN specifications.Double single sprockets are manufactured to run two strands of single roller chain. Our metric double-single sprockets are made from premium quality steel and conform to all ISO and DIN specifications. We also produce these sprockets in stainless steel material for food-grade and corrosive applications. Double Single Metric Sprockets

06B Double Single Sprockets

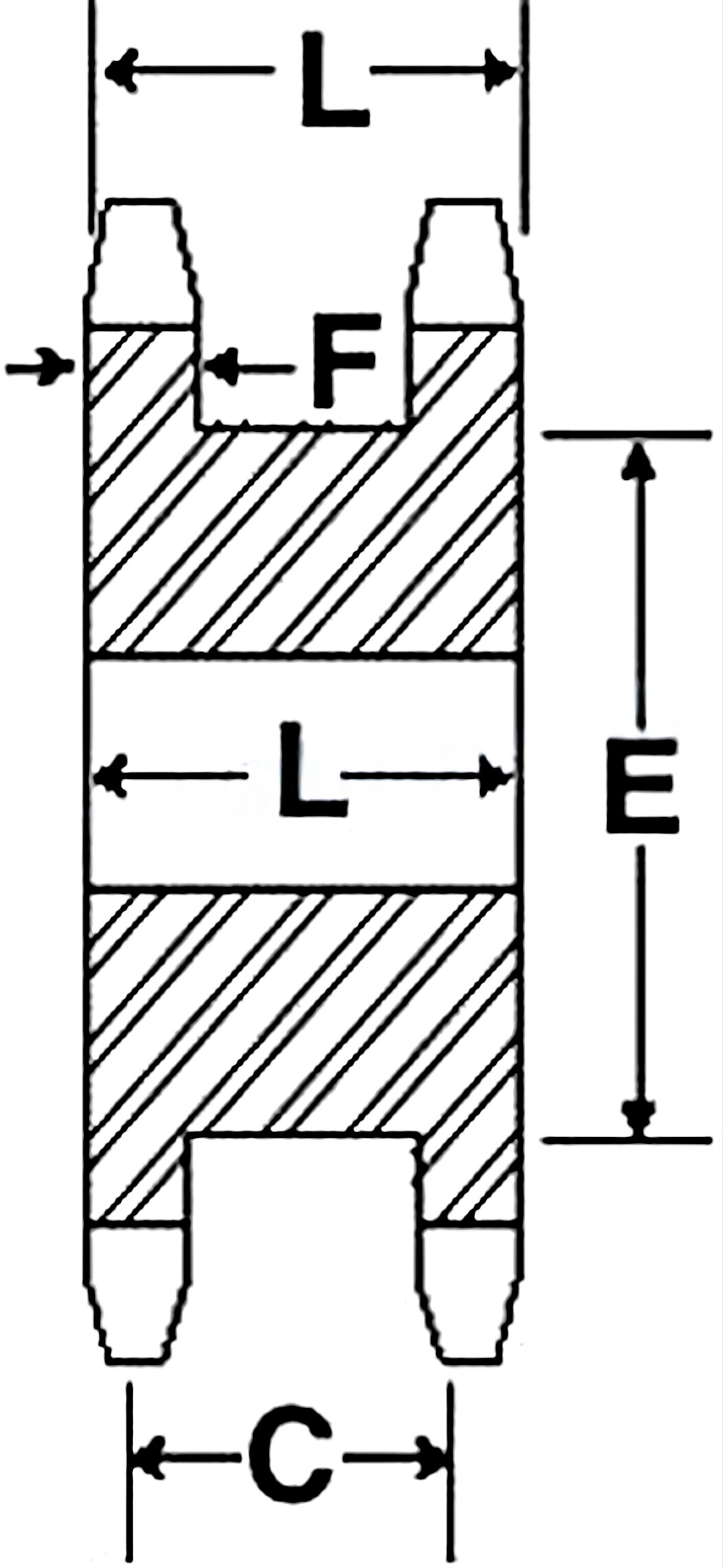

Type A:

Sprocket Size	Tooth Count	Outside Diameter	Pitch Diameter	Minimum Bore	Max. Recommended Bore	(L)	(C)	(E)	(F)	Weight (kg)
DS06A14	14	46.30	42.80	10	20	23.5	18.17	31.0	5.31	0.17
DS06A15	15	49.30	45.81	10	23	23.5	18.17	34.0	5.31	0.20
DS06A16	16	52.30	48.82	10	25	23.5	18.17	37.0	5.31	0.23
DS06A17	17	55.30	51.83	10	27	23.5	18.17	40.0	5.31	0.27
DS06A18	18	58.30	54.85	10	29	23.5	18.17	43.0	5.31	0.30
DS06A19	19	61.30	57.87	10	31	23.5	18.17	46.0	5.31	0.35
DS06A20	20	64.30	60.89	10	33	23.5	18.17	48.0	5.31	0.39
DS06A21	21	68.00	63.91	10	35	23.5	18.17	52.0	5.31	0.44
DS06A22	22	71.00	66.93	12	36	23.5	18.17	55.0	5.31	0.50
DS06A23	23	73.50	69.95	12	38	23.5	18.17	58.0	5.31	0.55
DS06A24	24	77.00	72.97	12	40	23.5	18.17	61.0	5.31	0.61
DS06A25	25	80.00	76.02	12	43	23.5	18.17	64.0	5.31	0.67

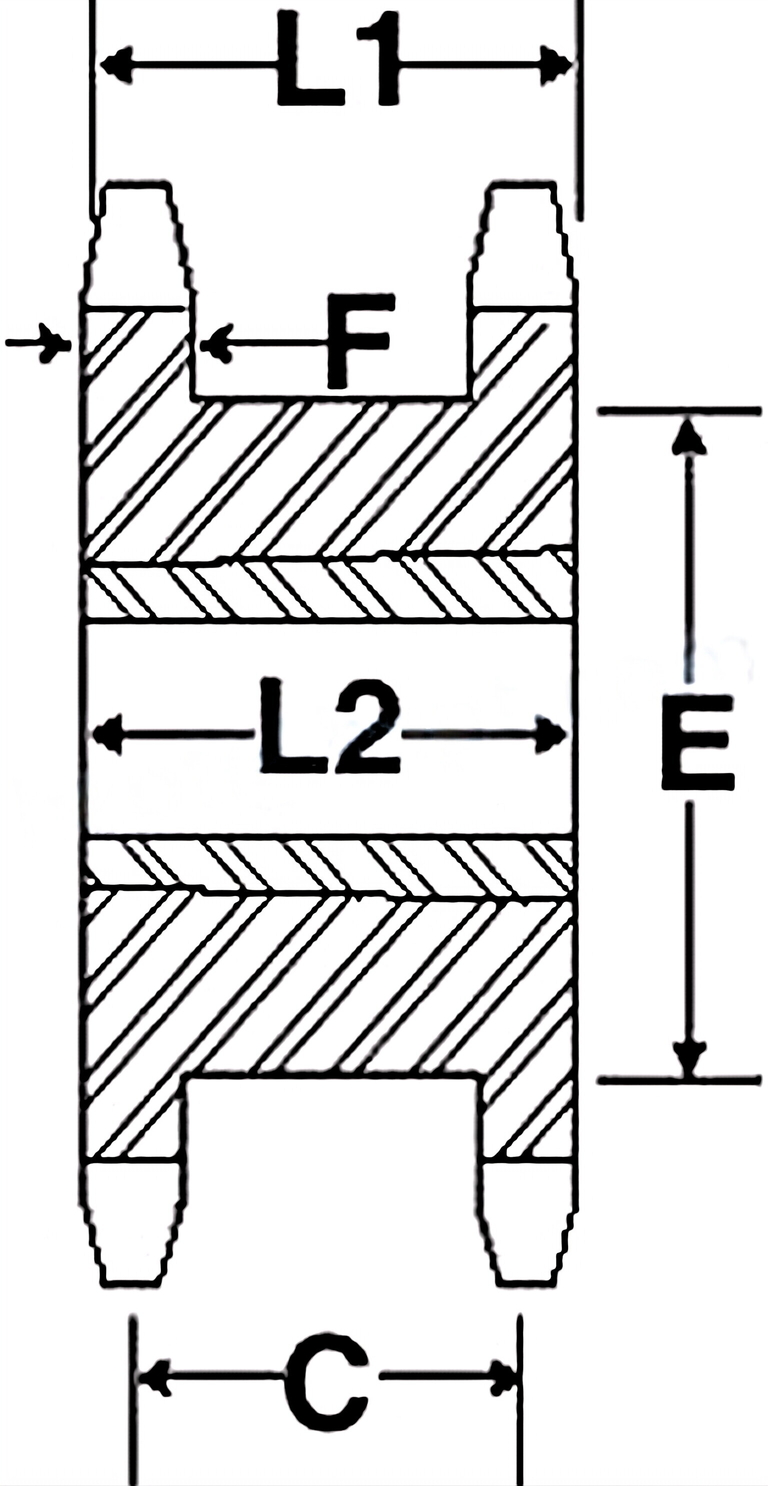

Type ATB:

Sprocket Size	Tooth Count	Bushing Size	Outside Diameter	Pitch Diameter	Minimum Bore	Maximum Bore	(L1)	(C)	(E)	(L2)	(F)	Weight (kg)
DS06ATB18H	18	1008	58.30	54.85	9	25	23.5	18.17	43.0	22.2	5.31	0.19
DS06ATB19H	19	1008	61.30	57.87	9	25	23.5	18.17	46.0	22.2	5.31	0.23
DS06ATB20H	20	1108	64.30	60.89	9	28	23.5	18.17	48.0	22.2	5.31	0.25
DS06ATB21H	21	1108	68.00	63.91	9	28	23.5	18.17	52.0	22.2	5.31	0.31
DS06ATB22H	22	1108	71.00	66.93	9	28	23.5	18.17	55.0	22.2	5.31	0.36
DS06ATB23H	24	1108	73.50	69.95	9	28	23.5	18.17	58.0	22.2	5.31	0.41
DS06ATB24H	24	1108	77.00	72.97	9	28	23.5	18.17	61.0	22.2	5.31	0.47

08B Double Single Sprockets

Type A:

Sprocket Size	Tooth Count	Outside Diameter	Pitch Diameter	Minimum Bore	Max. Recommended Bore	(L)	(C)	(E)	(F)	Weight (kg)
DS08A12	12	53.00	49.07	12	24	35.7	28.58	35	7.2	0.35
DS08A13	13	57.40	53.06	12	26	35.7	28.58	38	7.2	0.41
DS08A14	14	61.80	57.07	12	27	35.7	28.58	41	7.2	0.49
DS08A15	15	65.50	61.09	12	30	35.7	28.58	46	7.2	0.55
DS08A16	16	69.50	65.10	12	34	35.7	28.58	50	7.2	0.64
DS08A17	17	73.60	69.11	12	36	35.7	28.58	54	7.2	0.73
DS08A18	18	77.80	73.14	12	38	35.7	28.58	58	7.2	0.82
DS08A19	19	81.70	77.16	12	41	35.7	28.58	63	7.2	1.00
DS08A20	20	85.80	81.18	12	44	35.7	28.58	66	7.2	1.18
DS08A21	21	89.70	85.22	16	46	35.7	28.58	70	7.2	1.32
DS08A22	22	93.80	89.24	16	48	35.7	28.58	74	7.2	1.36
DS08A23	23	98.20	93.27	16	52	35.7	28.58	78	7.2	1.59
DS08A24	24	101.80	97.29	16	54	35.7	28.58	82	7.2	1.70
DS08A25	25	105.80	101.33	16	57	35.7	28.58	86	7.2	1.82

Type ATB:
