Electric Furnace Tipping Cylinder

Electric Furnace Tipping Cylinder

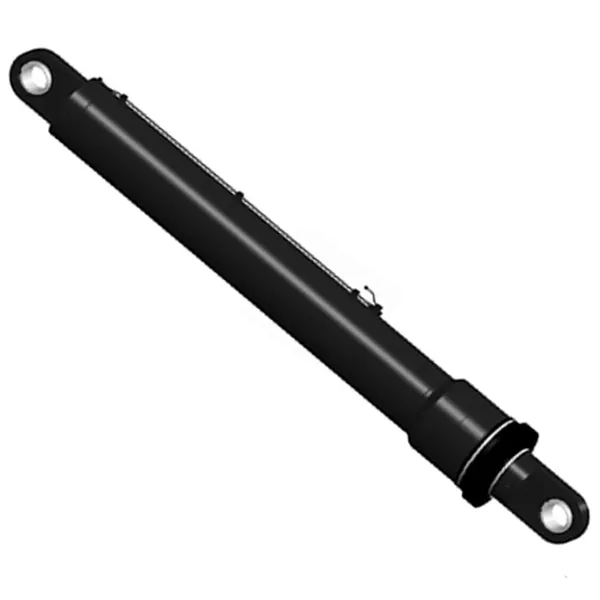

An electric furnace tipping cylinder is a hydraulic cylinder that is used to tilt or rotate an electric furnace. Electric furnaces are used to melt metals and other materials, and the tipping cylinder allows the molten material to be poured out into molds or other containers.

Electric furnace tipping cylinders are typically large and heavy-duty, and they must be able to withstand the high temperatures and forces involved in the steelmaking process. They are typically made of high-strength steel and have a variety of features to ensure safety and reliability, such as:

• Oversized components to handle high loads and pressures
• Special seals to prevent leakage of hydraulic fluid at high temperatures
• Hardened and ground surfaces to resist wear and tear
• Corrosion-resistant materials to withstand the harsh environment of a steel mill

Electric furnace tipping cylinders are a critical component of many industrial processes, and they play an important role in the production of steel, metal castings, and other products.

Electric Furnace Tipping Cylinder Specifications:

Product Name	Electric Furnace Tipping Cylinder
Bore diameter:	320mm
Rod diameter:	300mm
Pressure:	14MPa
Thrust force:	Maximum 989KN
Electric Furnace Tipping Cylinder Applications:	Electric Furnace

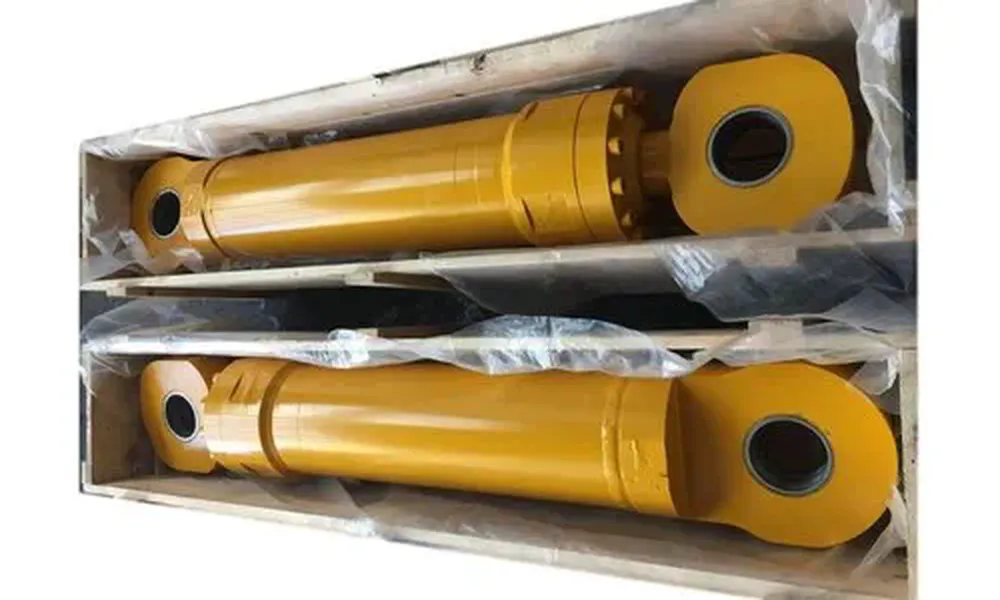

Advantages of Electric Furnace Tipping Cylinder:

The electric furnace tipping cylinder offers several advantages in the steelmaking process. Here are some key benefits:1. Controlled Pouring: The electric furnace tipping cylinder allows for precise control over the pouring of molten metal from the electric arc furnace. By tilting the furnace body to specific angles, the operator can regulate the flow of molten metal, ensuring accurate casting and reducing the risk of spills or splashes.2. Flexibility and Adaptability: The tilting mechanism of the tipping cylinder provides flexibility in the steelmaking process. It allows for easy adjustment of the pouring angle, accommodating different ladle sizes, molds, or downstream processes. This adaptability is particularly useful when producing various steel grades or fulfilling specific customer requirements.3. Improved Safety: The electric furnace tipping cylinder incorporates safety features that enhance the overall safety of the steelmaking operation. Emergency stop buttons, limit switches, and safety interlocks help prevent accidents and protect operators from potential hazards. The controlled pouring also reduces the likelihood of molten metal splashing, minimizing the risk of burns or injuries.4. Efficient Slag Removal: Slag, a byproduct of the steelmaking process, needs to be removed from the furnace. The tipping cylinder facilitates the efficient removal of slag by tilting the furnace body, allowing the slag to flow out easily. This helps maintain a cleaner furnace environment, improves heat transfer efficiency, and reduces the formation of unwanted impurities in the steel.5. Increased Productivity: The precise control and automation capabilities of the electric furnace tipping cylinder contribute to enhanced productivity in steelmaking. The ability to accurately pour molten metal and adjust pouring angles enables faster casting cycles, reducing downtime and increasing overall furnace utilization. Additionally, the integration of automation and control systems allows for remote operation and real-time monitoring, optimizing production efficiency.6. Energy Efficiency: Electric arc furnaces are known for their energy efficiency compared to other steelmaking processes. The tipping cylinder supports this efficiency by enabling targeted pouring and minimizing heat loss during casting. The controlled pouring process helps conserve energy by reducing the need for excessive reheating or additional refining steps.

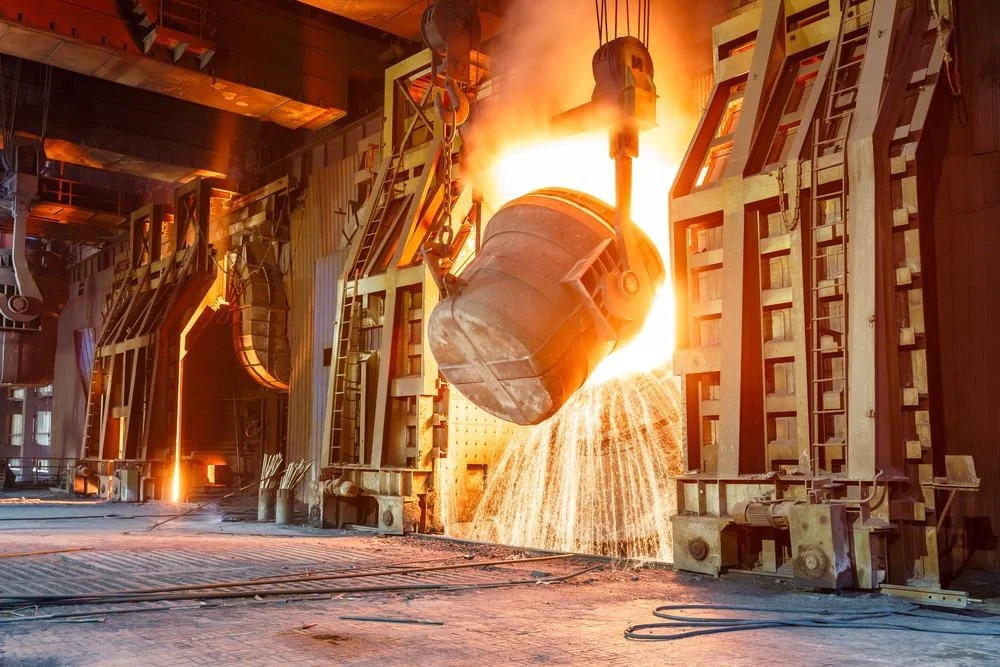

Maintenance of Electric Furnace Tipping Cylinder:

Proper maintenance of the electric furnace tipping cylinder is essential to ensure its reliable and efficient operation. Here are some maintenance practices to consider:(1) Regular Inspections: Perform routine visual inspections of the tipping hydraulic cylinder to identify any signs of wear, damage, or leaks. Check for loose connections, hydraulic fluid leaks, and worn-out components. Inspections should be conducted at regular intervals, and any issues should be addressed promptly.(2) Lubrication: Ensure that all moving parts of the tipping cylinder, such as hinges, pivot points, and hydraulic cylinders, are properly lubricated. Follow the manufacturer's guidelines for lubrication intervals and use recommended lubricants to maintain smooth and friction-free operation.(3) Hydraulic System Maintenance: The hydraulic system plays a critical role in the operation of the tipping cylinder. Regularly inspect hydraulic hoses, fittings, and seals for signs of leakage or damage. Monitor hydraulic fluid levels and quality and perform regular fluid changes as recommended by the manufacturer. Also, check and clean hydraulic filters to prevent contamination.(4) Alignment and Adjustment: Periodically check the alignment of the tipping cylinder to ensure it is correctly positioned and aligned with the furnace structure. Verify that limit switches and angle sensors are calibrated properly. If necessary, make adjustments to maintain accurate and reliable tilting angles.(5) Safety System Testing: Test and verify the functionality of safety features, such as emergency stop buttons, limit switches, and interlocks. Ensure that these safety systems are functioning correctly and respond appropriately in case of emergencies.(6) Component Replacement: Over time, certain components of the tipping cylinder may wear out and require replacement. Keep an inventory of spare parts and replace worn-out components, such as seals, bearings, hydraulic hoses, and valves, as per the manufacturer's recommendations or when identified during inspections.
