Empty Container Stacker Tilt Cylinder

Empty Container Stacker Tilt Cylinder

An empty container stacker tilt cylinder is a hydraulic cylinder that is used to tilt the mast of an empty container stacker. This allows the operator to stack containers in tight spaces, such as under bridges or in narrow aisles.

The tilt cylinder is typically mounted on the front of the mast, and it is connected to the mast by a linkage system. When the operator presses the tilt button on the control panel, hydraulic fluid is pumped into the cylinder, which causes the piston to extend. This causes the mast to tilt forward or backward, depending on the direction of the cylinder stroke.

Empty container stacker tilt cylinders are typically made of high-strength steel and are designed to withstand the high pressures and loads that are encountered during operation. They are also equipped with a variety of seals and bushings to protect them from wear and tear.

Tilt cylinders for empty container stackers are available in a variety of sizes and specifications. The specific size and specifications that are required will depend on the size and capacity of the stacker.

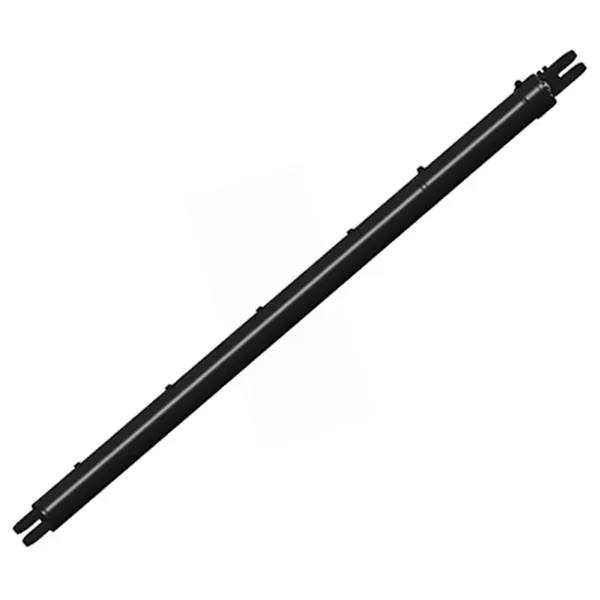

Empty Container Stacker Tilt Cylinder Specifications:

Product Name	Empty Container Stacker Tilt Cylinder
Features:	Realize the front and rear pitching action of the mast
Bore diameter:	100mm～220mm
Rod diameter:	60mm～140mmStroke≤1000mm
Pressure：	Maximum 30MPa
Applications:	Empty Container Stacker

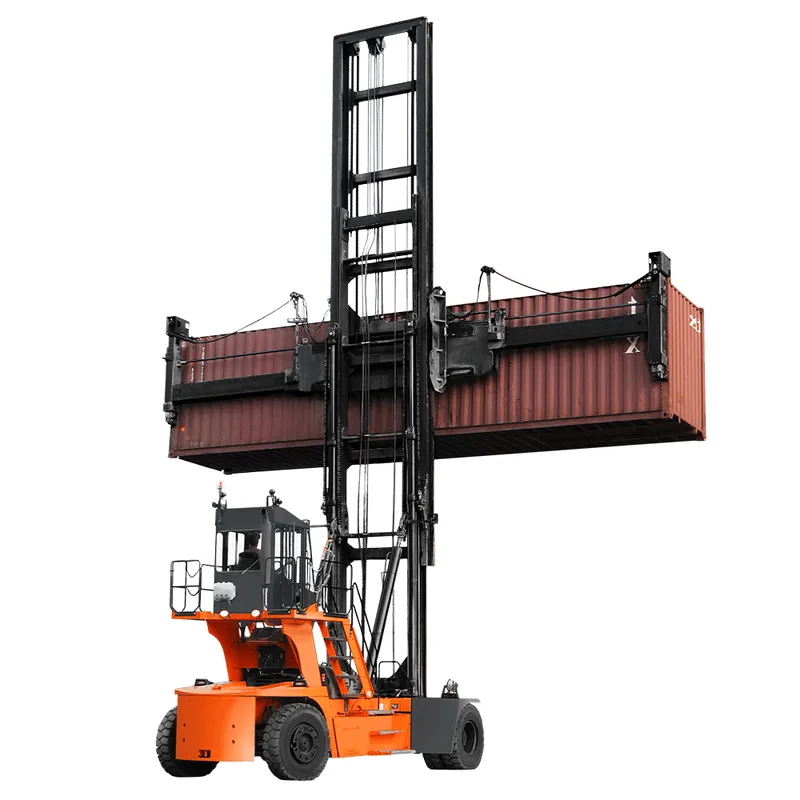

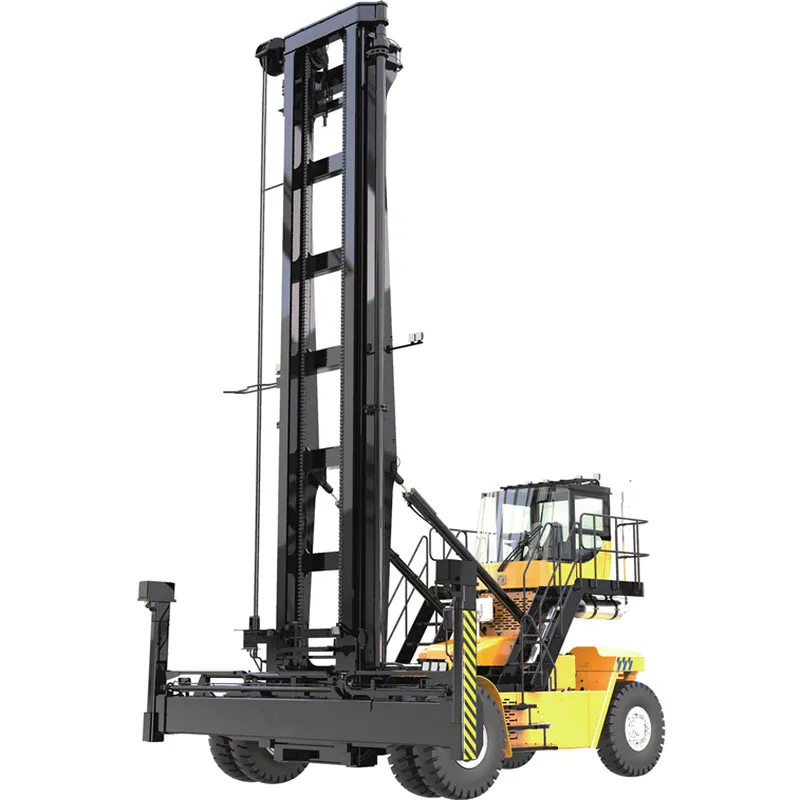

Empty Container Stacker Tilt Cylinder Advantages:

Empty container stacker tilt cylinders offer several advantages over traditional cylinders, including:

1. Improved safety: Empty container stacker tilt cylinders can help prevent accidents by reducing the risk of containers tipping over. This is because the tilt cylinder allows the container to be rotated slightly as it is lifted, which helps to center the load and reduce the risk of imbalance.2. Increased efficiency: Empty container stacker tilt cylinders can help to increase the efficiency of empty container stacking operations by allowing containers to be stacked more quickly and accurately. This is because the tilt cylinder allows the container to be rotated into position before it is lifted, which saves time and reduces the risk of errors.3. Reduced wear and tear: Empty container stacker tilt cylinders can help to reduce wear and tear on other components of the empty container stacker, such as the mast and spreader. This is because the tilt cylinder helps to distribute the load more evenly across the stacker.4. Extended lifespan: Empty container stacker tilt cylinders can help extend the lifespan of the empty container stacker by reducing wear and tear and preventing accidents.

In addition to these advantages, tilt cylinders can also be used to perform other tasks, such as:

• Loading and unloading containers from ships and trains
• Moving containers around storage yards
• Stacking containers on top of each other

Overall, empty container stacker tilt cylinders offer a number of advantages over traditional cylinders, including improved safety, increased efficiency, reduced wear and tear, and extended lifespan.

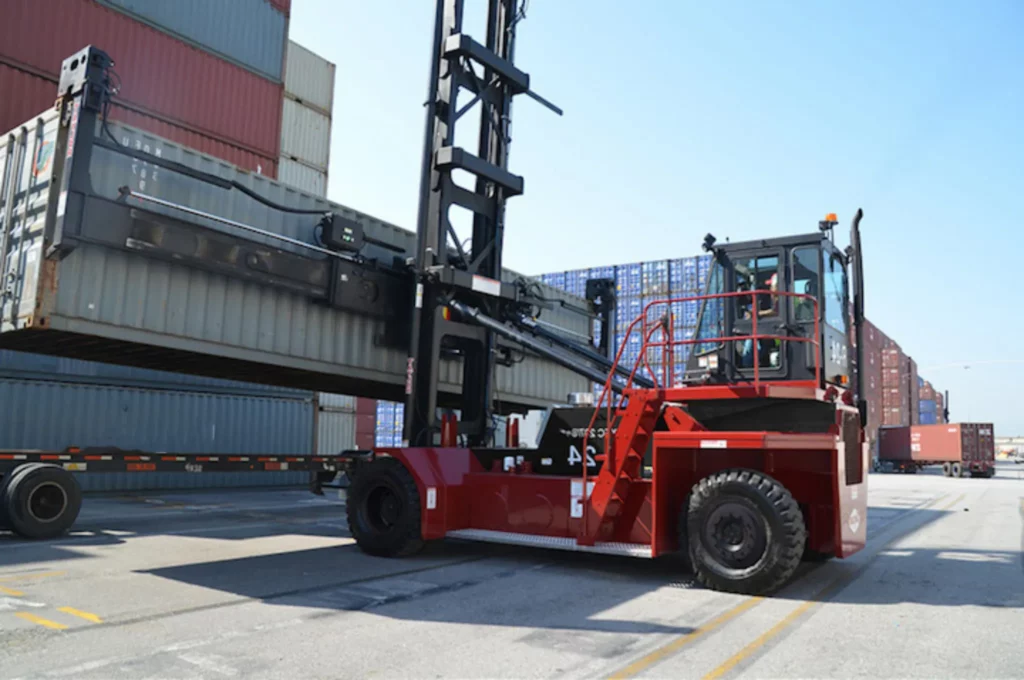

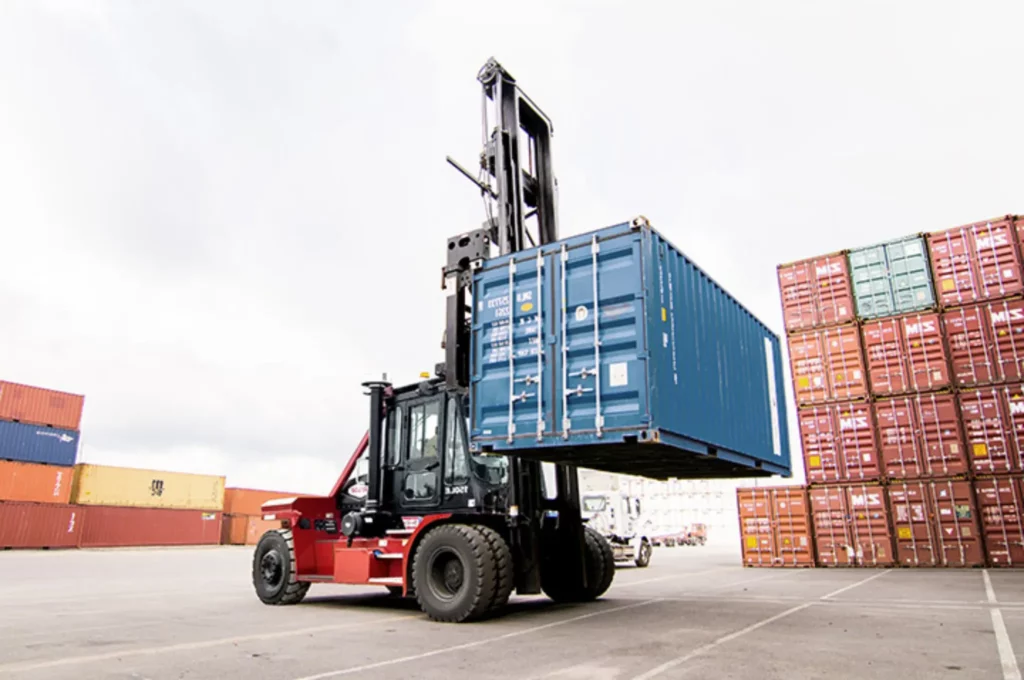

Empty Container Stacker Tilt Cylinder Applications:

The tilt cylinder in an empty container stacker is responsible for controlling the tilting motion of the container spreader. The container spreader is the device that attaches to the top of the stacker and is used to lift and move shipping containers. The tilt cylinder plays a crucial role in the following applications:(1) Container Tilting: The primary function of the tilt cylinder is to tilt the container spreader. This allows the stacker to adjust the orientation of the container, enabling efficient loading and unloading operations. By controlling the tilt angle, the stacker can align the container with the desired position for stacking or ground transfer.(2) Stacking and Destacking: During the stacking process, the tilt cylinder helps position the container at an appropriate angle to ensure stability and secure stacking. It allows the stacker operator to tilt the container slightly backward or forward to facilitate safe placement on top of other containers. Similarly, during destacking, the tilt cylinder assists in the controlled lowering of the container to the ground.(3) Ground Transfer: When containers need to be moved horizontally on the ground without being lifted, the tilt cylinder comes into play. By adjusting the tilt angle, the stacker can tilt the container to one side, allowing it to slide or roll smoothly on the ground. This enables efficient container repositioning or re-alignment within the terminal or yard.(4) Container Inspection: The tilt cylinder can be utilized for container inspection purposes. By tilting the container, the stacker operator can provide better visibility of the container's interior or inspect the undercarriage for any damages or abnormalities. This helps ensure the safety and quality of the containers being handled.

Here are some examples of industries where empty container stacker tilt cylinders are used:

• Ports: Ports use empty container stacker tilt cylinders to load and unload containers from ships and place them on trucks for transport to other destinations.
• Freight terminals: Freight terminals also use empty container stacker tilt cylinders to load and unload containers from trucks and place them on ships or other trucks for transport.
• Warehouses: Warehouses use empty container stacker tilt cylinders to move containers around the warehouse and stack them on pallets.

China Empty Container Stacker Cylinder Manufacturers

The empty container stacker is the key equipment for container transportation, and one machine with multiple uses is in its normal state. It can be used for horizontal transportation, as well as for loading, unloading, handling, and unpacking operations. The key cost is low, and maintenance is convenient.Raydafon's high-quality lifting hydraulic cylinders and telescopic hydraulic cylinders are made of tailor-made high-strength materials, which have better load capacity and wear resistance and can guarantee the reciprocating lifting action of stacking operations. Moreover, the weight is light, which satisfies the lightweight demand of the stacker, making it lighter and more flexible in action. In addition, the special sealing design can adapt to fast-moving work conditions so that the stacker has the advantages of fast operating speed, high efficiency, and reliable performance.Moreover, we go beyond empty container stacker cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.
