EPS Series Solid Shaft Helical Worm Gearbox

Raydafon Group's EPS Series Solid Shaft Helical Worm Gearbox is a durable, high-efficiency power transmission solution ideal for industrial automation and machinery. Its helical-worm design ensures smooth operation and superior torque, made from robust materials for long-lasting performance. Perfect for engineers and manufacturers seeking reliability in demanding applications, it enhances productivity while reducing maintenance needs. Stand out with its compact yet powerful build and Raydafon Group's trusted quality, delivering precision and peace of mind.

Send Inquiry

Product Description

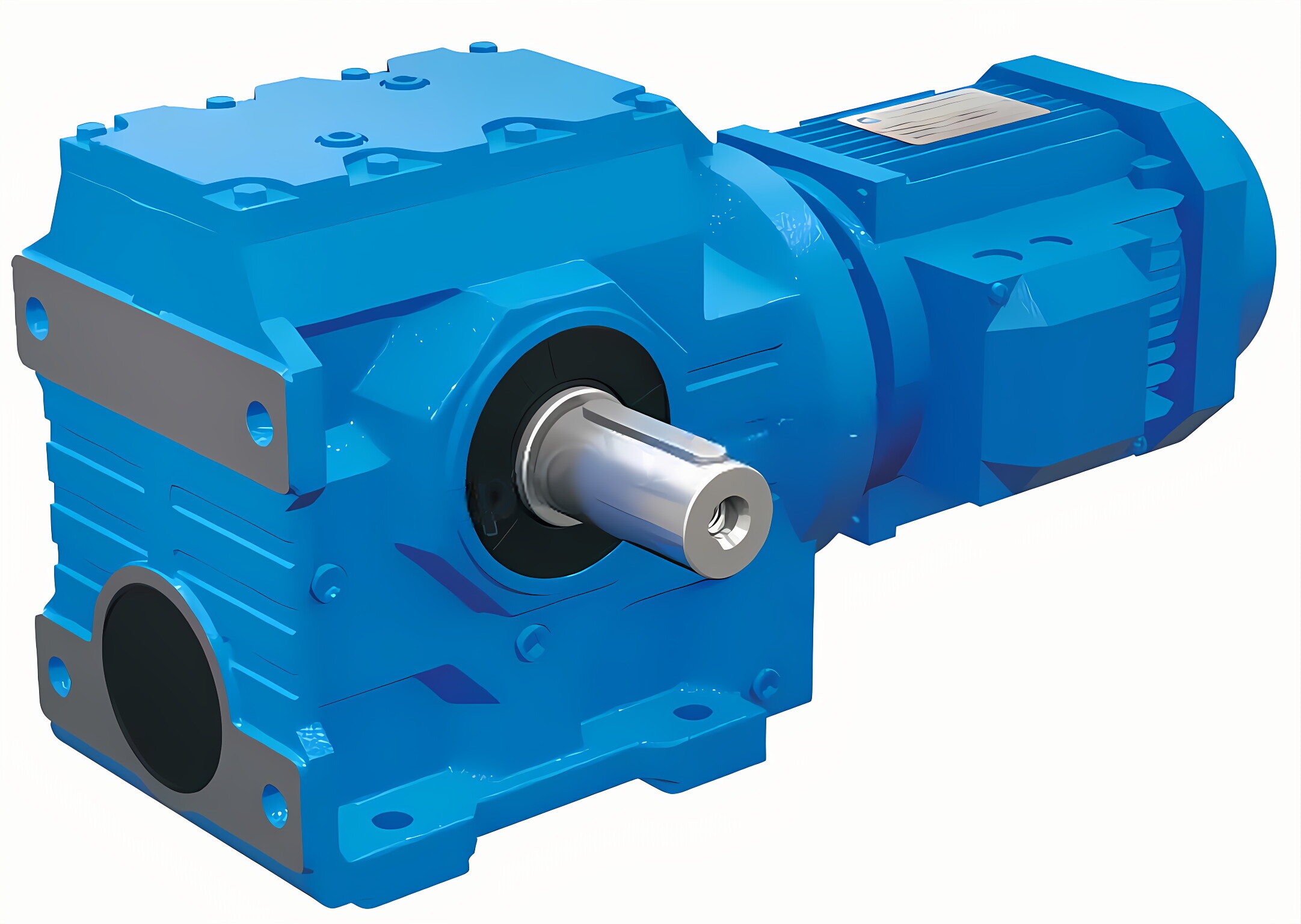

EPS Series Solid Shaft Helical Worm Gearbox

EPS series helical worm gearbox is a right-angle speed reducer with helical gear and worm gear combined drive system, designed and optimized according to international standards. Our helical worm gearboxes with simple mechanical structure design provide higher efficiency than worm gearboxes and also lower noise during operation. They are widely applied in robots, CNC machines, welding equipment, plastic machines, packaging and printing machinery, textile and dyeing machinery, construction machinery, communications, and other fields, especially suitable for frequent starting occasions.

EPS Series Helical Worm Gearbox Specifications:

Product name:	EPS series helical gearbox
Model:	EPS37、EPS47、EPS57、EPS67、EPS77、EPS87、EPS97RDF-SF37、RDF-SF47、RDF-SF57、RDF-SF67、RDF-SF77、RDF-SF87、RDF-SF97RDF-SA37、RDF-SA47、RDF-SA57、RDF-SA67、RDF-SA77、RDF-SA87、RDF-SA97RDF-SAF37、RDF-SAF47、RDF-SAF57、RDF-SAF67、RDF-SAF77、RDF-SAF87、RDF-SAF97RDF-SAT37、RDF-SAT47、RDF-SAT57、RDF-SAT67、RDF-SAT77、RDF-SAT87、RDF-SAT97RDF-SAZ37、RDF-SAZ47、RDF-SAZ57、RDF-SAZ67、RDF-SAZ77、RDF-SAZ87、RDF-SAZ97
Mounting ways:	Foot mounted, flange mounted, torque arm
Input ways:	Motor input, AM (IEC) flange input, and shaft input
Output way:	Solid shaft output or hollow shaft output
Efficiency:	up to 96%
Housing material:	HT250 high-strength cast iron
Worm Gear material:	High quality copper
Gear material:	20CrMnTi
Surface hardness of gears:	HRC58-62
Input/Output shaft:	40Cr steel
Heat treatment:	Carburizing and quenching
Bearing:	C&U or other brands
Oil seal:	NAK or other brands
Lubricating oil:	Gear oil
Packing:	Plywood case

EPS Series Helical Worm Gearbox Parameters:

Size	37	47	57	67	77	87	97
Structure	EPS RDF-SA RDF-SF RDF-SAF RDF-SAT RDF-SAZ
Input power(kW)	0.18-0.75	0.18-1.5	0.18-3	0.25-5.5	0.55~7.5	0.75-15	1.5-22
Ratio	10.27~165.71	11.46-244.74	10.75-196.21	11.55-227.20	96-241.09	11.83-223.26	12.75-230.48
Permissible torque(N.m)	90	170	300	520	1270	2280	4000

EPS Series Helical Worm Gearbox Features:

simple design, cost-effectiveness
strong vibration absorption, low-temperature rise
low-noise operation
wide range of speed ratios to choose from
self-function under certain conditions
good sealing, anti-corrosion, available in harsh conditions
available to combine with the R series helical gear reducer

EPS Series Helical Worm Gearbox Types

(1) EPS Series Foot mounted helical worm gearbox with solid shaft(2) RDF-SA Series helical worm gearbox with hollow shaft(3) RDF-SAZ Series Small flange mounted helical worm gearbox with hollow shaft(4) RDF-SA (RDF-S, RDF-SF, RDF-SAF, RDF-SAZ) Series Assemble users' motor or special motor, the flange is required(5) RDF-SF Series Flange mounted helical worm gearbox with solid shaft(6) RDF-SAF Series Flange mounted helical worm gearbox with hollow shaft(7) RDF-SAT Series Torque arm mounted Helical worm gearbox with hollow shaft(8) EPS (RDF-SF, RDF-SA, RDF-SAF, RDF-SAZ) Serie Shaft input Helical worm gearbox(9) RDF-SA (EPS, RDF-SF, RDF-SAF, RDF-SAZ)EPR Series Combined Helical worm gearbox(10) RDF-SA (EPS, RDF-SF, RDF-SAF, RDF-SAZ)EPS Series Shaft input combined Helical worm gearbox

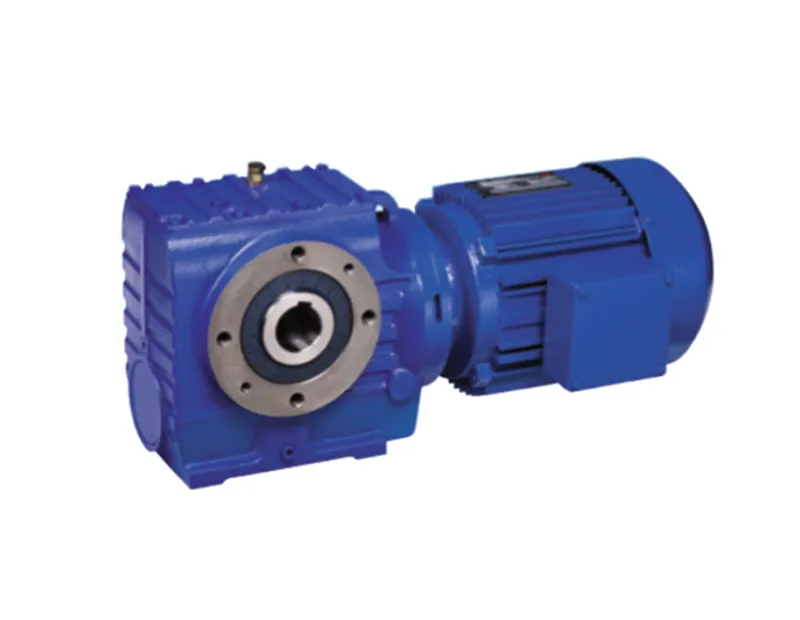

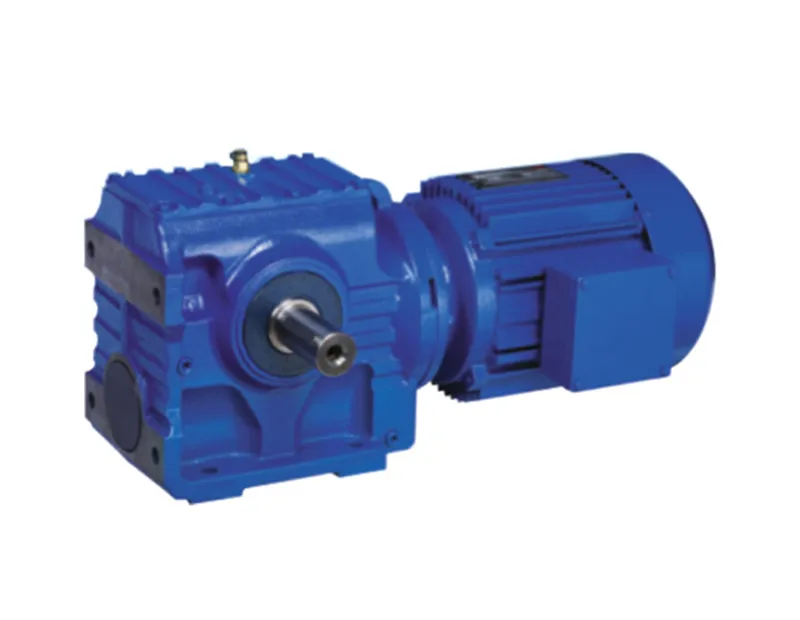

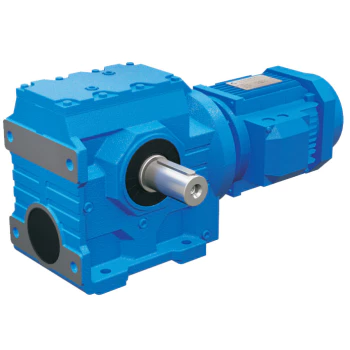

EPS Series Foot Mounted Helical Worm Gearbox	RDF-SA Series Helical Worm Gearbox with Hollow Shaft

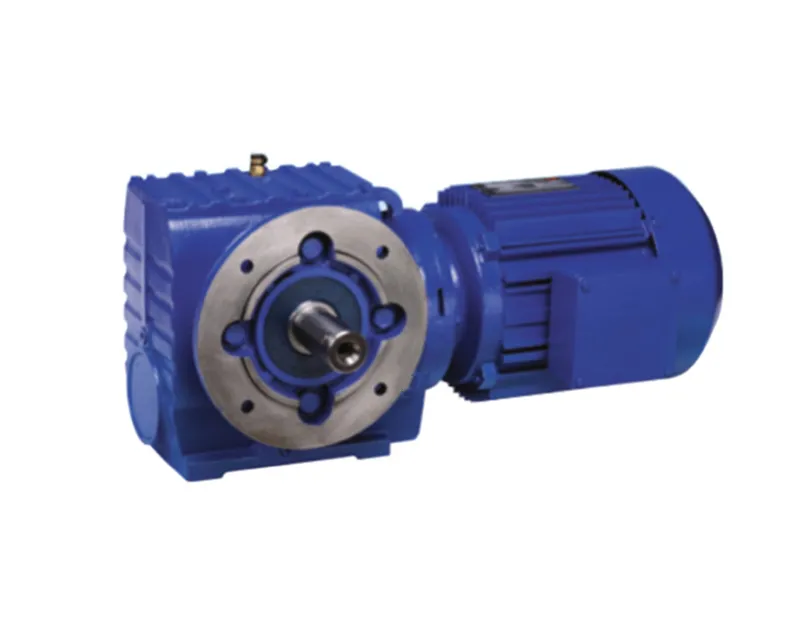

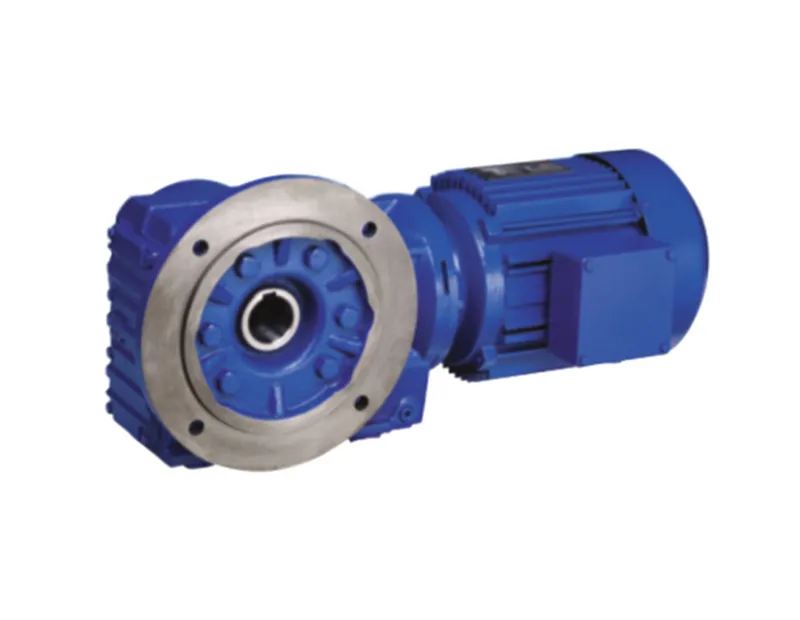

RDF-SF Series Flange Mounted Helical Worm Gearbox	RDF-SAF Series Flange Mounted Helical Worm Gearbox

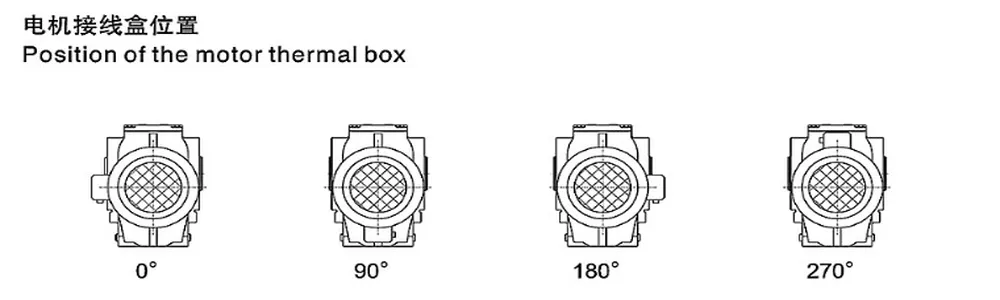

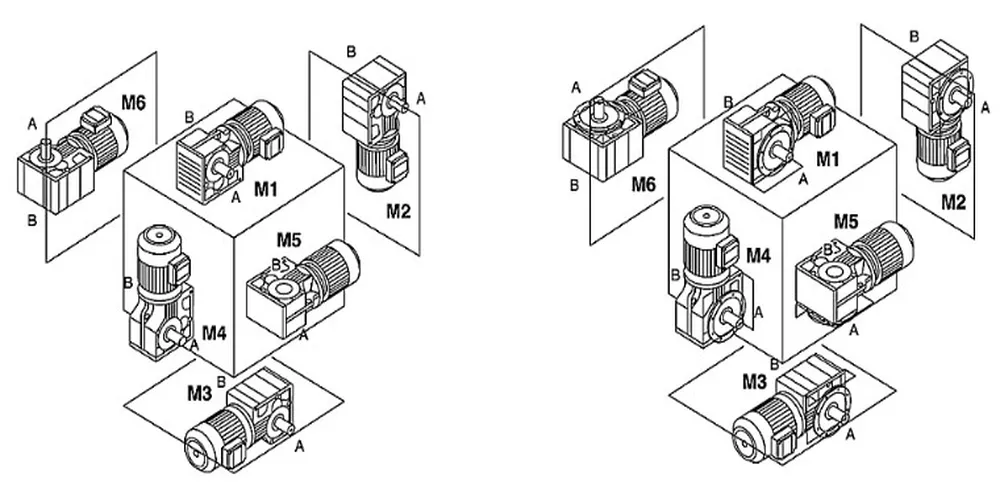

EPS Series Helical Worm Gearbox Mounting Position

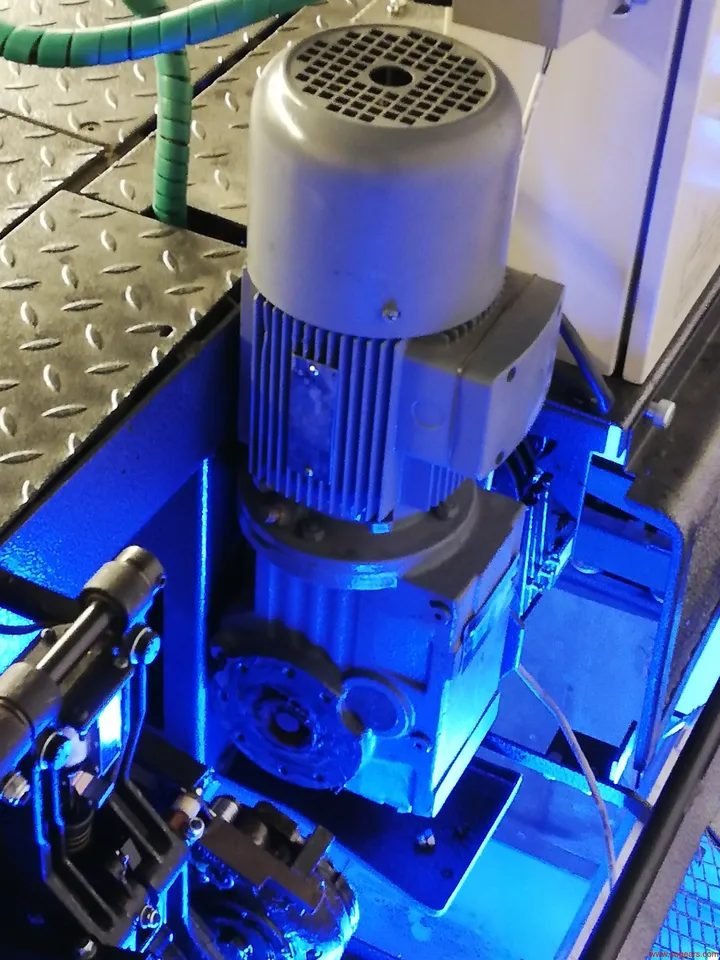

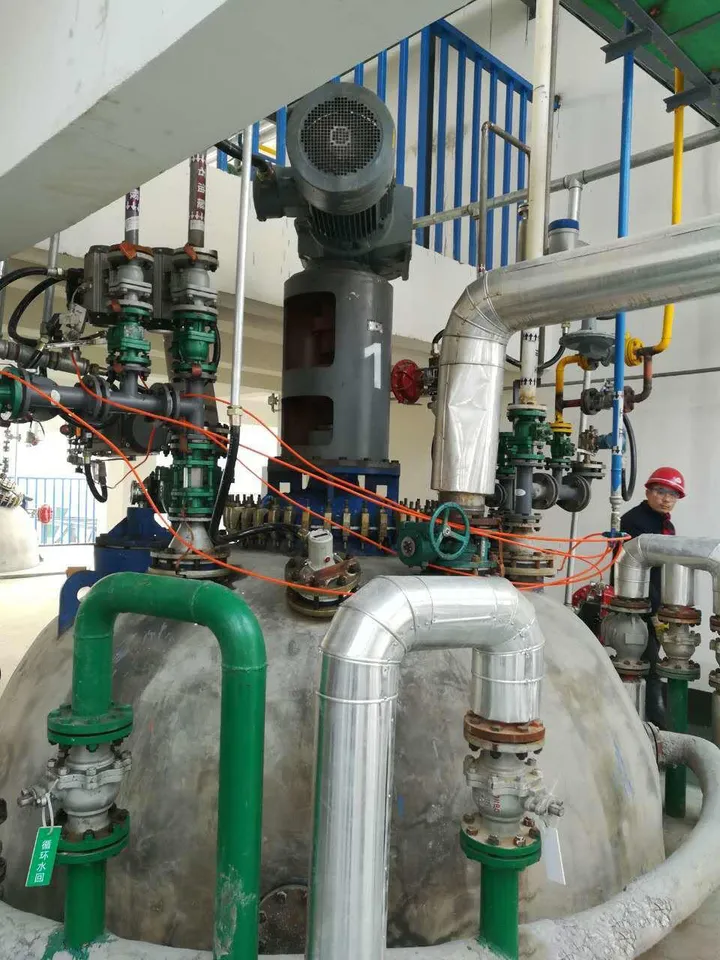

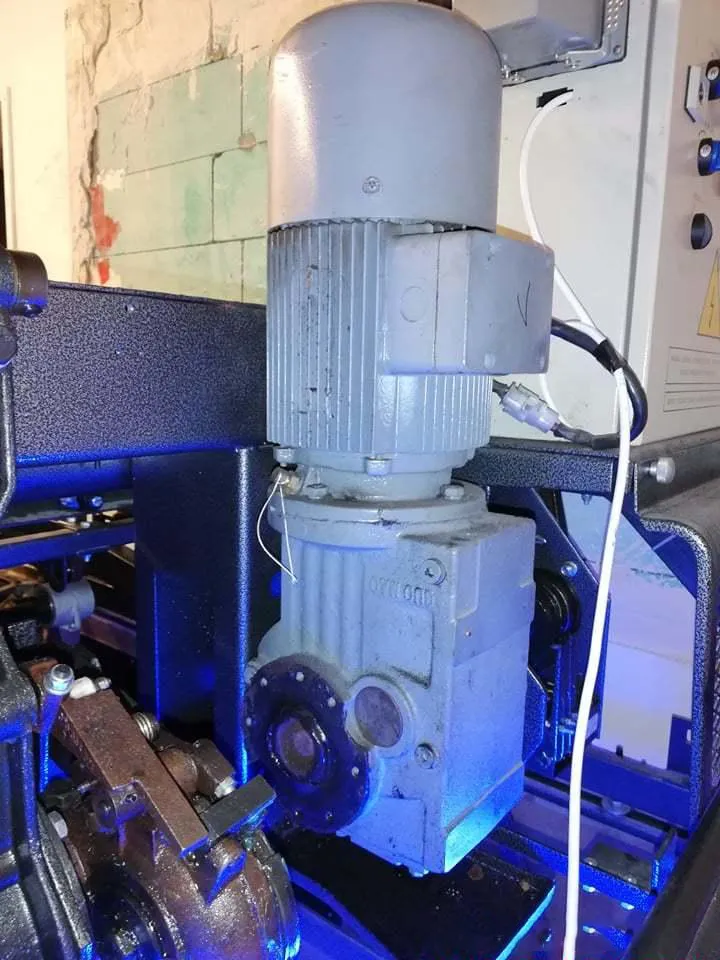

EPS Series Helical Worm Gearbox Applications:

EPS series helical worm gearbox has high transmission accuracy and is especially suitable for working on occasions with frequent starting. It can be connected to various reducers and equipped with various types of motor drives and can be installed in a 90-degree transmission operating position. Its key components are made of highly wear-resistant materials and undergo special heat treatment, which has the characteristics of high accuracy, stable transmission, small size, large load capacity, and long service life.S series helical worm gearbox is suitable for the following industries:1. Chemical industry and environmental protection2. Metal processing3. Building and construction4. Agriculture and food5. Textile and leather6. Forest and paper7. Car washing machinery

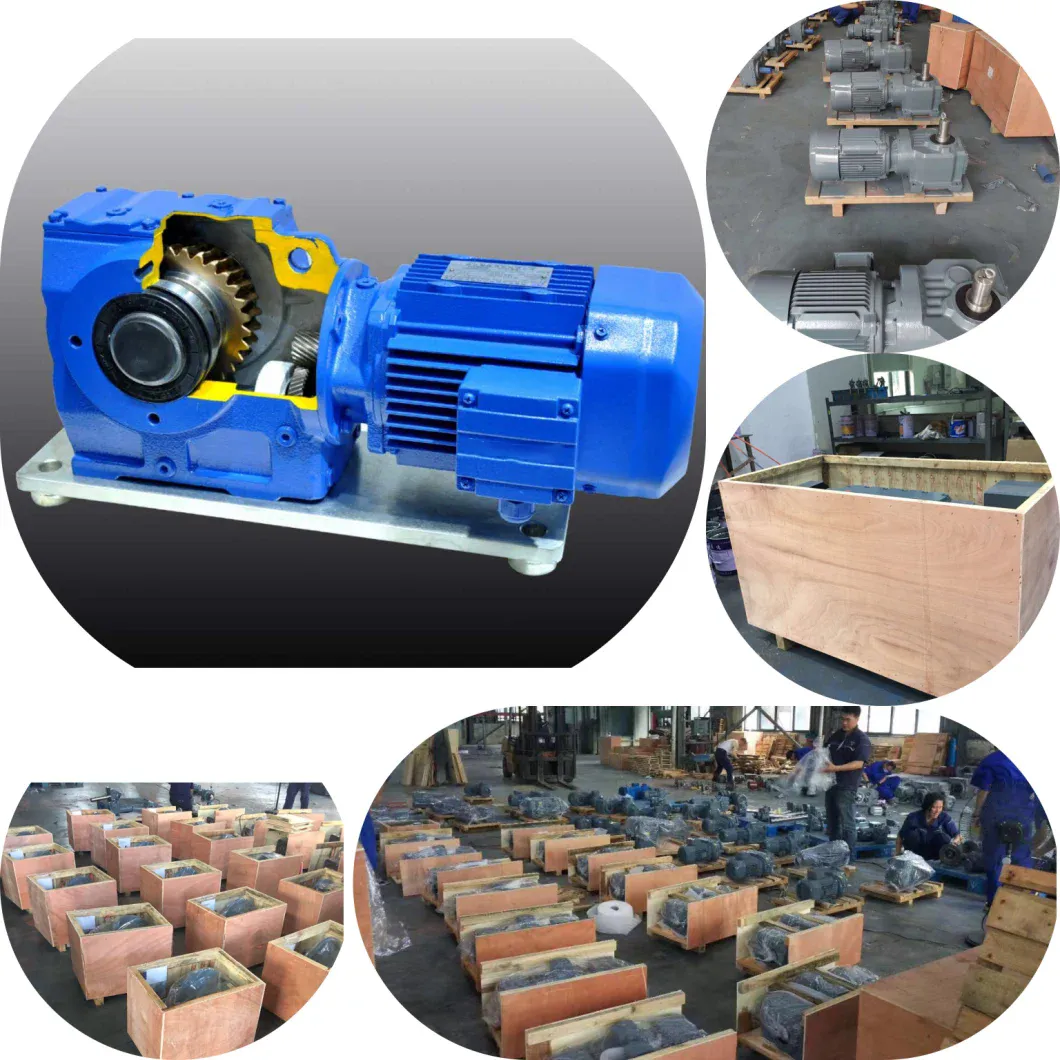

Helical Worm Gearbox Packing and Transportation

●Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service. EPS Series Solid Shaft Helical Worm Gearbox

Helical Gearbox Manufacturer in China

Our company is located in the city of Ningbo, Zhejiang Province of China. We handle the products of power transmission, and our lines mainly cover series products in speed reducers, RV series worm gearboxes, WP series worm gearboxes, EPS/EPR/EPK/EPF series helical gearboxes, HB series helical gearboxes, RC series helical gearboxes, X/B series cycloidal gearboxes, ATA series shaft mounted gearboxes, SMR series shaft mounted gearboxes, associated electric motors, and other power transmission accessories. Based on their versatile functions, our products can be utilized in many fields: machines of wastewater treatment, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers all over the world.Furthermore, the R&D investment is annually increasing for the purpose of better meeting the new demands of our customers and adapting to the new tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you. EPS Series Solid Shaft Helical Worm Gearbox

FAQ

Q1: Are you a trading company or a manufacturer?A: We are a manufacturer in Zhejiang Province, China. Our company owns the ability of manufacturing, processing, designing and R&D. We welcome your visit.Q2: How do we select models and specifications?A: According to the specific details of the demands from the part of the inquiry, we will recommend the products’ models upon synthesizing the factors of the field of product usage, power, torque arm, and ratio…Q3: How is your price? Can you offer any discount?A: Our prices are always competitive. If the customer can place a large order, we surely will allow a discount.Q4: How long should I wait for the feedback after I send the inquiry?A4: We will reply as soon as possible, 12 hours at most.Q5: What is your product warranty period?A: We have the certifications of ISO9001, CE, and SGS.Q6: What industries are your helical gearboxes being used in?A: Our helical gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment, and so on.
