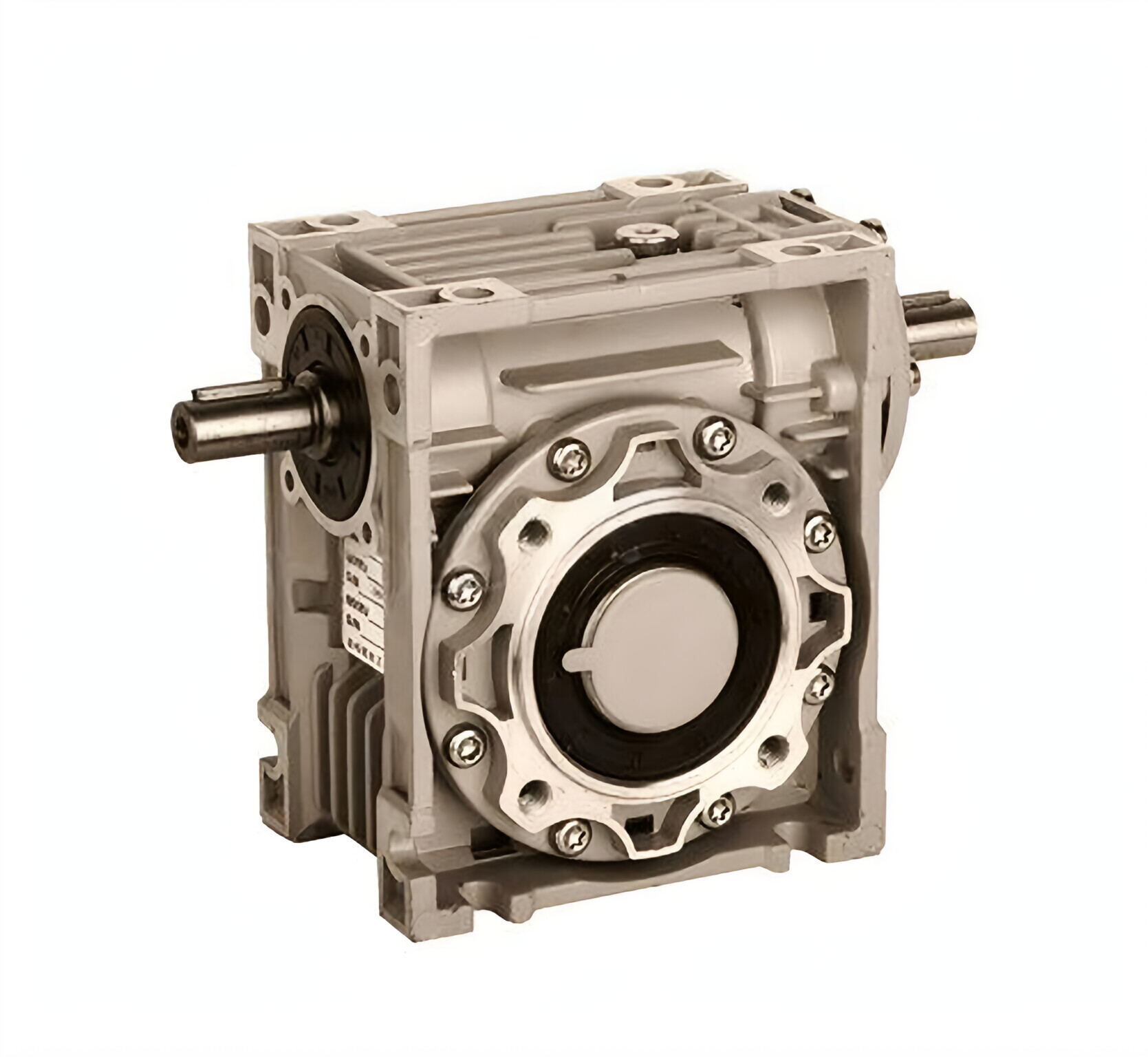

EPV-E WORM GEAR REDUCER

Descriptions of EPV-E Worm Gear Reducer

EPV-E worm gear reducer adopts high-quality aluminum alloy castings and adopts an advanced square box structure, which is small in size, light in weight and beautiful in appearance. The worm gear reducer can be matched with other gearboxes to achieve a large transmission ratio and large torque. What's more, due to the small size of the gearbox, it is easy to install and maintain. EPV-E worm gearbox is manufactured in accordance with international technical requirements, with high technical content, ensuring high rigidity and high torque.

Technical Parameters:

1. Housing: Aluminum alloy ( frame size:025-090); cast iron ( frame size: 110-150)
2. Worm: 20 Cr, carbonizing and quenching, tooth surface hardness is 56-62HRC
3. Worm wheel: Wearable stannum bronze
4. Power: 0.06KW～7.5KW
5. Torque:2.6Nm～2379Nm
6. Efficiency: Up to 95%

Advantages of EPV-E Worm Gearbox

• Low noise

The worm gearbox is smooth in transmission, which is suitable for working in harsh environments for a long time.

• High efficiency

With the use of tin bronze worm gear material, the worm gearbox is low in temperature-rising and fast in heat dissipation.

• High quality

The reducer is made of cast iron which is cast with an Aluminum mold. It`s good-looking and solid and can be used through the setting of multi-azimuth.

Applications

EPV-E worm gear reducers are widely used in the automation industry, industrial robots, aerospace, CNC machine tools, metallurgy and mining, beer and beverage, tobacco light industry, environmental protection engineering, warehousing and logistics, plastic machinery, lifting and transportation, three-dimensional parking, automobile manufacturing, Textile, food, ceramics, and other fields. EPV-E worm gear reducers are widely used in the automation industry, industrial robots, aerospace, CNC machine tools, metallurgy and mining, beer and beverage, tobacco light industry, environmental protection engineering, warehousing and logistics, plastic machinery, lifting and transportation, three-dimensional parking, automobile manufacturing, Textile, food, ceramics, and other fields.

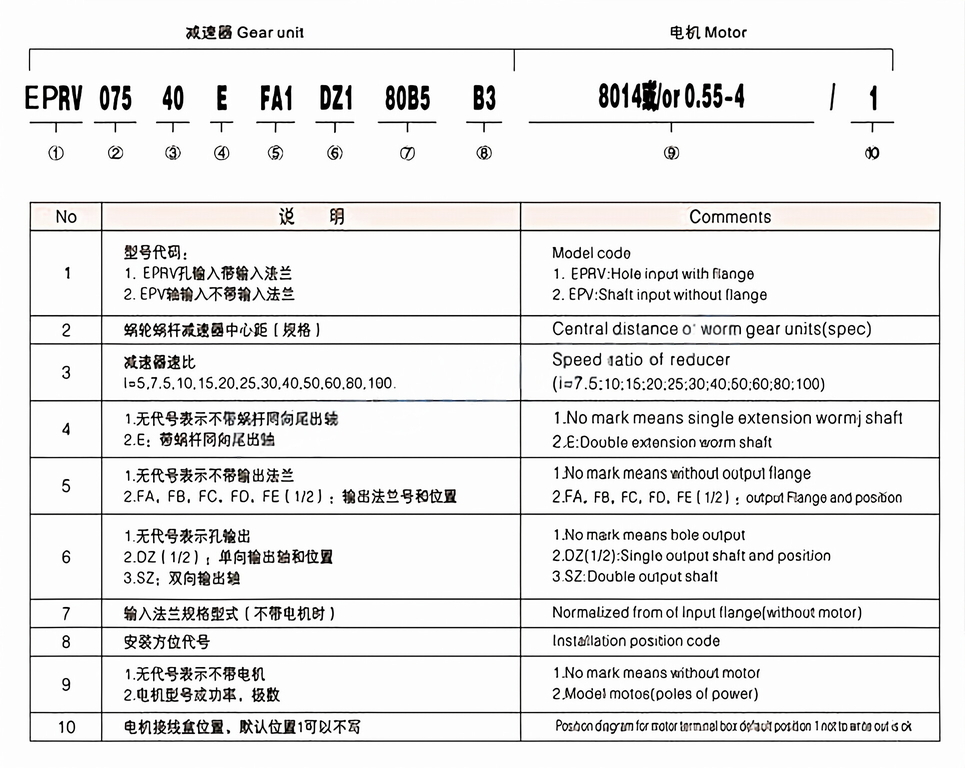

Indication of Model Numbers of EPV-E Worm Gear Reducer

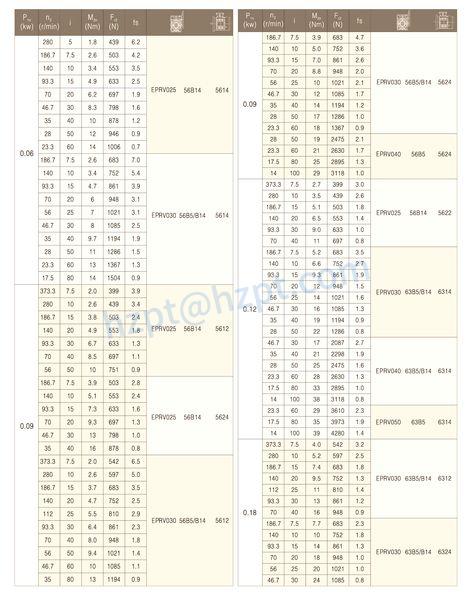

Specification Table of EPV-E Worm Gear Reducer

Click and check out more products you're looking for.

Why choose us

1. Wide selection of reducers

Our company offers the widest range of standard and custom solutions for applications in motion control and mechanical transmission. We provide precision inline planetary gearboxes and right angle planetary gearboxes, 90 degree right angle servo motor gearboxes, harmonic drive gearboxes, RV reducers for robots, ground precision racks, and pinions, servo motors, stepper motors, brushless motor,s, etc. The company can also provide worm gear reducers, gear motors, screw jacks, steering gears, and other related reducer gearboxes and accessories. This means you can get what you want right here and benefit from our one-stop service, saving you time and money.

2. Attractive price and top brand quality

We offer our customers very attractive prices with good quality. Compared with other companies' gearboxes, our precision planetary gearboxes feature low backlash (2-8 arcmin), high efficiency (≥95%), and low noise (60dBA). All servo gearboxes produced by our famous brand will be strictly inspected and tested before leaving the factory. In addition, we provide customers with a one-year warranty and lifetime after-sales service.

3. All-round professional technical support

Don't worry if you don't know how to choose the right transmission for your machine. We have a professional technical team to serve you. As long as you follow our steps, you'll know how to choose the right size. After selecting the matching gearbox for your motor, we will send you the corresponding CAD drawing for your inspection to avoid any mistakes. We also offer 24-hour technical support if you have any other issues that need urgent resolution.

4. Provide customized service

If you need a custom gearbox for a unique application, we can provide custom service according to your requirements. We will provide you with reliable, high-performance custom gearboxes from small to large output torques. Please tell our sales engineer your detailed requirements and all the necessary dimensions you want. The more information you provide us, the more suitable we can design a custom transmission for you.

5. Fast delivery time

For most of the standard reducers, we have sufficient stock, which can be delivered to customers in a very short time, solve the problem of urgent replacement of damaged gearboxes on working machines, and save costs for customers. Also, if a customer needs a gearbox of a certain size urgently and we do not have it in stock, we can arrange priority production, especially for you.

6. Alternatives to branded reducers

Most of our Precision Planetary Gearboxes can perfectly match and replace Apex Gearboxes, Dawn Gearboxes, Shimpo Gearboxes, Neugart Gearboxes, SPG Gearboxes, and Harmonic Drive Gearboxes, Boston Gearboxes, Replacement of Bonfiglioli Gearboxes, etc. Product number. High quality and low price, 3F reducers, especially the planetary gearbox and the harmonic drive gear, are warmly welcomed by customers all over the world.
