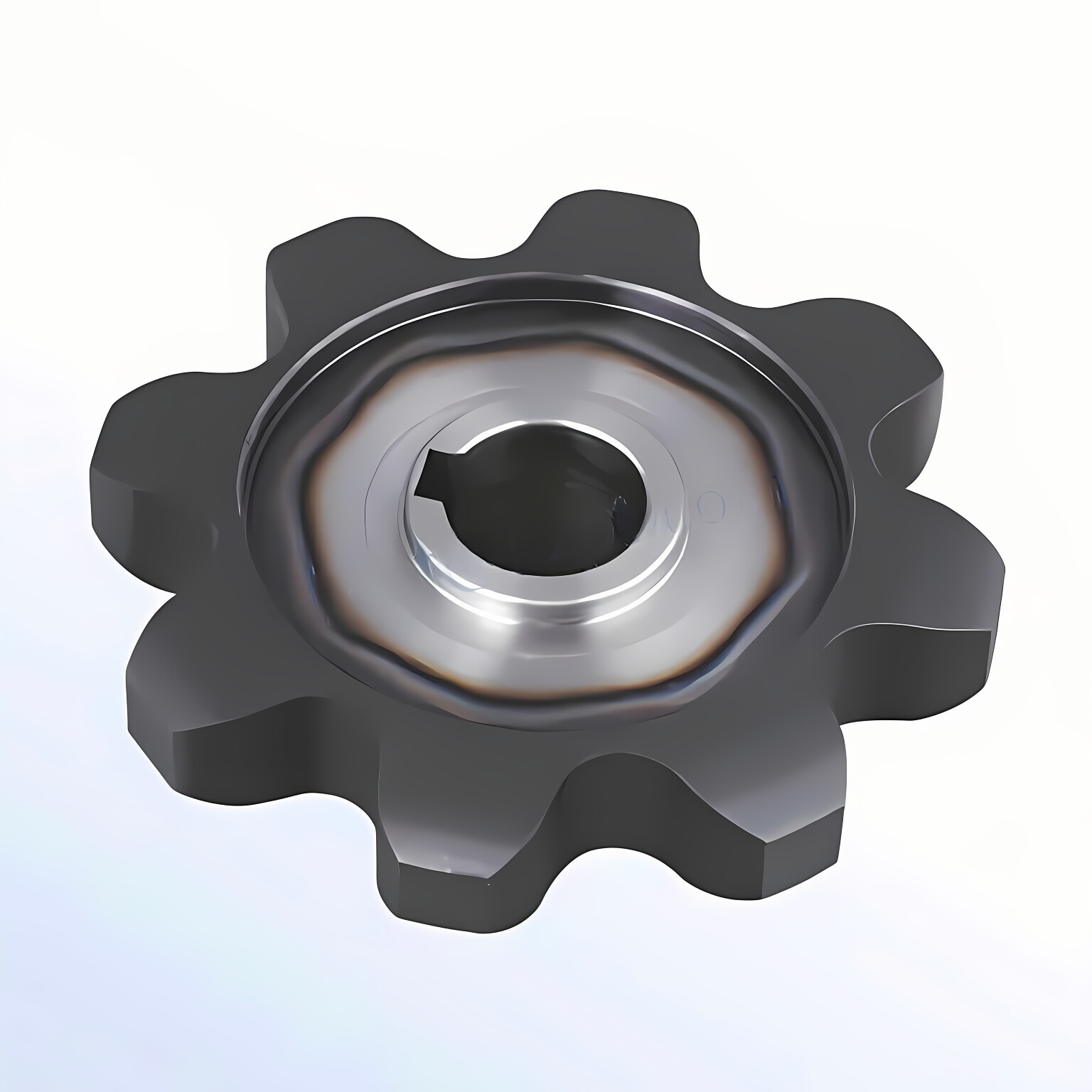

F963R-Series Sprockets

Experience exceptional durability with Raydafon Group's F963R-Series Sprockets, engineered for precision chain drive systems in industrial machinery. Crafted from high-strength materials, these sprockets ensure smooth operation, reduced wear, and enhanced efficiency in high-demand applications. Ideal for manufacturers and engineers seeking reliable performance, they solve common wear issues, delivering a sense of confidence and reduced downtime. Stand out with Raydafon's advanced design for unparalleled longevity in any tough environment.

Send Inquiry

Product Description

F963R series engineer class sprocket is used for a wide verity of chain sizes. These sizes include F-963R and 963 size chains. These sprockets are typically supplied as cast material but we can also supply them as steel for longer operation. The below chart shows the standard tooth counts as well as dimensions for each size. F963R-Series Sprockets

Cast D963R-Series Sprockets

Tooth Face at Pitch Line: 1.250" - Roller Diameter: 4.000"

Sprocket Size	Tooth Count	Pitch Diameter	Style	Hub Diameter	Length Thru Bore	Maximum Bore	Weight (LBS)
F963C6	6	18.00"	C	8.00"	6.00"	6.00"	80.0 LBS
F963C8	8	23.52"	C	8.00"	6.00"	6.00"	80.0 LBS

We aslo offer a full range of both precision roller chain and engineered.Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
