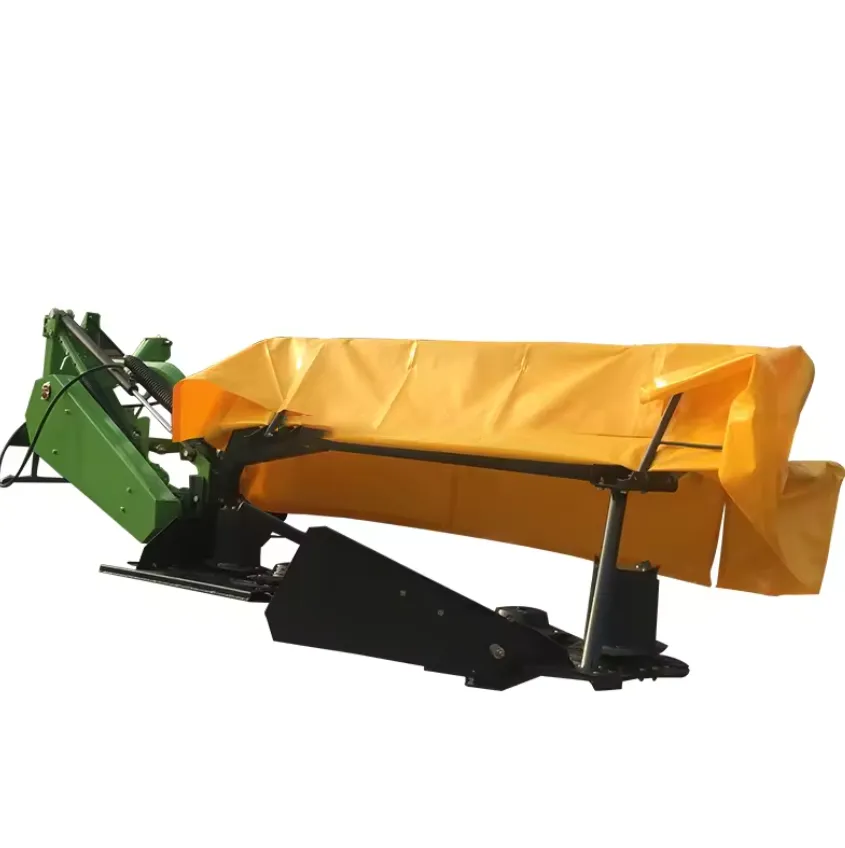

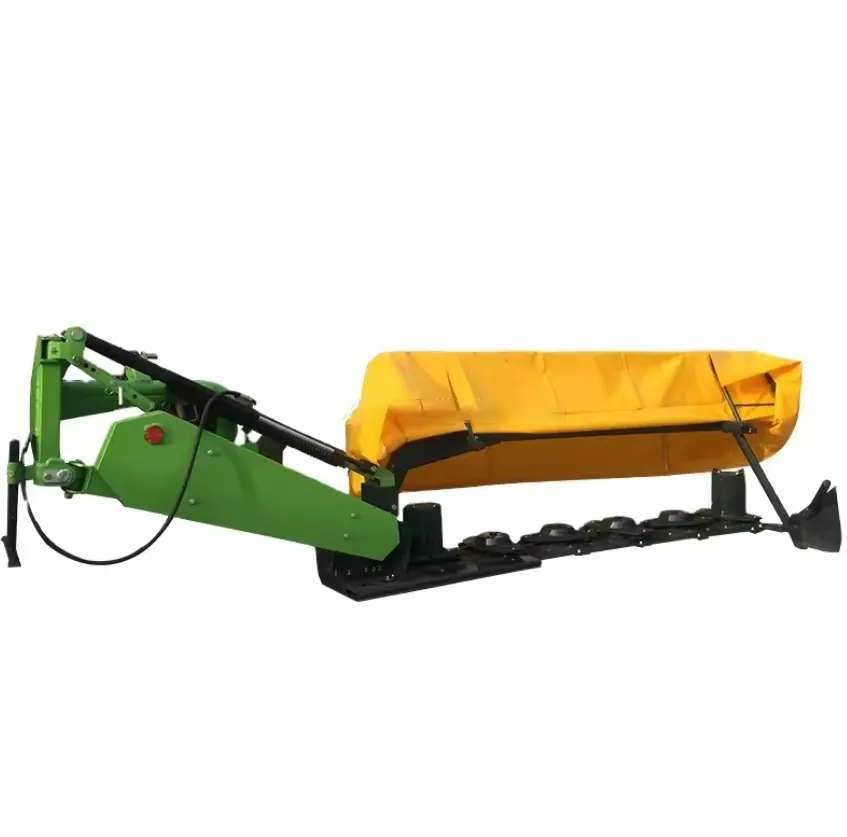

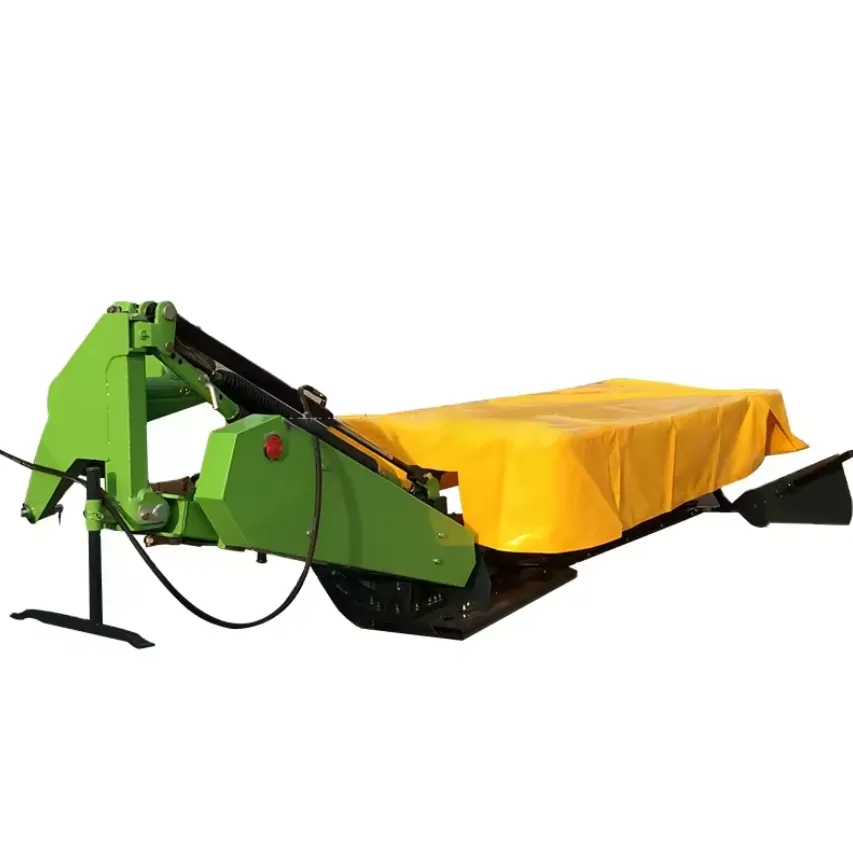

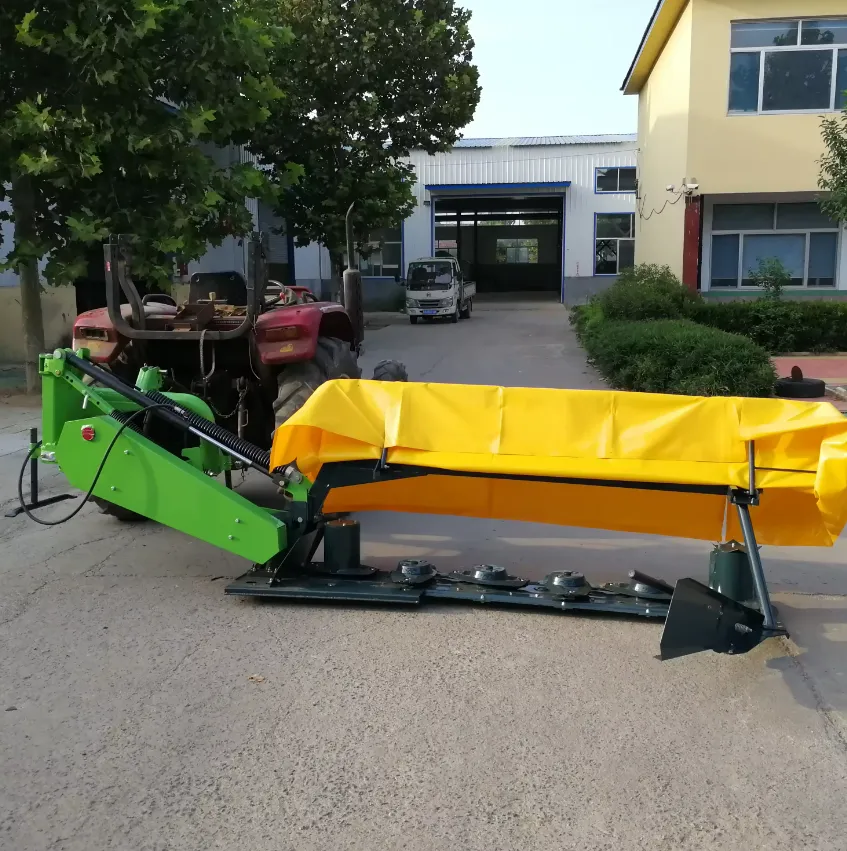

Factory Direct Raydafon PTO Driven Rotary Disc Mower

Presenting the factory direct Raydafon PTO driven rotary disc mower, a state-of-the-art piece of agricultural machinery. This piece of equipment comes with a 1-year warranty and is ideal for use in various farm industries. It's a new product for 2020, with core components including the bearing, gearbox, and gear. This rotary mower is perfect for cutting grass, alfalfa, and tall plants. It's easy to operate and comes in any color as per your request. After-sales services include video technical support and online support once the warranty period is over. This product holds CE certification and comes in an iron crate with plastic film packaging. The shipment is dispatched from the port of Qingdao, China.

The Advantages of the Raydafon PTO Driven Rotary Disc Mower

Choosing the Raydafon PTO driven rotary disc mower comes with several advantages. These include:

1. Effective Mowing: The two drums mowers smoothly mow the crop, and the mowed crop is carried to the rear by the big diameter of drums with effective ribs.
2. Transport Convenience: Its transport width is narrow due to the folding up of the drums by turning the screw handle.
3. Safety Measures: The safety device protects the drum by swinging it back when abnormal force acts on the drums.
4. Customizable: The color of the mower can be customized as per customer's request.
5. Technical Support: Video technical support and online support are provided for after-sales service.

6. Reliability: The core components of the machine include the bearing, gearbox, and gear, ensuring its durability and longevity.

Applications of the Raydafon PTO Driven Rotary Disc Mower

The Raydafon PTO driven rotary disc mower is not just versatile, but also highly efficient in various applications. These include:

1. Agricultural Farms: Ideal for use in large agricultural farms for efficient mowing of crops.
2. Grassland: Perfect for cutting grass, making it a great choice for maintaining large grasslands or golf courses.
3. Alfalfa Mowing: It is effective in mowing alfalfa, a key ingredient in animal feed.
4. Tall Plant Cutting: Can be used for the cutting of tall plants in a fast and efficient manner.
5. Landscape Maintenance: It can be used in landscape maintenance in commercial environments such as parks, sports fields, etc.
6. Personal Use: Due to its easy operation, it is also suitable for personal use in maintaining large residential lawns.

How Does the 3 Point Hitch Disc Drum Mower Work?

The 3-point hitch disc drum mower is a type of agricultural machinery used for cutting and harvesting hay or grass. It is typically attached to the rear of a tractor using a three-point hitch, which provides stability and allows for easy maneuverability. Here's how the 3-point hitch disc drum mower works:

1. Mounting: The mower is attached to the tractor's three-point hitch, which consists of two lower arms and an upper link. The lower arms are connected to the mower frame, while the upper link provides vertical adjustment.
2. Power Source: The mower is powered by the tractor's power take-off (PTO), which transfers power from the tractor engine to the mower blades. The PTO shaft is connected to the mower's gearbox, which increases the rotational speed and transmits it to the cutting mechanism.
3. Cutting Mechanism: The cutting mechanism consists of a set of horizontally rotating disc drums equipped with cutting blades. These blades are mounted on the drums at specific intervals and are designed to cut the standing crop as the mower moves forward.
4. Height Adjustment: The mower's height can be adjusted using the upper link of the three-point hitch. By changing the angle of the upper link, the cutting height can be increased or decreased, allowing the operator to adapt to different crop conditions or cutting requirements.
5. Operation: Once the mower is properly attached and adjusted, the tractor moves forward, pulling the mower along. As the disc drums rotate, the cutting blades engage with the crop, slicing it at the desired height. The cut material is then discharged to the side or rear of the mower, forming a windrow or spreading it evenly, depending on the design of the mower.
6. Safety Features: To ensure safe operation, most disc drum mowers are equipped with various safety features. These may include guards around the rotating blades to prevent debris from being thrown out, shear bolts or slip clutches to protect the mower from damage in case of an obstacle, and a quick-release mechanism to disengage the mower from the tractor in emergencies.

How to Install the Disc Drum Mower to Tractor?

Installing a disc drum mower to a tractor generally involves the following steps:

1. Position the Tractor: Park the tractor on a level surface and engage the parking brake to ensure stability during the installation process. Adjust the three-point hitch to the proper height. This can usually be done by using the hydraulic control lever or crank on the tractor. The hitch should be set to match the attachment points on the mower.
2. Align the Mower: Position the disc drum mower behind the tractor, aligning the lower hitch arms of the mower with the attachment points on the tractor's three-point hitch. Ensure that the hitch arms are securely connected to the tractor.
3. Attach the Top Link: Connect the top link of the three-point hitch to the upper attachment point on the mower. Adjust the length of the top link as needed to achieve the desired height and level the mower. Double-check all fasteners, including pins and bolts, to ensure they are tight and secure. This step is crucial for safety and to prevent any parts from becoming loose during operation.
4. Connect PTO Shaft: Attach the power take-off (PTO) shaft of the mower to the PTO stub on the tractor. The PTO shaft should slide onto the stub and be secured using the locking mechanism, such as a collar or a pin.
5. Adjust Height and Level: Use the tractor's hydraulic control lever or crank to adjust the height of the mower. Set it to the desired cutting height, keeping in mind the type of crop and cutting conditions.
6. Test Operation: Before starting the actual cutting, engage the PTO and observe the mower's operation. Ensure that the blades rotate smoothly and that there are no unusual vibrations or noises. Check for any interference between the mower and the tractor.

Maintenance of the Raydafon PTO Driven Rotary Disc Mower

Proper maintenance of a 3-point hitch disc drum mower is essential to ensure its optimal performance, extend its lifespan, and promote safe operation. Here are some maintenance tasks to consider:

1. Regular Cleaning: After each use, clean the mower thoroughly to remove any debris, grass clippings, and other material that may have accumulated. Pay attention to the cutting blades, disc drums, and discharge chute. Use a brush or compressed air to remove stubborn debris.
2. Blade Inspection and Sharpening: Regularly inspect the cutting blades for signs of wear, damage, or dullness. Replace any blades that are bent, cracked, or excessively worn. Sharpen the blades as needed to maintain their cutting efficiency. Follow the manufacturer's recommendations for blade maintenance and sharpening techniques.
3. Lubrication: Keep all moving parts properly lubricated according to the manufacturer's instructions. This includes lubricating bearings, gearbox components, and any other areas specified in the maintenance manual. Use the recommended lubricants and follow the recommended intervals for lubrication.
4. Gearbox Inspection: Check the gearbox for any leaks, abnormal noises, or signs of wear. If you notice any issues, address them promptly to prevent further damage. Follow the manufacturer's guidelines for gearbox maintenance and lubrication.
5. PTO Shaft Maintenance: Inspect the PTO shaft for any signs of wear, damage, or loose components. Ensure that the protective shielding is intact and properly secured. Grease the PTO shaft as recommended by the manufacturer.
6. Check Nuts and Bolts: Regularly inspect all nuts, bolts, and fasteners on the mower for tightness. Vibrations during operation can cause them to loosen over time. Tighten any loose fasteners to ensure the mower remains properly assembled.

Why Choose Raydafon's Agricultural Disc Drum Mower?

Raydafon Agricultural Machinery Co., Ltd. is a world-renowned manufacturer of agricultural machinery. With over 100 employees, including 20 technical staff and five senior R&D personnel, we take pride in our robust research and development capabilities and our high-quality products. Our company is equipped with two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. We have more than ten years of experience in production and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China.

Our main products are PTO shafts, agricultural gearboxes, sickle bar mowers, rotary mowers, flail mowers, lawn mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

Choosing Raydafon's agricultural machinery not only means choosing top-quality products but also excellent after-sales service and technical support. Our team is always ready to provide any necessary assistance to ensure your complete satisfaction.
