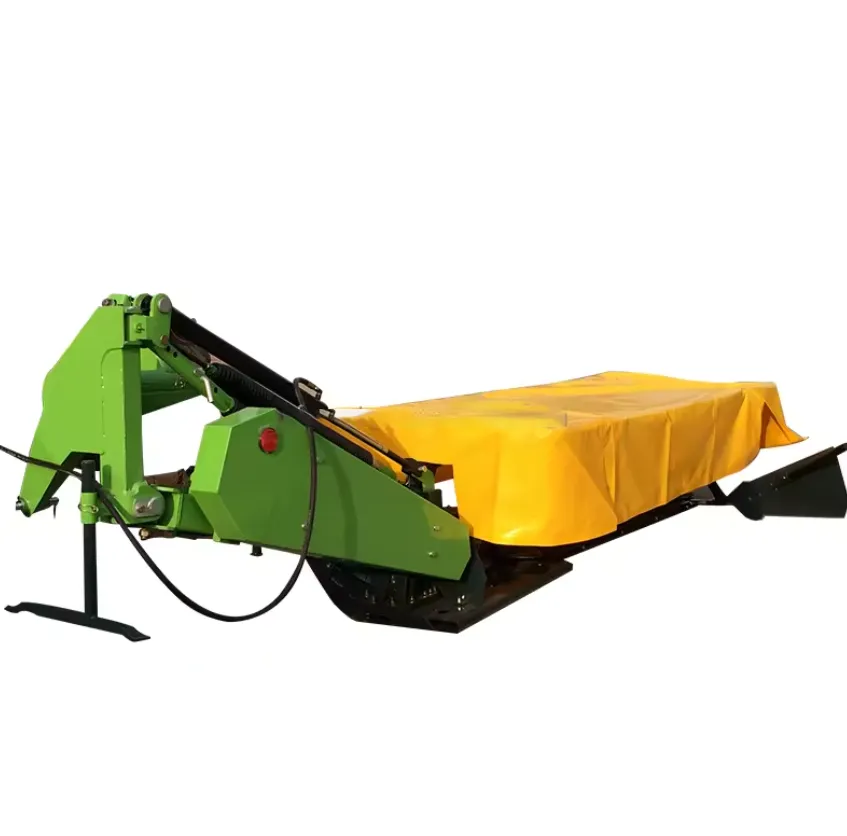

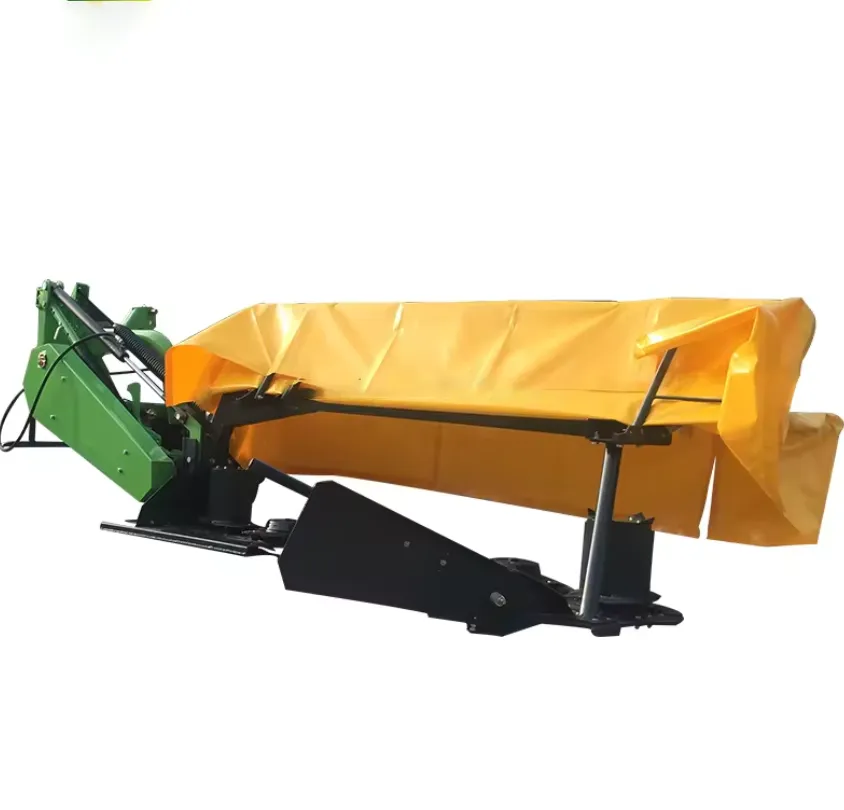

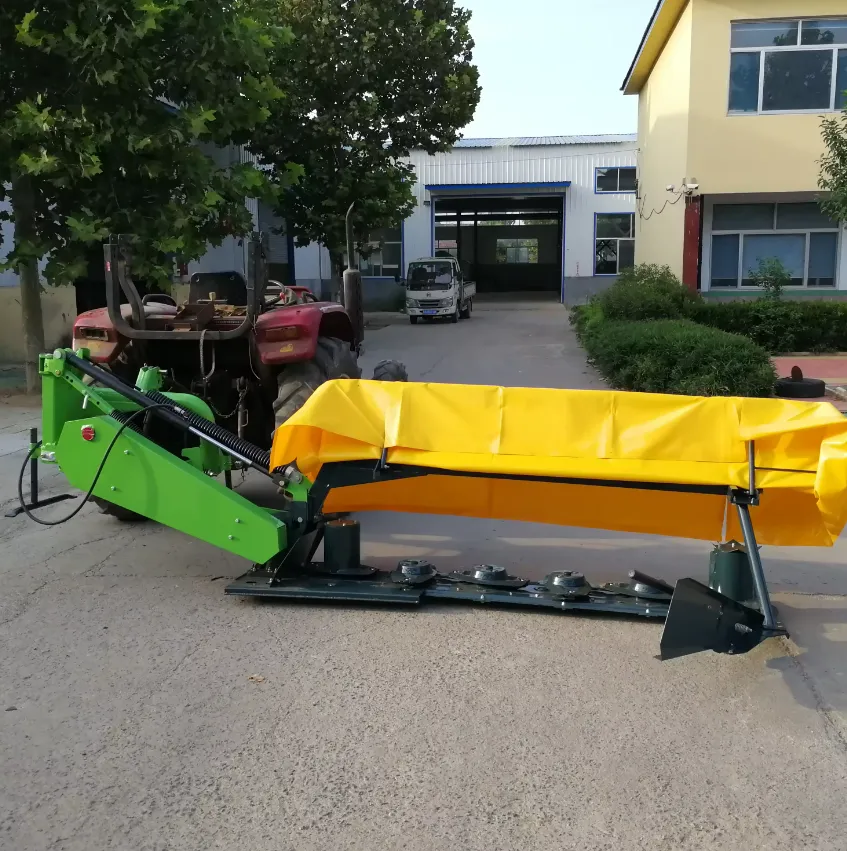

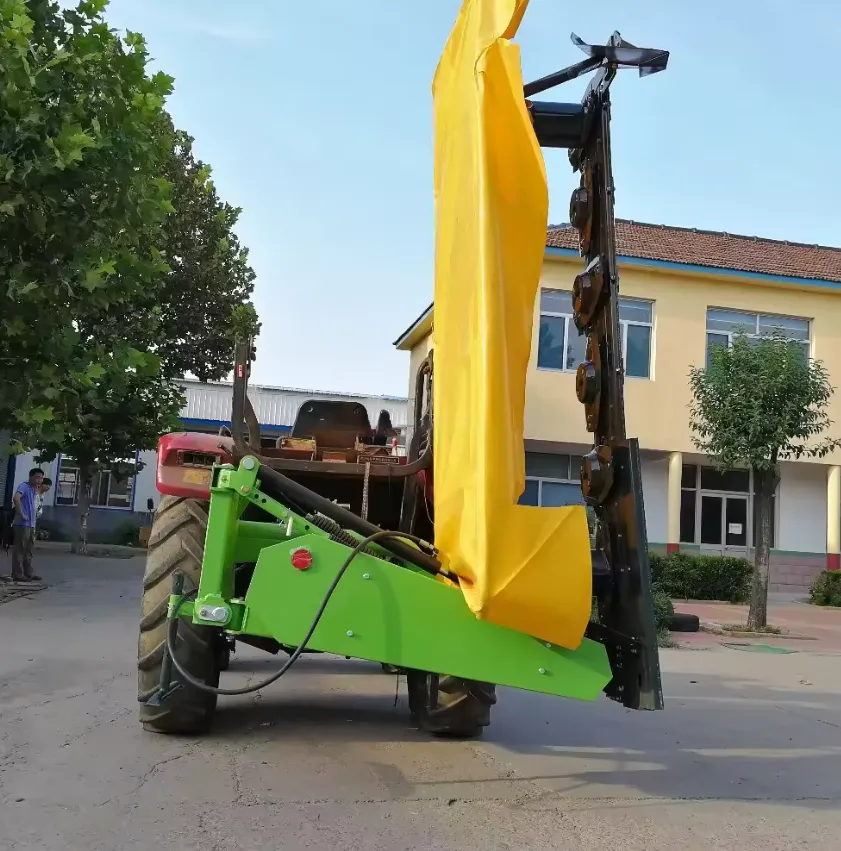

Factory Direct Sell Disc Hay Cutter for Hay Cutting

Straight from the manufacturer, this disc hay cutter is a high-quality agricultural tool that is perfect for all farming operations. With a one-year warranty, the disc hay cutter weighs 550 KG and is specifically designed for use in farms. It comes with a helpful video outgoing-inspection and a machinery test report so you can be assured of its quality and performance. This ordinary product offers high productivity and is notable for its core components - the gearbox and gear. The disc hay cutter is both a disc mower and a rotary type, ideal for cutting grass, straw, and corn stalk. With its new condition, 2-6 disc number, and 2 blades per disc, it offers efficiency and productivity in your farming tasks. Moreover, it's thoughtfully packaged in an iron crate, ensuring its safe and secure delivery to your location.

Advantages of the Disc Hay Cutter

Here are six significant advantages of this disc hay cutter:

1. 1. High Productivity: With 2-6 discs and 2 blades per disc, the hay cutter can handle large areas efficiently, boosting your farm productivity.
   2. Robust Core Components: The gearbox and gear are the main powerhouses of the machine, ensuring reliable and steady performance.
   3. Multi-functional: It's not just a disc mower but also a rotary type, making it versatile for different farming needs.
   4. Durable and Long-lasting: With a one-year warranty on both the product and its core components, you can trust in the longevity of this disc hay cutter.

1. Easy to Use: It??s designed with user convenience in mind, allowing for easy operation and maintenance.
2. Safety Features: It has safety installations that protect the machine when working.

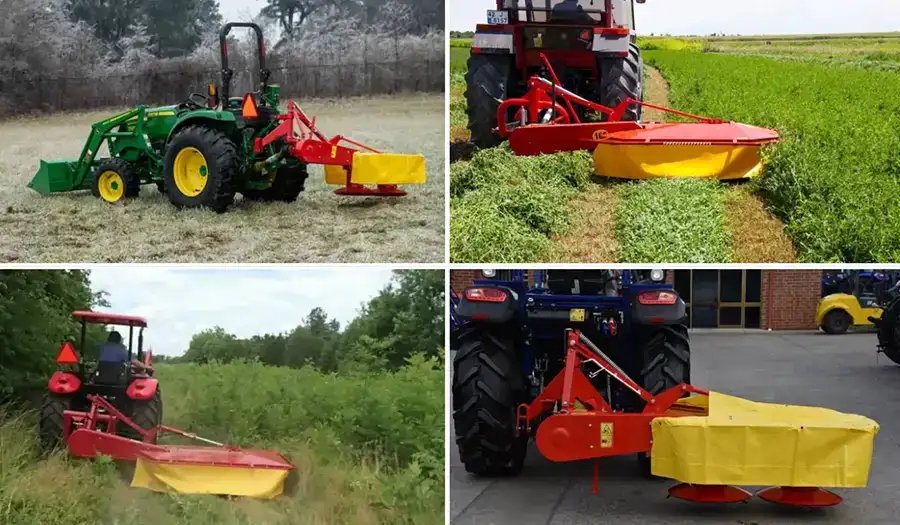

Applications of the Disc Hay Cutter

This disc hay cutter is a versatile tool with a wide range of applications:

1. 1. Farms: It is primarily designed for use in farms, where it can efficiently cut grass, straw, and corn stalks.
   2. Harvesting: It can help harvest different types of pastures and herbage, such as alfalfa, ryegrass, and oat grass with high efficiency.

1. Crop Cutting: It??s more suitable for cutting taller crops due to its advanced cutting mechanism.
2. Ground Adaptability: It can adapt to the situation of the ground which is concave-convex, without destroying the grass ground.
3. Barrier Protection: The mowing plate can move back when it meets a barrier, thus protecting the machine.
4. Wide Range Terrains: It can work efficiently on wide range terrains and contours, including uneven and rocky ground.

How Does the 3 Point Hitch Disc Drum Mower Work?

Understanding how the 3-point hitch disc drum mower works can help you get the most out of its features. Here's a step-by-step guide:

1. Mounting: The mower is attached to the tractor's three-point hitch, which consists of two lower arms and an upper link. The lower arms are connected to the mower frame, while the upper link provides vertical adjustment.
2. Power Source: The mower is powered by the tractor's power take-off (PTO), which transfers power from the tractor engine to the mower blades. The PTO shaft is connected to the mower's gearbox, which increases the rotational speed and transmits it to the cutting mechanism.

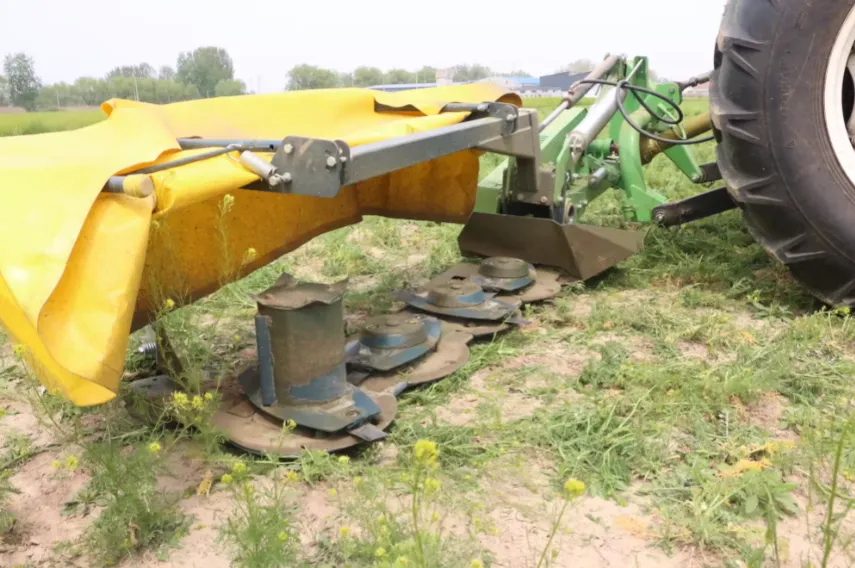

3. Cutting Mechanism: The cutting mechanism consists of a set of horizontally rotating disc drums equipped with cutting blades. These blades are mounted on the drums at specific intervals and are designed to cut the standing crop as the mower moves forward.
4. Height Adjustment: The mower's height can be adjusted using the upper link of the three-point hitch. By changing the angle of the upper link, the cutting height can be increased or decreased, allowing the operator to adapt to different crop conditions or cutting requirements.
5. Operation: Once the mower is properly attached and adjusted, the tractor moves forward, pulling the mower along. As the disc drums rotate, the cutting blades engage with the crop, slicing it at the desired height. The cut material is then discharged to the side or rear of the mower, forming a windrow or spreading it evenly, depending on the design of the mower.
6. Safety Features: To ensure safe operation, most disc drum mowers are equipped with various safety features. These may include guards around the rotating blades to prevent debris from being thrown out, shear bolts or slip clutches to protect the mower from damage in case of an obstacle, and a quick-release mechanism to disengage the mower from the tractor in emergencies.

How to Install the Disc Drum Mower to Tractor?

Correct installation of the disc drum mower to your tractor is crucial for its optimal performance. Here's a simple guide:

1. 1. Position the Tractor: Park the tractor on a level surface and engage the parking brake to ensure stability during the installation process. Adjust the three-point hitch to the proper height. This can usually be done by using the hydraulic control lever or crank on the tractor. The hitch should be set to match the attachment points on the mower.
   2. Align the Mower: Position the disc drum mower behind the tractor, aligning the lower hitch arms of the mower with the attachment points on the tractor's three-point hitch. Ensure that the hitch arms are securely connected to the tractor.
   3. Attach the Top Link: Connect the top link of the three-point hitch to the upper attachment point on the mower. Adjust the length of the top link as needed to achieve the desired height and level the mower. Double-check all fasteners, including pins and bolts, to ensure they are tight and secure. This step is crucial for safety and to prevent any parts from becoming loose during operation.
   4. Connect PTO Shaft: Attach the power take-off (PTO) shaft of the mower to the PTO stub on the tractor. The PTO shaft should slide onto the stub and be secured using the locking mechanism, such as a collar or a pin.
   5. Adjust Height and Level: Use the tractor's hydraulic control lever or crank to adjust the height of the mower. Set it to the desired cutting height, keeping in mind the type of crop and cutting conditions.
   6. Test Operation: Before starting the actual cutting, engage the PTO and observe the mower's operation. Ensure that the blades rotate smoothly and that there are no unusual vibrations or noises. Check for any interference between the mower and the tractor.

Maintenance of the Disc Hay Cutter

Regular maintenance ensures the disc hay cutter performs optimally. Here??s a brief maintenance guide:

1. Regular Cleaning: After each use, clean the mower thoroughly to remove any debris, grass clippings, and other material that may have accumulated. Pay attention to the cutting blades, disc drums, and discharge chute. Use a brush or compressed air to remove stubborn debris.
2. Blade Inspection and Sharpening: Regularly inspect the cutting blades for signs of wear, damage, or dullness. Replace any blades that are bent, cracked, or excessively worn. Sharpen the blades as needed to maintain their cutting efficiency. Follow the manufacturer's recommendations for blade maintenance and sharpening techniques.
3. Lubrication: Keep all moving parts properly lubricated according to the manufacturer's instructions. This includes lubricating bearings, gearbox components, and any other areas specified in the maintenance manual. Use the recommended lubricants and follow the recommended intervals for lubrication.
4. Gearbox Inspection: Check the gearbox for any leaks, abnormal noises, or signs of wear. If you notice any issues, address them promptly to prevent further damage. Follow the manufacturer's guidelines for gearbox maintenance and lubrication.
5. PTO Shaft Maintenance: Inspect the PTO shaft for any signs of wear, damage, or loose components. Ensure that the protective shielding is intact and properly secured. Grease the PTO shaft as recommended by the manufacturer.
6. Check Nuts and Bolts: Regularly inspect all nuts, bolts, and fasteners on the mower for tightness. Vibrations during operation can cause them to loosen over time. Tighten any loose fasteners to ensure the mower remains properly assembled.

Why Choose Raydafon's Agricultural Disc Drum Mower?

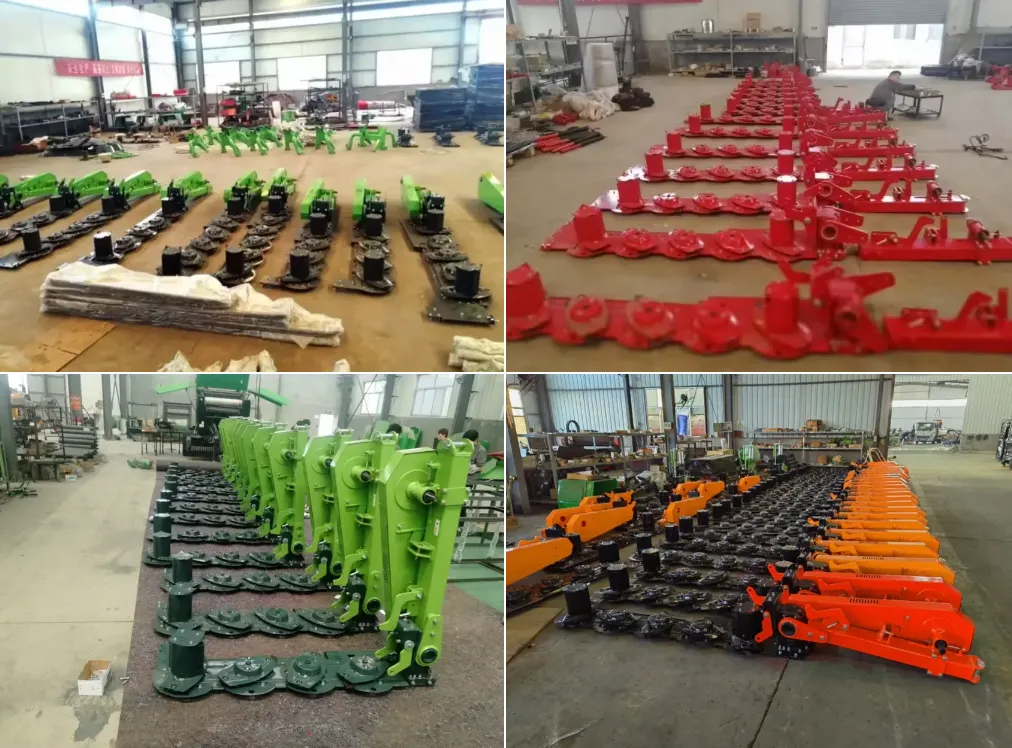

Raydafon Agricultural Machinery Co., Ltd. is a reputable company with decades of experience in the industry. Here are some compelling reasons why you should choose Raydafon's disc drum mower: Raydafon has been engaged in the research and development of agricultural machinery for over a decade, specializing in PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. The company has over 100 employees, including 20 technical staff and five senior R&D personnel. Raydafon is equipped with two advanced casting, forging, machining, heat treatment, and lacquering production lines, ensuring the production of top-quality products. The company uses CAD computer-aided design system for precision and accuracy in its product designs. Raydafon's products are designed and manufactured to meet the needs of various farming operations. The company produces farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Its main products include PTO shafts, agricultural gearboxes, sickle bar mowers, rotary mowers, flail mowers, lawn mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers. Moreover, Raydafon is a globally recognized brand, with its products being sold all over the country and exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. When you choose Raydafon, you're choosing a company that values professionalism, international certifications, customized services, advanced production facilities, and reliable after-sales services. So, why wait? Make the wise choice and go for Raydafon's disc drum mower for your farming needs. Author: Yjx
