Farm Tractor Linkage 3 Point Hitch PTO Flail Mower for Grass Cutting EF Series

[embed]https://youtu.be/uV9sIx16M9o[/embed]

Farm Tractor Linkage 3 Point Hitch PTO Flail Mower for Grass Cutting EF Series

The Tractor Linkage 3 Point Hitch PTO EF Series Flail Mower is a versatile and efficient machine designed for grass cutting and maintenance tasks. It is specifically designed to be attached to a tractor's three-point hitch and powered by the tractor's power take-off (PTO) system. The three-point hitch is a standardized attachment system found on most agricultural tractors. It consists of three main components: two lower lift arms and an upper link. The lower lift arms are attached to the tractor and provide support and stability to the implement, while the upper link allows for adjustment of the implement's height and angle. The three-point hitch system allows for easy attachment and detachment of implements, making it a popular choice for various agricultural and landscaping applications. The PTO (power take-off) system is located at the rear of the tractor and is used to transfer power from the tractor's engine to the implement. The Flail Mower is equipped with a PTO shaft that connects to the tractor's PTO, allowing the mower's blades to rotate and perform cutting operations. The EF Series Flail Mower is specifically designed for grass cutting and maintenance tasks. It features a set of horizontally rotating knives or flails that effectively cut and mulch grass, weeds, and other vegetation. The flails are suspended on a spinning rotor, providing a wide cutting width and ensuring a consistent and even cut. The mower is typically equipped with multiple flails to maximize cutting efficiency. This flail mower completes the shredding work for grass, straw, and branches, with more delicate shredding effect. It can easily adjust the stubble height can shred grass roots. It also has a number of operational safety protection mechanisms. It is mid position operated with great practicality and stable performance.

Specifications of the EF Series 3 Point Hitch PTO Flail Mower

Models	Working Width	PTO Input Seed	Hammer Blades	"Y" Grass Blades	Rotor Seed	Required HP	Shipped Weight	Overall Dimensions
	mm	rpm	N.	N.	rpm	hp	Kg	mm
EF120	1150	540	18	36	2160	30-60	249	1350*800*750
EF140	1350	540	22	44	2160	35-70	257	1550*800*750
EF160	1550	540	24	48	2160	40-80	270	1750*800*750
EF180	1750	540	28	56	2160	55-90	281	1950*800*750
EF200	1950	540	34	68	2160	70-100	295	2150*800*750

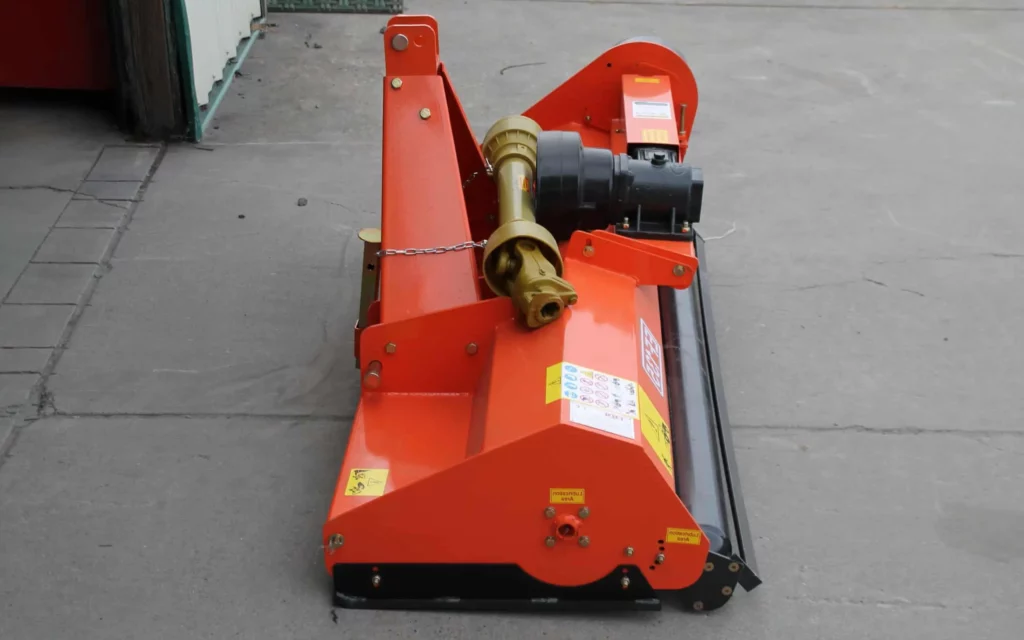

Benefits of the Farm Tractor Linkage 3 Point Hitch PTO Flail Mower

The Farm Tractor Linkage 3 Point Hitch PTO Flail Mower offers several benefits, making it a highly efficient and valuable tool for agricultural and land management tasks. Here are the key advantages of using this specific type of mower: 1. Versatility: The flail mower is a versatile attachment that can be used for various grass cutting applications. It is suitable for cutting grass in open fields, meadows, orchards, vineyards, along roadsides, and in other hard-to-reach areas. Its versatility makes it a valuable tool for farmers, landscapers, and property owners. 2. Efficient Cutting Performance: The flail mower's design, with its horizontally rotating knives or flails, ensures efficient and precise cutting performance. The spinning rotor with multiple flails delivers a clean and even cut, leaving a professional-looking finish on the grass. It can effectively handle thick grass, weeds, and brush, making it suitable for both light and heavy-duty cutting tasks. 3. Adjustable Height and Angle: The three-point hitch design allows for easy adjustment of the mower's height and angle. This feature enables the operator to adapt to different grass heights, terrain conditions, and cutting requirements. You can easily raise or lower the mower to control the cutting height and achieve the desired results. The adjustable angle feature helps in cutting grass in sloped or uneven areas. 4. PTO Driven: The flail mower is powered by the tractor's power take-off (PTO) system, which provides a reliable and consistent power source. It eliminates the need for a separate engine, reducing maintenance and fuel costs. The PTO-driven operation ensures that the mower operates at the optimal speed for efficient cutting performance. 5. Durability and Safety: Flail mowers are generally built to withstand tough working conditions. They are constructed with durable materials to withstand the impact of rocks, debris, and other obstacles that may be encountered during operation. Additionally, the flail design reduces the risk of projectiles, making it a safer option compared to rotary mowers. Some models may also have built-in safety features such as protective covers and shields. 6. Mulching Capability: As the flail mower cuts the grass, it also mulches the vegetation into small pieces. These mulched materials can be left on the ground to decompose, acting as natural fertilizer and improving soil health. The mulching capability helps in reducing the need for additional cleanup and disposal of cut grass. 7. Easy Attachment and Detachment: The three-point hitch system allows for quick and easy attachment and detachment of the flail mower to the tractor. This feature saves time and effort when switching between different implements or when transporting the mower to different locations.

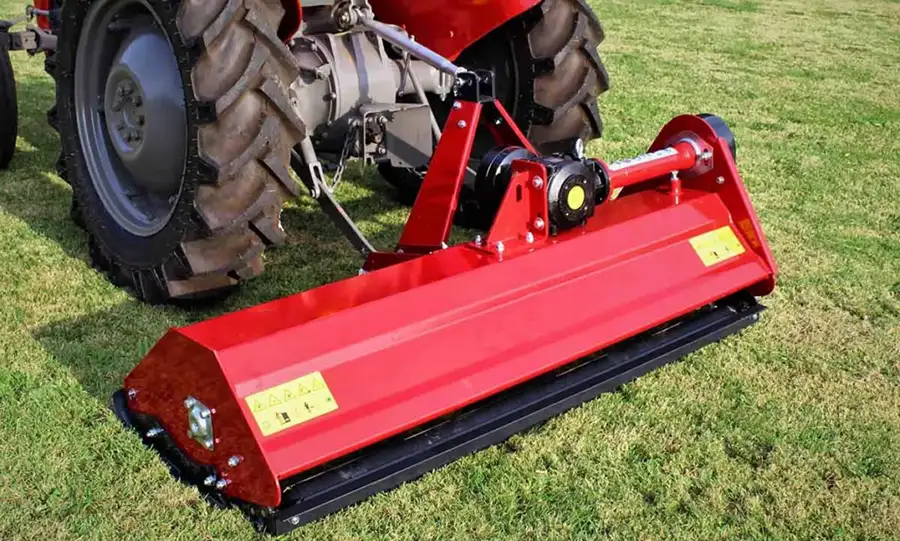

How Does the Tractor Linkage 3 Point Hitch PTO Flail Mower Work?

The Tractor Linkage 3 Point Hitch PTO (Power Take-Off) Flail Mower is a piece of agricultural equipment designed for cutting grass, weeds, and small brush. It's attached to a tractor using a three-point hitch and powered by the tractor's PTO. Here's a detailed look at how it works: 1. Attachment to the Tractor: Three-Point Hitch: The flail mower is attached to the tractor via a three-point hitch, which is a standard method of attaching implements to tractors. This system uses three arms to form a triangle, or "hitch," that securely connects the mower to the tractor. The three points consist of a top center link and two bottom links, allowing for easy lifting and lowering. Power Take-Off (PTO): Once the flail mower is hitched, it's powered by connecting it to the tractor's PTO shaft. The PTO is a splined drive shaft that extends from the tractor and provides a method for transferring power from the tractor's engine to the mower. 2. Power Transmission: PTO Activation: When the tractor's PTO is engaged, power is transmitted from the tractor's engine to the flail mower's main drive shaft. Drive Shaft to Rotor: The power from the drive shaft is then transferred to the mower's rotor. This rotor is equipped with multiple cutting flails (or blades) attached along its length. 3. Cutting Action: Flails Rotation: As the rotor spins, the flails swing out due to centrifugal force. These flails are not rigidly fixed; they're mounted on hinges or chains, allowing them to swing freely. Cutting Mechanism: The swinging action of the flails means they cut with a hammering effect rather than a slicing action. When they come into contact with grass, weeds, or small branches, they tear and shred the material. Advantages of Flails: This method of cutting is particularly effective for managing overgrown vegetation and can deal with material that might clog or damage a traditional mower blade. The flails can also handle uneven terrain since they provide a more forgiving cut, reducing the risk of damage to the mower or the tractor. 4. Adjustability and Control: Height Adjustment: The three-point hitch allows for the adjustment of the cutting height. By raising or lowering the hitch, the operator can set how high or low the mower cuts. Safety and Efficiency: The flail mower design includes a rear roller or skids to prevent the mower from digging into the soil, which also aids in an even cut. The design minimizes the throwing of debris, making it safer than some other types of mowers. 5. Mulching: Fine Shredding: The flails chop the vegetation into fine pieces, which are then distributed over the ground behind the mower. This mulching action returns nutrients back to the soil and can help prevent weed growth.

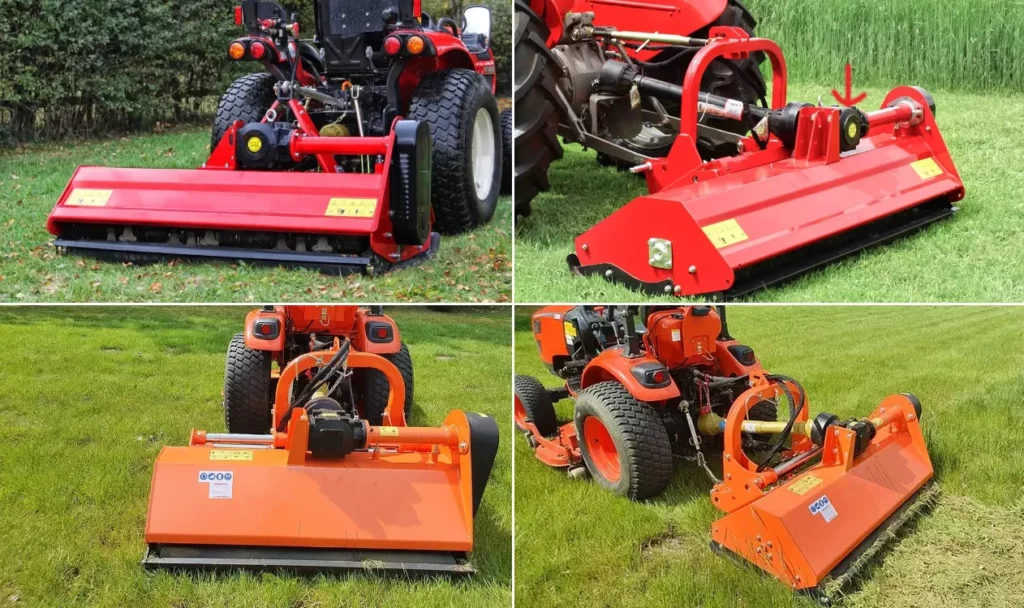

Applications of the Tractor Linkage 3 Point Hitch PTO Flail Mower

The Tractor Linkage 3 Point Hitch PTO Flail Mower is a versatile and essential piece of equipment in the agricultural sector. Its unique design and functionality make it suitable for a wide range of applications across different farming activities. Here's how it is applied in agriculture: (1) Crop Residue Management: After harvest, fields are often left with crop residue that needs to be managed before the next planting season. The flail mower efficiently chops up and mulches this residue, incorporating it back into the soil. This not only helps in adding organic matter to the soil but also in controlling pests and diseases that might linger in the crop stubble. (2) Pasture and Grassland Maintenance: Maintaining healthy pastures is crucial for livestock health and productivity. The flail mower cuts and mulches grass uniformly, promoting even growth and preventing the takeover of weeds. Its ability to handle uneven terrain makes it particularly useful for maintaining pastures that might not be perfectly flat, helping in the management of grazing areas by preventing overgrowth and encouraging new, healthy grass growth. (3) Weed Control: Weeds can significantly reduce crop yields and quality if not managed properly. The flail mower is effective in controlling weeds by cutting them down and mulching them. This method of weed control is mechanical, reducing the reliance on chemical herbicides, which is beneficial for the environment and for farms focusing on organic production. (4) Orchard and Vineyard Pruning Cleanup: In orchards and vineyards, pruning is a necessary task to ensure healthy growth and productivity of the plants. However, the pruning process leaves behind debris that needs to be managed. The flail mower can pass over this debris, chopping it into fine pieces that decompose quickly, returning nutrients to the soil and keeping the area tidy and free from pests and diseases. (5) Landscaping and Environmental Management: Beyond the field, the flail mower has applications in managing field borders, waterway banks, and non-crop areas of the farm. These areas are crucial for preventing soil erosion, managing water flow, and supporting biodiversity. The mower’s ability to cut and mulch vegetation helps in maintaining these areas, contributing to the overall environmental health of the farm. (6) Preparation of Fields for Seeding: The flail mower can be used to prepare fields for seeding, especially in conservation tillage systems where the soil is not deeply plowed. It can chop and mulch existing vegetation, creating a mulch layer that can improve soil moisture retention and temperature, providing a better environment for seed germination and growth.

Why Choose Raydafon's Flail Mower?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
