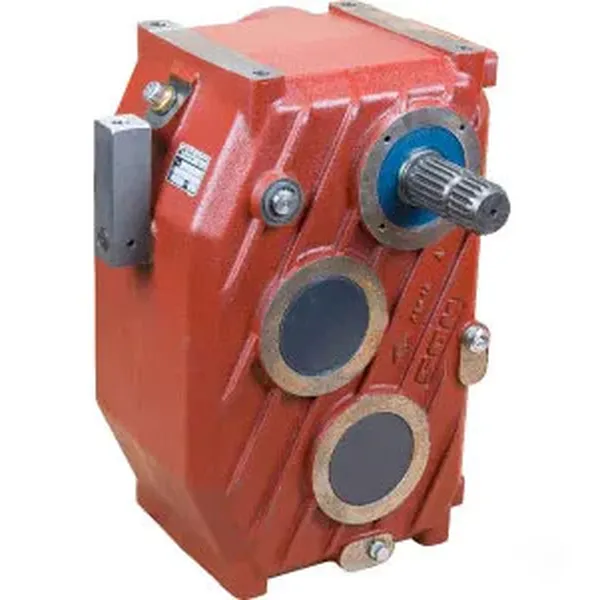

Feed Mixer Machines Gearboxes - Replacement of Comer Code C-3A

Feed Mixer Machines Gearboxes - Replacement of Comer Code C-3A

The Feed Mixer Machines Gearbox C-3A is an advanced and efficient component used in feed mixer machines. It plays a crucial role in ensuring the smooth and reliable operation of the mixer, enabling the efficient mixing and blending of animal feed ingredients.The gearbox is an essential part of the feed mixer machine, as it is responsible for transmitting power from the motor to the mixing paddles or augers. The C-3A feed mixer gearbox is specifically designed and built to meet the demanding requirements of feed-mixing applications. Our gearboxes are perfect replacements for the Replacement of Comer brand C-3A gearboxes. They are available for machine/vehicle brands Aksa, DAF Agro, Falke Maschinenbau, Euromilk, Metal-Fach, and more!The feed mixer gearbox C-3A is built with high-quality materials and precision engineering to withstand the harsh operating conditions encountered in feed mixing applications. It is designed to handle heavy loads and provide long-term durability. The gearbox is designed with a specific gear ratio to achieve the desired mixing speed and torque. The gear ratio determines the rotational speed of the mixing paddles or augers, which affects the mixing efficiency and consistency.

Specifications of Feed Mixer Gearbox C-3A

Description	Feed Mixer Machines Gearboxes - Replacement of Comer Code C-3A
Product Details	All gearboxes are supplied without oil. The first oil change is recommended after 50 operating hours. Further oil changes approx. Every 500-800 hours and/or twice per year.
Application	Mixing wagon
Consists of	Gearbox Order oil separately
Technical information	All technical data corresponds to ISO 6335 and ISO 281
Contains oil	No
Oil SAE viscosity grade	80W-90
Weight	100 kg
Input shaft Reducing	1.3/4 Z20
Input power KW / HP Reducing	110 / 150 kW/HP
Ratio Reducing	1.28/2.3:1

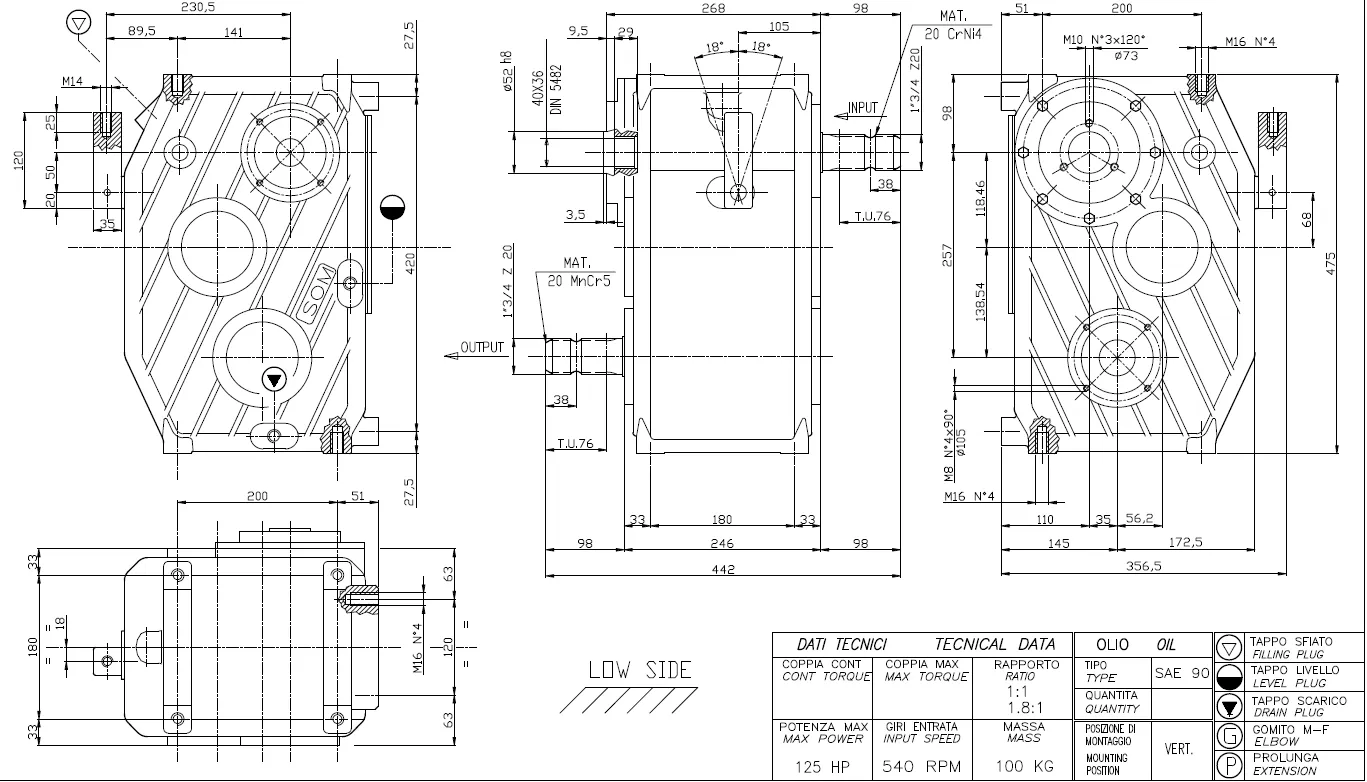

Dimensions of Feed Mixer Gearbox C-3A

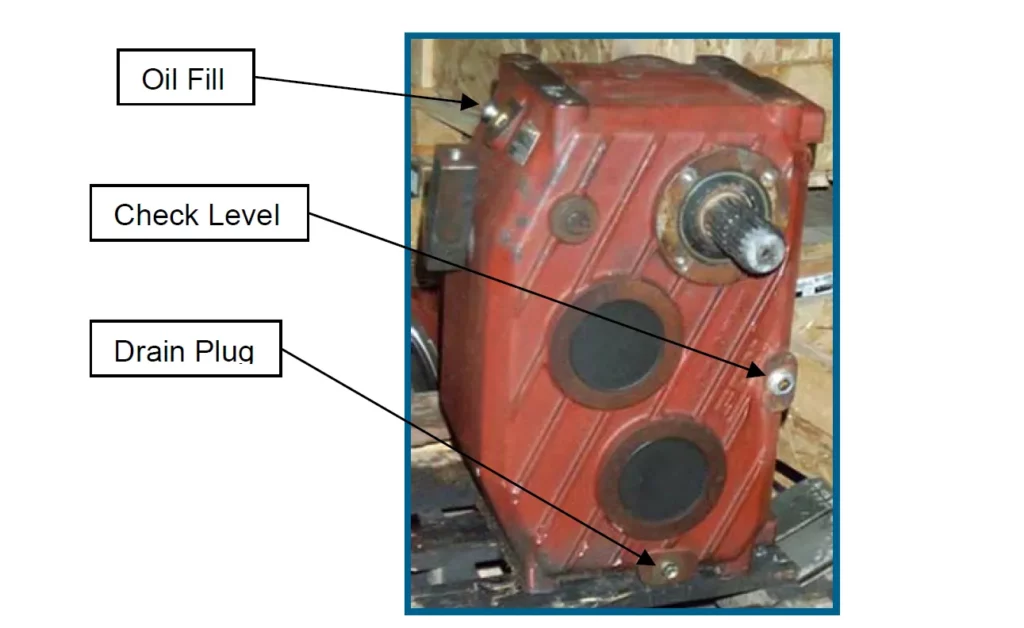

Feed Mixer Gearbox C-3A Structural Components

The Feed Mixer Gearbox C-3A consists of several structural components that work together to facilitate the efficient and reliable operation of the feed mixer. While specific designs may vary between manufacturers, here are the common structural components found in a typical Feed Mixer Gearbox C-3A:(1) Housing: The gearbox housing is the outer casing that encloses and protects the internal components. It is typically made of durable materials such as cast iron or steel. The housing provides structural integrity and helps to maintain the alignment of the gearbox components.(2) Input Shaft: The input shaft is the component that receives power from the motor or engine. It is connected to the source of power, such as a tractor or an electric motor. The input shaft transmits rotational motion and torque to the internal gears of the gearbox.(3) Gears: Gears are the primary components responsible for transmitting power and converting speed and torque within the gearbox. The C-3A gearbox may feature multiple gears, including spur gears, helical gears, or planetary gears, depending on the specific design. The gears are precisely machined to mesh with each other and transfer rotational motion.(4) Output Shaft: The output shaft is the component that delivers the rotational motion to the mixing mechanism of the feed mixer. It extends from the gearbox and connects to the mixing paddles or augers. The output shaft transfers the power and torque from the gearbox to ensure efficient mixing of the feed ingredients.(5) Bearings: Bearings are used to support and facilitate smooth rotation of the gears and shafts within the gearbox. They reduce friction and enable the gears to rotate with minimal resistance. High-quality bearings are crucial for the durability and efficiency of the gearbox.(6) Lubrication System: The gearbox requires proper lubrication to reduce friction, dissipate heat, and prevent premature wear. It may include oil seals, lubrication channels, and oil reservoirs to ensure adequate lubrication reaches all the moving parts within the gearbox.(7) Mounting Flange: The mounting flange is the part of the gearbox housing that allows it to be securely attached to the feed mixer machine. It provides stability and ensures proper alignment between the gearbox and the rest of the mixing system.

Working Principle of Feed Mixer Gearbox for Mixing Wagon

The working principle of a feed mixer gearbox, especially for mixing wagons that are powered by a PTO (Power Take-Off) shaft, revolves around transmitting power from the tractor to the mixing mechanism of the wagon. This system ensures that animal feed is mixed uniformly, enhancing the nutritional consistency and quality of the feed. Here's a detailed look into how these gearboxes function:1. Power Transmission from Tractor to Gearbox: The gearbox is connected to the tractor through the PTO shaft. When engaged, the tractor's engine drives the PTO shaft, transferring rotational power to the gearbox of the mixing wagon. The gearbox's primary role is to modify the high-speed, low-torque rotation from the tractor’s PTO shaft into a lower speed, higher torque output suitable for the mixing operation. This transformation is crucial because mixing feed requires substantial torque at relatively low speeds for effective blending.2. Gearbox Mechanism: Inside the gearbox, a series of gears—often including configurations like spur, helical, or planetary gears—work together to reduce the input speed and increase the output torque. The specific arrangement and type of gear are designed according to the requirements of the mixing process. The gearbox's output shaft then delivers this adjusted power to the mixing mechanism. This can include vertical or horizontal augers, paddles, or reels within the mixing wagon, which rotate to mix the feed ingredients thoroughly.3. Variable Speed Control: Many gearboxes are equipped with mechanisms to adjust the output speed, allowing operators to tailor the mixing intensity to the type of feed and the desired consistency. This adjustability ensures that everything from fine powders to larger feed components is mixed uniformly. Some gearboxes also offer the ability to reverse the direction of the mixing mechanism, enhancing the mixing action and preventing material buildup, which can be particularly useful for achieving a homogeneous mix in less time.4. Enhancing Feed Quality: The controlled and powerful rotation provided by the gearbox ensures that all feed ingredients are evenly distributed, eliminating nutritional hotspots and promoting better animal health. An efficiently designed gearbox minimizes energy loss, translating more of the tractor's power into mixing action, which can lead to savings in time and fuel during the feed preparation process.

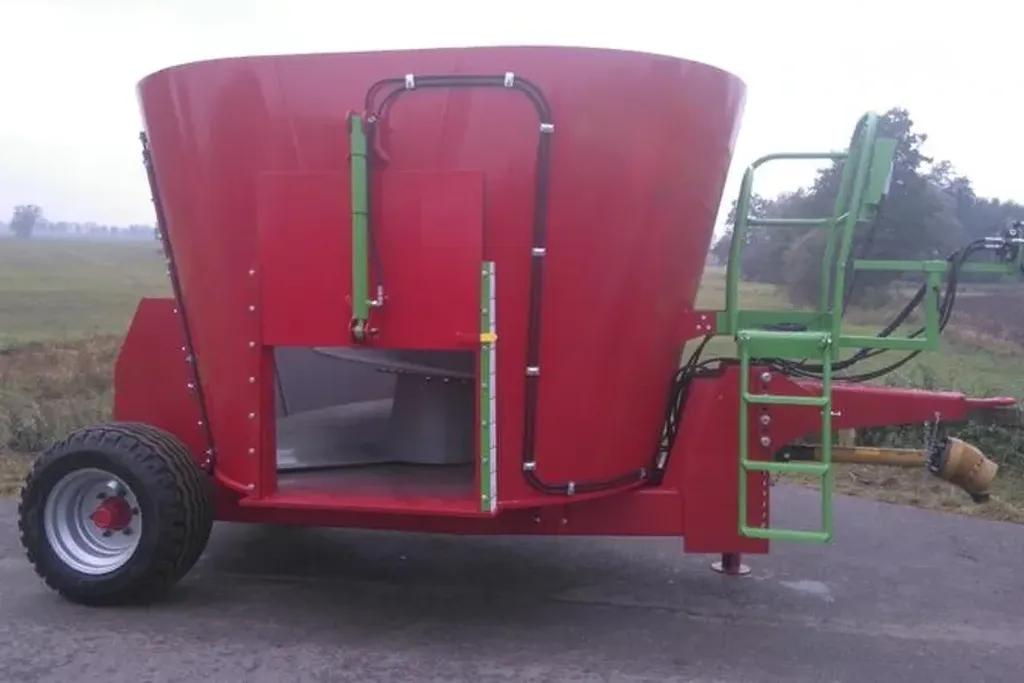

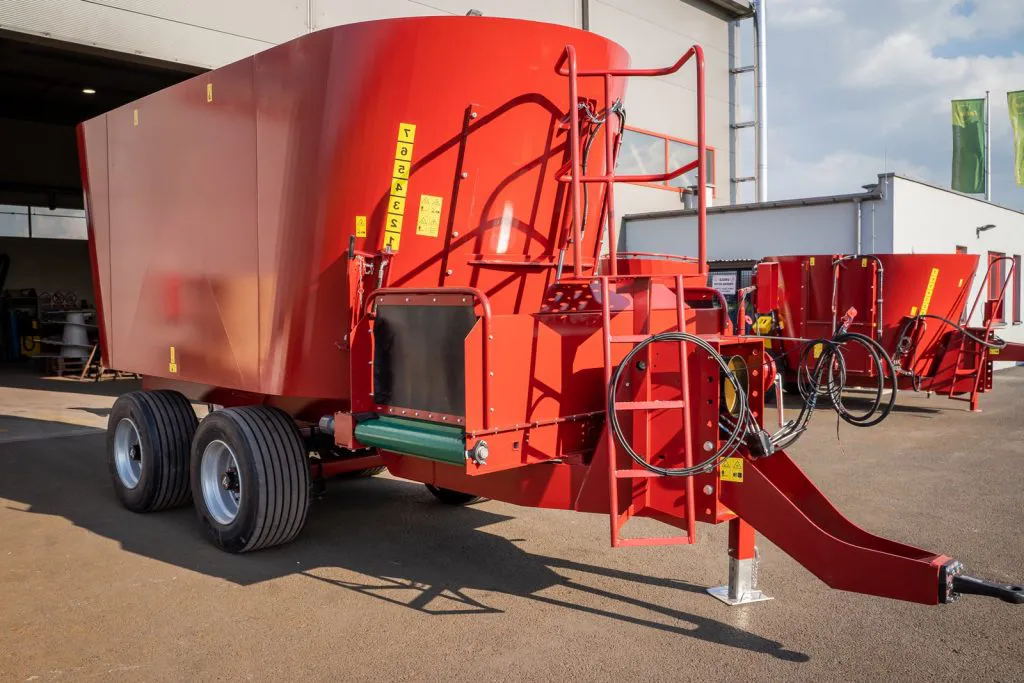

The Importance of Feed Mixer Gearboxes in Mixing Wagon

Feed mixer gearboxes, which are commonly used in the agricultural industry for preparing animal feed, play a crucial role in mixing wagons. These gearboxes are specifically designed to handle the demanding requirements of the mixing process and contribute significantly to the overall efficiency and effectiveness of the operation. Here are some key reasons why feed mixer gearboxes are important in mixing wagons:1. Power transmission: Feed mixer gearboxes are responsible for transmitting power from the tractor or engine to the mixing mechanism of the wagon. They ensure that the required torque and rotational speed are delivered to effectively mix the feed ingredients. The gearboxes convert the power from the input source into the appropriate output for efficient mixing.2. Mixing consistency: Achieving a homogeneous mixture is crucial in animal feed production. Feed mixer gearboxes help maintain a consistent and uniform blend of ingredients by ensuring that the mixing paddles or augers rotate at the desired speed and direction. This results in a well-mixed feed that provides balanced nutrition to the animals.3. Durability and reliability: Feed mixer gearboxes are designed to withstand the demanding operating conditions encountered in mixing wagons. They are built with high-quality materials and precision engineering to handle heavy loads, shocks, and vibrations. This ensures their durability and long-term reliability, reducing downtime and maintenance costs.4. Gear ratio customization: Different types of animal feed may require specific mixing speeds and torque. Feed mixer gearboxes offer the flexibility to customize the gear ratio according to the specific requirements of the feed being mixed. This allows operators to achieve optimal mixing performance for different types of feed ingredients.5. Maintenance and serviceability: Feed mixer gearboxes are designed with ease of maintenance in mind. They often feature accessible inspection ports, drain plugs, and other components that simplify routine maintenance and inspection. Regular maintenance of the gearboxes helps prolong their lifespan and ensures optimal performance.

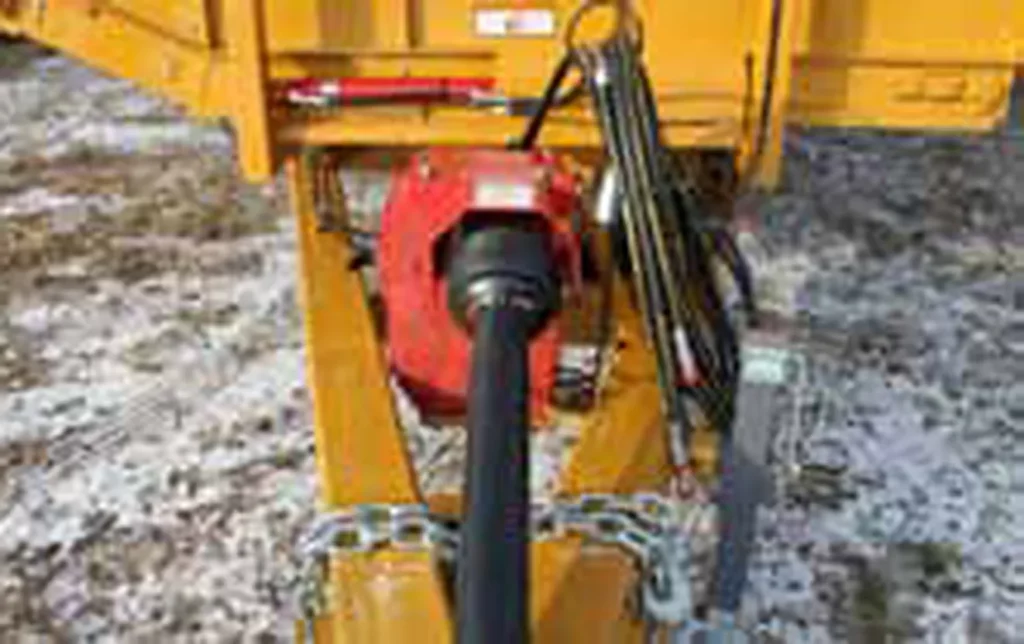

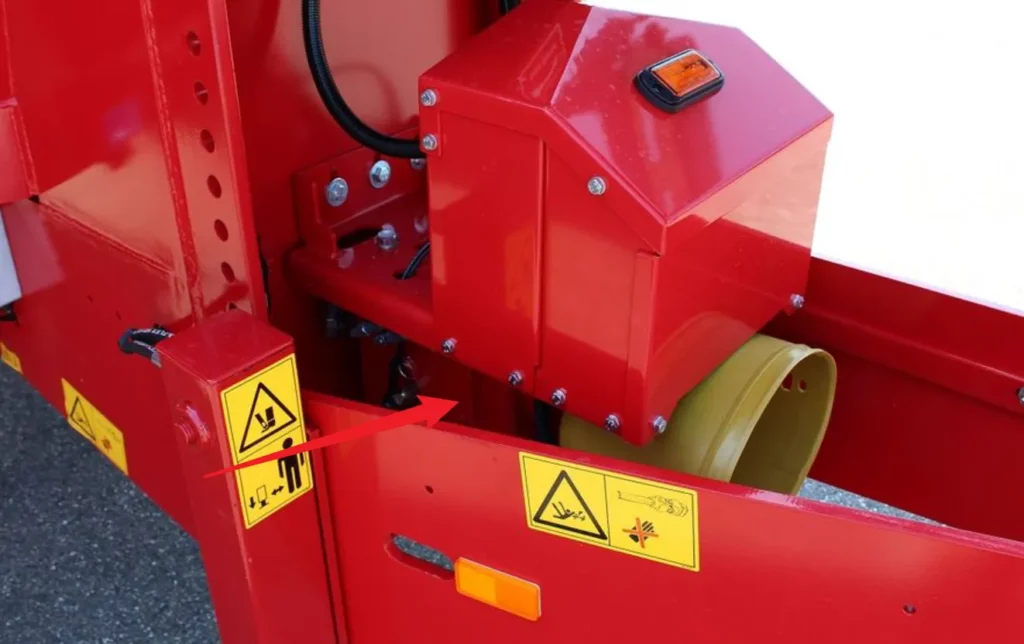

Agricultural PTO Shaft for Feed Mixer Machine Gearbox

An agricultural Power Take-Off (PTO) shaft is an essential component used to transfer power from a tractor or engine to the gearbox of a feed mixer machine. It enables the rotational motion and torque generated by the tractor's power source to be transmitted to the feed mixer gearbox, allowing for efficient mixing of the animal feed ingredients. Here are some key features and functions of an agricultural PTO shaft for a feed mixer machine gearbox:

• Shaft Construction: The PTO shaft is typically made of high-strength steel to withstand the torque and bending forces experienced during operation. It is designed to be durable, reliable, and capable of handling heavy loads.
• Telescopic Design: Agricultural PTO shafts often come in a telescopic design, allowing them to be adjusted to the desired length. This adjustability ensures proper alignment and flexibility when connecting the tractor's PTO output to the feed mixer gearbox input.
• Universal Joints: PTO shafts incorporate universal joints that provide flexibility and allow for angular movement between the tractor and the feed mixer gearbox. These joints accommodate the misalignment that may occur due to uneven terrain or when the tractor and mixer are not on the same plane.
• Safety Features: PTO shafts for feed mixer gearboxes often include safety features to protect operators and prevent accidents. These can include a shear bolt or slip clutch mechanism that disconnects the PTO shaft from the power source in the event of a sudden overload or obstruction, reducing the risk of damage or injury.
• Coupling Mechanism: The PTO shaft is connected to both the tractor's PTO output and the gearbox input using a coupling mechanism. This mechanism allows for a secure and reliable connection, ensuring efficient power transfer between the tractor and the feed mixer gearbox.
• Maintenance and Lubrication: Proper maintenance and lubrication are crucial for the longevity and smooth operation of the PTO shaft. Regular greasing of the universal joints and inspection of the shaft for any signs of wear or damage is important for safe and efficient operation.

We also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
