Forged Balanced Head bearing knife head for harvester

Product Overview

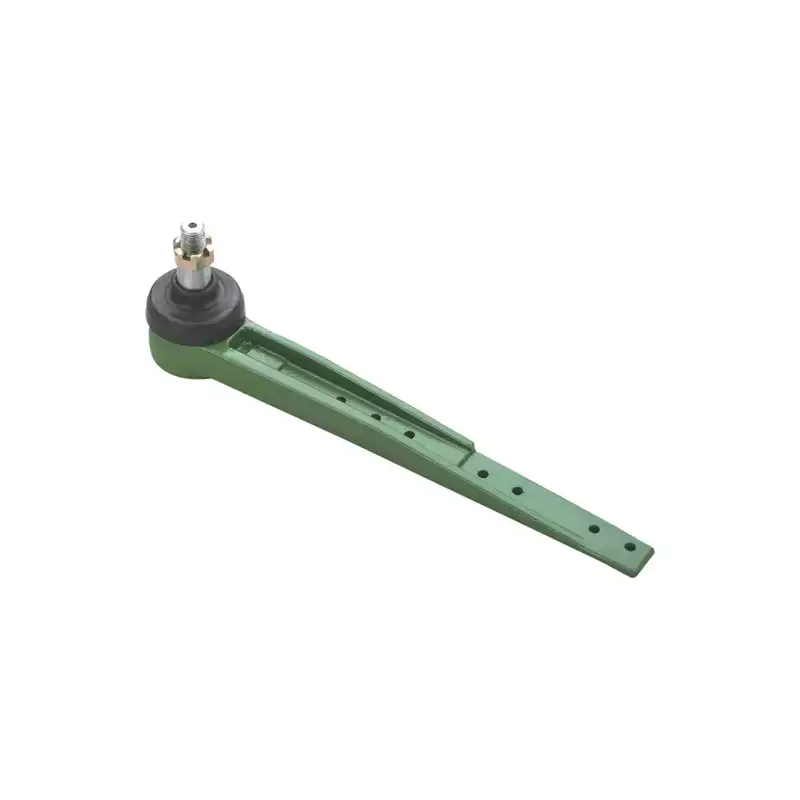

Item Name	Sickle Knife head
No.	4B1003
Ref. OEM No.	AH89498
Application	J D 200, 900 series



Item Name	Sickle Knife head
No.	4B1004
Ref. OEM No.	AZ50341AZ41726
Application	J D 810, 812, 814, 816, 818, 820

PRODUCT SPECIFICATIONS

No	No.	Ref. No.	Description	Application
1	4B1009	84998148	Including: Bearing: SGE35ES/K Bolt: M16*1-60
2	4B1010	84996264	Including: Bearing: SGE35ES/K Bolt: M16*1-61
3	4B1011	807538628443377984437437	Including: Bearing: SGE35ES/K Bolt: M16*1-60
4	4B1012	1316161C95	Including: Flange: 1313797C2 Mounting holes: 16*Φ6	CA*SE 1010,1020
5	4B1024	462378R1156692C91	Including: Plug Bushing
6	4B1057	824594C91		MOWER CONDITIONERS 1190. WINDROWERS 210,230,4000,5000,5500
7	4B1053	87561157C132896	Including: Bearing: B2020	N*H 82C, 83C, 86C
8	4B1060	84275285	Thread: M20X1.5 Mounting holes Dia.:6.5 Mounting holes NO.: 17	740CF/760CG/3050/3020 Case-IH 3020-20, 3020-25, 3020-30, 3020-35, 3050-16FT, 3050-18FT, 3050-20FT, 3050-22FT, 3050-25FT H,3050-25FT L, 3050-30FT, 3050-35FT
9	4B1018	28283011		CA*SE 151
10	4B1003-5.5	AH89498-5.5	Three kinds of bore diameter available: 7*Φ6.5mm 7*Φ5.5mm 7*Φ5.8mm WT (kg/pc): 2	J&D 200 series, 900 series
11	4B1003-6.5	AH89498-6.5	Three kinds of bore diameter available: 7*Φ6.5mm 7*Φ5.5mm 7*Φ5.8mm WT (kg/pc): 2	J&D 200 series, 900 series
12	4B1004	AZ50341AZ41726	WT (kg/pc): 1.765	J&D 810, 812, 814, 816, 818, 820
13	4B1005-5.5	AH121075-5.5	WT (kg/pc): 1.489	J&D 3300, 4400, 6600, 7700, 900 series, 200 series
14	4B1005-6.5	AH121075-6.5	WT (kg/pc): 1.489	J&D 3300, 4400, 6600, 7700, 900 series, 200 series
15	4B1006	AH21346	WT (kg/pc): 1.735	J&D 530/630, 730, 925, 935, 945, 930/940, 932/942, 950/960/970, 952, 955, 965/965H/968H, 975, 985, 1032/1042/1052, 1055,1065/1068H, 1072/1075
16	4B1007	AH220051H178599	WT (kg/pc): 1.100	J&D 600R&F, 600 series
17	4B1008	H212086AH212050	WT (kg/pc): 1.030	J&D 600, 614, 615, 618, 620, 622, 625, 630
18	4B1059	AH231842	With sleeve H157812 Mounting holes Dia.:6.2 Mounting holes NO.:9 WT(kg/pc):1.42	J&D 630FD, 635FD, 645FD
19	4B1056	AH75308AZ502562	WT (kg/pc): 1.900	J&D 6601, 6602, 6622
20	4B1018	28283011	Knife head: 28283011 Half section 44104000 & 44103800 Knife section:44103700 101pcsWT(kg/pc): 17.6	CA*SE 151 M&F 7274 7278
21	4B1022	3469524+3099334M2	3469524 & 3099334M2 riveted together WT(kg/pc): 1.010
22	4B1049	059509P1	Matching with 4B2003 Thread: 1"-12 UNF WT(kg/pc): 0.990
23	4B1020	4804850	Matching with 4B2008 Thread: 1"-12 UNF WT(kg/pc): 1.200
24	4B1021	4804851	Matching with 4B2008 Thread: 1"-12 UNF WT(kg/pc): 1.200
25	4B1053	132896	Bores:5.5 Mounting holes Dia.:5.5 Mounting holes NO.:13 WT(kg/pc):1.235	MacDon D50, D60, D65, FD70, FD75
26	4B1054	132897	Bores:5.5 Mounting holes Dia.:5.5 Mounting holes NO..:13 WT(kg/pc):1.235	MacDon D50, D60, D65, FD70, FD75
27	4B1055	132897	Bores:5.5 Mounting holes Dia.:5.5 Mounting holes NO.:13 WT(kg/pc):1.235	MacDon D50, D60, D65, FD70, FD75
28	4B1055	120832	Bores:5.5 Mounting holes Dia.:5.5 Mounting holes NO.: 9 WT(kg/pc):1.1	MacDon 7000 9000 LH
29	4B1027	1261000	Bores:M22*1.5 Mounting holes Dia.:6.5 Mounting holes NO.:15 WT(kg/pc):1.28
30	4B1028	1507030	Bores:51 Mounting holes Dia.:M6 Mounting holes NO.: 9 WT(kg/pc):1.7
31	4B1029	16665	Bores:51 Mounting holes Dia.:M6 Mounting holes NO. :9 WT(kg/pc):1.56

Introduction

The forged balanced head bearing knife head is an important component of a harvester. It is used to cut crops and ensure efficient harvesting. This product is designed to fit into the harvester and perform the cutting function effectively. The knife head is made of high-quality materials to ensure durability and longevity.

Function

The forged balanced head bearing knife head is located in the cutting component of the harvester. It is responsible for cutting the crops and ensuring smooth and efficient harvesting. The knife head is perfectly balanced to ensure that the cutting process is smooth and effective. It is designed to withstand the pressure and strain of heavy-duty harvesting.

Working Principle

The forged balanced head bearing knife head works by using a rotating blade to cut the crops. As the blade rotates, it cuts through the crops and separates them from the soil. The knife head is designed to be perfectly balanced to ensure that the cutting process is smooth and efficient.

Our Products

We offer a wide range of forged balanced head bearing knife heads that can replace most of the commonly used models of harvester parts. Some of our advantages include:

• High-quality materials for durability and longevity
• Customizable options to meet unique needs
• Competitive pricing

Compatible Brands and Models

Our forged balanced head bearing knife heads are compatible with many common harvester brands and models. Some of the brands and models we can adapt to include:

Brand	Model
John Deere	S-series, T-series, W-series
Claas	Lexion, Dominator, Mega
New Holland	CR, CX, TX

Other Agricultural Machinery Parts

In addition to forged balanced head bearing knife heads, we offer a wide range of other agricultural machinery parts. You can find everything you need for your agricultural machinery here, including:

• Agricultural chains
• Agricultural gearbox
• Pulley
• Sprocket
• Coupling
• pto shaft
• Concave

Commonly Worn Parts of a Harvester

A harvester has many parts that are subject to wear and tear. Some of the commonly worn parts of a harvester include:

1. Blades/cutting components: This includes the main cutting blade, skid plate, and cutting blade drive belt.
2. Threshing drum and concave
3. Sieve and fan blades for cleaning
4. Conveyor chains and sprockets
5. Rubber tracks or tires
6. Hydraulic components: including hydraulic cylinders, hoses, and seals
7. Bearings
8. Filters: air filters, fuel filters, and oil filters

It is important to regularly inspect and replace these parts to ensure the efficient and safe operation of the harvester.

When to Replace Worn Parts

Here are some signs that it's time to replace worn parts in your harvester:

1. Poor harvesting results: if there is excessive crop residue or grain separation is not clean, it may mean that the threshing drum and concave are worn and need to be checked and replaced in a timely manner.
2. Power loss or overheating: if the engine power is insufficient or the operating temperature is too high, it may mean that the air filter is clogged and the air intake is not smooth or that the cooling system is faulty. At this point, consider replacing the air filter or checking and repairing the cooling system.
3. Reduced harvesting efficiency: if the cutting platform operates slowly or the material conveying speed slows down, it may be due to aging and slackening of the transmission belt, elongation of the chain, or wear of the driving gear. At this time, check and replace the corresponding belt, chain, or gear.
4. Difficult movement or increased noise: if it is a rubber track harvester, the track is loose or cracks are evident, it needs to be replaced; if it is a tire harvester, the tire is excessively worn or punctured, it needs to be replaced. In addition, if there is abnormal noise during movement, it may be due to bearing wear or damage, and the relevant bearings need to be replaced.
5. Unstable hydraulic system operation: if the lifting or steering is slow or weak, it may be due to problems with hydraulic pumps, cylinders, valves, or seals. Check and replace the corresponding parts in a timely manner.
6. Large-scale oil leakage: whether it is oil, hydraulic oil, or fuel leakage, it indicates that the seals have failed or other parts are damaged. Find the leakage point in time and replace the damaged seal or part.

Author: Miya
