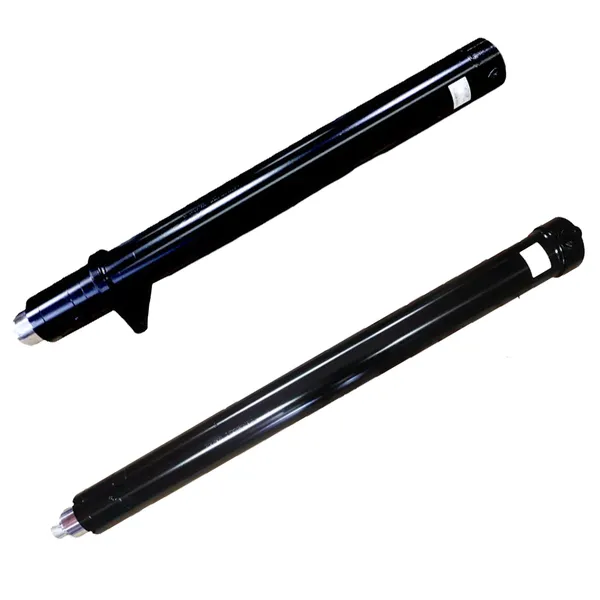

A forklift short lifting hydraulic cylinder is a type of hydraulic cylinder that is used to lift and lower the forks of a forklift. It is characterized by its short stroke, which means that it can only lift the forks a short distance. This makes it ideal for tasks that require precise lifting, such as loading and unloading pallets.

Forklift short lifting hydraulic cylinders are typically made of steel and have a piston rod that is made of chrome-plated steel. They are available in a variety of sizes and capacities, depending on the needs of the forklift.

The operation of a forklift short lifting hydraulic cylinder is relatively simple. When hydraulic fluid is pumped into the cylinder, the piston rod extends, lifting the forks. When the hydraulic fluid is released, the piston rod retracts, lowering the forks.

Forklift short lifting hydraulic cylinders are an essential component of forklifts. They allow forklift operators to safely and efficiently lift and lower loads, which is essential for a variety of industrial and commercial applications.

Here are some of the key features of a forklift short lifting hydraulic cylinder:

• Short stroke: This allows for precise lifting and lowering of loads.
• Strong and durable construction: Steel construction ensures strength and durability.
• Chrome-plated piston rod: Provides corrosion resistance and wear resistance.
• Available in a variety of sizes and capacities: To meet the specific needs of each forklift.

Forklift short lifting hydraulic cylinders are an important part of the safety and productivity of forklifts. By ensuring that the cylinders are properly maintained and inspected, forklift operators can help to prevent accidents and keep their equipment running smoothly.

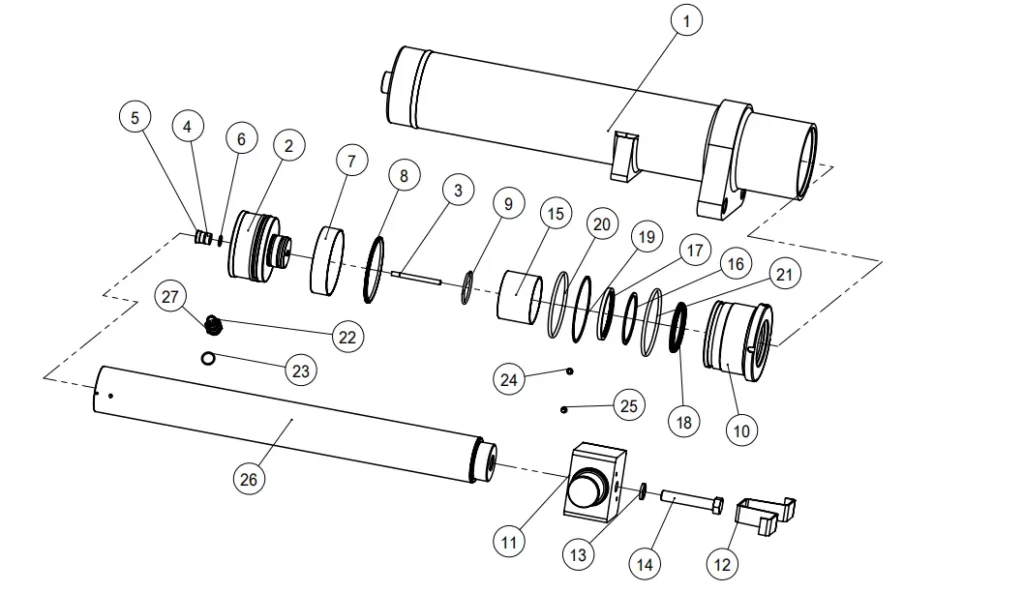

Forklift Short Lifting Hydraulic Cylinder Parts:

1	Cylinder Housing assy	11	Sprocket Seat	21	O-Ring
2	Piston	12	Sprocket Cover	22	Grease Nipple
3	Oil Pipe	13	Spring Washers	23	O-Ring
4	Check Valve	14	Hex Bolt	24	washer
5	Circlips For Hole	15	Du Bush	25	Screws
6	O-Ring	16	Back-Ring	26	Piston Rod
7	Wear-Ring	17	Rod Seal	27	Plug
8	Hole Seal	18	Dust Wiper
9	Round Wire	19	Back-Ring
10	Guide Bush	20	O-Ring

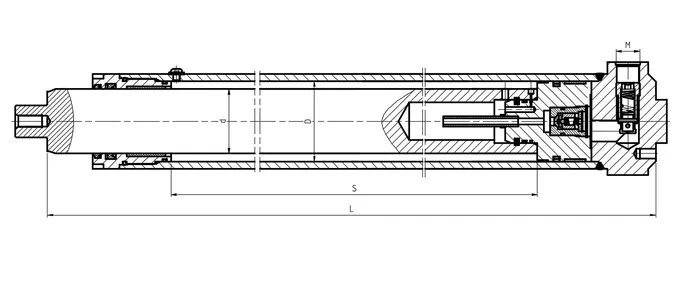

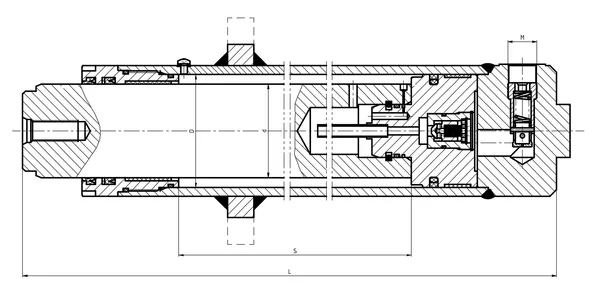

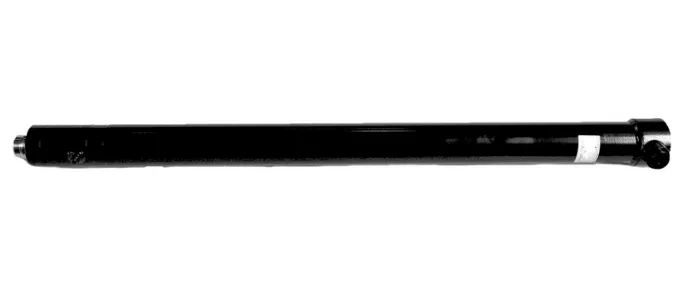

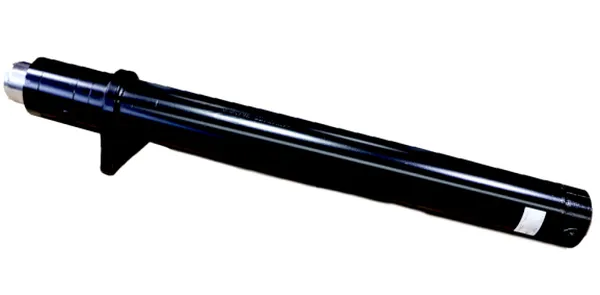

Forklift Short Lifting Hydraulic Cylinder Dimensions:

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Short lifting cylinder	RC25N480-800000-000A	Φ75	Φ60	800	1065	18.1MPa	M22*1.5	36kg
Short lifting cylinder	X35N480-800000-001A	Φ95	Φ80	800	1065	18.1MPa	M22*1.5	48.7kg

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Short lifting cylinder	N30N450-800000-002A	Φ85	Φ70	777	1015	18.1MPa	M22*1.5	45.5kg
Short lifting cylinder	3U3H-800000-001A	Φ85	Φ70	777	1015	18.1MPa	M22*1.5	45.5kg
Short lifting cylinder	N35N450-800000-003A	Φ95	Φ80	775	1013	18.1MPa	M22*1.5	54kg

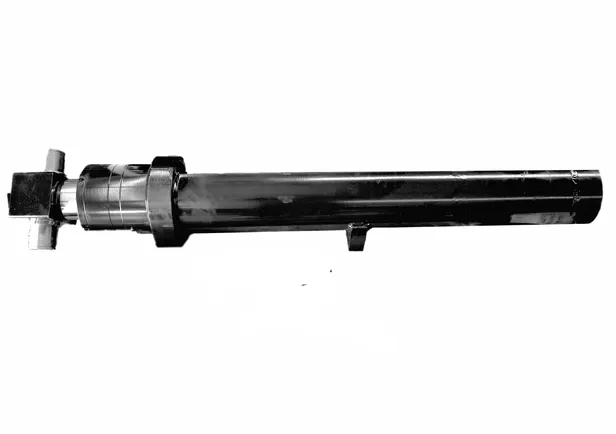

Forklift Short Lifting Hydraulic Cylinder Advantages:

Forklift short lifting hydraulic cylinders have a number of advantages over other types of hydraulic cylinders. These advantages include:

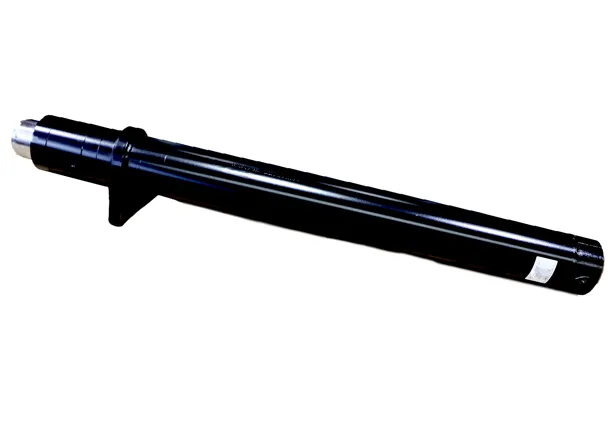

1. Precise lifting: The short stroke of a forklift short lifting hydraulic cylinder allows for precise lifting and lowering of loads. This is essential for tasks that require accuracy, such as loading and unloading pallets.2. Strong and durable construction: Forklift short lifting hydraulic cylinders are typically made of strong and durable materials, such as steel. This ensures that they can withstand the rigors of everyday use.3. Corrosion resistance: The chrome-plated piston rod of a forklift short lifting hydraulic cylinder provides corrosion resistance, which helps to extend the life of the cylinder.4. Available in a variety of sizes and capacities: Forklift short lifting hydraulic cylinders are available in a variety of sizes and capacities to meet the specific needs of each forklift.

In addition to these advantages, forklift short lifting hydraulic cylinder is also relatively inexpensive to purchase and maintain. This makes them a cost-effective option for businesses that need to lift and lower loads accurately and efficiently.

Here are some specific examples of the advantages of forklift short lifting hydraulic cylinders in different applications:

(1) In a warehouse, a forklift short lifting hydraulic cylinder can be used to load and unload pallets of goods with precision. This helps to prevent damage to the goods and ensures that they are loaded and unloaded safely.(2) In a factory, a forklift short lifting hydraulic cylinder can be used to lift and lower heavy machinery. This allows workers to safely and efficiently move the machinery around the factory.(3) In a construction site, a forklift short lifting hydraulic cylinder can be used to lift and lower materials, such as bricks and concrete. This helps to improve productivity and safety on the construction site.

How Does the Forklift Short Lifting Hydraulic Cylinder Work?

A forklift short lifting hydraulic cylinder is a type of hydraulic cylinder that is used to lift the forks of a forklift. It is a single-acting cylinder, which means that it can only push in one direction. The cylinder is located in the mast of the forklift and is connected to the forks by a linkage.

The cylinder works by using hydraulic fluid. The hydraulic fluid is pumped into the cylinder through a hose. The pressure of the hydraulic fluid pushes the piston inside the cylinder, which in turn lifts the forks. When the hydraulic fluid is released, the piston returns to its original position and the forks are lowered.

The short lifting hydraulic cylinder is a critical component of the forklift. It allows the forklift to lift and lower the forks, which is essential for loading and unloading pallets. The cylinder is also responsible for providing the lifting force for the forklift.

Here are the steps on how a forklift short lifting hydraulic cylinder works:

1. The operator of the forklift presses the lift button.
2. This activates the hydraulic pump, which pumps hydraulic fluid into the cylinder.
3. The pressure of the hydraulic fluid pushes the piston inside the cylinder, which in turn lifts the forks.
4. The forks continue to rise until the operator releases the lift button.
5. When the lift button is released, the hydraulic fluid is released from the cylinder.
6. The piston returns to its original position, and the forks are lowered.

The forklift short lifting hydraulic cylinder is a simple but effective mechanism that allows the forklift to lift and lower the forks. It is a critical component of the forklift and is essential for its operation.

[embed]https://www.youtube.com/embedw8KK1sidY10[/embed]
