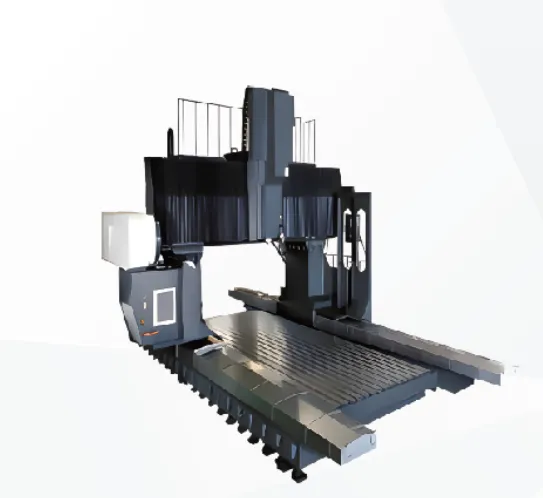

G Series Moving Gantry Vertical Machining Center Cnc Lathe CNC Turning

The G series mobile gantry vertical machining center CNC lathe has CNC turning capabilities and embodies the pinnacle of modern machining technology. This series of machine tools features high rigidity and a wide processing range and is designed to meet the demanding requirements of various industries. The G Series is particularly adept at handling the complexities of machining large and medium-sized parts, a capability that makes it invaluable in a variety of fields. The G-Series Mobile Gantry Vertical Machining Center CNC Lathe with CNC Turning is a testament to the advancement of CNC machining technology. Its robust design coupled with versatile processing capabilities make it a high-value asset in different industries. From mold manufacturing, aerospace to rail transportation and medical device manufacturing, the G series meets a wide range of processing needs with its high rigidity, high precision and wide processing range. Its ability to efficiently and accurately handle large and medium-sized parts highlights its importance as a key tool in modern manufacturing, driving innovation and excellence in every field.

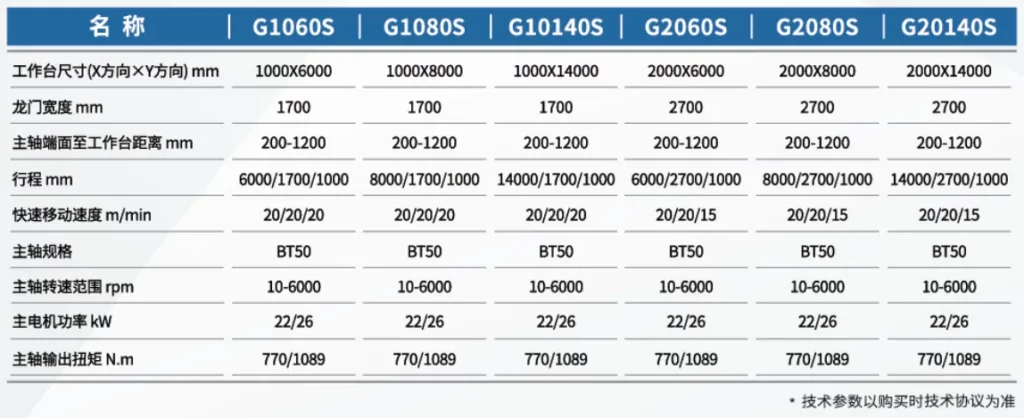

Parameter

11:08 The maximum output torque of the product spindle can reach 1089N.m;The maximum rapid moving speed of the product can reach 20m/min;The product can not only be equipped with manual and automatic attachment heads of various specifications, but the stroke range can be customized according to user needs;

Structural Characteristics and Design

1. High Rigidity: The G Series is designed with a focus on structural rigidity. This robustness is critical in machining, as it ensures stability and precision, particularly when working with large and heavy workpieces.
2. Moving Gantry Design: The moving gantry structure of the G Series provides a stable and rigid platform for machining, allowing for precise control over the workpiece. This design also enables a wide range of movement, making it easier to machine large parts.
3. Vertical Machining Center: The vertical orientation of the machining center is advantageous for various machining tasks, especially for large parts that require substantial depth processing.

Advanced Machining Capabilities

1. CNC Turning: The integration of CNC turning technology enhances the versatility of the G Series. This feature allows for both milling and turning operations within the same setup, providing greater flexibility and efficiency in manufacturing.
2. Wide Processing Range: With its capability to handle a wide range of part sizes, the G Series is suited for various applications, from small, intricate components to large, heavy parts.
3. High Precision and Accuracy: Despite its ability to handle large parts, the G Series does not compromise on precision and accuracy, making it ideal for applications where these attributes are critical.

Diverse Industry Applications

1. Mold Making: In the mold-making industry, the G Series is used for creating large molds with complex geometries, such as those used in automotive and aerospace manufacturing.
2. Aviation and Aerospace: These industries require parts that adhere to strict tolerances and specifications. The G Series’ precision makes it suitable for creating aerospace components like engine parts and structural elements.
3. Rail Transit Vehicles: For manufacturing components of rail transit vehicles, such as undercarriage parts and interior cabin elements, the G Series provides the necessary precision and capacity.
4. Household Appliances: In producing parts for household appliances, the machine's versatility in handling different materials and part sizes is crucial.
5. Medical Industry: The G Series can be employed in the medical industry to create specialized equipment and devices, where precision and reliability are of utmost importance.

About Raydafon

Raydafon has complete casting production lines, intelligent machine tool equipment assembly lines, intelligent testing equipment, and professional R&D, manufacturing, and sales teams, aiming to provide high-quality CNC machine tools and intelligent equipment solutions to the industry. Relying on its strong CNC machine tool R&D and manufacturing capabilities, Raydafon not only provides customers with high-quality machine tool equipment but also integrates and optimizes the industrial chain to provide customer partners with shared machine tools, smart tool cabinets, automation integration solutions, tool health monitoring systems, and other comprehensive solutions. Industrial chain equipment and life cycle industrial services empower enterprises in all aspects and become industry leaders with high-quality products and professional services.

The Raydafon manufacturing base has advanced lathe flow assembly lines, standard vertical assembly lines, and medium and large equipment assembly lines. It is also equipped with constant temperature inspection rooms such as three-coordinate inspection and precision inspection, equipped with Zeiss high-performance coordinate measuring machines, Weir profilometers, and Ray High-end inspection equipment such as Nisho laser interferometer provides the industry with high-quality CNC machine tools and automated integration solutions.

While opening up the industrial chain of casting, key components, and complete machine assembly, Raydafon is committed to providing customers with flexible equipment purchase models such as shared machine tools, machine tool leasing, and sales-to-lease-to-purchase.

Accessories of CNC Machine Center

CNC Machine Center comes equipped with an array of standard accessories to meet diverse machining demands. Choose from leading controllers like the Siemens controller (optional for those seeking advanced customization), the GSK controller (a standard feature known for its reliability and user-friendliness), and the Fanuc controller (optional for its high performance in complex machining tasks). Additionally, our machine center is designed with a 24ATC (Automatic Tool Changer), enhancing your productivity by minimizing manual tool changing time.

Understanding the unique needs of our clients, Raydafon also offers an exclusive range of optional accessories. Enhance your machining capabilities with our 4th-axis CNC rotary table, allowing for precise and intricate multi-angle machining. To maintain a clean and efficient workspace, consider integrating the Chain-type chip conveyor, a must-have accessory for efficient chip management and removal.

Choose Raydafon’s CNC Machine Center for its commitment to quality, versatility, and precision. Whether standard or optional, each accessory is designed to elevate your machining process, ensuring optimal performance and outcomes. Trust Raydafon to provide the tools and support you need to keep your operations running smoothly and efficiently.



Application of CNC Machine Center

Raydafon's CNC Machine Center stands as a paradigm of versatility and precision in modern manufacturing. Primarily engineered for machining a diverse range of axial and disc parts, this machine showcases its prowess by adeptly turning various threads, arcs, and cones, and intricately machining both the internal and external surfaces of cylindrical parts. Its capability to meet the high-speed requirements of both ferrous and non-ferrous metals marks it as a preferred choice for industries aiming for utmost precision and efficiency.The machine's high-speed operation is a cornerstone feature, making it an indispensable asset in industries where time is of the essence. It's not just about speed; the CNC Machine Center excels in delivering high-quality, precision-machined parts consistently. With a processing accuracy that reaches up to the 7th level, it sets a high standard for precision.Industries such as agriculture, food, automotive, motorcycle, and electronics find this machine a game-changer, particularly in scenarios that demand high efficiency, large-scale production, and precision part machining. Whether it's creating intricate components for the latest electric vehicles or manufacturing robust parts for agricultural machinery, our CNC Machine Center is designed to deliver top-notch performance, meeting the stringent quality demands of various sectors.Embrace the future of manufacturing with our CNC Machine Center, where speed, precision, and versatility converge to revolutionize your production processes. Discover how our machine can transform your operations, ensuring that every component you create is a testament to excellence and innovation.

Why Choose Us？

 Choose our CNC Machine Center for its unmatched quality and precision, ensured by premium components sourced globally from Taiwan, Japan, and Germany. Each part, from the high-precision HIWIN or PMI Guide Rails and Lead Screws to the top-quality FAG or NSK bearings, is meticulously inspected to guarantee machine accuracy and stability. Our CNC Machine Center features a Sanjie brand tool magazine for efficient tool storage and changes, and a high-performance Taiwan Spindle, ensuring high speed, precision, and low noise operation. Trust in our dedication to excellence and let our machine elevate your manufacturing standards.
