H203474 Agricultural spare part wrapped V Belt replacement for John Deere combine harvester belts

H203474 Agricultural spare part wrapped V Belt replacement for John Deere combine harvester belts

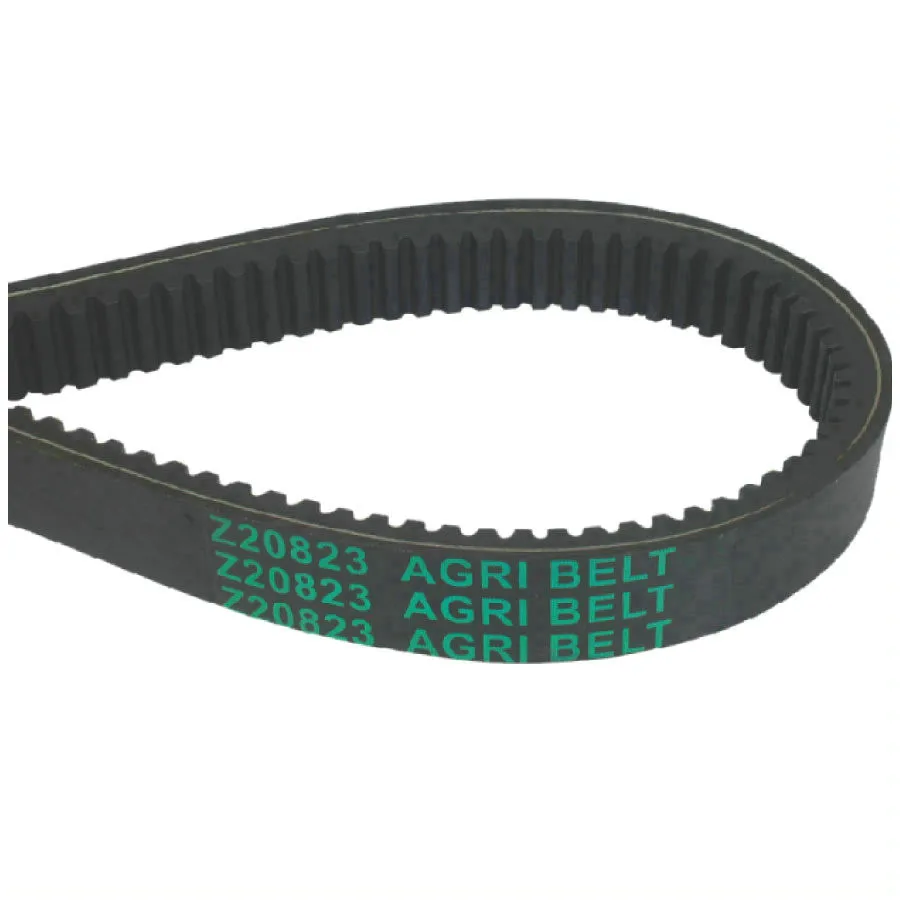

Agricultural Belt, also known as V Belt, is a transmission belt that is commonly used in agricultural machinery to transfer power from the engine to various components such as pumps, augers, and pulleys. It is made of high-quality rubber material that provides good resistance to wear, oil, heat, and aging, ensuring reliable operation in tough agricultural environments.

Here are some of the common agricultural machines where Agricultural Belts are applied:

• Tractor Transmission System:

  Agricultural Belts are primarily used in the PTO (Power Take-Off) section of tractors, connecting the tractor to various attached farming implements such as plows, seeders, harvesters, crushers, and pumps.

• Combine Harvester:

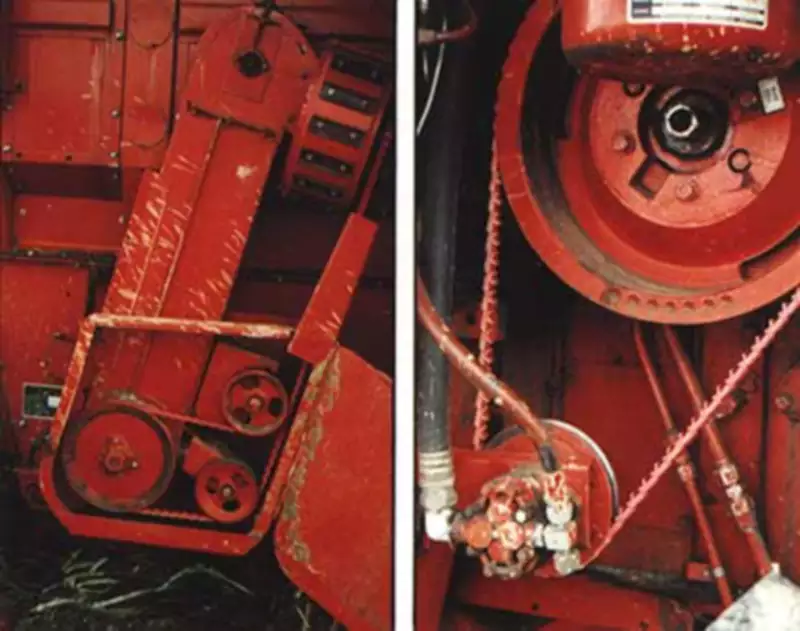

  Agricultural Belts are applied in the main transmission system, transferring engine power to threshing drums, cutting tables, cleaning systems, and other moving components.

• Tillage Equipment:

  Agricultural Belts are used in rotary tillers, plows, and deep cultivators to transfer the power from the tractor to the working parts of the tillage equipment.

• Irrigation Equipment:

  In power water pumps and rotating sprinkler systems, Agricultural Belts convey the power of the tractor to the pumps or other driving components.

• Feed Processing Machinery:

  In feed mixers, silage cutters, and other equipment, Agricultural Belts are used to drive mixing, cutting, and other functional modules.

The H203474 Agricultural spare part wrapped V Belt replacement for John Deere combine harvester belts can be adapted to various agricultural machinery brands and models. Please see the following table:

Moreover, we offer other agricultural machine parts, including agricultural chains, agricultural gearboxes, pulleys, sprockets, couplings, PTO shafts, concaves, etc. You can find all the necessary agricultural machinery parts here.

When should you replace your Agricultural Belt? Here are some signs:

1. Obvious Wear:

   Check the surface of the Agricultural Belt. If you find cracks, fraying, thinning, rubber block detachment, or exposed fabric layers, this indicates that the belt has suffered severe wear, and its strength and stability have significantly reduced. It should be replaced in time.

2. Looseness:

   A normal Agricultural Belt should run under appropriate tension. If you find the belt is too loose, sags excessively when pressed by hand, or cannot maintain the original tension after continuous use, this indicates that the belt has lost elasticity and tension and needs to be replaced.

3. Slippage:

   When working with agricultural machinery, if you hear sharp whistling at the belt or feel that the machine's power output is insufficient and the speed drops, it is likely that the Agricultural Belt is slipping. At this time, you should not only check the tension but also check whether the belt has sufficient friction. If necessary, replace the belt.

4. Overheating:

   A normally operating Agricultural Belt will have a slight temperature rise, but if it feels very hot or even burns your hand, it may be due to excessive fatigue of the belt, internal structural damage, or excessive tightening, resulting in the accumulation of heat. This situation can accelerate the aging and damage of the belt and should be stopped immediately for inspection and replacement.

5. Odor or Burning Marks:

   If you smell the odor of burnt rubber or see melting and scorch marks on the Agricultural Belt, it means that the belt is in a serious overload state and may have partial or complete damage. You must replace the belt immediately.

6. Abnormal Vibration or Noise:

   When the Agricultural Belt fails or is about to fail, it may cause additional vibration or noise during machine operation due to uneven transmission. You should stop and check the cause and replace the problematic Agricultural Belt in time.

How to choose the right Agricultural Belt?

1. Belt Type:

   V Belts are commonly used in agricultural machinery. According to different widths and thicknesses, they have different models such as A, B, C, and D. When choosing, make sure that the model of the new belt is consistent with the original belt or refer to the specifications provided by the equipment manufacturer.

2. Length:

   Measure or calculate the accurate length of the required Agricultural Belt according to the agricultural machinery manual to ensure that the new belt can be smoothly installed and maintain appropriate tension.

3. Horsepower/Power Requirements:

   The Agricultural Belt needs to bear the engine output power of the agricultural machinery. Therefore, make sure that the rated power of the new belt is greater than or equal to the power requirement of the transmission system.

4. Material:

   Agricultural Belts made of high-quality rubber blend have better wear resistance, high-temperature resistance, oil resistance, and aging resistance performance.

5. Belt Pulley Groove Size:

   The Agricultural Belt must be compatible with the groove width and depth of the belt pulley to ensure good meshing and avoid slippage or premature wear.
