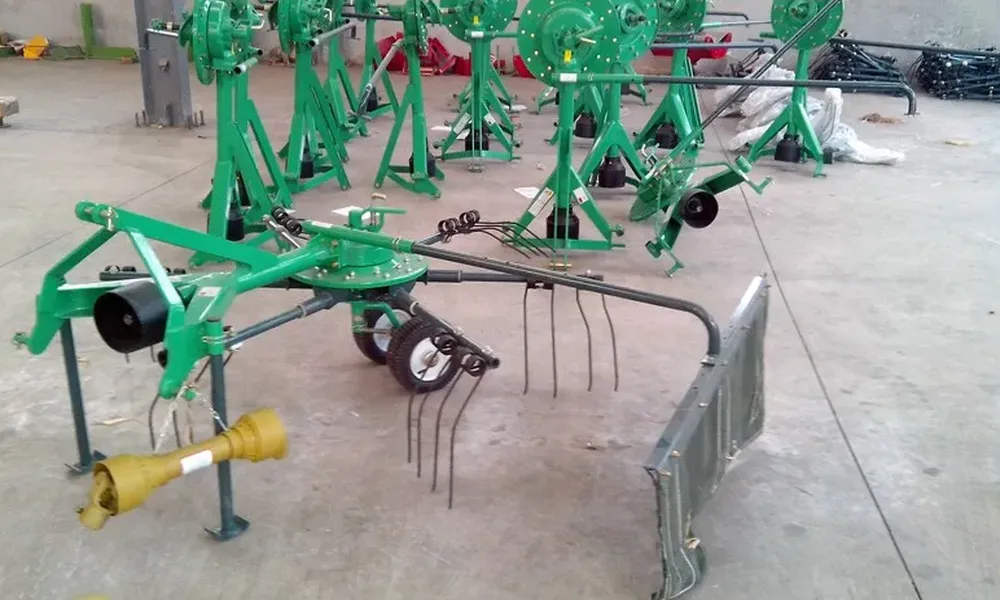

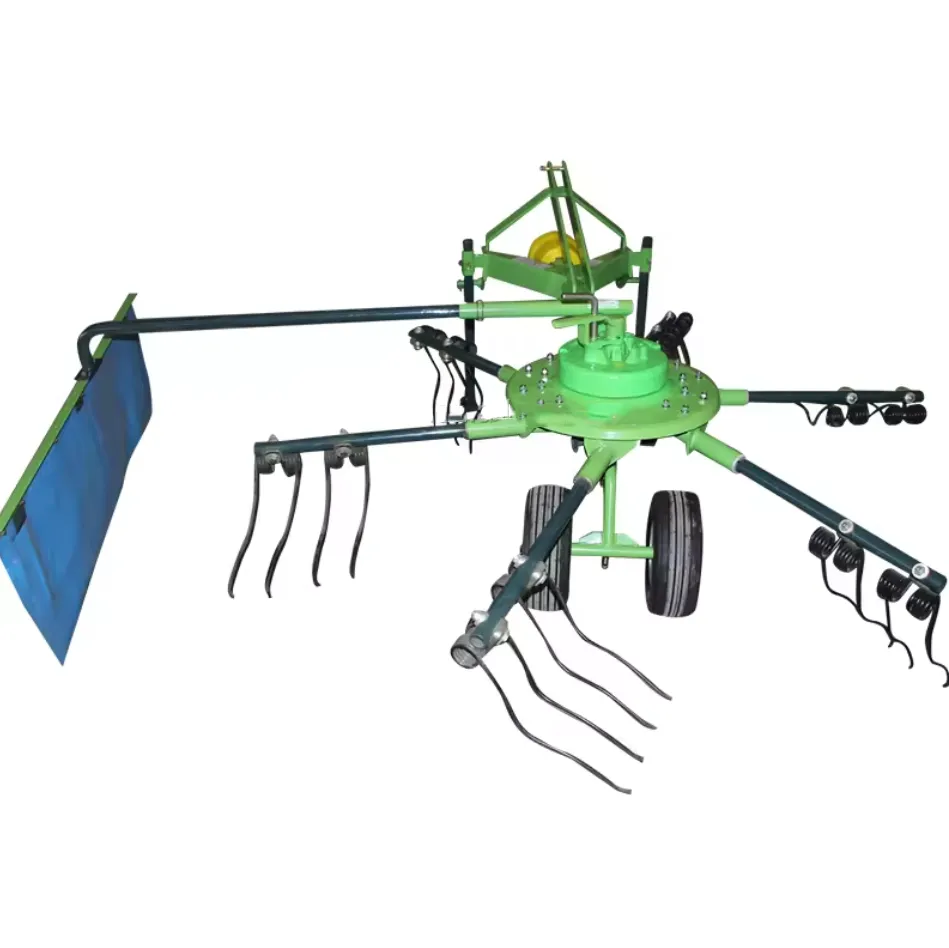

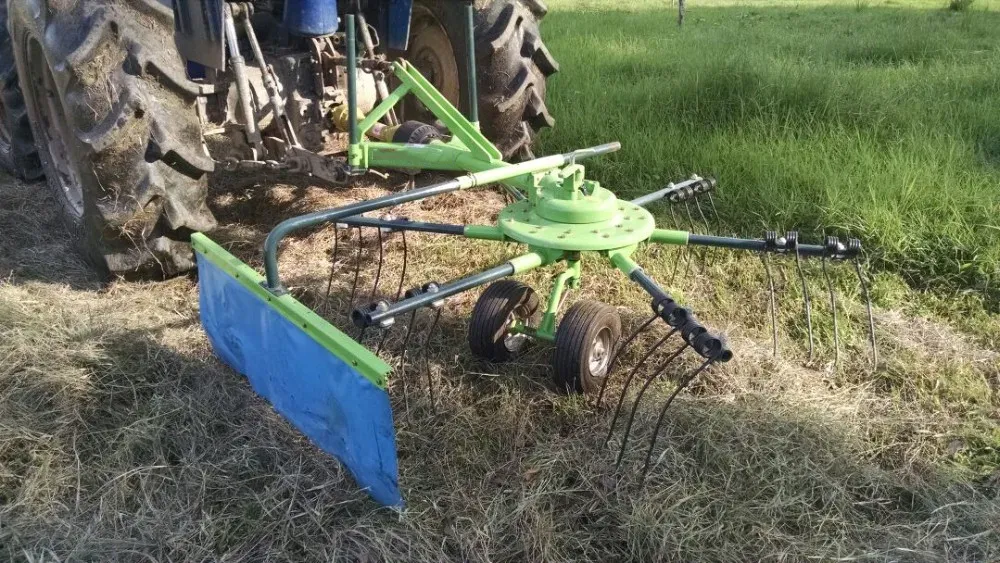

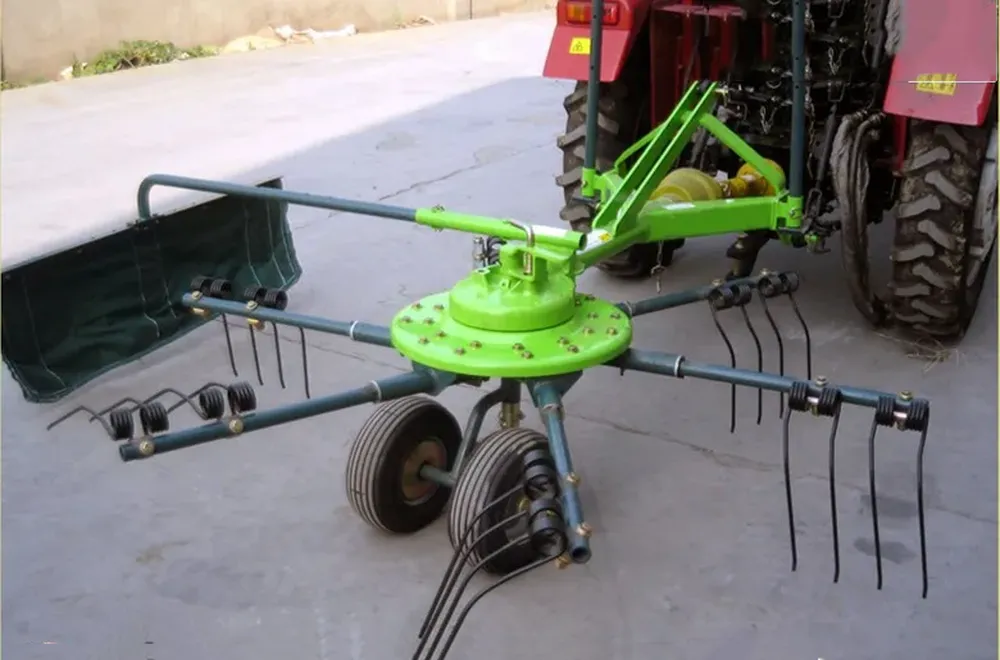

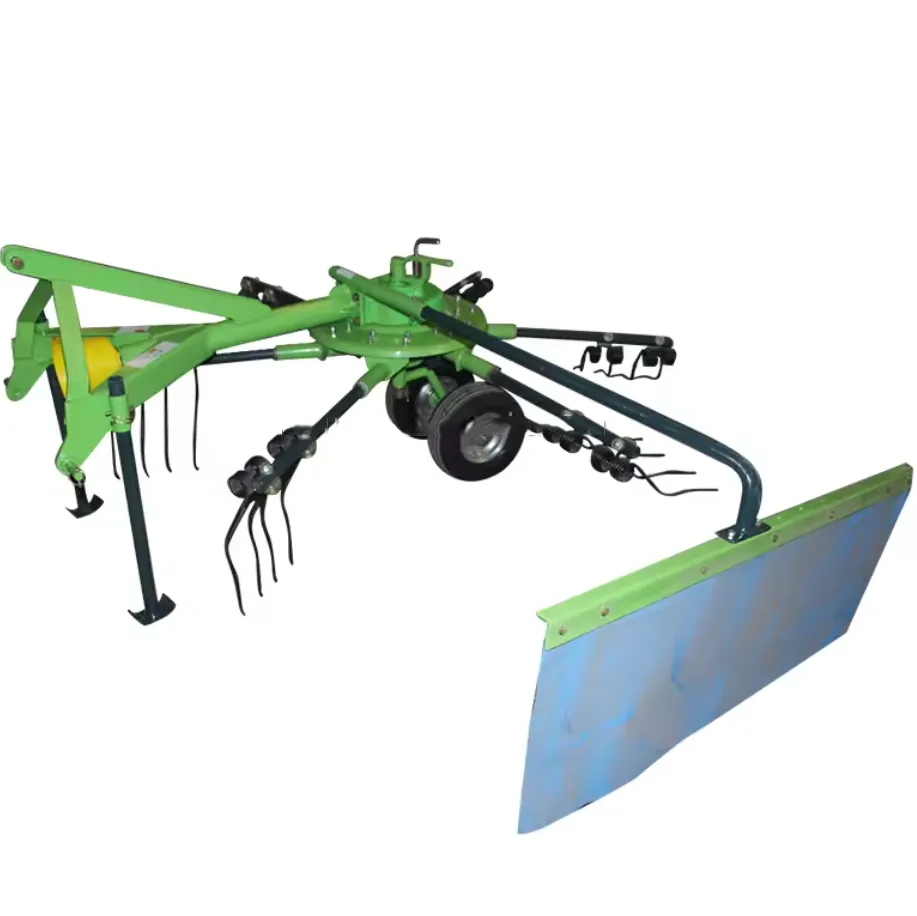

Hay Grass Rake Tedder RXHR2500 for Raking and Tedding Straw

[embed]https://youtu.be/R7EALpVlwwc[/embed]

Hay Grass Rake Tedder RXHR2500 for Raking and Tedding Straw

A hay grass rake tedder is a versatile farm implement used in the agricultural industry for raking and tedding straw. It is designed to efficiently handle and process straw after it has been harvested from crops such as wheat, barley, oats, or rice. Raking and tedding are essential processes in straw management. Raking involves gathering the straw into windrows or rows, making it easier to collect or bale later on. Tedding, on the other hand, involves spreading and aerating the straw to facilitate drying. This helps to prevent spoilage and improve the quality of the straw as fodder or bedding material for livestock. The hay grass rake tedder combines both raking and tedding functions into a single machine, streamlining the straw management process and saving time and effort for farmers. The implement consists of a series of rotating tines or arms that rake through the straw, lifting and tossing it into the air. This action effectively separates the straw and promotes even drying. The hay grass rake tedder is typically attached to a tractor through the three-point hitch or mounted on the front or rear of the tractor using a power take-off (PTO). The tractor's power drives the rotating tines, which comb through the straw, lift it, and spread it evenly across the field. The implement usually has adjustable settings to control the height and intensity of raking and tedding, allowing farmers to adapt to different straw conditions and weather conditions. By using a hay grass rake tedder, farmers can accelerate the drying process of the straw, reducing moisture content and preventing rot or mold formation. This is especially crucial in regions with unpredictable weather patterns or high humidity. Additionally, the implement helps to minimize losses by ensuring uniform drying and reducing the risk of soil contamination.

Hay Grass Rake Tedder RXHR2500 Specifications

Specifications for Hay Rake RXHR2500
Model		RXHR2500
Raking width		2500mm
Tedding width		1600mm
Dimensions		2100x2500x950mm
Teeth No.s		12
Working speed		4-8km/h
Matched Power		18-50HP
PTO speed		540rpm
Packaging size		2100x1950x950mm

Advantages of Using the Hay Grass Rake Tedder RXHR2500

Using a hay grass rake tedder offers several advantages for farmers and agricultural operations. Here are some key benefits: 1. Improved Drying: The primary advantage of using a hay grass rake tedder is that it accelerates the drying process of the straw. By lifting and tossing the straw into the air, the implement spreads it out evenly, exposing a larger surface area to sunlight and air. This promotes faster evaporation of moisture, reducing the drying time significantly. Quicker drying helps prevent spoilage, mold, and rotting, ensuring higher quality straw for animal feed or bedding. 2. Increased Efficiency: The hay grass rake tedder combines both raking and tedding functions into a single machine, streamlining the straw management process. Instead of using separate equipment for raking and tedding, farmers can save time and effort by performing both tasks simultaneously. This increases overall efficiency and productivity, allowing farmers to cover more ground in less time. 3. Enhanced Straw Quality: The implement's action of lifting and spreading the straw helps to separate it and promote even drying. This process leads to improved straw quality, as it reduces the likelihood of clumping or matting. The resulting well-dried straw is more uniform, cleaner, and easier to handle, making it suitable for various applications such as livestock bedding or as a source of forage. 4. Reduced Losses: Properly dried straw has a reduced risk of spoilage, mold growth, or degradation. By using a hay grass rake tedder, farmers can minimize losses associated with inadequate drying conditions. The implement's ability to evenly distribute the straw also helps prevent soil contamination, as it keeps the straw off the ground and away from potential impurities. 5. Adaptability and Adjustability: Most hay grass rake tedders come with adjustable settings, allowing farmers to adapt to different field conditions and straw types. They can adjust the height and intensity of raking and tedding based on crop thickness, moisture content, or weather conditions. This flexibility ensures optimal performance and enables farmers to achieve the desired drying outcomes.

Tractor PTO Driven Hay Grass Rake Tedder Working Principle

The working principle of a tractor PTO driven hay grass rake tedder involves utilizing the power take-off (PTO) of a tractor to drive the rotating tines or arms of the implement. Here's a breakdown of the working process:

• Attachment to Tractor: The hay grass rake tedder is connected to the tractor through the three-point hitch or mounted on the front or rear using the PTO. The PTO transfers power from the tractor's engine to the implement.
• Power Transfer: The PTO shaft of the tractor is connected to the input shaft of the hay grass rake tedder. As the tractor's engine runs, it generates rotational power that is transmitted through the PTO shaft to the implement.
• Rotating Tines: The hay grass rake tedder is equipped with a series of rotating tines or arms arranged in a reel or rotor configuration. These tines are typically made of durable materials such as steel and are evenly spaced along the length of the implement.
• Raking and Tedding Motion: When the PTO is engaged and power is transferred to the hay grass rake tedder, the rotational energy is transmitted to the tines. The tines, driven by the rotating motion, comb through the straw and lift it from the ground.
• Straw Separation: As the tines rake through the straw, they separate it from the underlying crop residue or ground surface. This action helps to prevent soil contamination and ensures that only the straw is lifted and processed.
• Tossing and Spreading: Once lifted, the tines toss the straw into the air, creating a spreading motion. This action helps to distribute the straw evenly across the field, promoting the drying process and preventing clumping or matting.
• Adjustable Settings: Most hay grass rake tedders come with adjustable settings that allow farmers to control the height and intensity of raking and tedding. These settings can be modified based on the crop thickness, moisture content, or weather conditions, ensuring optimal performance.
• Field Coverage: As the tractor moves forward, the hay grass rake tedder covers a swath of the field, raking and tedding the straw in its path. The width of the swath depends on the size of the implement and the tractor's speed.

Common Troubleshooting of Tractor PTO Driven Hay Rake Tedder

Troubleshooting common issues with a tractor PTO (Power Take-Off) driven hay rake tedder involves identifying and resolving problems that may affect its performance. Here’s a guide to some frequent issues and potential solutions: 1. Tedder Fails to Operate or Engage

• Cause: PTO not properly engaged, damaged PTO shaft, or insufficient hydraulic fluid (for models with hydraulic features).
• Solution: Ensure the PTO is correctly engaged and check the PTO shaft for any damage or misalignment. For hydraulic models, check the hydraulic fluid level and refill if necessary.

2. Uneven Tedding or Raking

• Cause: Worn or broken tines, incorrect working height, or uneven ground.
• Solution: Replace any worn or broken tines. Adjust the working height of the tedder to ensure even contact with the ground. Consider adjusting ground speed or tedder settings to accommodate uneven terrain.

3. Excessive Vibration

• Cause: Unbalanced rotor(s), damaged PTO shaft, or loose components.
• Solution: Check for and replace any unbalanced or missing tines to balance the rotors. Inspect the PTO shaft for damage and ensure all bolts and components are tightened securely.

4. Tedder Not Turning or Rotating Slowly

• Cause: Obstructed rotors, insufficient PTO speed, or mechanical failure.
• Solution: Remove any debris obstructing the rotors. Check that the tractor’s PTO speed matches the tedder’s requirements. Inspect for mechanical failures such as gearbox issues and repair as needed.

5. High Wear of Tines or Components

• Cause: Operating at inappropriate speeds, incorrect adjustment of working height, or use in overly abrasive conditions.
• Solution: Adjust operational speed according to the condition of the field and the crop. Ensure the tedder is set to the correct working height to minimize unnecessary wear. Replace worn components as necessary.

6. Poor Quality of Work (Incomplete Tedding or Raking)

• Cause: Incorrect PTO speed, improper overlap of tedder rotors, or worn tines.
• Solution: Adjust the PTO speed to the tedder manufacturer’s specifications. Ensure rotor overlap is adjusted correctly for complete coverage. Replace any worn tines to improve tedding quality.

7. Tedder Overloading or Clogging

• Cause: Too much crop material, wet conditions, or operating too fast.
• Solution: Reduce the amount of material being tedded by adjusting the swath width. Wait for drier conditions if possible. Slow down the operating speed to prevent overloading and clogging.

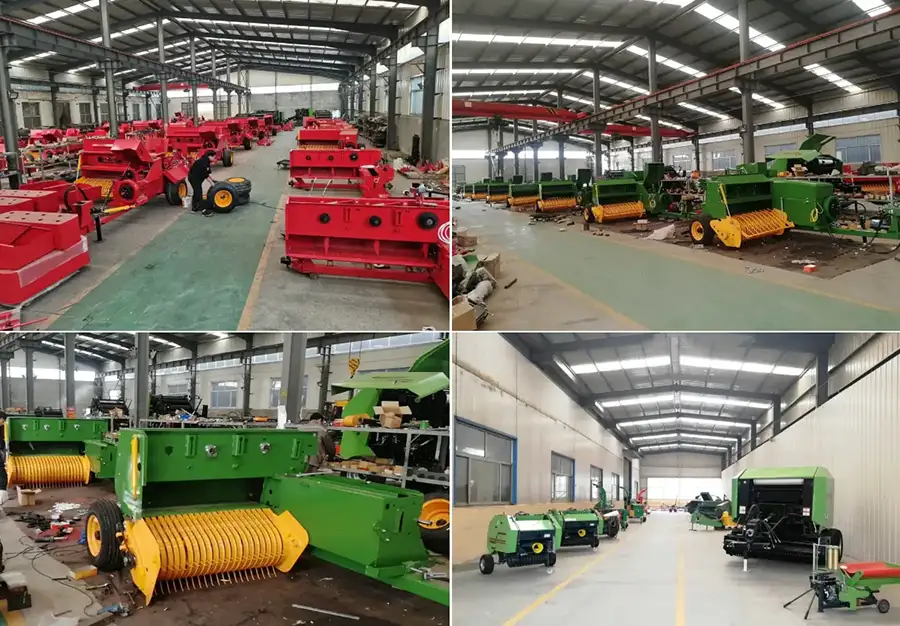

Why Choose Raydafon's Hay Grass Rake Tedder?

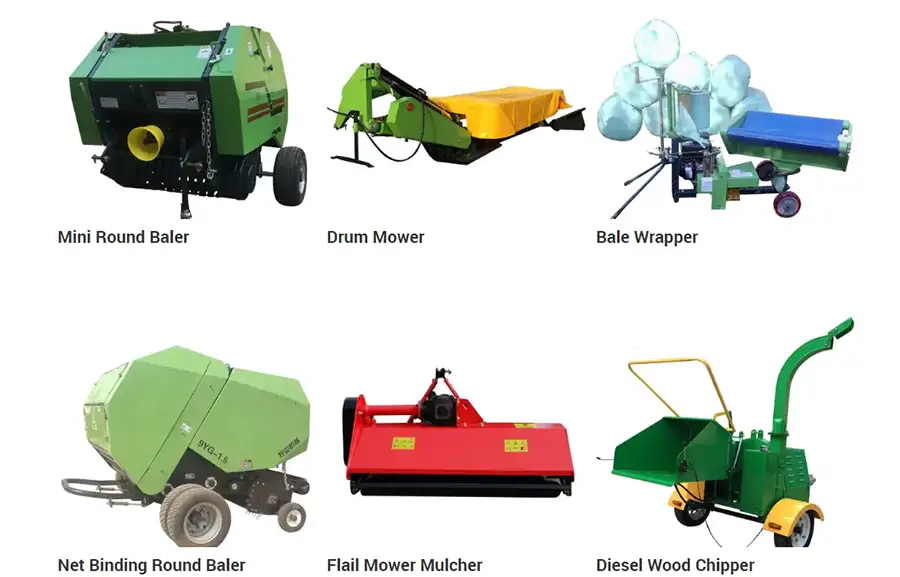

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
