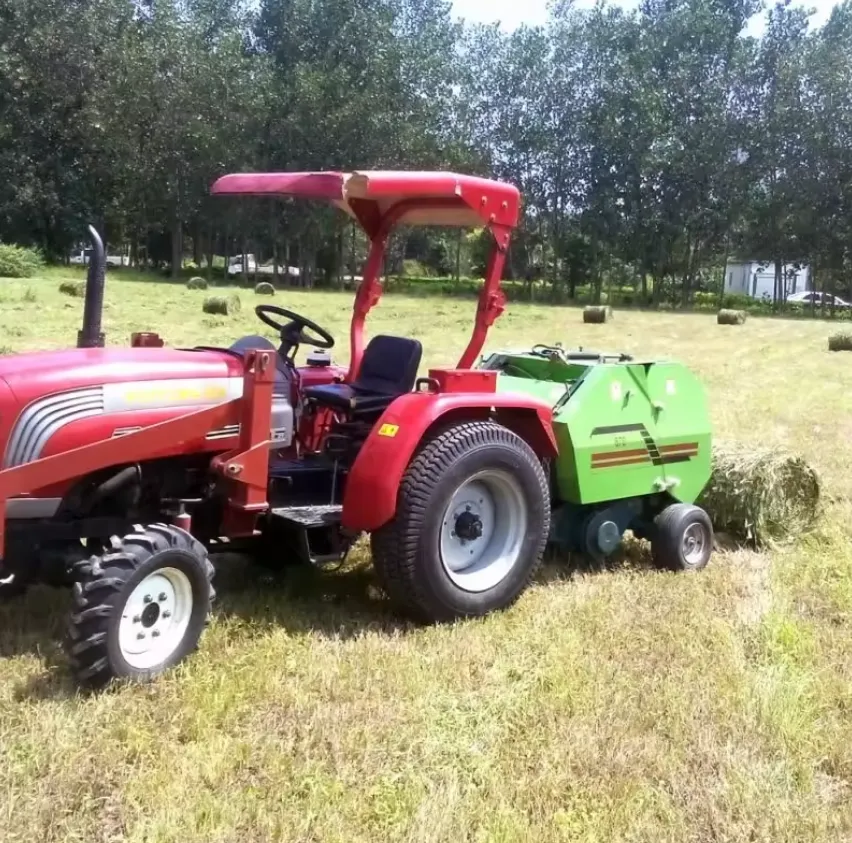

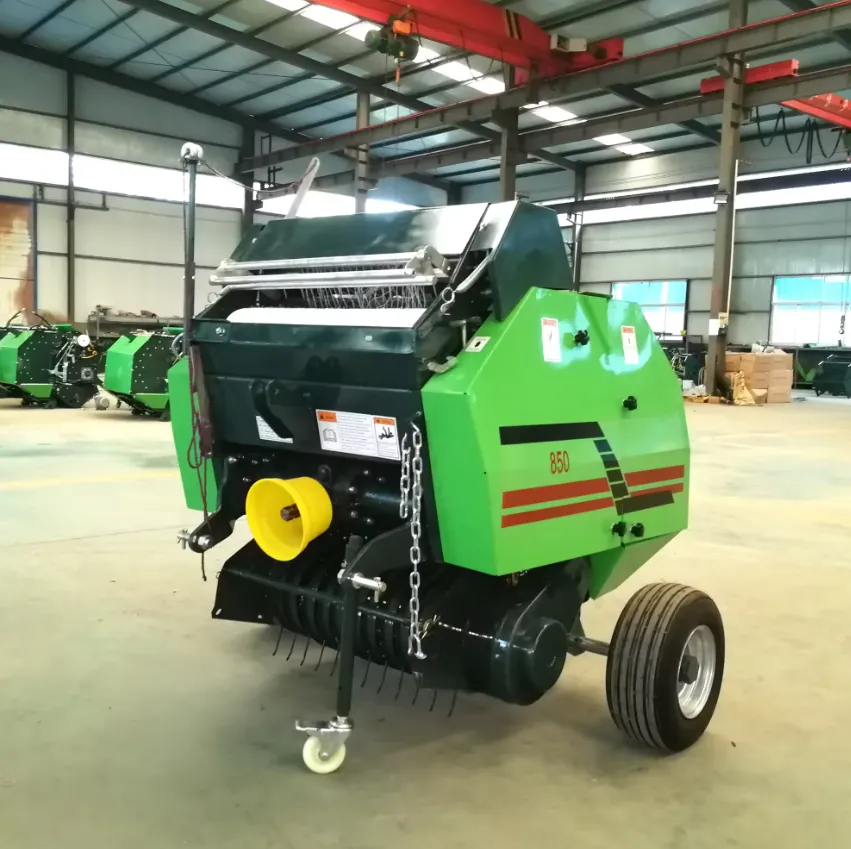

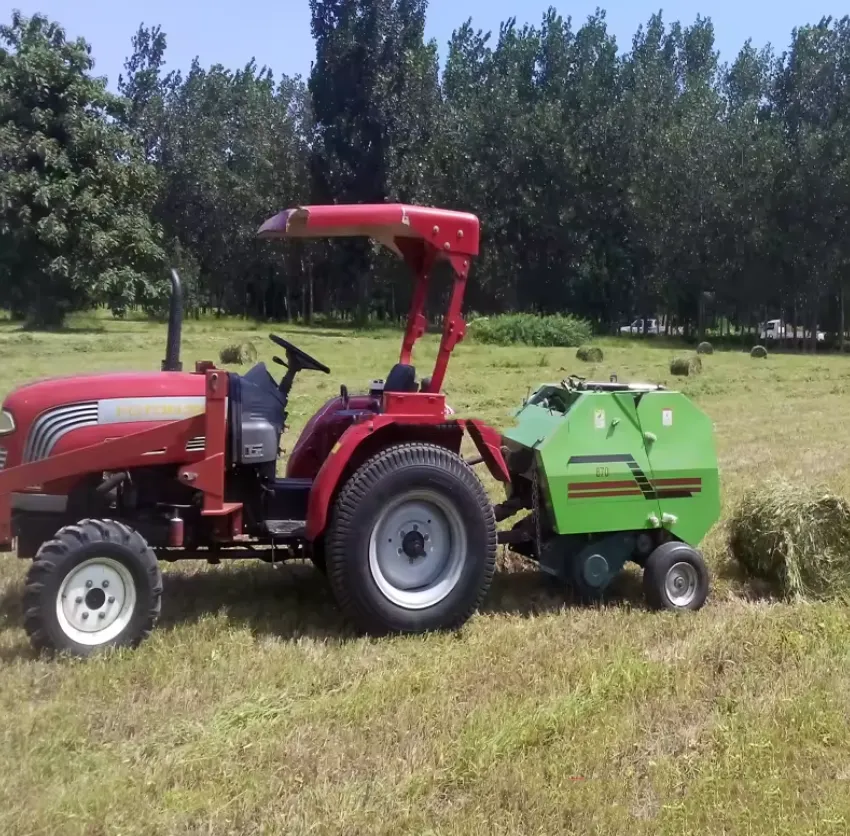

Hay Packer Round Baling

Our hay packer is a premium round baler designed for modern farming needs. Operating at speeds of 3-10km/h, it's a new model - RXYK0850 | RXYK0870 - that's perfect for pickup and baling grass, alfalfa, wheat, rice straw, and more. With dimensions of 1300x1300x1350mm and a weight of 425 kg, it's a compact and highly efficient machine. It comes with a 2-year warranty and is certified by ISO and CE. The twine rope and a matched power of 20-50HP ensure optimal baling. The pickup width is 80cm, and the baler comes in an attractive green color.

Why Opt for Our Hay Packer: The Advantages

1. Compact and lightweight design for easy maneuverability.
2. High operating speed of 3-10km/h, facilitating faster baling.
3. Wide application range - suitable for grass, alfalfa, wheat, rice straw, and more.
4. Reliable performance - ISO and CE certified with a 2-year warranty.
5. Convenient pickup width of 80cm, enabling efficient baling.
6. Twine rope for secure and sturdy baling.

Applications of Our Hay Packer

1. Forage and Hay Baling: The hay packer is perfect for pickup and baling grass and alfalfa, making it ideal for livestock feeding applications.
2. Straw Baling: It can effectively bale wheat and rice straw, which can be used for animal bedding, composting, or biomass fuel.
3. Small to Medium Farming: With its compact design and high efficiency, the hay packer is suitable for small to medium farms.
4. Landscaping: The hay packer can also be used in landscaping applications for collecting and baling garden waste.
5. Biomass Production: The hay packer can help in the production of biomass fuel by efficiently baling crop residues.
6. Composting: It can be used for baling organic materials that can be used for composting, contributing to environmental sustainability.

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler works by attaching the baler to the back of a tractor using a three-point hitch or another attachment mechanism. The tractor provides the power and mobility needed to operate the baler effectively. Here is a step-by-step overview of how the tractor-mounted mini hay round baler typically works:

1. Preparing the Tractor: Ensure that the tractor is properly equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler. The PTO transfers power from the tractor to the baler, while the hydraulic connections control various functions of the baler.
2. Hitching the Baler: Attach the baler to the tractor's three-point hitch or other compatible attachment mechanism. Secure the baler to the tractor, ensuring a firm and stable connection.
3. Adjusting Settings: Set the appropriate baling parameters based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
4. Operating the Pickup Attachment: Lower the pickup attachment of the baler onto the ground using the tractor's hydraulic controls. The pickup attachment consists of rotating tines or belts that gather the loose hay or straw from the ground and feed it into the baling chamber.
5. Bale Formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler. Inside the chamber, the material is compressed and formed into a round bale by a combination of belts and rollers. The belts rotate and wrap around the bale, ensuring it remains intact.
6. Bale Ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers may have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves several steps to ensure a secure and effective connection for baling operations. The process typically requires basic mechanical skills and an understanding of your tractor and baler's specific requirements. Here's a general guide on how to install a mini hay round baler to a tractor:

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment, as well as any safety precautions you need to follow. Before attachment, inspect both the tractor and baler for any damage or wear that might affect operation. Ensure all moving parts are in good condition and that the baler is ready for use.
2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler. Make sure the ground is level to avoid any unnecessary stress on the equipment during the connection process.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. Secure the pins through the arms into the baler's mounting points and attach the top link. Adjust the top link and lift arms to ensure the baler is level. For balers that connect via a drawbar, line up the drawbar of the tractor with the tow bar of the baler and insert the pin through both holes to secure them together.
4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged. Check that the PTO shaft is the correct length. The shaft should have enough overlap to accommodate the movement when the tractor and baler are in operation but not so much that it could bind or buckle.

5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs. Ensure the connections are secure and the hoses are not kinked or under strain.
6. Test the connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted. Look for any signs of looseness or misalignment that may affect the baler's operation or safety.

Maintaining Your Mini Hay Round Baler

Proper maintenance of a mini hay round baler is essential to ensure its optimal performance, longevity, and safety. Here are some key maintenance tasks to consider:

1. Regular Cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw. Pay attention to the pickup attachment, baling chamber, belts, and rollers. Use compressed air, brushes, or water (if applicable) to remove stubborn residue. Keeping the baler clean helps prevent clogs and reduces the risk of corrosion.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals. Apply the appropriate lubricants to the specified areas such as bearings, chains, sprockets, and pivot points. Proper lubrication reduces friction, prevents wear and tear, and ensures smooth operation.

3. Roller Inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear. Check for loose or missing bolts and ensure that the rollers are clean and free from debris. Adjust or replace rollers as necessary to maintain proper compression during bale formation.
4. Twine or Net Wrap System: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly. Check for proper tension, functioning of the twine arms or net wrap mechanism, and any signs of wear or damage. Replace or adjust components as needed to ensure consistent and secure bale tying.
5. PTO Maintenance: If the baler is powered by the tractor's power take-off (PTO), inspect the PTO shaft regularly for any signs of wear, damage, or loose connections. Keep the PTO shaft properly lubricated and replace any worn or damaged components. Ensure that the PTO guards are in place and in good condition for operator safety.
6. Check hydraulic system: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear. Ensure that all connections are tight and secure. Replace any damaged hoses or fittings and address any hydraulic fluid leaks promptly.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

Raydafon Agricultural Machinery Co., Ltd. is a trusted name in the world of agricultural machinery. With over 30 years of industry experience and a dedicated team of experts, we have the expertise and resources to provide you with top-quality mini hay round balers.

We hold international certifications, affirming our commitment to high-quality standards and customer satisfaction. Our production facilities are equipped with the latest technology, ensuring the production of superior and durable machinery. We offer customized services and after-sales support, ensuring you get the best value for your investment.

Our mini hay round baler is a result of our extensive research and development efforts. It offers exceptional performance, ease of use, and long-lasting durability, making it a preferred choice for farmers around the globe.

Professionalism and Dedication

At Raydafon, we are committed to providing our customers with the best agricultural machinery. Our team comprises of 20 technical staff and five senior R&D personnel who work tirelessly to improve our products. We use CAD computer-aided design systems and advanced machinery, including lathing, milling, planning, stamping, cutting plate, and electric welding, to manufacture our products.

International Certifications

Our commitment to quality is evident from the international certifications we hold. Our products are ISO and CE certified, which serve as a guarantee of our high-quality standards and commitment to customer satisfaction.

Customized Services

We understand that every farmer's needs are unique. Therefore, we offer customized services to meet your specific requirements. Whether you need a specific feature or a different size, we can customize our mini hay round baler to suit your needs.

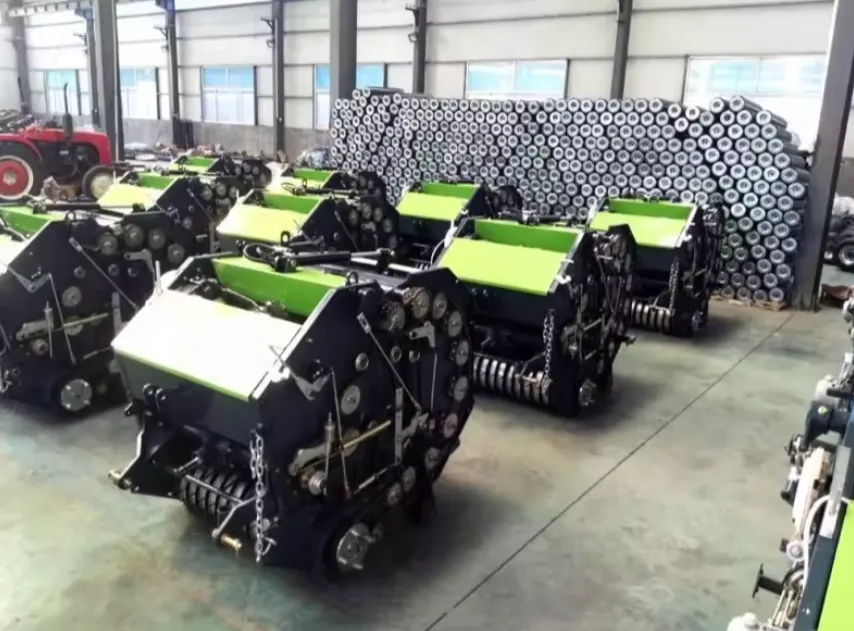

Production Facilities

Our production facilities are equipped with the latest technology. We have two advanced casting, forging, machining, heat treatment, and lacquering production lines. Our production technology is strong, and our equipment is advanced, ensuring the production of superior and durable machinery.

After-Sales Services

At Raydafon, we believe in providing complete customer satisfaction. We offer comprehensive after-sales services, including maintenance and repair services. Our support team is always ready to assist you with any issues you may encounter with our mini hay round baler.
