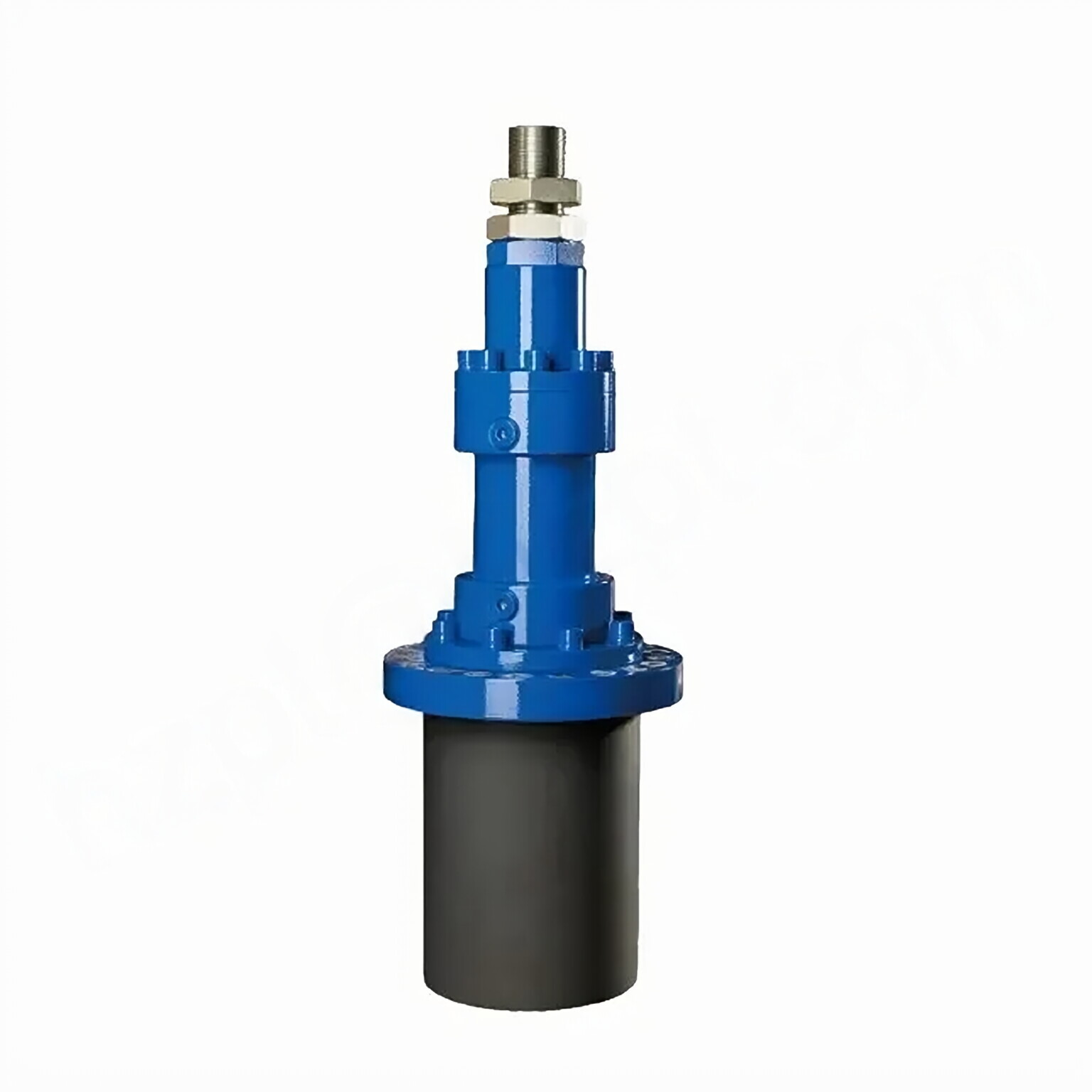

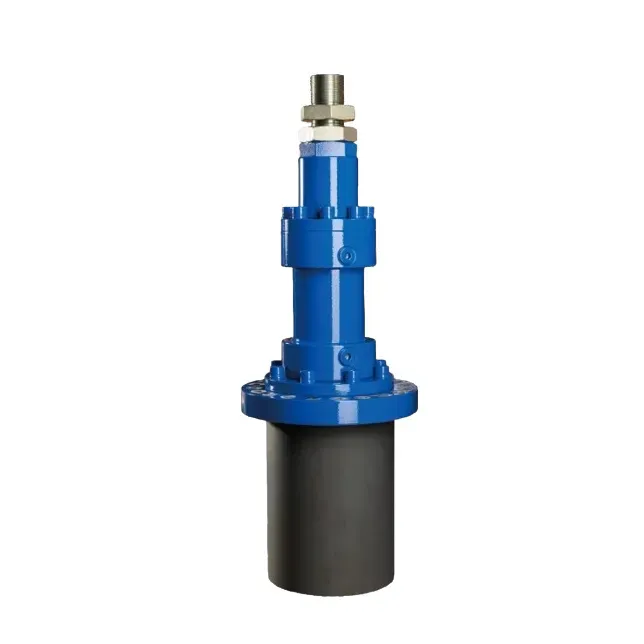

HCYY11112028 Wind Power Series Cylinders

HCYY11112028 Wind Power Series Cylinders



The HCYY11112028 Wind Power Series Cylinders are meticulously designed for the wind energy sector, offering dependable and efficient performance across a variety of applications. These cylinders are crucial for controlling the mechanisms that harness wind energy, significantly improving the efficiency and functionality of wind turbines. Engineered with precision and built to endure the challenges of the industry, they meet the rigorous demands of this rapidly expanding field.Combining durability, efficiency, and ease of use, the HCYY11112028 Wind Power Series Cylinders are an outstanding choice for wind energy applications. Their high load capacity and corrosion-resistant properties make them particularly suited for the harsh environments typical of wind turbine operations. By following recommended usage and maintenance guidelines, operators can ensure that these cylinders deliver optimal performance for years to come.Investing in these cylinders not only enhances the reliability of wind energy systems but also contributes to a sustainable energy future.

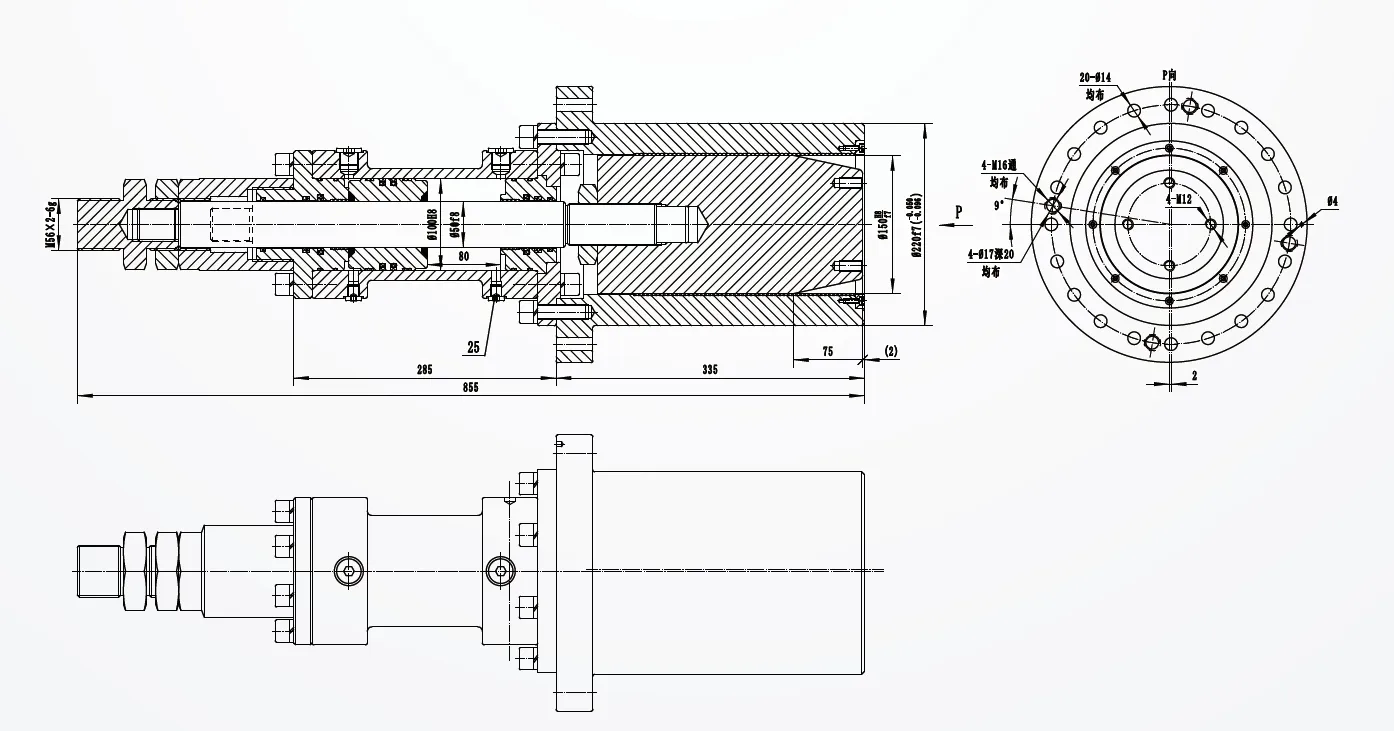

HCYY11112028 Wind Power Series Cylinders Parameter:

• Cylinder model: HCYY11112028
• Working pressure: 16 MPa
• Maximum withstand pressure: 25 MPa
• Diameter of cylinder tube: 100 mm
• Piston rod diameter: 50 mm
• Pin diameter: 150 mm
• Trip: 80 mm
• Cylinder length: 855 mm
• Weight: 140 kg

Key Features of HCYY11112028 Wind Power Series Cylinders:

Exceptional Load Handling

The HCYY11112028 Wind Power Series Cylinders are designed to support significant loads, which is essential for the rigorous demands of wind energy applications. Their sturdy construction ensures reliable operation in challenging conditions, including high winds and severe weather. This capability not only boosts the efficiency of wind turbines but also provides operators with confidence, knowing their equipment can safely manage substantial weight without compromising performance.

Robust Durability

Constructed from high-quality materials, these cylinders are engineered to withstand wear and tear over time. Their robust design minimizes the need for frequent replacements, making them a cost-effective solution for long-term use. Whether facing harsh environmental conditions or the daily rigors of operation, the HCYY11112028 cylinders retain their structural integrity, ensuring that wind energy systems operate smoothly and efficiently.

Advanced Corrosion Protection

Featuring a specialized coating, the HCYY11112028 cylinders are highly resistant to rust and environmental damage. This corrosion resistance is vital for outdoor applications, where exposure to moisture, salt, and other harsh elements can lead to deterioration. By safeguarding the cylinders against corrosion, this feature not only extends their lifespan but also reduces maintenance needs, allowing operators to concentrate on maximizing energy output.

Precision Manufacturing

Engineered to stringent specifications, the HCYY11112028 Wind Power Series Cylinders ensure seamless compatibility with various wind turbine models. This precision manufacturing facilitates easy installation and integration into existing systems, minimizing the likelihood of operational issues. Operators can have peace of mind, knowing they are using components designed for optimal performance within their specific turbine configurations.

User-Friendly Installation

With user convenience as a priority, the HCYY11112028 cylinders offer straightforward and efficient installation. Their intuitive design reduces downtime during setup, enabling operators to quickly get their systems operational. This ease of installation not only enhances overall operational efficiency but also allows for rapid responses to maintenance needs, ensuring that wind energy systems remain productive at all times.By highlighting these features, the HCYY11112028 Wind Power Series Cylinders deliver outstanding performance that meets the evolving needs of the wind energy sector.

How Do The Hcyy11112028 Wind Power Series Cylinders Enhance The Efficiency Of Wind Turbines?

The HCYY11112028 Wind Power Series Cylinders enhance the efficiency of wind turbines through several key features:

High Load Capacity:

These cylinders are engineered to support substantial loads, which is critical for the demanding conditions faced by wind turbines. By effectively managing high weights, they enable turbines to operate at optimal performance levels, even in challenging wind conditions. This reliability instills confidence in operators, knowing their systems can handle the rigors of natural elements without compromising safety.

Durable Construction:

Crafted from premium-grade materials, the HCYY11112028 cylinders are designed to resist wear and tear over extended periods. This durability translates to fewer replacements and maintenance interventions, which not only lowers operational costs but also ensures that the turbines maintain consistent performance. As a result, operators can expect enhanced productivity and reduced downtime.

Corrosion Resistance:

Featuring a specialized protective coating, these cylinders are highly resistant to rust and environmental degradation. This is especially important for outdoor applications exposed to moisture, salt, and other harsh elements. By safeguarding against corrosion, the cylinders not only extend their operational lifespan but also minimize maintenance efforts, allowing operators to focus on maximizing energy production without frequent interruptions.

Precision Engineering:

The HCYY11112028 cylinders are manufactured to precise specifications, ensuring seamless compatibility with various wind turbine models. This precision facilitates straightforward installation and integration into existing systems, which significantly reduces the risk of operational disruptions. Operators can thus enjoy peace of mind, knowing they are using components specifically designed for optimal performance within their turbine setups.

User-Friendly Installation:

Designed with convenience in mind, these cylinders enable quick and hassle-free installation. Their intuitive design minimizes setup time, allowing operators to swiftly bring systems online. This ease of installation enhances overall operational efficiency and enables faster responses to maintenance needs, ensuring that wind energy systems remain productive and effective at all times.By integrating these features, the HCYY11112028 Wind Power Series Cylinders not only improve the performance and reliability of wind energy systems but also contribute to a more sustainable and efficient energy future.

Wind Power Series Cylinders Production Area:

We have developed a top-tier independent R&D platform for assembly. Our forklift cylinder production workshop features four semi-automatic assembly lines and one fully automatic tilting cylinder assembly line, capable of producing up to one million units annually. Additionally, our special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, designed to produce 200,000 units per year.Our facility boasts state-of-the-art CNC machining equipment, machining centers, specialized tools for high-precision cylinder processing, robotic welding machines, automatic cleaning systems, automatic assembly machines, and automated paint production lines. Over 300 key pieces of equipment are operational, allowing for optimized resource allocation and efficient utilization to meet precise product specifications and high-quality standards.In the machining shop, we utilize custom tilt guiderail turning centers, machining centers, high-speed honing machines, welding robots, and other essential equipment. This setup enables us to handle machining tasks for cylinder tubes with a maximum inner diameter of 400mm and lengths of up to 6 meters.

We operate a fully automatic water-based paint coating line for small and medium cylinders, featuring automatic loading and unloading systems and robotic spraying capabilities, with a production capacity of 4,000 units per shift. Additionally, we have a semi-automatic painting line for larger cylinders, powered by a chain drive, designed to handle 60 crates per shift.To enhance product performance and solidify our leadership in the hydraulic cylinder industry, we have partnered with Zjimee to establish a comprehensive performance laboratory focused on hydraulic cylinders, valves, and pumps. This lab employs computer-assisted testing using advanced electro-hydraulic technology, allowing for preset test conditions that improve accuracy and versatility in testing.The lab utilizes sensors for automatic data collection, enabling direct processing of output metrics, such as internal leakage and load efficiency, converted into standard units (ml/min%). To ensure the safety of hydraulic systems, we monitor key performance parameters, including oil temperature, liquid levels, and filter conditions. The hydraulic cylinder test stand evaluates "load efficiency" and "internal leakage" through precise readings, and is equipped with a grating ruler measuring instrument that complies with national standards for all hydraulic cylinder testing requirements.
