Head Rectangular Flange Type Metallurgical Hydraulic Cylinder

Head Rectangular Flange Type Metallurgical Hydraulic Cylinder

The head rectangular flange type metallurgical hydraulic cylinder is a state-of-the-art hydraulic component designed specifically for metallurgical applications. With its innovative design, superior performance, and robust construction, this hydraulic cylinder ensures precise control, reliable operation, and exceptional durability in demanding industrial environments. Whether used in steel mills, foundries, or other metallurgical processes, the head rectangular flange type cylinder delivers efficiency and productivity.Y-HG1 series of metallurgical equipment hydraulic cylinder for the double acting piston cylinder, cylinder diameter is generally in the range of 40~320mm, the working pressure <=16MPA, the hydraulic oil mechanical system can be used to lose emulsion and other working media, the installation of flange, earrings, pins, trippers (base) and different types.High precision CNC honing machine, automatic welding machine, vertical, horizontal machining center, gantry machining center, CNC lathe, and other processing equipment, product quality is stable and guaranteed.

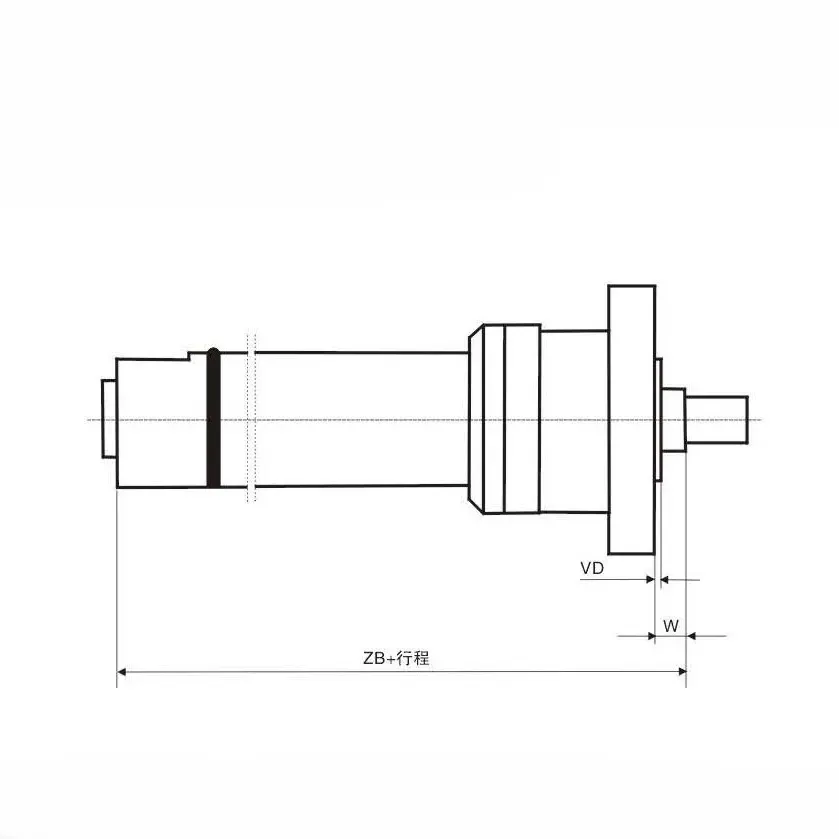

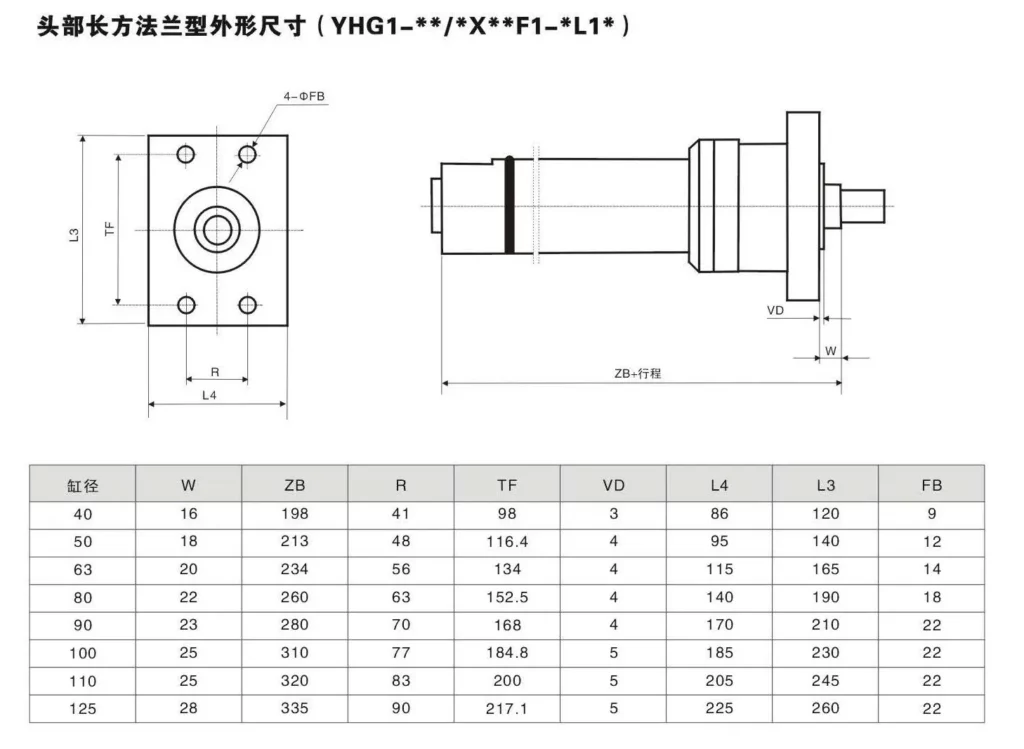

Head Rectangular Flange Type Metallurgical Hydraulic Cylinder Parameter:

Usage Method Of Head Rectangular Flange Type Metallurgical Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the appropriate mounting location for the hydraulic cylinder based on the specific requirements of the metallurgical equipment.
   • Ensure that the mounting surface is clean, flat, and capable of supporting the weight and load of the cylinder.
2. Connection to Hydraulic System:
   • Connect the hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Ensure proper alignment and secure connections to prevent leaks.
3. System Integration and Calibration:
   • Integrate the metalluigical hydraulic cylinder into the metallurgical equipment or system following the manufacturer's guidelines.
   • Calibrate the system to achieve optimal performance and desired operation parameters.
4. Operating the Cylinder:
   • Activate the hydraulic system to apply pressure and initiate the movement of the hydraulic cylinder.
   • Utilize the hydraulic control system to control the extension, retraction, and precise positioning of the cylinder for efficient metallurgical operations.

Characteristics Of Head Rectangular Flange Type Metallurgical Hydraulic Cylinder:

• Head Rectangular Flange Design: The unique rectangular flange design provides enhanced stability, precise alignment, and improved load distribution during operation, ensuring optimal performance in metallurgical processes.
• Metallurgical Application Focus: This hydraulic cylinder is specifically engineered to meet the demanding requirements of metallurgical applications, offering reliability and durability in extreme conditions.
• Superior Performance: The cylinder delivers exceptional performance, enabling accurate positioning, smooth operation, and efficient productivity in metallurgical operations.
• Robust Construction: Constructed from high-quality materials and designed to withstand heavy loads and harsh operating conditions, this hydraulic cylinder ensures long-term durability and reliable performance.
• Safety Features: The design incorporates safety features such as overload protection and emergency stop mechanisms, prioritizing operator safety during metallurgical processes.

How To Find Seal Kit For Hydraulic Cylinder?

Finding the right seal kit for a hydraulic cylinder is crucial to ensure proper fit, functionality, and performance. Here are some steps to help you find the appropriate seal kit:

1. Identify the Cylinder Manufacturer and Model:
   • Determine the manufacturer of the hydraulic cylinder. This information is often stamped or engraved on the cylinder body.
   • If possible, note down the model number or any other identifying markings on the cylinder.
2. Gather Cylinder Specifications:
   • Measure the dimensions of the cylinder, including the bore diameter, rod diameter, and stroke length.
   • Note any specific features or configurations unique to the cylinder, such as flanges, ports, or mounting styles.
3. Research the Manufacturer's Resources:
   • Visit the manufacturer's website or contact their customer support to inquire about available seal kits for your specific cylinder model.
   • Provide the manufacturer with the cylinder specifications and any identifying information you have gathered.
4. Explore Online Hydraulic Seal Suppliers:
   • Search for reputable online hydraulic seal suppliers or distributors.
   • Utilize search filters or navigation menus on their websites to narrow down the selection based on cylinder specifications or manufacturer.
5. Utilize Seal Kit Cross-Reference Tools:
   • Some seal kit suppliers offer cross-reference tools or databases that help match cylinder models with compatible seal kits.
   • Enter the cylinder manufacturer, model, or other specifications into the cross-reference tool to find suitable seal kits.
6. Consult Hydraulic System Maintenance Manuals:
   • Check if the equipment or machinery that uses the hydraulic cylinder has a maintenance manual.
   • The manual may include information on recommended seal kits or part numbers.
7. Seek Assistance from Hydraulic Experts:
   • Reach out to hydraulic system specialists, maintenance professionals, or engineers with expertise in hydraulic systems.
   • They can provide guidance and recommendations on finding the correct seal kit for your hydraulic cylinder.
8. Consider Custom Seal Kits:
   • If you are unable to find a seal kit specifically designed for your cylinder model, consider contacting a manufacturer or supplier that offers custom seal kits.
   • Provide them with accurate measurements and specifications of the cylinder to have a seal kit tailored to your requirements.
9. Purchase and Install the Seal Kit:
   • Once you have identified the appropriate seal kit, place an order with the supplier or manufacturer.
   • Follow the installation instructions provided with the seal kit carefully to ensure proper installation and optimal performance.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of metallurgical hydraulic cylinders. It maintains a leading position in China's market segment of hydraulic cylinders. In 2020, the domestic market share was around 29%. We produce Industrial vehicle metallurgical hydraulic cylinders, Aerial work vehicle metallurgical hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The metallurgical hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
