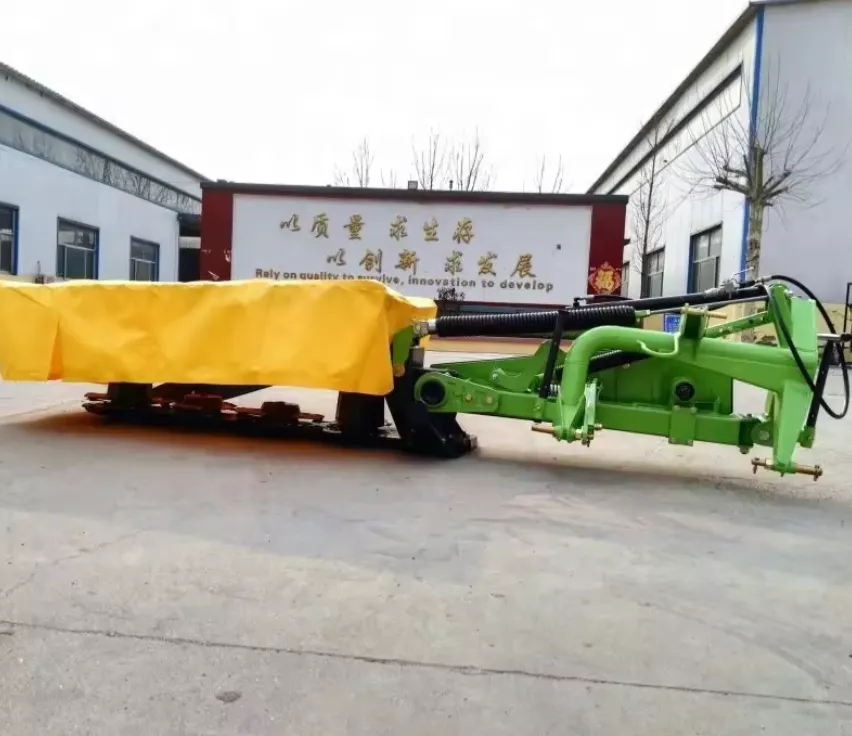

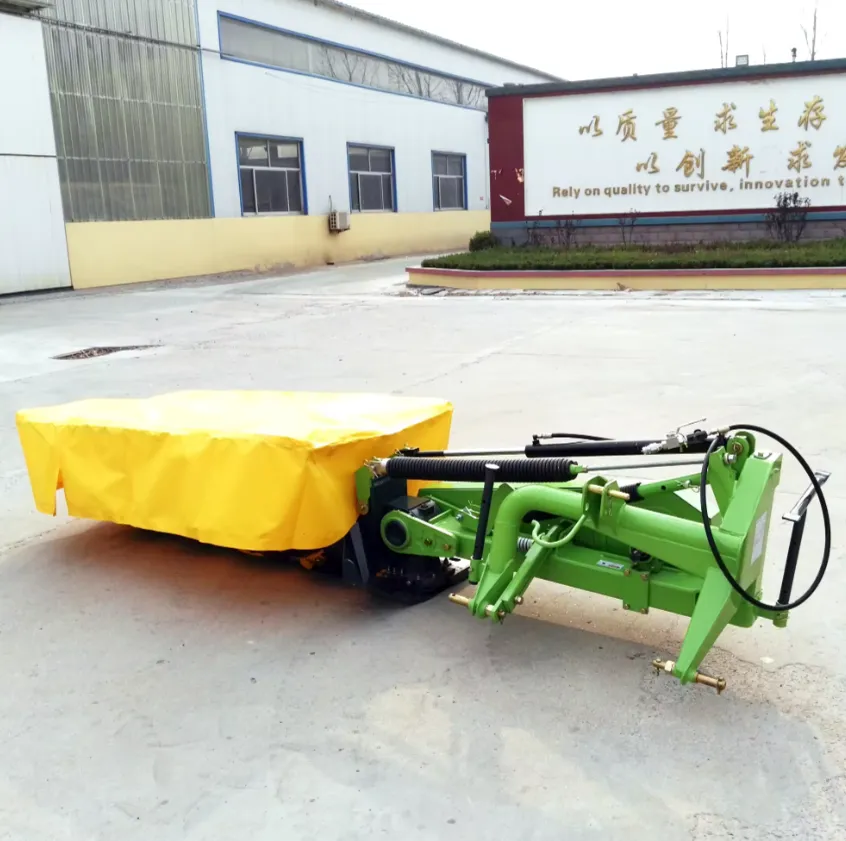

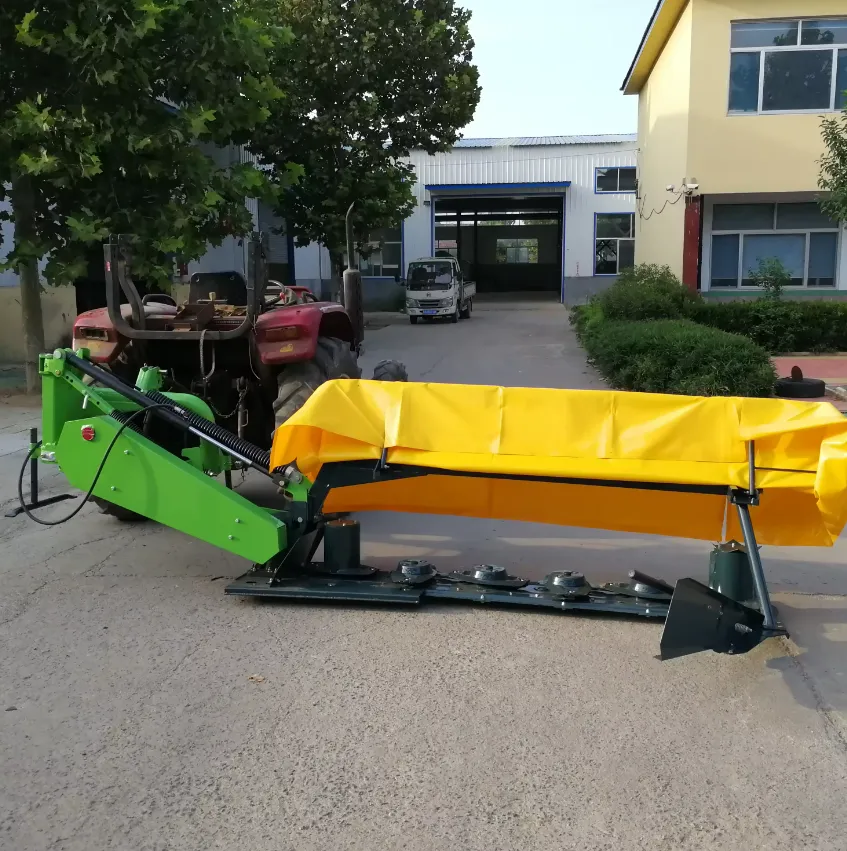

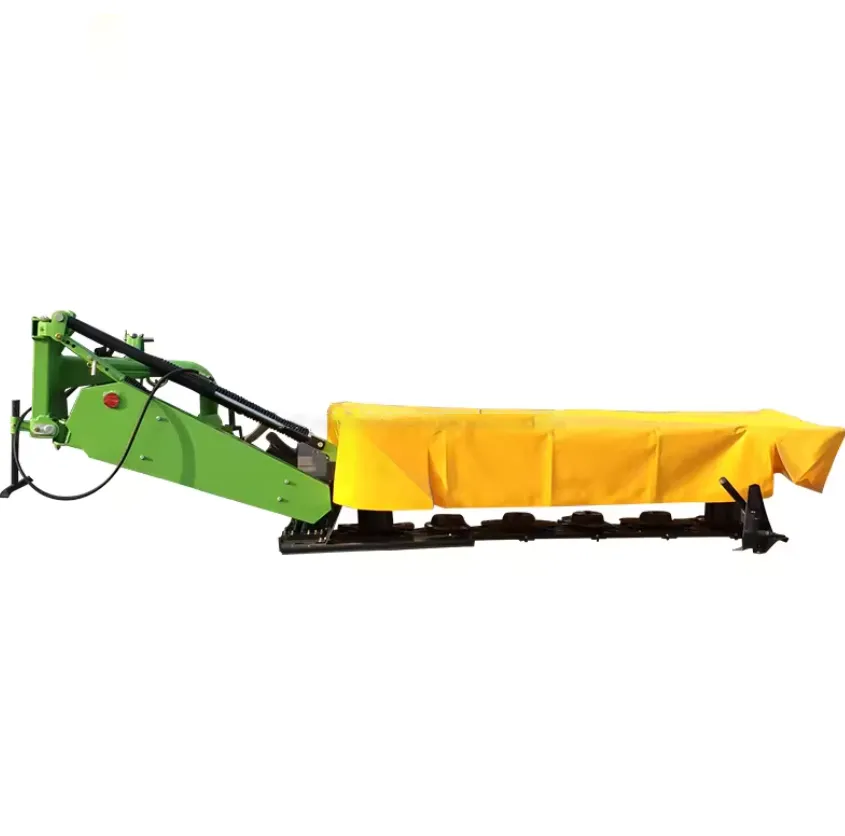

High Quality Disc Drum Mower

Introducing our High Quality Disc Drum Mower, a top-tier piece of agricultural equipment designed for the modern farmer. This model is not just a routine product but a blend of superior productivity, durability, and versatility. Its heavyweight of 550kg and core components such as the Gearbox and Gear provide a sure guarantee of its robustness and long-lasting performance. This Disc Drum Mower is perfect for a broad range of farm tasks, including cutting grass, hay, corn, wheat, and more. It is a new product with the excellent cutting width of 1300-2550mm, adjustable to cater to different agricultural demands.

Advantages of Our Disc Drum Mower

1. Outstanding Productivity: This disc drum mower is designed for high productivity, allowing you to accomplish more tasks within a shorter time.
2. Flexible Use: With its adjustable cutting width of 1300-2550mm and the option to choose between 2pcs or 3pcs of disk, this mower can be used in various farming conditions.
3. Compatibility: Our disc drum mower is compatible with tractors having a power range of 18-50HP.
4. Customizable: The color of the mower can be customized to your liking, ensuring it matches your other farming equipment or personal preference.
5. ISO Certified: Our product is ISO certified, which is a testament to its quality and reliability.
6. Warranty: We offer a 1-year warranty, giving you peace of mind knowing that your investment is protected.

Applications of Disc Drum Mower

1. Farms: This disc drum mower is primarily used in farms for cutting various crops such as grass, hay, corn, and wheat.
2. Grassland Management: It is also ideal for managing grasslands, gardens, and other landscapes where grass cutting is required.
3. Hay Production: For farmers involved in hay production, this mower is perfect for cutting, drying, and storing hay for future use.
4. Corn Plantations: In corn plantations, our disc drum mower is used for cutting down the corn stalks after the ears have been harvested.
5. Wheat Harvesting: During the wheat harvesting season, this mower is used to cut down the wheat stalks, making it easier to collect the grains.

6. Custom Farming Services: For those offering custom farming services, having a versatile and efficient disc drum mower like ours can help improve your service delivery and customer satisfaction.

How Does the 3 Point Hitch Disc Drum Mower Work?

The 3-point hitch disc drum mower is a type of agricultural machinery used for cutting and harvesting hay or grass. It works as follows:

1. Mounting: The mower is attached to the tractor's three-point hitch, which consists of two lower arms and an upper link. The lower arms are connected to the mower frame, while the upper link provides vertical adjustment.
2. Power Source: The mower is powered by the tractor's power take-off (PTO), which transfers power from the tractor engine to the mower blades. The PTO shaft is connected to the mower's gearbox, which increases the rotational speed and transmits it to the cutting mechanism.
3. Cutting Mechanism: The cutting mechanism consists of a set of horizontally rotating disc drums equipped with cutting blades. These blades are mounted on the drums at specific intervals and are designed to cut the standing crop as the mower moves forward.

4. Height Adjustment: The mower's height can be adjusted using the upper link of the three-point hitch. By changing the angle of the upper link, the cutting height can be increased or decreased, allowing the operator to adapt to different crop conditions or cutting requirements.
5. Operation: Once the mower is properly attached and adjusted, the tractor moves forward, pulling the mower along. As the disc drums rotate, the cutting blades engage with the crop, slicing it at the desired height. The cut material is then discharged to the side or rear of the mower, forming a windrow or spreading it evenly, depending on the design of the mower.
6. Safety Features: To ensure safe operation, most disc drum mowers are equipped with various safety features. These may include guards around the rotating blades to prevent debris from being thrown out, shear bolts or slip clutches to protect the mower from damage in case of an obstacle, and a quick-release mechanism to disengage the mower from the tractor in emergencies.

How to Install the Disc Drum Mower to Tractor?

Installing a disc drum mower to a tractor generally involves the following steps:

1. Position the Tractor: Park the tractor on a level surface and engage the parking brake to ensure stability during the installation process. Adjust the three-point hitch to the proper height. This can usually be done by using the hydraulic control lever or crank on the tractor. The hitch should be set to match the attachment points on the mower.
2. Align the Mower: Position the disc drum mower behind the tractor, aligning the lower hitch arms of the mower with the attachment points on the tractor's three-point hitch. Ensure that the hitch arms are securely connected to the tractor.
3. Attach the Top Link: Connect the top link of the three-point hitch to the upper attachment point on the mower. Adjust the length of the top link as needed to achieve the desired height and level the mower. Double-check all fasteners, including pins and bolts, to ensure they are tight and secure. This step is crucial for safety and to prevent any parts from becoming loose during operation.
4. Connect PTO Shaft: Attach the power take-off (PTO) shaft of the mower to the PTO stub on the tractor. The PTO shaft should slide onto the stub and be secured using the locking mechanism, such as a collar or a pin.
5. Adjust Height and Level: Use the tractor's hydraulic control lever or crank to adjust the height of the mower. Set it to the desired cutting height, keeping in mind the type of crop and cutting conditions.
6. Test Operation: Before starting the actual cutting, engage the PTO and observe the mower's operation. Ensure that the blades rotate smoothly and that there are no unusual vibrations or noises. Check for any interference between the mower and the tractor.

Maintenance of Disc Drum Mower

Proper maintenance of a 3-point hitch disc drum mower is essential to ensure its optimal performance, extend its lifespan, and promote safe operation. Here are some maintenance tasks to consider:

1. Regular Cleaning: After each use, clean the mower thoroughly to remove any debris, grass clippings, and other material that may have accumulated. Pay attention to the cutting blades, disc drums, and discharge chute. Use a brush or compressed air to remove stubborn debris.
2. Blade Inspection and Sharpening: Regularly inspect the cutting blades for signs of wear, damage, or dullness. Replace any blades that are bent, cracked, or excessively worn. Sharpen the blades as needed to maintain their cutting efficiency. Follow the manufacturer's recommendations for blade maintenance and sharpening techniques.
3. Lubrication: Keep all moving parts properly lubricated according to the manufacturer's instructions. This includes lubricating bearings, gearbox components, and any other areas specified in the maintenance manual. Use the recommended lubricants and follow the recommended intervals for lubrication.
4. Gearbox Inspection: Check the gearbox for any leaks, abnormal noises, or signs of wear. If you notice any issues, address them promptly to prevent further damage. Follow the manufacturer's guidelines for gearbox maintenance and lubrication.
5. PTO Shaft Maintenance: Inspect the PTO shaft for any signs of wear, damage, or loose components. Ensure that the protective shielding is intact and properly secured. Grease the PTO shaft as recommended by the manufacturer.
6. Check Nuts and Bolts: Regularly inspect all nuts, bolts, and fasteners on the mower for tightness. Vibrations during operation can cause them to loosen over time. Tighten any loose fasteners to ensure the mower remains properly assembled.

Why Choose Raydafon's Agricultural Disc Drum Mower?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China.

Our main products are PTO shafts, agricultural gearboxes, sickle bar mowers, rotary mowers, flail mowers, lawn mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
