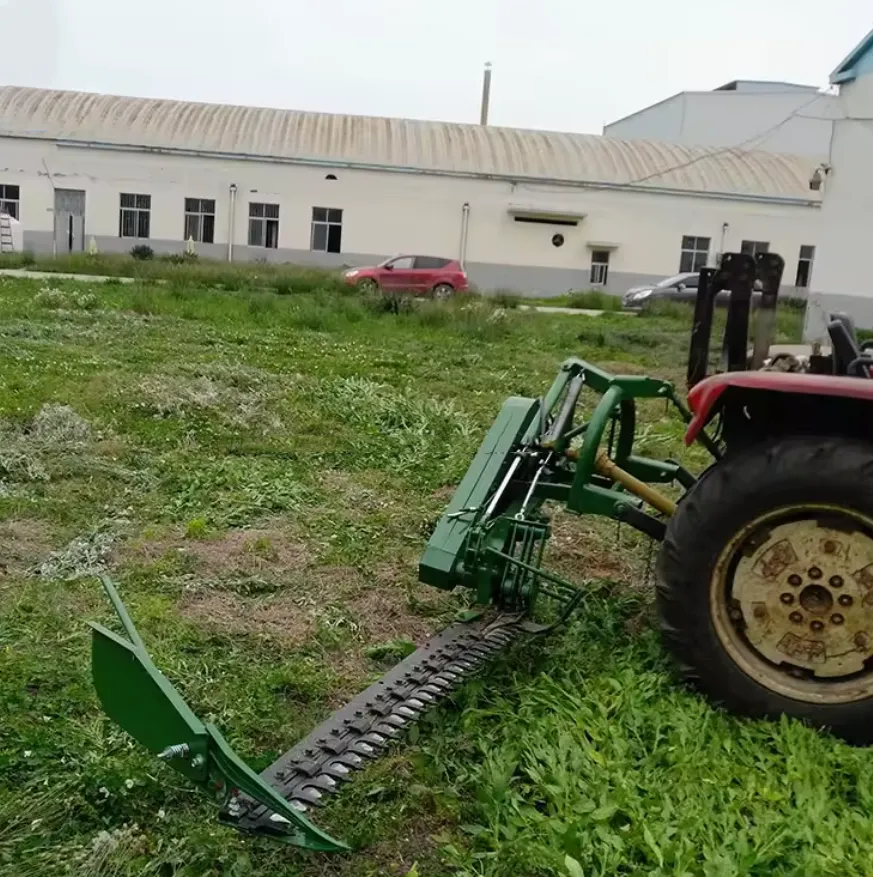

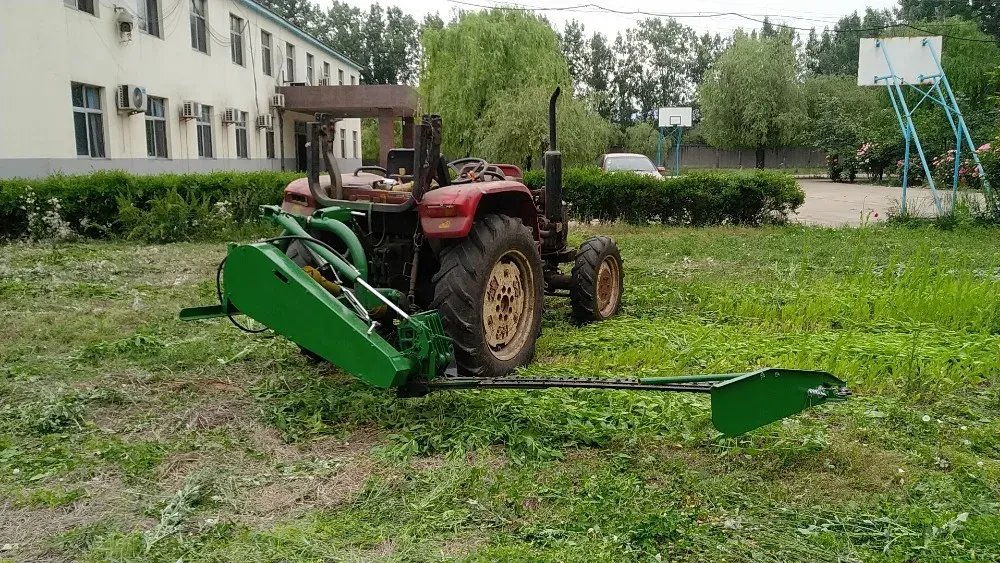

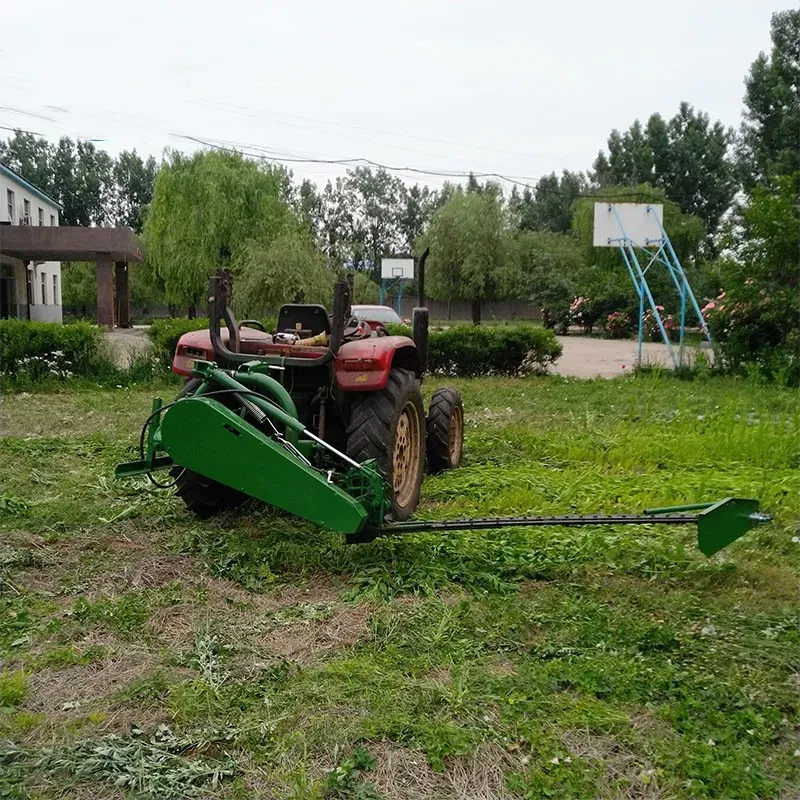

High Quality Sickle Bar Mower for Grass Cutting

[embed]https://youtu.be/FwR3csSOV-I[/embed]

High Quality Sickle Bar Mower for Grass Cutting

A sickle bar mower is a type of agricultural tool used for cutting grass, hay, and other vegetation. It consists of a long, horizontal cutting bar with a series of sharp, reciprocating blades attached to it. The mower is typically powered by an engine or by attaching it to a tractor's power take-off (PTO). The sickle bar mower is designed to efficiently and effectively cut large areas of grass or hay. Its unique design allows for a wide cutting swath, making it suitable for use in fields, meadows, and pastures. The reciprocating blades move back and forth in a horizontal motion, slicing through the vegetation as they pass over it. One of the main advantages of a sickle bar mower is its versatility. It can handle a variety of grass and vegetation types, including tall grass, weeds, and small shrubs. This makes it useful for maintaining agricultural land, as well as for landscaping and lawn care in residential and commercial settings. The sickle bar mower operates at a relatively low speed compared to rotary mowers, which helps to minimize the risk of throwing debris or damaging the cutting mechanism. It is also less likely to cause soil compaction, making it a preferred choice for maintaining delicate or uneven terrain.

Specifications of Tractor Mounted Sickle Bar Mower

Specification
Model	GM-1.4		GM-1.6	GM-1.8	GM-2.1
Working Width	1.4m		1.6m	1.8m	2.1m
Stubble Height	3cm		3cm	3cm	3cm
Overall Weight	170kg		190kg	200kg	220kg
Matched Power	15-30HP		20-40HP	30-50HP	30-60HP
Linkage	3 point linkage		3 point linkage	3 point linkage	3 point linkage
PTO Speed	540rpm		540rpm	540rpm	540rpm

Benefits of Using Tractor Mounted Sickle Bar Mower

Using a tractor-mounted sickle bar mower for grass cutting offers several benefits. Here are some of the advantages: 1. Efficiency: Tractor-mounted sickle bar mowers are designed to cover large areas of grass quickly and efficiently. They have a wider cutting swath compared to handheld or walk-behind mowers, allowing for faster completion of grass cutting tasks. This makes them ideal for cutting grass in fields, meadows, and other expansive areas. 2. Versatility: Tractor-mounted sickle bar mowers are highly versatile and can handle various types of grass and vegetation. They can effectively cut through thick grass, weeds, hay, and even small shrubs. This versatility makes them suitable for a range of applications, including agricultural land maintenance, roadside mowing, and landscaping. 3. Ease of Use: Attaching a sickle bar mower to a tractor is relatively straightforward. Once attached, the mower is operated from the comfort of the tractor seat, allowing the operator to cover large areas without the physical exertion required by handheld or walk-behind mowers. This reduces operator fatigue and increases overall productivity. 4. Adjustable Cutting Height: Tractor-mounted sickle bar mowers often come with adjustable cutting heights. This allows the operator to set the desired cutting height based on the specific requirements of the grass or vegetation being cut. Whether you need a close, manicured cut or a higher cut for rougher terrain, a tractor-mounted sickle bar mower can easily accommodate your needs. 5. Terrain Adaptability: Tractor-mounted sickle bar mowers are designed to handle various types of terrain. They can efficiently cut grass on flat land, slopes, uneven ground, and even ditches. The mowers are equipped with wheels or skids that help maintain a consistent cutting height and prevent damage to the cutting bar or blades. 6. Safety: Tractor-mounted sickle bar mowers offer enhanced safety compared to handheld or walk-behind mowers. The operator remains seated in the tractor, away from the cutting mechanism, reducing the risk of accidents and injuries. However, it is essential to follow safety guidelines, such as wearing appropriate protective gear and ensuring proper maintenance of the equipment.

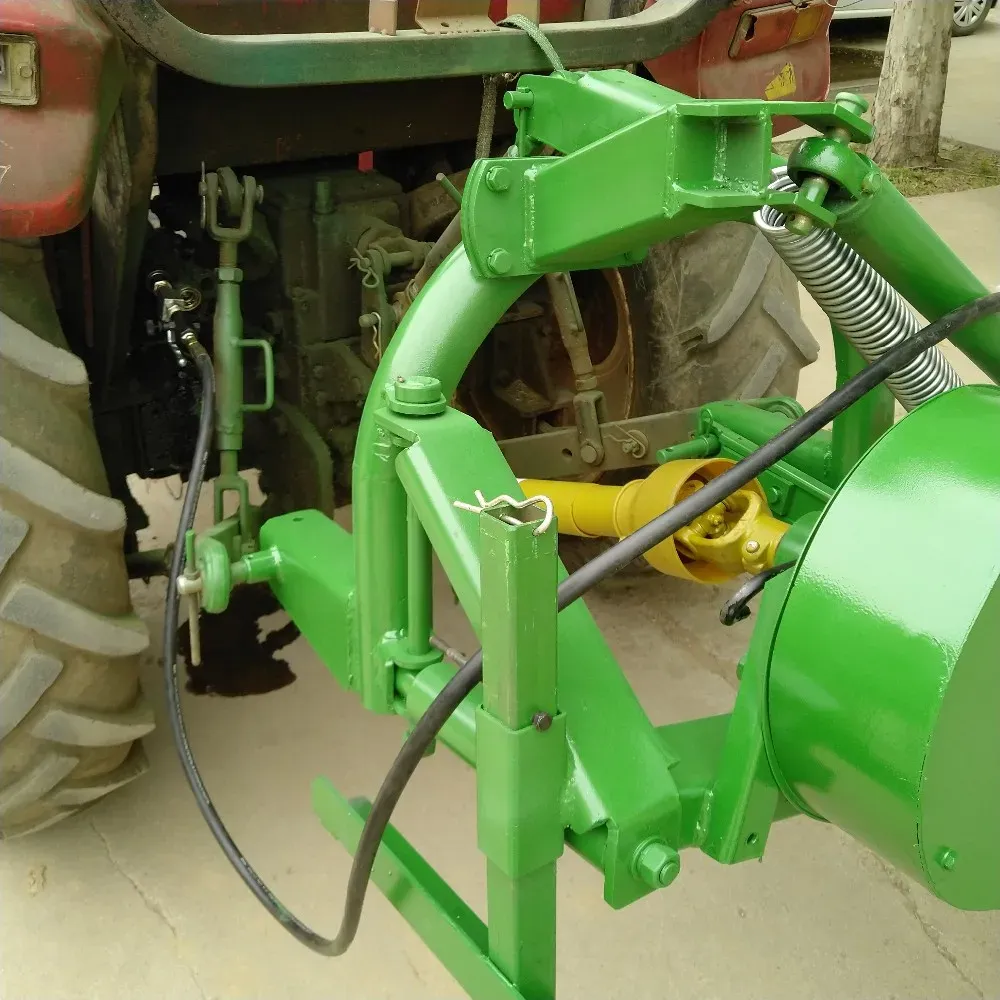

How to Install the Sickle Bar Mower to the Tractor?

Installing a sickle bar mower to a tractor requires a few steps to ensure proper attachment and safe operation. Here's a general guide on how to install a sickle bar mower to a tractor:

• Select the appropriate mower: Ensure that the sickle bar mower you are using is compatible with your tractor's specifications, such as PTO (Power Take-Off) requirements, hitch type, and horsepower rating.
• Prepare the tractor: Park the tractor on a level surface and engage the parking brake. Lower any hydraulic attachments or implements that may interfere with the installation process.
• Align the mower: Position the sickle bar mower behind the tractor, aligning the hitch points of the mower with the tractor's three-point hitch. The hitch points should match the tractor's category (e.g., Category 1 or Category 2).
• Attach the hitch: Connect the sickle bar mower to the tractor's three-point hitch. Ensure that the hitch points are securely latched or locked in place. Follow the manufacturer's instructions for your specific mower model to properly attach the hitch.
• Connect the PTO shaft: Locate the PTO shaft on the sickle bar mower and the PTO output shaft on the tractor. Align the splines of the two shafts and slide them together. Secure the connection using the locking mechanism or shear pin provided with the mower. Ensure that the PTO shaft is properly shielded and protected.
• Adjust the height and levelness: Adjust the three-point hitch of the tractor to set the desired cutting height of the sickle bar mower. Refer to the mower's manual for recommended cutting heights and leveling procedures. Ensure that the sickle bar is parallel to the ground to achieve an even and consistent cut.
• Secure all connections: Double-check all connections, including the hitch and PTO shaft, to ensure they are properly secured. Make sure all locking pins, bolts, or fasteners are tightened according to the manufacturer's specifications.
• Test the mower: Start the tractor's engine and engage the PTO to activate the sickle bar mower. Observe the mower's operation to ensure smooth rotation, proper clearance, and that all safety features are functioning correctly.

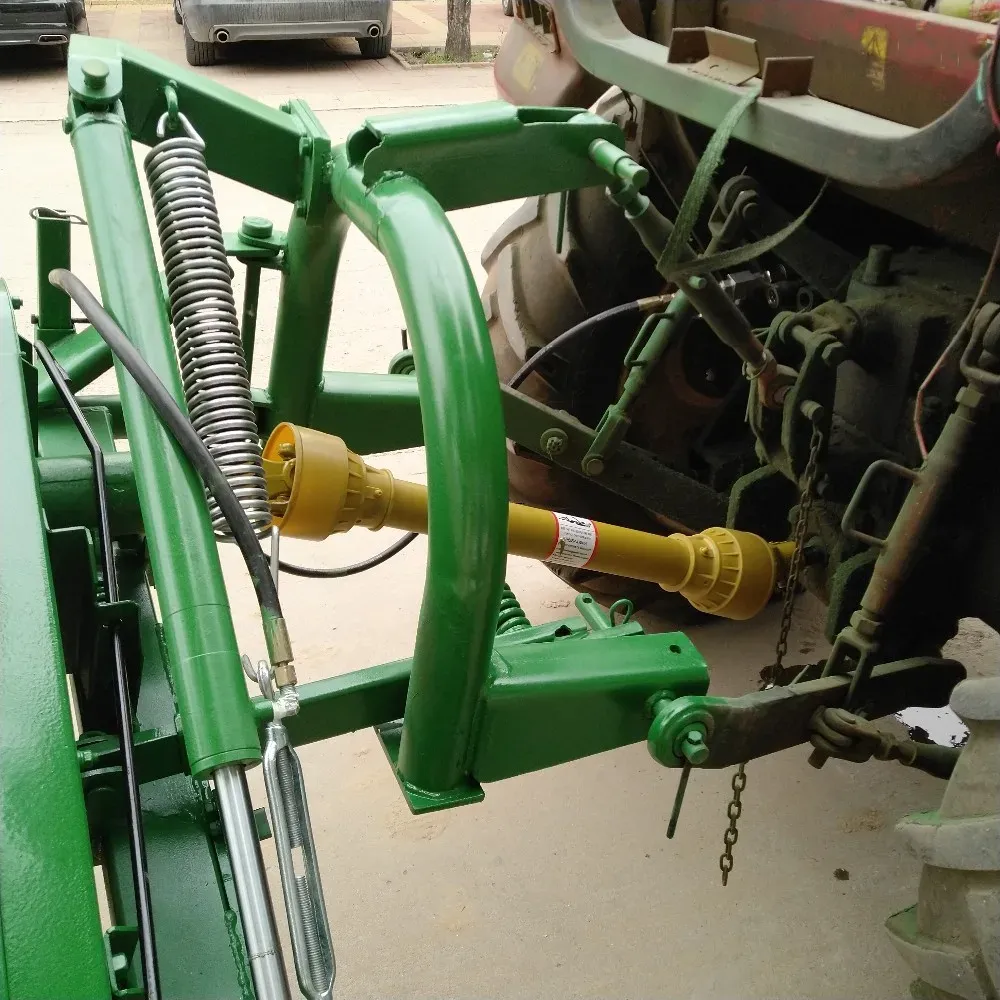

PTO Shaft for Tractor Mounted Sickle Bar Mower

The power take-off (PTO) shaft is a crucial component for connecting a tractor-mounted sickle bar mower to the tractor's power source. The PTO shaft transfers power from the tractor's engine to the sickle bar mower, enabling the mower's cutting mechanism to operate. Here are some key points regarding the PTO shaft for a tractor-mounted sickle bar mower: (1) PTO Shaft Types: There are different types of PTO shafts, including the most common ones: the standard PTO shaft and the telescopic or collapsible PTO shaft. The standard PTO shaft has a fixed length, while the telescopic PTO shaft can be adjusted to accommodate different hitch configurations and tractor sizes. (2) Connection: The PTO shaft typically consists of an inner shaft and an outer housing. One end of the PTO shaft is connected to the PTO output shaft on the tractor, while the other end is connected to the input shaft on the sickle bar mower. The connection is made using a universal joint, which allows for flexibility and smooth power transfer. (3) Safety Shielding: The PTO shaft should be properly shielded to prevent accidents and injuries. It is essential to ensure that the PTO shaft is equipped with a protective guard or shield that covers the rotating shaft. This shield helps prevent contact with the moving parts and keeps the operator and bystanders safe. (4) Locking Mechanism: The PTO shaft is secured to the tractor and mower using a locking mechanism, such as a shear pin, a quick-release pin, or a locking collar. This mechanism ensures that the PTO shaft remains securely attached during operation while allowing for easy disconnection when needed. (5) Maintenance and Inspection: Regular maintenance and inspection of the PTO shaft are important for safe and efficient operation. Check the PTO shaft for any signs of wear, damage, or loose components. Lubricate the shaft as recommended by the manufacturer to ensure smooth rotation and prevent excessive friction.

Why Choose Raydafon's Sickle Bar Mower?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
