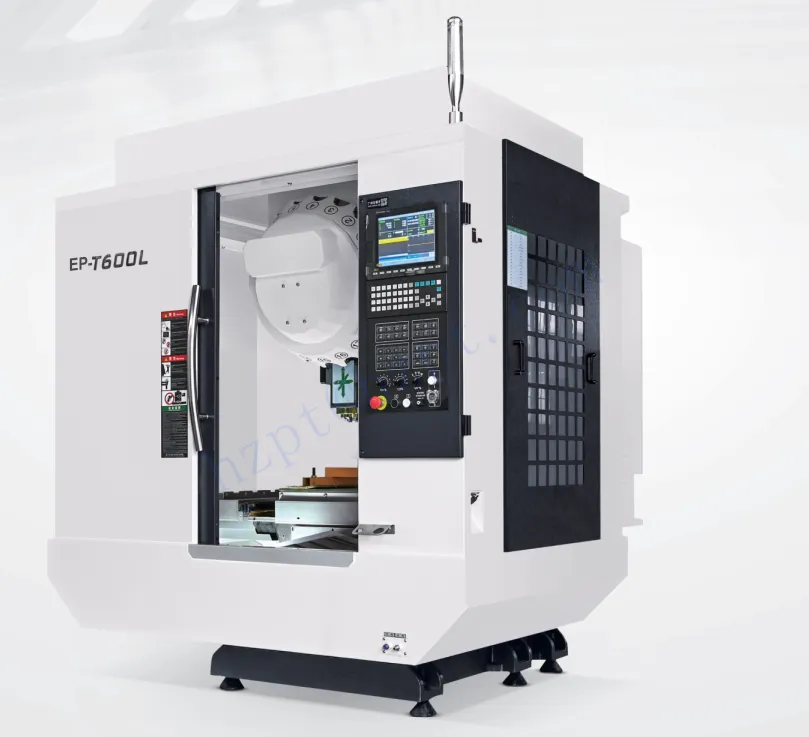

High-Speed Drilling And Tapping Center RDF-T600L RDF-T700L

Standard Configuration:

SYNTEC CNC system / ATC Automatic Tool Changer / Taiwanese PMI, HIWIN Ball Screws, Linear Guides

Optional Configuration:

Chip Conveyor (Spiral or Chain Type) / Automatic Tool Measurement / Automatic Workpiece Measurement / Fourth Axis CNC Rotary Table / Fifth Axis CNC Rotary Table / Pneumatic Fixture Set / Hydraulic Fixture Set / Spindle Center Coolant Outlet.

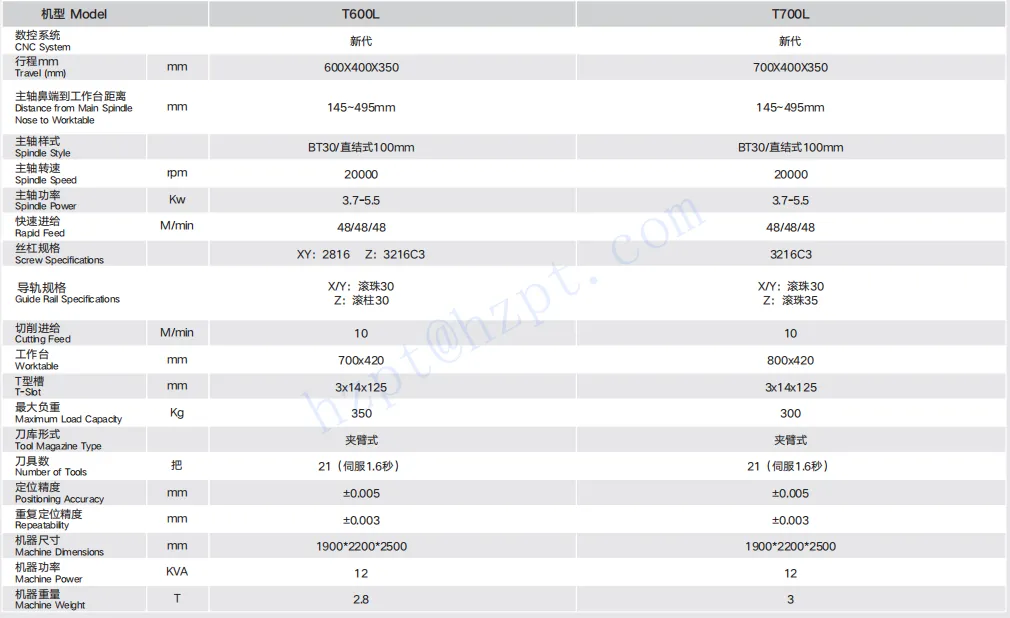

Parameter

Machine Tool Features

• High Rigidity and Long-Lasting Precision Design:Our machine tools are engineered with a focus on high rigidity and sustained accuracy. The entire machine undergoes extensive finite element analysis to optimize its performance, ensuring that it can withstand the demands of rigorous machining tasks. The internal layout of the reinforcing rib plates is carefully designed to enhance structural integrity, which contributes to maintaining precision over long periods of operation. This robust construction is ideal for applications requiring consistent, high-quality results.
• Expanded Vertical Column Design:The machines feature a wide vertical column design that significantly enhances the rigidity of the structure. This increased rigidity is crucial for stabilizing the machine during high-speed operations and complex machining tasks. The robust column design minimizes deflection and vibration, ensuring that the machining process remains precise even under heavy loads. This feature is particularly beneficial in high-performance environments where accuracy and stability are paramount.
• Automatic Tool Change (ATC) Turret-Style Tool Holder:The machine is equipped with an Automatic Tool Change (ATC) turret-style tool holder, which streamlines the machining process. For those opting for the high-speed tool holder, the tool-to-tool change time can be reduced to an impressive 1 second. This rapid tool exchange capability significantly enhances productivity by minimizing downtime during machining operations. Operators can quickly switch between different tools, facilitating complex machining tasks without interrupting workflow.
• High-Precision Taiwanese Linear Guides and Ball Screws:All three axes of our machines are equipped with Taiwanese high-precision linear guides and ball screws. These components are designed to provide exceptional accuracy and smooth motion throughout the machining process. The integration of high-quality linear guides ensures minimal friction and wear, while the ball screws deliver precise movement and positioning. This combination enhances the overall performance of the machine, ensuring that it meets the demanding requirements of modern manufacturing applications.

In conclusion, our machine tools are built to deliver unmatched performance and reliability through advanced engineering features. With a commitment to high rigidity, sustained precision, an efficient automatic tool change system, and high-quality motion components, our equipment is designed to meet the diverse needs of contemporary manufacturing. Whether for high-volume production or intricate machining tasks, our machines provide the accuracy and efficiency necessary to thrive in today’s competitive landscape.

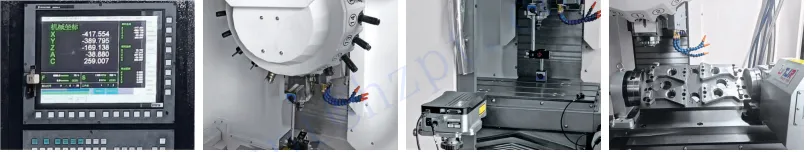

Auxiliary Extension

Workpiece Display

Workshop

We have been pursuing high-end technology and investing in high-precision equipment to make first-class products, which will create a world full of miracles for us. We exist for miracles.

About Raydafon

Raydafon was founded in 2006 and has established itself as a national high-tech enterprise specializing in the research and development, production, sales, and service of CNC machine tools. With a keen understanding of market trends, Raydafon delivers comprehensive solutions tailored to meet the diverse needs of its customers.The company’s product portfolio includes a wide array of advanced machinery, such as turning and milling centers, vertical machining centers, turret and row tool CNC lathes, as well as solutions for industrial automation. These products are employed across various industries, including automotive, telecommunications, new energy, engineering machinery, and chemicals, showcasing their versatility and reliability.Raydafon places a strong emphasis on product research and development, continuously striving for technological progress. The company is dedicated to fostering ongoing technological innovation, which significantly enhances its competitiveness in the market. By prioritizing quality and innovation, Raydafon aims to lead the way in the CNC machine tool industry, ensuring that it meets the evolving demands of its clients and contributes to the advancement of manufacturing technologies.
