HROD Biaxial Type With Adjustable Cap Circular Hydraulic Cylinder

HROD Biaxial Type With Adjustable Cap Circular Hydraulic Cylinder

The HROD biaxial type with adjustable cap circular hydraulic cylinder is a cutting-edge hydraulic component designed to deliver exceptional performance and versatility in various industrial applications. With its innovative design, adjustable cap feature, and robust construction, this hydraulic cylinder offers precise control, durability, and reliability in demanding environments. Whether for heavy-duty lifting, pushing, or positioning, the HROD biaxial type provides optimal hydraulic power and efficiency, making it an ideal choice for manufacturing, construction, and material handling industries.HRO series round cylinder safe and stable, output, easy maintenance, beautiful appearance, high quality, suitable for all kinds of press.

HROA Type Circular Hydraulic Cylinder Characteristic Data:

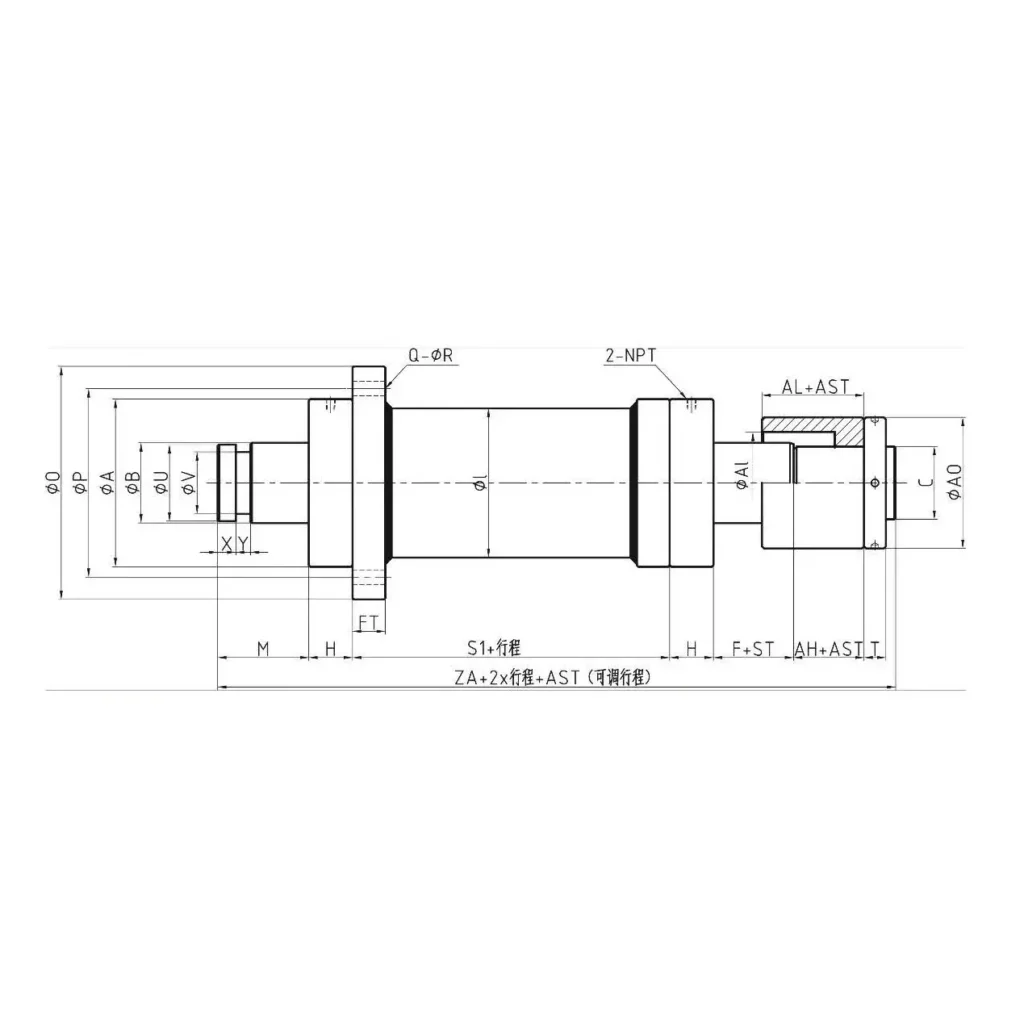

HROA Type Circular Hydraulic Cylinder Structure Diagram:

HROD Biaxial Type With Adjustable Cap Circular Hydraulic Cylinder Parameter:

Usage Method Of HROD Biaxial Type With Adjustable Cap Circular Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the appropriate location for mounting the HROD Biaxial Type cylinder based on the specific requirements of your equipment or machinery.
   • Ensure the mounting surface is clean, level, and capable of supporting the cylinder's weight and load.
2. Connection to Hydraulic System:
   • Connect the HROD Biaxial Type cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Ensure proper alignment and secure connections to prevent leaks and ensure optimal performance.
3. Adjusting the Cap:
   • The unique feature of the HROD Biaxial Type cylinder is its adjustable cap, which allows for fine-tuning of the cylinder's stroke length.
   • Use the provided adjustment mechanisms to modify the cap position according to your application requirements.
   • Carefully follow the manufacturer's guidelines to ensure proper adjustment without exceeding the cylinder's limitations.
4. Operating the Cylinder:
   • Activate the hydraulic system to apply pressure and initiate the movement of the HROD Biaxial Type cylinder.
   • Utilize the hydraulic control system to precisely control the cylinder's extension, retraction, and positioning for efficient and accurate operations.

Characteristics Of HROD Biaxial Type With Adjustable Cap Circular Hydraulic Cylinder:

• Adjustable Cap Design: The HROD Biaxial Type cylinder features an adjustable cap, allowing for precise customization of the stroke length to meet specific application requirements.
• Robust Construction: This cylinder is built with high-quality materials, ensuring durability and longevity in demanding industrial environments.
• Precise Control: The HROD Biaxial Type cylinder offers exceptional control and positioning accuracy, enabling efficient and accurate operations.
• Versatile Applications: With its universal design, this hydraulic cylinder can be used in various industries, including manufacturing, construction, and material handling.
• Reliable Performance: The HROD Biaxial Type cylinder delivers reliable performance even under heavy loads and challenging operating conditions.

How To Disassemble Hydraulic Cylinder?

To disassemble a hydraulic cylinder, follow these general steps:

1. Safety Precautions:
   • Before starting, ensure the hydraulic system is depressurized and the power source is disconnected.
   • Use appropriate personal protective equipment, such as gloves and safety goggles, to protect yourself from any potential hazards.
2. Positioning and Support:
   • Place the hydraulic cylinder on a stable work surface, ensuring it is adequately supported to prevent accidental movement or damage.
3. Remove External Components:
   • Disconnect any external components attached to the cylinder, such as hoses, fittings, or mounting brackets.
   • Use suitable tools, such as wrenches or pliers, to loosen and remove these components carefully.
4. Drain Hydraulic Fluid:
   • Locate the drain plug or valve on the cylinder and remove it to allow the hydraulic fluid to drain into a suitable container.
   • Position the cylinder in a way that facilitates complete drainage.
5. Disassemble End Caps:
   • Identify the end caps of the hydraulic cylinder. They are usually located at each end of the cylinder barrel.
   • Remove bolts, screws, or fasteners, securing the end caps using the appropriate tools.
   • If necessary, gently tap the end caps with a rubber mallet to break any seal or adhesive bond.
6. Separate Cylinder Components:
   • With the end caps removed, carefully slide out the piston and piston rod from the cylinder barrel.
   • Please pay attention to any seals, bearings, or bushings present and remove them as necessary.
   • Take note of the order and orientation of the components for easier reassembly.
7. Inspect and Clean Components:
   • Inspect each disassembled component for signs of wear, damage, or contamination.
   • Clean all components using an appropriate solvent or cleaner to remove dirt, debris, or old lubricant.
   • Use a soft cloth or brush to gently clean the surfaces without causing any damage.
8. Replace or Repair Components:
   • If any components show significant wear or damage, consider replacing them with new ones.
   • Repair or rebuild components, such as replacing seals or reconditioning the piston rod.
9. Reassembly:
   • Follow the reverse order of disassembly to reassemble the hydraulic cylinder, ensuring proper alignment and orientation of components.
   • Lubricate the appropriate parts with recommended hydraulic fluid or lubricant during reassembly.
   • Tighten all fasteners to the manufacturer's specifications, using a torque wrench if necessary.
10. Testing and Inspection:

• Once reassembled, conduct a thorough inspection to ensure all components are correctly aligned and secured.
• Test the hydraulic cylinder in a controlled manner to verify its functionality and check for any leaks or abnormal operation.
