Standard With Adjustable Cap Type Light Rod Hydraulic Cylinder

Standard With Adjustable Cap Type Light Rod Hydraulic Cylinder

The standard with adjustable cap type light rod hydraulic cylinder is a cutting-edge hydraulic cylinder designed to meet the demands of various industrial applications. With its adjustable cap and light pull rod construction, this cylinder offers exceptional performance, durability, and ease of use. Whether employed in manufacturing equipment, construction machinery, or material handling systems, the standard with adjustable cap type light rod hydraulic cylinder delivers reliable and efficient operation, making it an invaluable asset to optimize productivity.Key Characteristics:Adjustable Cap Design: The cylinder features an adjustable cap, allowing for easy customization and adaptability. The adjustable hat provides the flexibility to fine-tune the stroke length, making it suitable for various applications with varying stroke requirements.Light Pull Rod Construction: The light rod construction utilizes lightweight materials such as aluminum or composites for the piston rod. This construction reduces the overall weight of the cylinder, resulting in faster movement, improved energy efficiency, and reduced operational costs.High Precision and Stability: The standard with adjustable cap type light rod hydraulic cylinder is engineered to deliver high precision and stability in its linear motion. It ensures accurate positioning, smooth movement, and exceptional repeatability, making it ideal for applications that demand precise control and reliability.

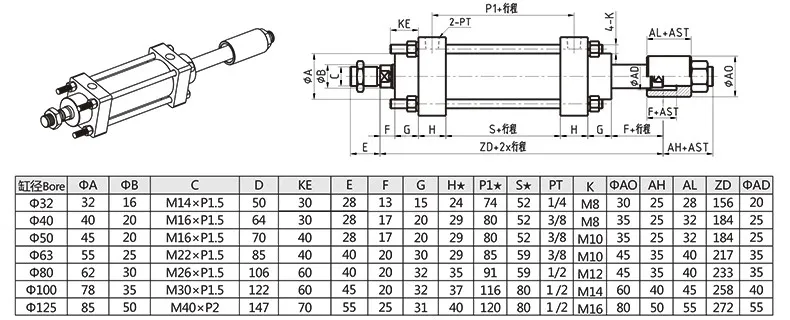

Standard With Adjustable Cap Type Light Rod Hydraulic Cylinder Parameter:

Usage Method Of Standard With Adjustable Cap Type Light Rod Hydraulic Cylinder:

1. Mounting and Connection: Securely mount the cylinder to the appropriate location using the designated mounting brackets or fixtures. Ensure that the mounting is stable and aligned properly. Connect the hydraulic lines to the cylinder's ports, following the manufacturer's instructions and guidelines.
2. Adjusting the Cap: Utilize the adjustable cap feature to set the desired stroke length. Loosen the cap using the provided tool or wrench, adjust the cap position to achieve the desired stroke, and then tighten it securely.
3. Hydraulic System Integration: Integrate the cylinder into the hydraulic system by connecting it to a suitable hydraulic pump or power unit. Ensure compatibility with the cylinder's specifications and operating requirements.
4. Control and Operation: Utilize the control valves to regulate the flow of hydraulic fluid into and out of the cylinder. Adjust the control settings to achieve the desired linear motion and force output. Test the cylinder's movement and verify its functionality and responsiveness.

Maintenance Of Standard With Adjustable Cap Type Light Rod Hydraulic Cylinder:

Regular maintenance is essential to ensure optimal performance and extend the lifespan of the Standard With Adjustable Cap Type Light Pull Rod Hydraulic Cylinder's lifespan. Here are some maintenance guidelines:

1. Regular Inspection: Conduct periodic inspections to identify signs of wear, damage, or leaks. Check the cylinder body, rod, seals, and other components for abnormalities. Address any issues promptly to prevent further injury or operational inefficiencies.
2. Lubrication: Apply the recommended lubricant to the moving parts of the cylinder, including the rod and seals. Regular lubrication minimizes friction, reduces wear, and ensures smooth operation. Follow the manufacturer's guidelines for the appropriate lubrication intervals and lubricant type.
3. Seal Replacement: If you notice seal deterioration or leakage, replace the seals using genuine manufacturer-approved parts. Incorrect or worn seals can compromise the cylinder's performance and lead to hydraulic fluid leaks.
4. Cleaning: Clean the cylinder by removing dirt, debris, and other contaminants. Use a non-abrasive cleaner and ensure all components are thoroughly dried before reassembly. A clean cylinder promotes optimal performance and prevents premature wear or damage.

How To Bleed A Hydraulic Cylinder Without Bleeder Valve?

Bleeding a hydraulic cylinder without a bleeder valve can be more challenging, but it is still possible. Here's a step-by-step guide on how to bleed a hydraulic cylinder without a bleeder valve:

1. Prepare the Necessary Tools: Before starting the bleeding process, gather the following tools: a wrench or socket set, a container to catch hydraulic fluid, and a clean cloth or rag.
2. Position the Cylinder: Ensure that the hydraulic cylinder is safe and stable. If necessary, use clamps or fixtures to secure it and prevent accidental movement during bleeding.
3. Locate the Highest Point: Identify the highest point on the hydraulic cylinder. This is the point where air tends to accumulate. It is usually near the cylinder's end or the piston rod's top.
4. Loosen the Fittings: Using a wrench or socket set, carefully loosen the fitting or connection at the highest point of the cylinder. Ensure that the fitting is only loosened enough to allow air to escape and not to cause hydraulic fluid leakage.
5. Slowly Extend the Cylinder: Activate the hydraulic system to extend the cylinder slowly. This action helps push the air bubbles towards the open fitting and allows them to escape.
6. Monitor Fluid Flow: Pay close attention to the hydraulic fluid flow as the cylinder extends. Look for any air bubbles or foam in the fluid. Allow the liquid to flow until you observe a consistent and smooth flow without air bubbles.
7. Tighten the Fitting: When confident that all the air has been bled from the cylinder, carefully tighten the fitting or connection at the highest point. Make sure it is adequately secured to prevent any hydraulic fluid leakage.
8. Repeat the Process: If multiple cylinders exist in the hydraulic system or other high points where air might have collected, repeat steps 4 to 7 for each cylinder or high end.
9. Check for Proper Operation: After bleeding the cylinder, test its operation to ensure it functions correctly. Activate the hydraulic system and observe the cylinder's movement for irregularities or air-related issues. If any problems persist, consider contacting a hydraulic system professional for further assistance.

China Hydraulic Cylinder Manufacturers:
