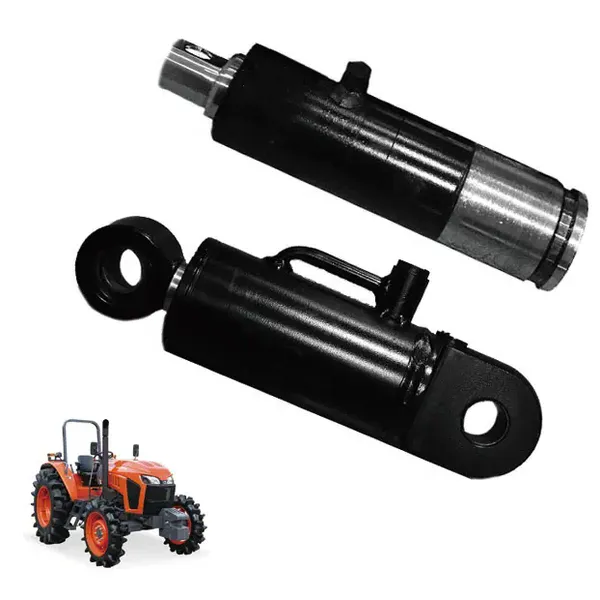

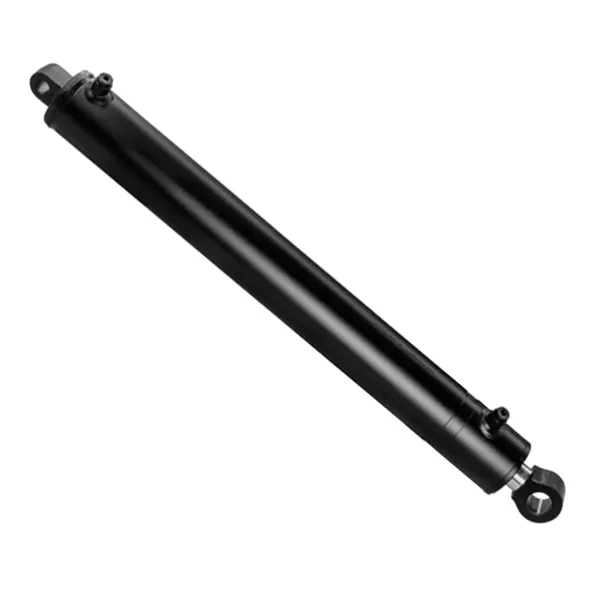

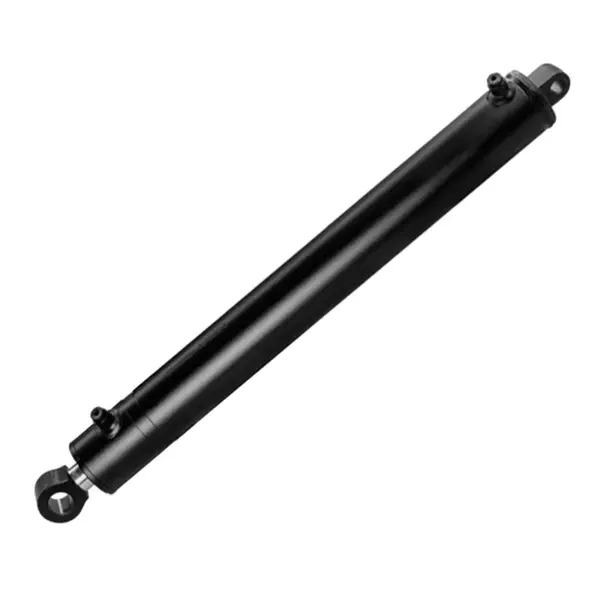

Hydraulic Cylinder for Lifting and Flipping the Grain Tank

Hydraulic Cylinder for Lifting and Flipping the Grain Tank

A hydraulic cylinder is a mechanical device that uses pressurized hydraulic fluid to move an object. It is made up of a piston, a cylinder, and a hydraulic fluid. When the fluid is pressurized, it pushes the piston, which in turn moves the object.

To lift and flip a grain tank, you will need a hydraulic cylinder with a large enough bore and stroke to lift the weight of the tank. The bore is the diameter of the cylinder, and the stroke is the distance the piston travels. The amount of weight the cylinder can lift is determined by its bore, stroke, and pressure rating.

The type of hydraulic cylinder you need will also depend on the way you want to flip the tank. If you want to flip the tank vertically, you will need a single-acting cylinder. A single-acting cylinder only has one piston rod, and it is extended by pressurized fluid. To retract the piston rod, you will need to use a manual or electric pump.

If you want to flip the tank horizontally, you will need a double-acting cylinder. A double-acting cylinder has two piston rods, and it can be extended or retracted by pressurized fluid. This type of cylinder is more expensive than a single-acting cylinder, but it is easier to use.

Hydraulic Cylinder Dimensions:

图号drawing number	缸径Dbore diameter (D)	杆径drod diameter (d)	行程Sstroke (S)	总长LInstallation distance (L)	额定压力working pressure	接口尺寸MInterface dimensions (M)	重量weight
5T1037631-3-00	Φ65	Φ35	607	823	16.7MPa	2-RC1/4	18kg

Features of Hydraulic Cylinder for Lifting and Flipping the Grain Tank:

Here are some of the features of a hydraulic cylinder for lifting and flipping a grain tank:

1. Lifting capacity: The hydraulic cylinder must be able to lift the weight of the grain tank. This is determined by the bore and stroke of the cylinder, as well as the pressure rating.2. Stroke: The stroke is the distance that the piston rod can travel. This determines how high the grain tank can be lifted.3. Pressure rating: The pressure rating is the maximum pressure that the cylinder can withstand. This is important to ensure that the cylinder does not rupture when it is lifting the grain tank.4. Material of construction: The hydraulic cylinder must be made of a strong and durable material that can withstand the weight of the grain tank and the pressure that will be applied to it. Steel and aluminum are common materials used for hydraulic cylinders.5. Seals: The hydraulic cylinder must have seals that prevent the hydraulic fluid from leaking out. This is important to ensure that the cylinder operates efficiently and safely.6. Lubrication: The hydraulic cylinder must be lubricated to prevent wear and tear. This is usually done with grease or oil.7. Safety features: The hydraulic cylinder should have safety features to prevent accidents. This could include a pressure relief valve or a lock-out mechanism.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
