International Small Square Baler for Efficient Hay Baling

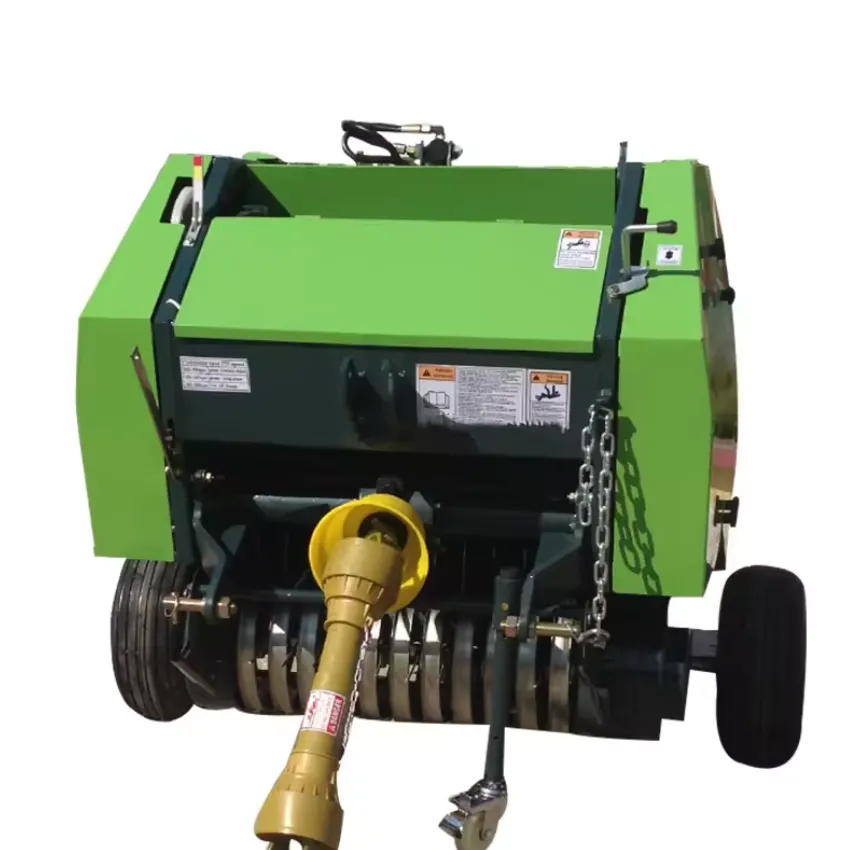

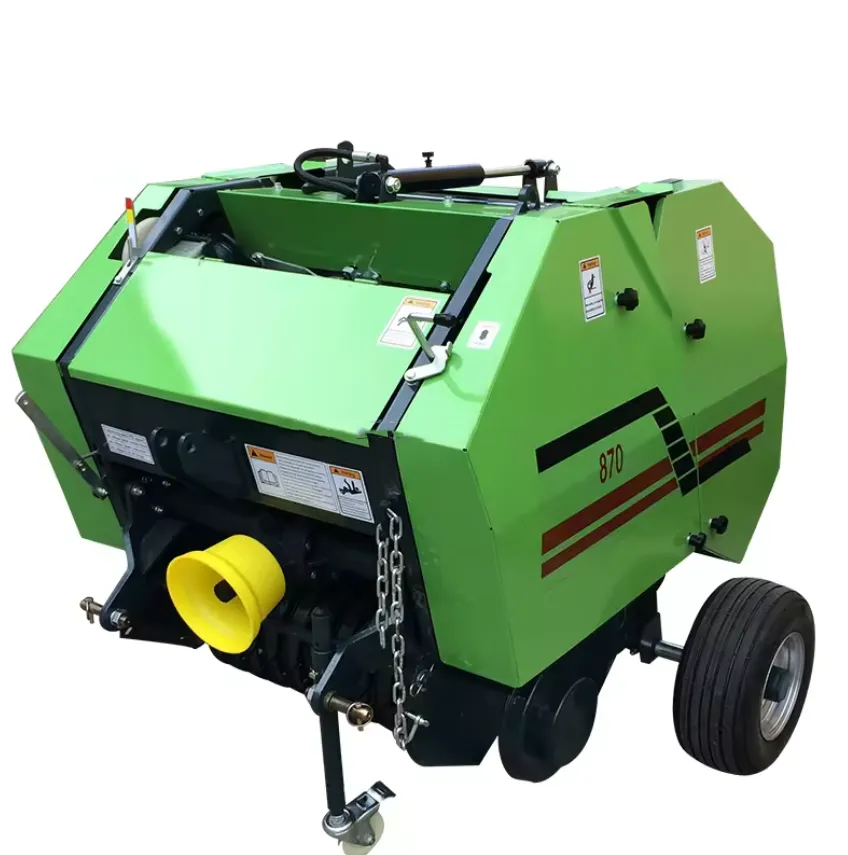

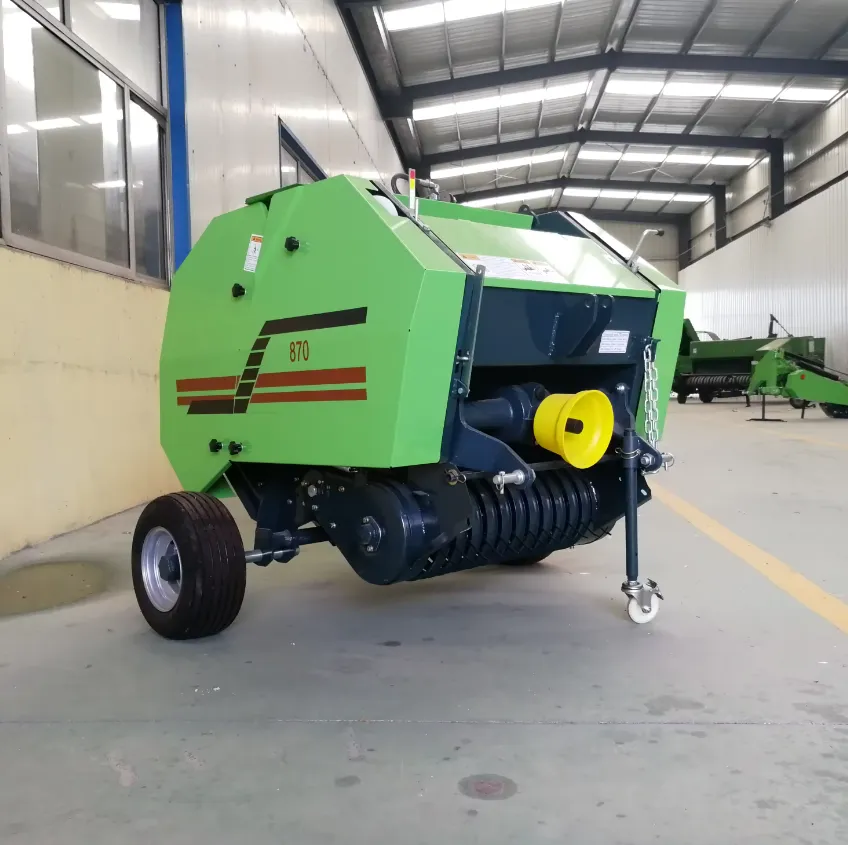

[embed]https://youtu.be/pihgFul5F-c[/embed] Discover the efficiency of the international small square baler. This advanced machine comes in a round baler type, operating at a speed between 3-10 km/h. It is a brand new model with the numbers RXYK0850 and RXYK0870. It is expertly designed for picking up and baling various types of crops such as grass, alfalfa, wheat, rice straw, and more. Its compact dimensions of 1300x1300x1350mm and lightweight of 425 kg make it an ideal choice for small to medium-sized farming operations. The product comes with a 2-year warranty and is certified by ISO and CE. It uses twine for tying the bales, and it can work with a tractor power range between 20-50HP. The pickup width is 80cm, and it is available in green color.

Why Choose Our International Small Square Baler?

• Efficiency: With an operating speed of 3-10km/h, this baler can quickly gather and compact crops, increasing your productivity.
• Versatility: It is designed to work with various types of crops, including grass, alfalfa, wheat, and rice straw.
• Compact Design: Its compact dimensions of 1300x1300x1350mm make it easy to store and maneuver in the field.
• Lightweight: Weighing only 425 kg, it can be easily attached and detached from the tractor.
• Power Compatibility: It can work with a tractor power range between 20-50HP, making it a versatile choice for different farming operations.
• Quality Assurance: It comes with a 2-year warranty, ISO, and CE certification, ensuring its high-quality and reliable performance.

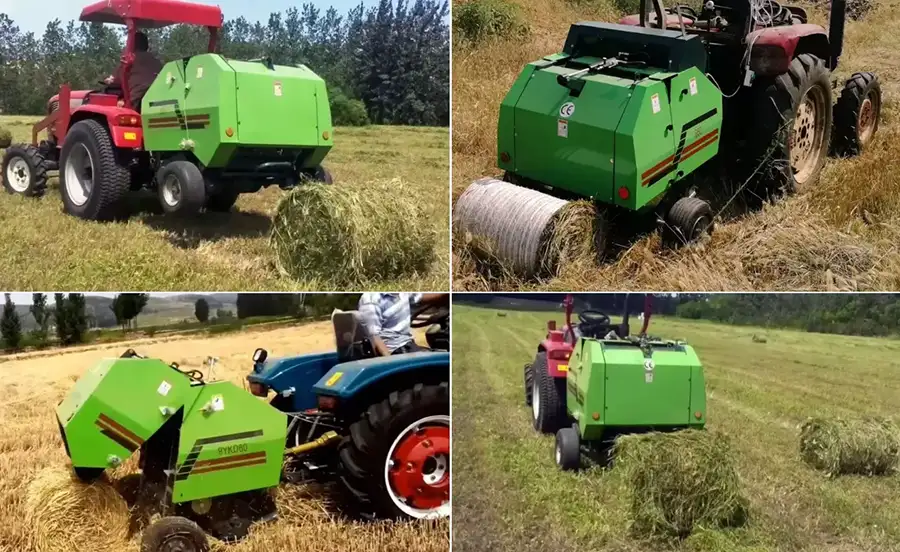

Applications of International Small Square Baler

The international small square baler is not only efficient but also versatile in its applications. Here are some of the many applications where this baler can prove to be an invaluable tool:

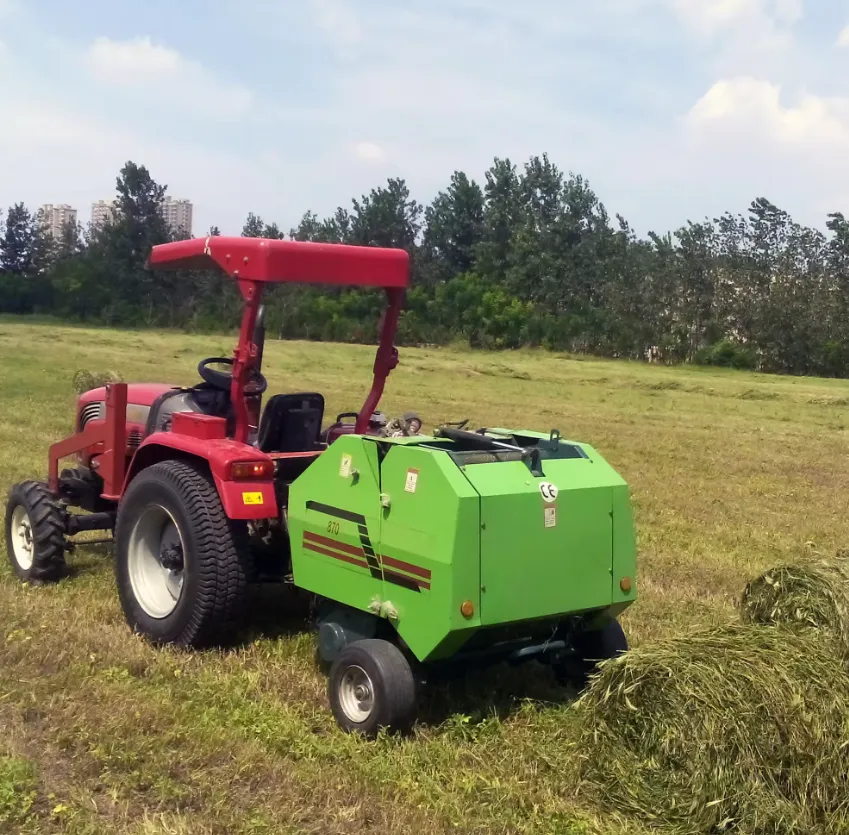

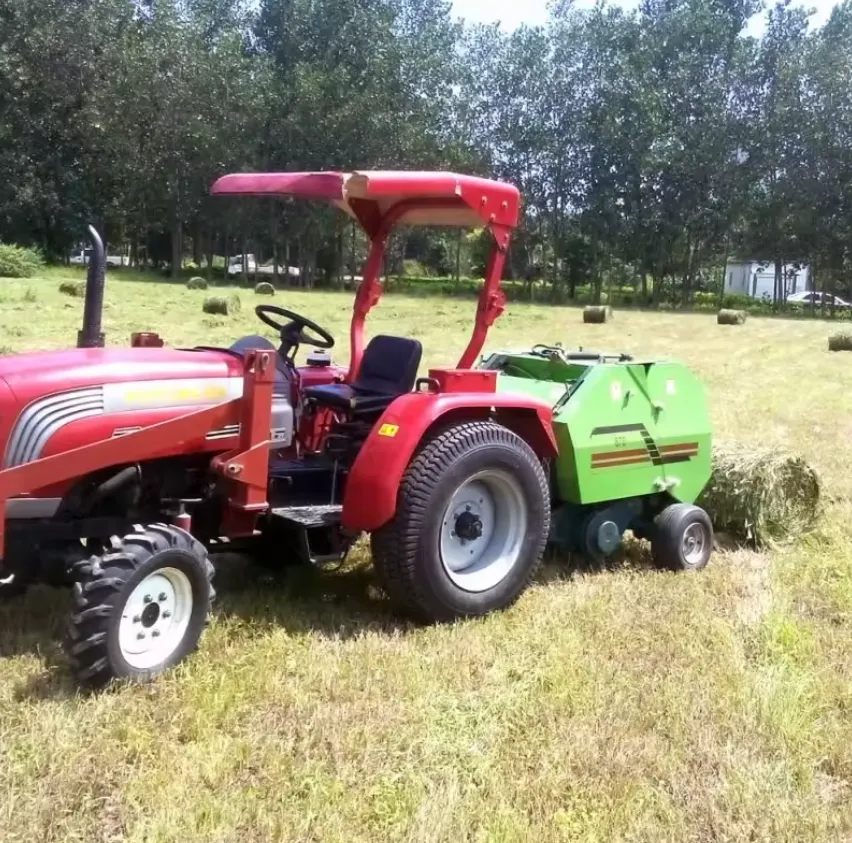

• Haying: The baler is ideal for haying operations, helping to gather and compact hay into neat, manageable bales for easy transportation and storage.
• Straw Baling: Whether it is wheat or rice straw, this baler can efficiently pick up and bale straw, aiding in waste management and providing straw bales for animal bedding or composting.
• Forage Baling: For livestock farmers, this baler can be used to bale forage crops such as alfalfa, making it easier to store and feed to the animals.
• Small to Medium-Sized Farms: Due to its compact size and lightweight, it is ideal for small to medium-sized farms where storage space and maneuverability can be a challenge.
• Silage Making: The baler can also be used to make silage bales. By wrapping the bales in airtight plastic, farmers can ferment the crops inside, producing nutritious silage for feeding livestock.
• Landscape Maintenance: Beyond farming, this baler can also be used in landscape maintenance. It can gather and bale garden waste, leaves, and grass clippings for easy disposal or composting.

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler works by attaching the baler to the back of a tractor using a three-point hitch or another attachment mechanism. The tractor provides the power and mobility needed to operate the baler effectively. Below is a step-by-step overview of how the tractor-mounted mini hay round baler typically works:

1. Preparing the Tractor: Ensure that the tractor is properly equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler. The PTO transfers power from the tractor to the baler, while the hydraulic connections control various functions of the baler.

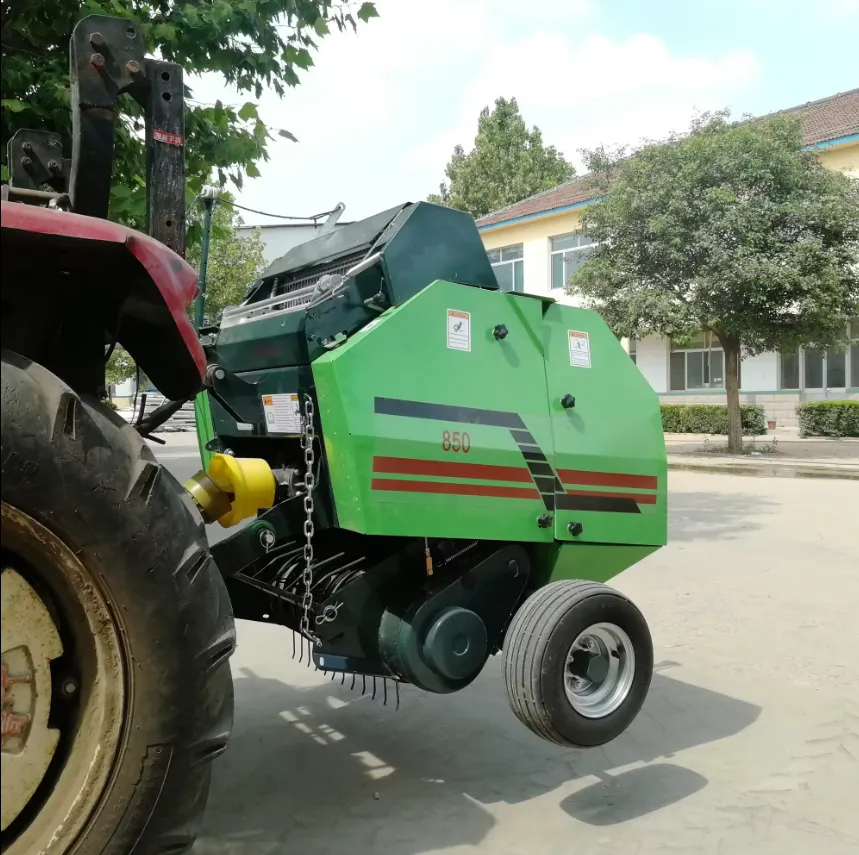

2. Hitching the Baler: Attach the baler to the tractor's three-point hitch or other compatible attachment mechanism. Secure the baler to the tractor, ensuring a firm and stable connection.
3. Adjusting Settings: Set the appropriate baling parameters based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
4. Operating the Pickup Attachment: Lower the pickup attachment of the baler onto the ground using the tractor's hydraulic controls. The pickup attachment consists of rotating tines or belts that gather the loose hay or straw from the ground and feed it into the baling chamber.
5. Bale Formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler. Inside the chamber, the material is compressed and formed into a round bale by a combination of belts and rollers. The belts rotate and wrap around the bale, ensuring it remains intact.
6. Bale Ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers may have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves several steps to ensure a secure and effective connection for baling operations. The process typically requires basic mechanical skills and an understanding of your tractor and baler's specific requirements. Here's a general guide on how to install a mini hay round baler to a tractor:

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment, as well as any safety precautions you need to follow. Before attachment, inspect both the tractor and baler for any damage or wear that might affect operation. Ensure all moving parts are in good condition and that the baler is ready for use.
2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler. Make sure the ground is level to avoid any unnecessary stress on the equipment during the connection process.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. Secure the pins through the arms into the baler's mounting points and attach the top link. Adjust the top link and lift arms to ensure the baler is level. For balers that connect via a drawbar, line up the drawbar of the tractor with the tow bar of the baler and insert the pin through both holes to secure them together.
4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged. Check that the PTO shaft is the correct length. The shaft should have enough overlap to accommodate the movement when the tractor and baler are in operation but not so much that it could bind or buckle.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs. Ensure the connections are secure and the hoses are not kinked or under strain.
6. Test the connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted. Look for any signs of looseness or misalignment that may affect the baler's operation or safety.

Maintenance Tips for the Mini Hay Round Baler

Proper maintenance of a mini hay round baler is essential to ensure its optimal performance, longevity, and safety. Here are some key maintenance tasks to consider:

• Regular cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw. Pay attention to the pickup attachment, baling chamber, belts, and rollers. Use compressed air, brushes, or water (if applicable) to remove stubborn residue. Keeping the baler clean helps prevent clogs and reduces the risk of corrosion.
• Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals. Apply the appropriate lubricants to the specified areas such as bearings, chains, sprockets, and pivot points. Proper lubrication reduces friction, prevents wear and tear, and ensures smooth operation.
• Roller inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear. Check for loose or missing bolts and ensure that the rollers are clean and free from debris. Adjust or replace rollers as necessary to maintain proper compression during bale formation.
• Twine or net wrap system: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly. Check for proper tension, functioning of the twine arms or net wrap mechanism, and any signs of wear or damage. Replace or adjust components as needed to ensure consistent and secure bale tying.
• PTO maintenance: If the baler is powered by the tractor's power take-off (PTO), inspect the PTO shaft regularly for any signs of wear, damage, or loose connections. Keep the PTO shaft properly lubricated and replace any worn or damaged components. Ensure that the PTO guards are in place and in good condition for operator safety.
• Check hydraulic system: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear. Ensure that all connections are tight and secure. Replace any damaged hoses or fittings and address any hydraulic fluid leaks promptly.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

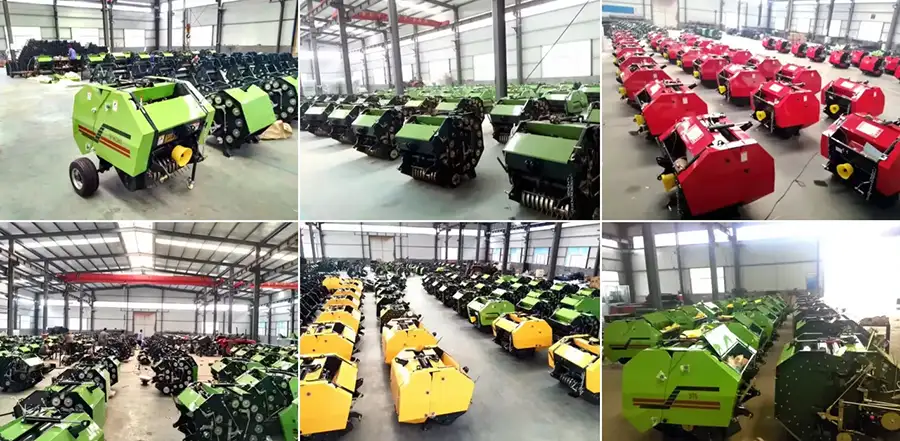

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical staff and five senior R&D personnel. In addition, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines. We use CAD computer-aided design system and our production technology is strong, with advanced equipment such as lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our products are complete in specifications, excellent in performance, and reliable in quality, and are sold all over the country and exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. Our commitment to quality is reflected in our ISO and CE certifications, ensuring that our products meet the highest international standards. We also offer customized services, allowing us to tailor our products to meet your specific needs and requirements. We understand the importance of prompt and reliable after-sales service, and we strive to provide our customers with the support they need when they need it. Our production facilities are equipped with state-of-the-art machinery and technology to ensure high-quality, efficient production. We are dedicated to continuous improvement, innovation, and customer satisfaction, making us the go-to choice for agricultural machinery. Author: Yjx
