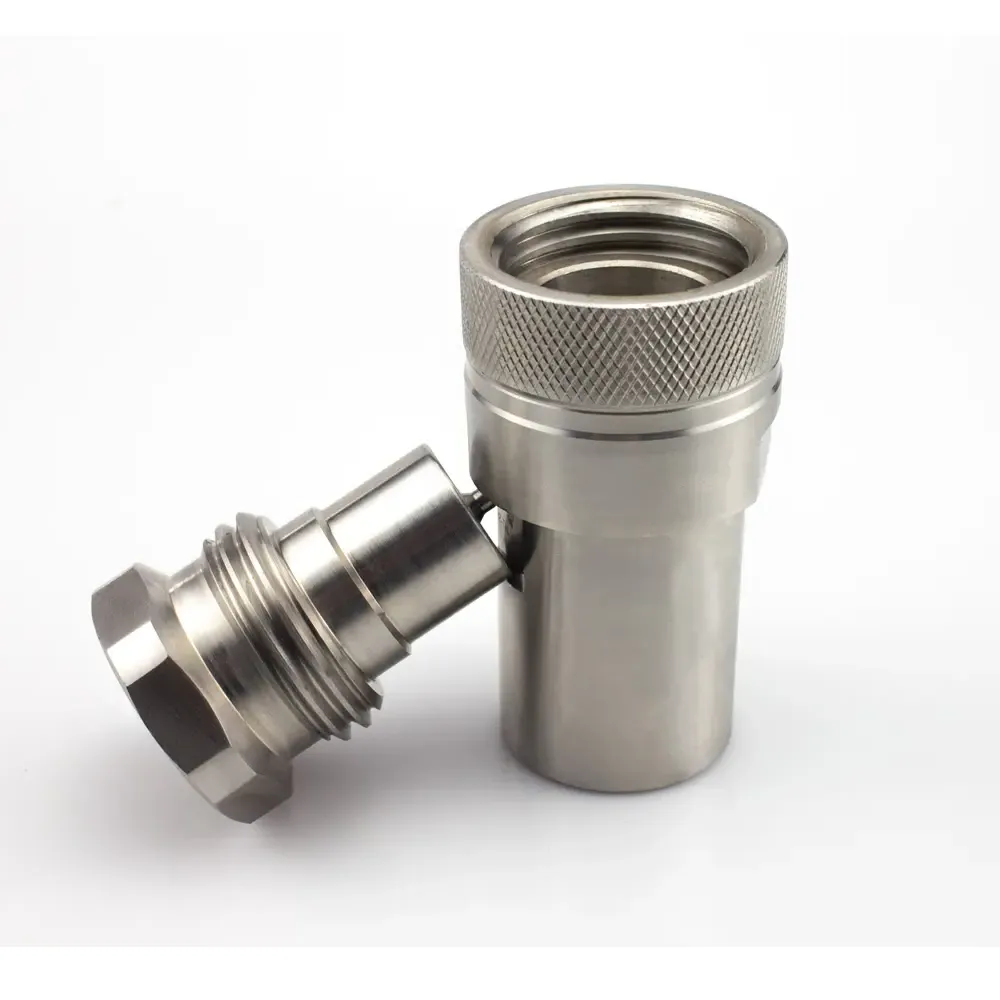

ISO-7241-B 1/2 inch BSP/NPT Thread Female/Male Fluid Quick Disconnect Fittings

The ISO-7241-B 1/2 inch BSP/NPT Thread female/male fluid quick disconnect fittings are meticulously designed and manufactured for seamless, efficient, and reliable fluid transfer operations. It is the ultimate solution for applications requiring quick and easy connection and disconnection of hydraulic lines.

Product Specifications

Model Number: GT-B1-04T-SPTechnics: CastingConnection: FemaleShape: EqualHead Code: HexagonMaterial: SteelThread: NPT G BSPWarranty: 1 YearSize: 1/2Pressure: 27.6Packaging Details: box/carton or as your demandPort: Ningbo or Shanghai

Advantages of ISO-7241-B 1/2 inch BSP/NPT Thread Female/Male Fluid Quick Disconnect Fittings

This hydraulic quick disconnect fitting offers numerous advantages:

1. Efficient: It enables quick and easy connection and disconnection of hydraulic lines.
2. Durable: Made from robust steel, it is built to last, ensuring long-term performance.
3. Versatile: It is designed to work with a variety of hydraulic systems.
4. Customizable: The fitting can be produced according to the customer's specs.
5. Reliable: It comes with a 1-year warranty, assuring you of its quality and reliability.
6. Convenient: It doesn't require a minimum order quantity for the first cooperation.

Applications of Hydraulic Quick Couplings

Hydraulic quick couplings find widespread applications across various industries due to their ability to efficiently connect and disconnect hydraulic lines and components. Here are some common applications where hydraulic quick couplings are extensively used:

1. Construction and Heavy Machinery: Hydraulic quick couplings are integral to construction equipment like excavators, loaders, and bulldozers. They enable the rapid attachment and detachment of hydraulic attachments such as buckets, breakers, and grapples, enhancing the versatility and efficiency of the machinery.
2. Agriculture: Agricultural machinery relies on hydraulic systems for tasks like plowing, seeding, and harvesting. Quick couplings enable farmers to quickly switch between different implements, saving time and increasing productivity.
3. Manufacturing and Automation: In manufacturing processes, hydraulic quick couplings are used to connect hydraulic actuators, presses, and tools. They facilitate fast tool changes and adjustments, improving production efficiency.
4. Oil and Gas Industry: Hydraulic systems are common in the oil and gas sector for various applications, including wellhead control, drilling rigs, and offshore platforms. Quick couplings are essential for connecting hydraulic lines and components in these harsh environments.
5. Aerospace: Hydraulic systems play a crucial role in aircraft operation, from landing gear to flight control surfaces. Quick couplings are used during maintenance and repair activities to ensure the integrity of hydraulic connections.
6. Automotive Industry: Hydraulic systems are present in vehicles for functions like power steering and braking. Quick couplings enable easy assembly and servicing of hydraulic components in automotive applications.

How Does the Hydraulic Quick Coupling Work?

Hydraulic quick couplings, also known as hydraulic quick disconnects or hydraulic quick connectors, are devices used to rapidly connect and disconnect hydraulic lines and components without the need for tools or extensive manual labor. They work based on a simple yet effective principle to ensure a secure and leak-free connection. Here's how hydraulic quick couplings work:

1. Male and Female Couplings: Hydraulic quick couplings consist of two main components: the male coupling and the female coupling. These components are designed to fit together seamlessly.
2. Valve Mechanism: Within both the male and female couplings, there is a valve mechanism. This valve can be in the form of poppet valves, ball valves, or flat-face valves, depending on the coupling design.
3. Sealing O-Ring: Each coupling has an O-ring or other sealing mechanism that ensures a watertight and pressure-tight seal when the male and female couplings are connected.
4. Push-to-Connect: To make a connection, the operator simply pushes the male coupling into the female coupling. The external force applied during this process compresses the valve mechanism and opens a pathway for hydraulic fluid to flow.
5. Fluid Flow: With the valves open, hydraulic fluid can flow freely from one side of the coupling to the other. This allows for the transmission of hydraulic power, such as pressure or flow, to operate various hydraulic components or machinery.
6. Locking Mechanism: Most hydraulic quick couplings have a locking mechanism that holds the male and female couplings together securely. This prevents accidental disconnection during operation, especially in high-pressure hydraulic systems.

Hydraulic Quick Coupling Installation Steps

Installing hydraulic quick couplings correctly is crucial for the efficient and safe operation of hydraulic systems. Here are the installation steps for hydraulic quick couplings:

1. Select the Right Couplings: Choose hydraulic quick couplings that are suitable for your specific application, taking into account factors like size, pressure rating, and compatibility with your hydraulic lines. Thoroughly inspect the male and female couplings, as well as any seals, O-rings, or gaskets for damage or wear. Replace any components that show signs of deterioration.
2. Clean the Couplings: Ensure that both the male and female couplings are clean and free from dirt, debris, and contaminants. Use a lint-free cloth or compressed air to clean them thoroughly. Apply a small amount of compatible hydraulic oil or grease to the O-rings or seals to facilitate smooth coupling and reduce wear during connection.
3. Position the Couplings: Position the male and female couplings so that they align correctly for connection. Ensure that the couplings are oriented in the same direction. Push the male coupling into the female coupling until they snap or click into place. Some couplings have a locking mechanism that provides audible confirmation of proper engagement.
4. Secure the Connection: If your hydraulic quick couplings have a locking mechanism, engage it to secure the connection further.
5. Test the Connection: Perform a pressure test to ensure that the hydraulic quick couplings are securely connected and there are no leaks. Slowly pressurize the system and inspect for any visible leaks around the couplings.

Maintenance of Hydraulic Quick Couplings

Maintenance of hydraulic quick couplings is essential to ensure the reliability and longevity of hydraulic systems. Proper maintenance can prevent leaks, reduce downtime, and improve the overall efficiency of your hydraulic equipment. Here are some maintenance steps for hydraulic quick couplings:

1. Regular Inspection: Perform routine visual inspections of the hydraulic quick couplings. Look for signs of wear, damage, or corrosion. Pay special attention to O-rings, seals, and locking mechanisms. Check for any hydraulic fluid leaks around the couplings. Leaks can indicate a faulty seal or a loose connection. Address any leaks immediately to prevent fluid loss and system contamination.
2. Cleanliness: Keep the couplings and surrounding areas clean. Dirt and debris can damage seals and prevent proper engagement. Use a lint-free cloth or compressed air to clean the couplings.
3. Lubrication: Apply a small amount of compatible hydraulic oil or grease to O-rings and seals before coupling. Lubrication helps ensure a smooth connection and prolongs the life of seals.
4. Torque Checks: Periodically check the torque on the coupling nuts. Over time, they may loosen, leading to leaks or improper connection. Use a torque wrench to tighten them to the manufacturer's specifications.
5. Replace Damaged Components: If you notice any damaged or worn-out O-rings, seals, gaskets, or locking mechanisms, replace them immediately. Using damaged components can lead to leaks and system failure.
6. Use Protective Caps: When quick couplings are not in use, protect the exposed ends with dust caps or plugs. This prevents contamination and damage to the couplings.

Why Choose Raydafon's Hydraulic Quick Couplings?

Raydafon Hydraulic Component Co., Ltd is located in the Ningbo Industrial Zone Zhejiang City, covering 6500 square meters. It launched in 1992, which is the design, development, production, and sales of quick couplings, including hydraulic cylinders, hydraulic couplings, hydraulic fittings, hydraulic ball valves, pneumatic couplings, and pipe couplings. Raydafon is focused on international market explorations and the South China market's development.Our products are not only sold well in the domestic market but also in the USA, Europe, Southeast Asia, and the Middle East. We mainly provide the hydraulic and pneumatic products for oil, engineering, metallurgical, machine tools, military equipment and machinery manufacturing industry. We stick to the principle of "Quality first, Customer first, Reputation first, and Service first" to satisfy the customers' requirements and increase the market share. We are growing stably and healthily.We pursue the excellent brand and comply with the best service, which will make us move faster to keep up with the international enterprise. We look forward to creating a bright future with you.[embed]https://youtu.be/umZnKL2LuNY[/embed]Author: Yjx.
