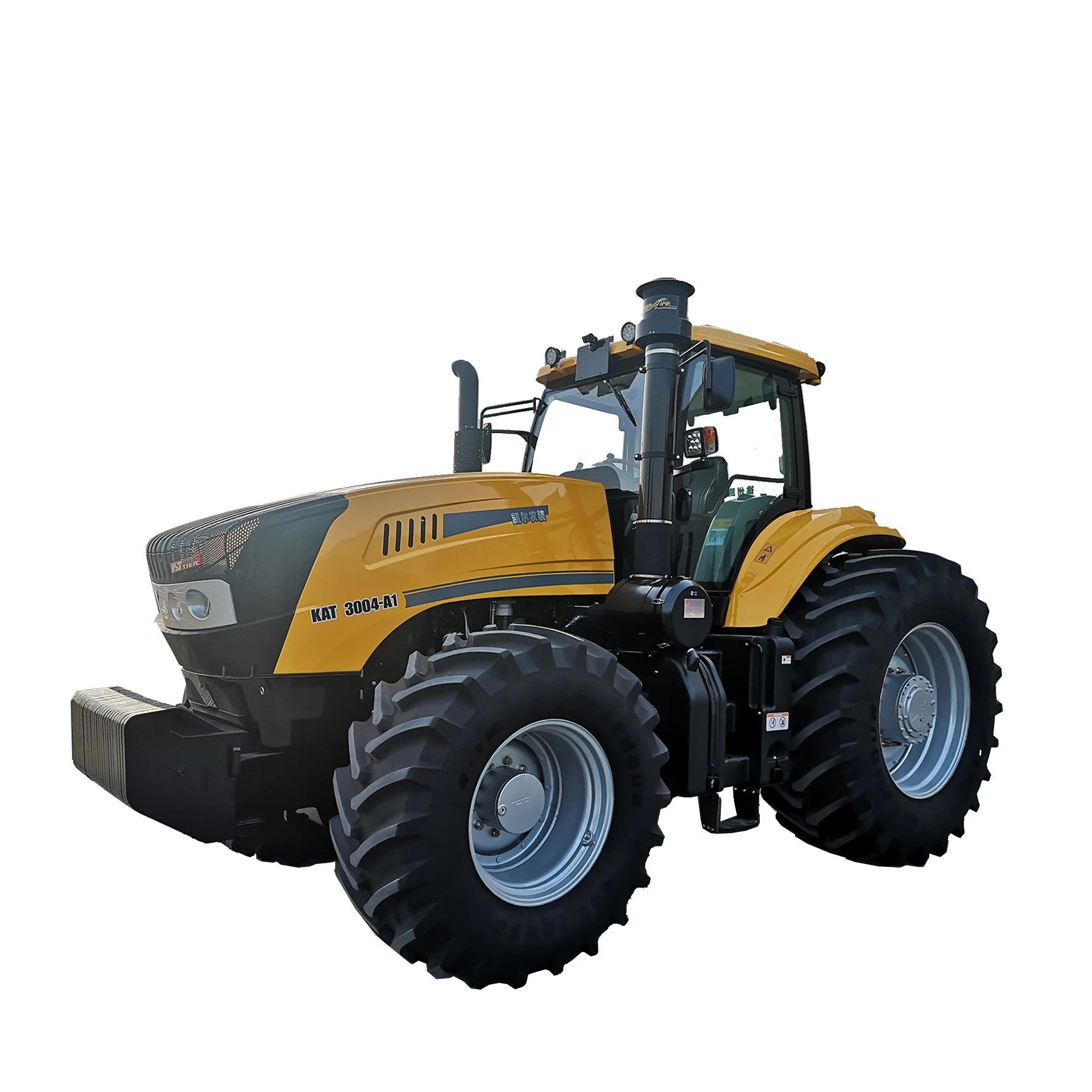

The KAT 3004-A1 tractor is a new product for 2020 that boasts a rated power of 300 horsepower. It is a wheel tractor that is suitable for use in farms, ranches, agriculture, husbandry, and plantations. Its 4WD drive type and transmission shaft drive make it ideal for use in varying terrains. The tractor is powered by a Shangchai six-cylinder engine with a turbocharger and inter-cooling, providing 12 hours of rated power at 221kW. The tractor features a fully enclosed drive cabin, air heater, air conditioner, self-developed transmission, 16F+4R gears, synchronizer shift, unit frame chassis, and driving system with modularized structure. It has a famous international brand front axle and construction machinery rear axle with caliper disc brake. The power output shaft rotation speed is 540/1000 r/min, and it has fully hydraulic front wheel steering. The tractor also has three groups of single/dual action hydraulic output, plough depth control method by position, floating control, and a suspension mechanism of rear-mounted Category III.
The KAT 3004-A1 tractor has a drive type of 4×4, with a dimension of 5980/2890/3380 mm (L/W/H), and a wheelbase of 3050 mm. The front wheel's track ranges between 2160-2288 mm, while the rear wheel's track ranges between 2236-2312 mm. The tractor has a minimum ground clearance of 520 mm and a machine weight of 10200 kg. It has a rated traction force of 60 kN and a maximum traction force of 90 kN. The tractor has 16F+4R gears, with a forward gear speed of 4-39 km/h and a reverse gear speed of 5-33 km/h. It has a rear position, independent power-output shaft, with a rated speed of 540/1000 r/min. The tractor has a maximum lifting force of 50 kN.
Images of the KAT 3004-A1 tractor are not available at this time.
The tractor will be disassembled to fit into a container, with all parts being fixed and photographed. It can be shipped via RORO, BULK shipment, road, or railway transportation. The ports of departure are Qingdao, Shanghai, and Lianyungang.
