Kwikstage Scaffolding Ledger for Construction Industry

Ledgers are the horizontal parts of a scaffolding system. They act as the guard rails at both sides and ends. And we can also call them horizontals.

Products Specifications:

Length: 0.5m to 2.5m availablePipes: Dia. 48.3mm * 3.0mmFinishing: Dip-Painting and Hot-Dip Galvanizing are availablePackaging: Rack Pallets and Bundles are availableLead time: 30 daysCapacity: 1000 tons per month

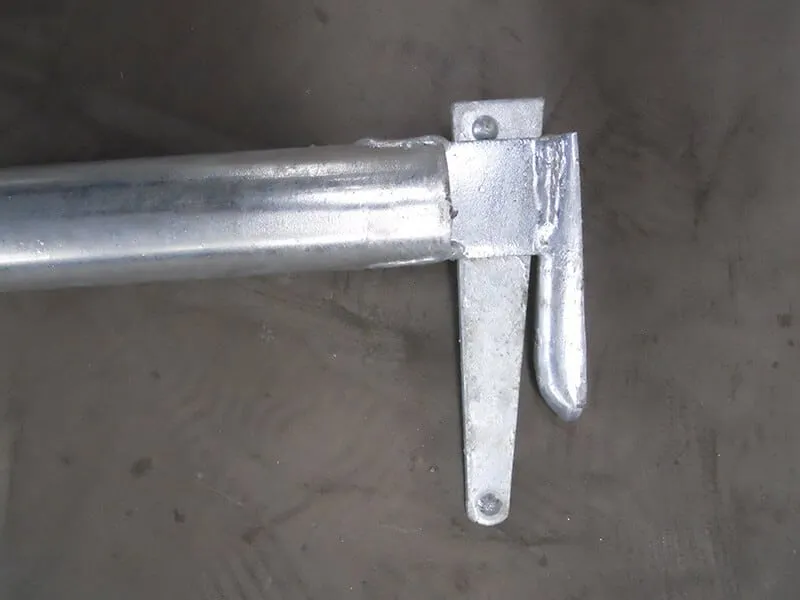

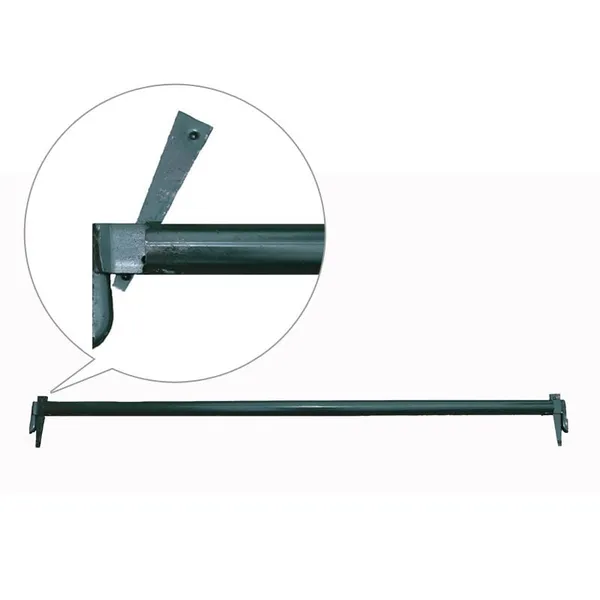

Kwikstage Ledger/Horizontal

1. Normal Tube Size:Φ48.3x3.2mm/Φ48.3x4.0mm

2. Available in Hot Dip Galvanized Surface, Painted or Customized

Ledgers are horizontal members of the scaffold system, also known as guard rails, made from Φ48.3x3.2 mm & 4.00 mm tubes. Ledgers fit into the upper V Style Pressings on the standards.

Item No.	Description	Length		Unit Weight
RSKL 050	0.50M Kwikstage Ledger	0.50 M	1’7.5’’	3.45 KG	7.61 LBS
RSKL 070	0.70M Kwikstage Ledger	0.70 M	2’3.5’’	3.85 KG	8.49 LBS
RSKL 120	1.20M Kwikstage Ledger	1.20 M	3’11.3’’	5.00 KG	11.02 LBS
RSKL 180	1.80M Kwikstage Ledger	1.80 M	5’11’’	7.60 KG	16.75 LBS
RSKL 240	2.40M Kwikstage Ledger	2.40 M	7’10.5’’	9.50 KG	20.94 LBS
RSKL 300	3.00M Kwikstage Ledger	3.00 M	9’10’’	12.50 KG	27.56 LBS

Note: Other Size Can be Customized.

Instructions for UseLift the wedge pin.Put away the end into the hole of the cups of the kwikstage standard.Hammer down the wedge pin until it stays in position.

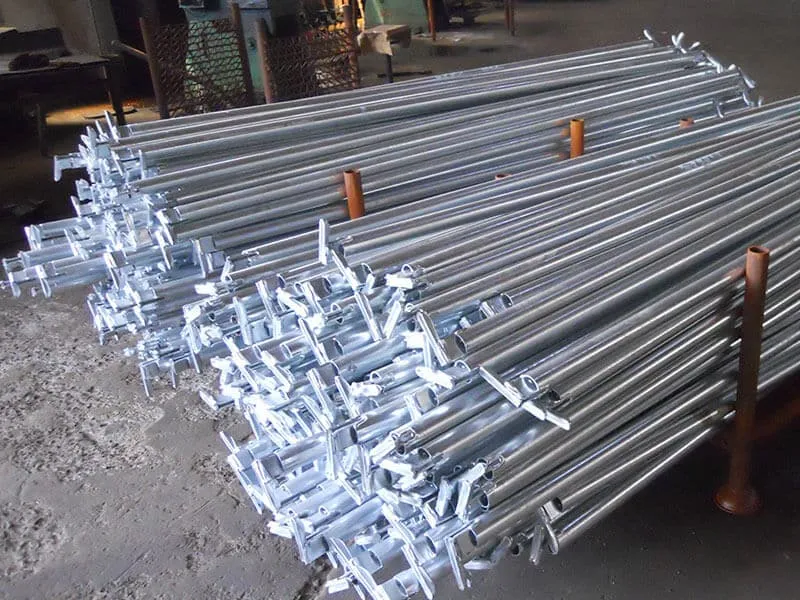

Product Display

Company Information

The company has an independent R & D team, import and export rights, global sales network that can provide customers with comprehensive scaffolding solutions. Products mainly include hot-dip galvanized steel tube; galvanized metal plank, hot-dip galvanized ring lock scaffolding, scaffolding couplers, frame systems, steel props, and so on; hot product sales at home and abroad are widely used in construction engineering facades, building support bridges, tunnels, chimneys, power plants, oil and petrochemical projects.The factory has 10 production lines, processing lines, 4,000 square meters of production workshop, 4,000 square meters of warehousing, and 10,000 square meters yard, with an annual output of 200,000 tons, and has more than 10,000 tons perennial spot. "Customer-centric, continue to meet customer needs, improve customer satisfaction" is the long-term development basic strategy. In the future, "high-quality products are a bridge to the world" for this purpose, we will continue to provide customers with "the best quality of products, the most comprehensive sales service, the lowest market price" to enhance customer market competitive advantages.If you need, you can contact our branch：SN TRADING & TRANSPORTATION PTE LTDMp: 89417358    Tel: 65923150    Email: [email protected]
