Kwikstage System Scaffolding Mesh Panel/Brick Guard for Construction Engineering

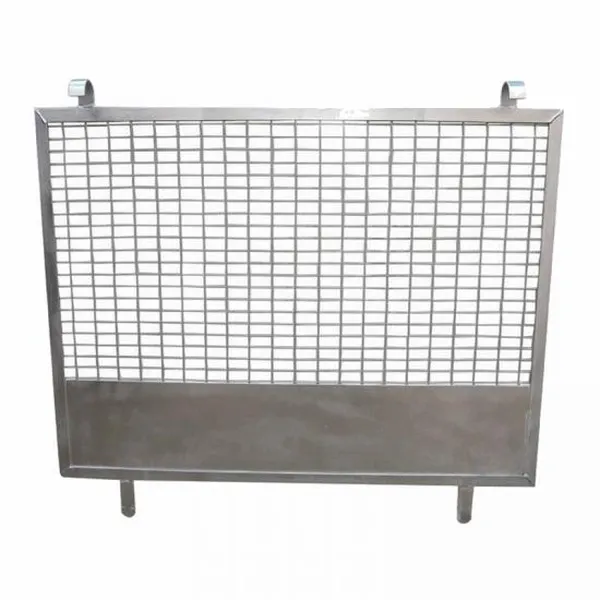

Kwikstage Mesh Panel / Brick Guard is placed between the ledger and the steel plank. Designed to be suspended from a guard rail ledger enclosing the space between the ledger and the working platform for safety.

Features of Kwikstage Mesh Panel:

Panel frame: Angle steel 30x30x3mm or Square Tube 25x25x1.5mm are available.Wire Mesh: Mesh grid 50x25mm, 50x50mm or 40x40mm are available.Toe Board Plate: 1.8mm or 1.5mm thickness are available.Steel Grade: Q235Finishing: Hot dip galvanized, powder coated, painted.

Products Specification

Code	Description	Material	Size	Weight (kg)	Weight (lbs)
KS.MP.244	2.44M Mesh Panel	Wire mesh grid 50x25mm, toe board t=1.8mm	2438mm (8')	22.50	49.61
KS.MP.183	1.83M Mesh Panel		1829mm (6')	19.44	42.87
KS.MP.152	1.52M Mesh Panel		1524mm (5')	16.66	36.74
KS.MP.127	1.27M Mesh Panel		1268mm (4'2")	14.33	31.60
KS.MP.122	1.22M Mesh Panel		1219mm (4')	13.89	30.63
KS.MP.091	0.91M Mesh Panel		914mm (3')	11.11	24.50
KS.MP.076	0.76M Mesh Panel		762mm (2'6")	9.73	21.45

Applications of Kwikstage Scaffolding

Kwikstage scaffolding can be used for new buildings, as well as repair and maintenance projects:a) Perimeter Roof Edge Protectionb) Heavy duty for Brick and Block Workc) Formwork Edge Protectiond) All types of new construction (Domestic and Commercial)e) Birdcages for void areasf) Heavy Duty Overhead Protective Covers (Gantry)g) Industrial Maintenance and Repairs

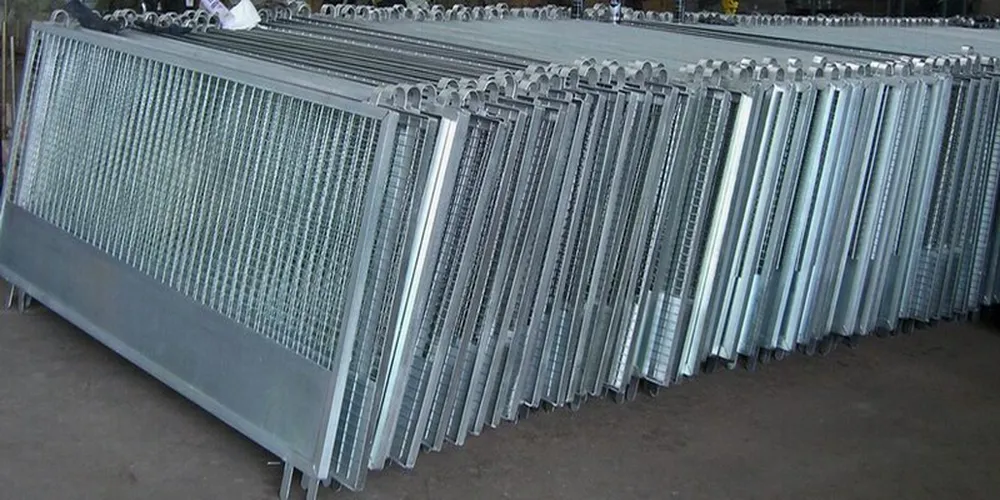

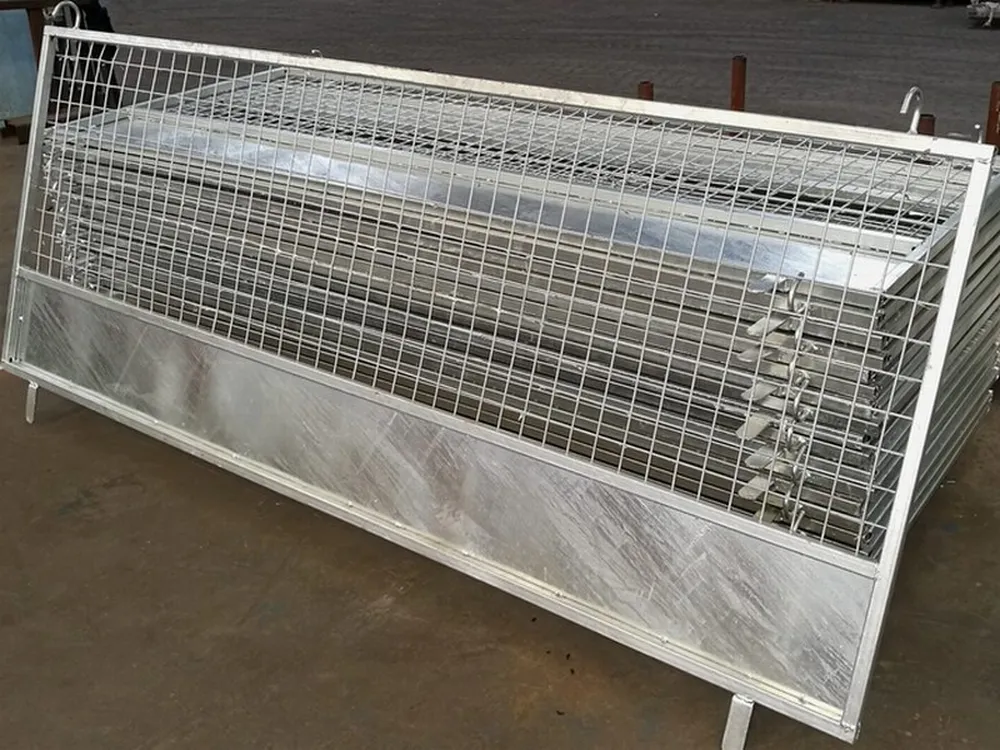

Product Display

Company Information

The company has an independent R & D team, import and export rights, global sales network that can provide customers with comprehensive scaffolding solutions. Products mainly include hot-dip galvanized steel tube; galvanized metal plank, hot-dip galvanized ring lock scaffolding, scaffolding couplers, frame systems, steel props, and so on; hot product sales at home and abroad are widely used in construction engineering facades, building support bridges, tunnels, chimneys, power plants, oil and petrochemical projects.The factory has 10 production lines, processing lines, 4,000 square meters of production workshop, 4,000 square meters of warehousing, and 10,000 square meters yard, with an annual output of 200,000 tons, and has more than 10,000 tons perennial spot. "Customer-centric, continue to meet customer needs, improve customer satisfaction" is the long-term development basic strategy. In the future, "high-quality products are a bridge to the world" for this purpose, we will continue to provide customers with "the best quality of products, the most comprehensive sales service, the lowest market price" to enhance customer market competitive advantages.If you need, you can contact our branch：SN TRADING & TRANSPORTATION PTE LTDMp: 89417358    Tel: 65923150    Email: [email protected]
