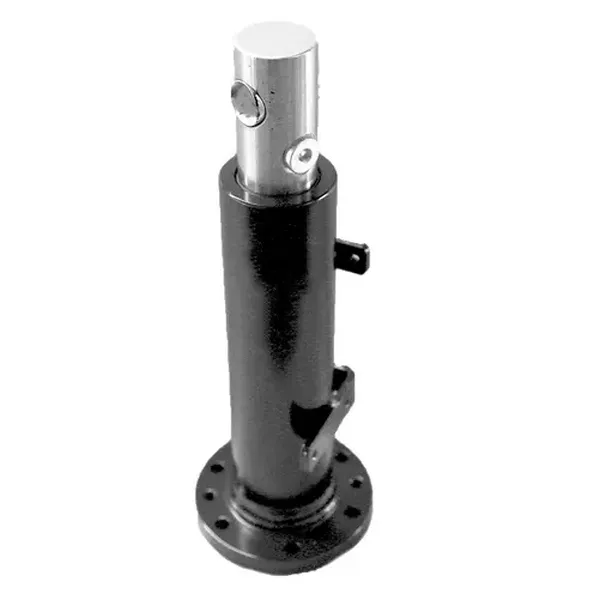

Lift Hydraulic Cylinder for Cart
A lift hydraulic cylinder for cart is a type of hydraulic cylinder that is used to lift carts. It is typically made of steel and has a piston that moves up and down inside a cylinder. The piston is connected to a rod that extends out of the cylinder. The rod is used to lift the cart.
The size of the lift hydraulic cylinder for cart will depend on the weight of the cart that it needs to lift. The larger the cart, the larger the cylinder will need to be. The cylinder will also need to be strong enough to support the weight of the cart.
The lift hydraulic cylinder for cart is typically operated by a foot pump. The user steps on the pump to push fluid into the cylinder, which causes the piston to move up and lift the cart. When the user releases the pump, the fluid flows back out of the cylinder, which causes the piston to move down and lower the cart.
Lift hydraulic cylinders for carts are used in a variety of industries, including manufacturing, warehousing, and transportation. They are used to lift carts of materials, equipment, and other heavy objects.

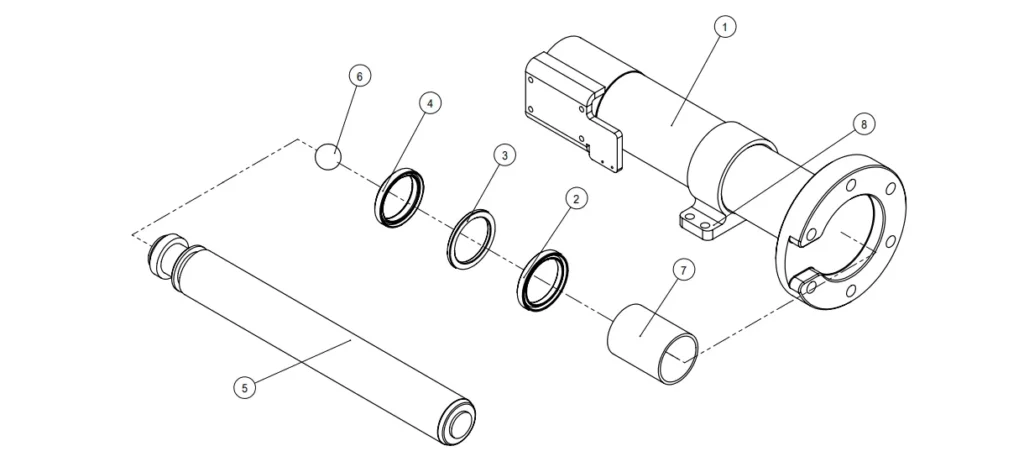

1 | Cylinder Housing assy |
2 | U-Ring |
3 | Back-Ring |
4 | Dust Wiper |
5 | Piston Rod |
6 | Steel Ball |
7 | Du Bush |
8 | O-Ring |
 |  |

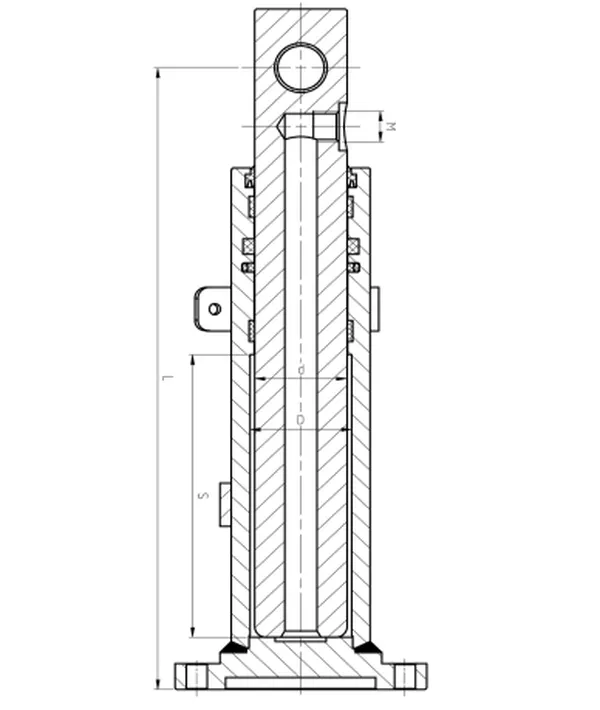

| Cylinder Name | Drawing number | Bore diameter (D) | Rod diameter (d) | Stroke (S) | Installation distance (L) | Working pressure | Interface dimensions (M) | Weight |
| Lift cylinder for Cart | AIMBN156-620000-001 | Φ45 | Φ40 | 125 | 313 | 18MPa | M12*1.5 | 6.5kg |
| Lift cylinder for Cart | AIMBJ150-620000-000 | Φ40 | Φ35 | 155 | 354.7 | 22MPa | Φ6 | 6.5kg |
| Lift cylinder for Cart | AIMBA200-620000-000 | Φ45 | Φ40 | 155 | 355 | 20MPa | Φ6 | 6.5kg |
| Lift cylinder for Cart | EPT18H-301-00 | Φ40 | Φ35 | 120 | 233 | 25MPa | M12*1.5 | 3.6kg |
Here are the features of a lift hydraulic cylinder for cart:
1. High lifting capacity: A cart lift hydraulic cylinder can lift heavy loads, making it ideal for carts that need to transport large or bulky items.2. Smooth operation: A cart lift hydraulic cylinder operate smoothly and quietly, making them a good choice for carts that need to be used in noisy environments or where noise pollution is a concern.3. Durable construction: A cart lift hydraulic cylinder is made from durable materials that can withstand wear and tear, making them a long-lasting investment.4. Versatile applications: A cart lift hydraulic cylinder can be used in a variety of applications, making them a versatile and adaptable option for carts.5. Easy maintenance: A cart lift hydraulic cylinder is relatively easy to maintain, requiring little more than periodic lubrication. |  |
Here are the factors to consider when choosing the right lift hydraulic cylinder for a cart:
(1) Load capacity: The first and most important factor is the load capacity of the cylinder. This is the maximum weight that the lift cylinder for cart can lift. You need to make sure that the cylinder you choose can lift the weight of the cart and its contents.(2) Stroke length: The stroke length is the distance that the piston rod can travel. This will determine how high the cart can be lifted. You need to make sure that the stroke length is long enough to lift the cart to the desired height.(3) Bore size: The bore size is the diameter of the cylinder. This will determine the amount of force that the cylinder can exert. A larger bore size will provide more force, but it will also be heavier and more expensive.(4) Rod size: The rod size is the diameter of the piston rod. This will determine the amount of load that the lift cylinder for cart can support. A larger rod size will support more load, but it will also be heavier and more expensive.(5) Mounting style: The mounting style is the way that the cylinder is attached to the cart. There are several different mounting styles available, so you need to choose the one that is best suited for your application.(6) Operating pressure: The operating pressure is the pressure of the hydraulic fluid that is used to power the lift cylinder for cart. This will determine the speed at which the cylinder can operate.(7) Cushions: Cushions are used to dampen the impact of the piston rod when it reaches the end of its stroke. This can help to prevent damage to the cylinder and the cart.[embed]https://www.youtube.com/embedw8KK1sidY10[/embed] |  |
 |  |
