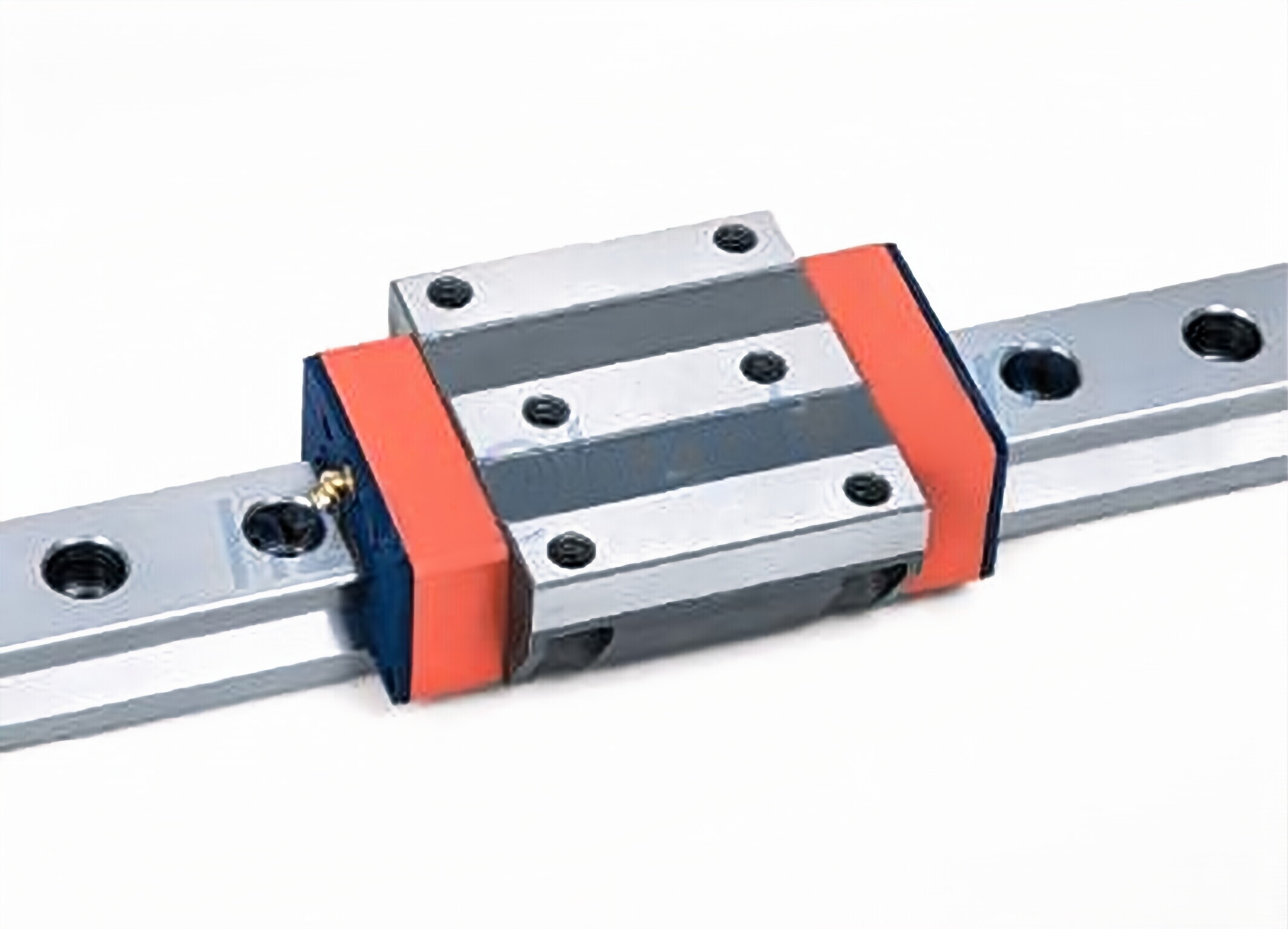

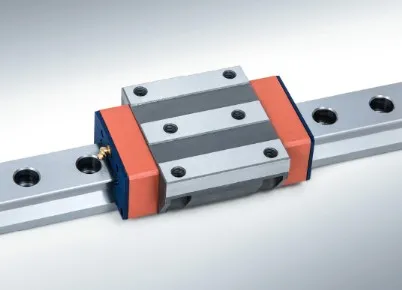

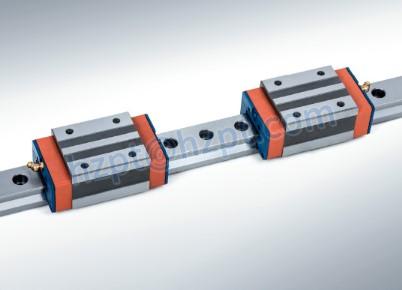

Linear Guideway for LZG-KL(Roller Style）

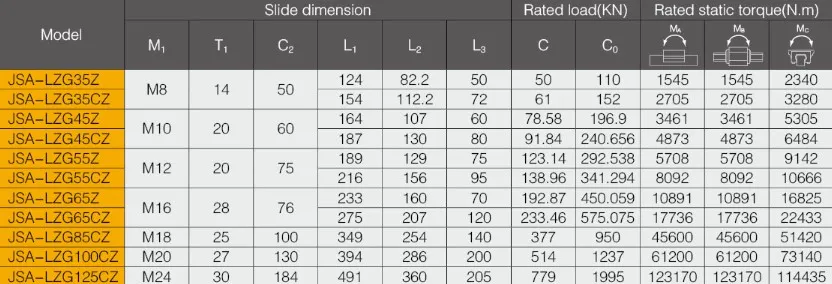

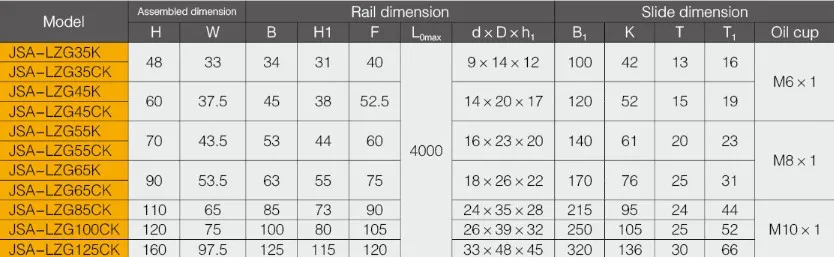

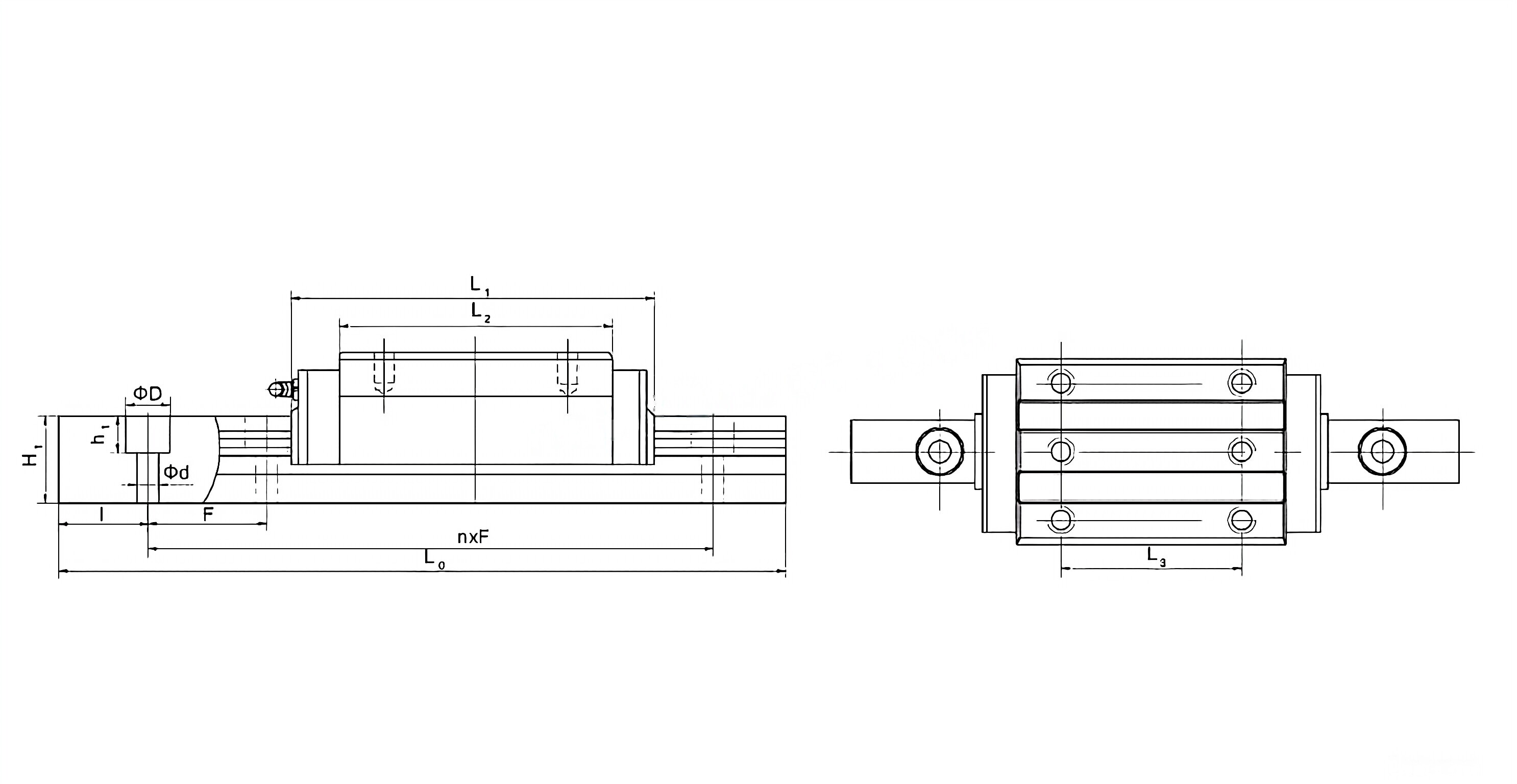

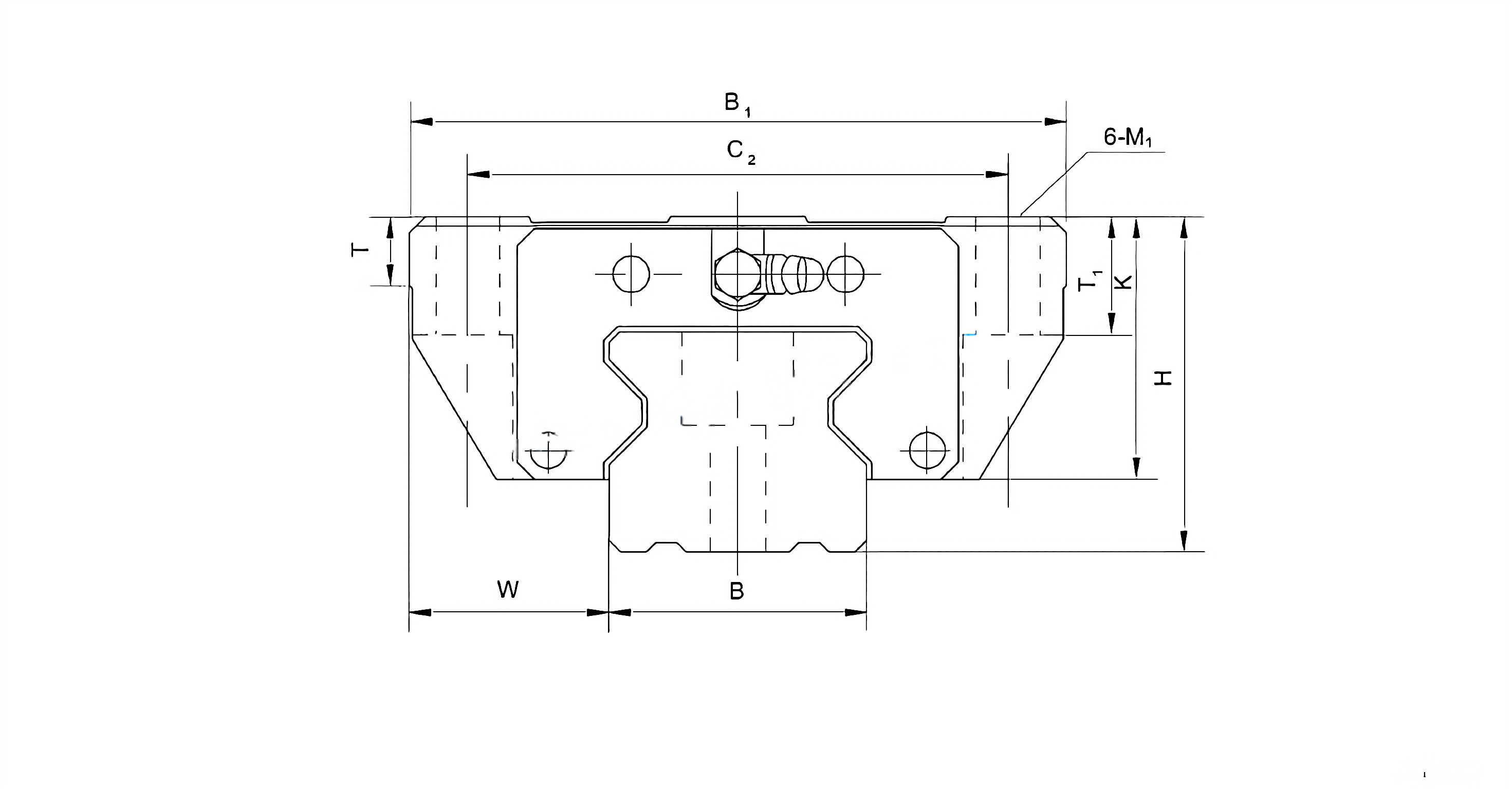

Linear Guideway for LZG-KL(Roller Style）

Linear guideways provide linear motion by circulating rolling elements between the profiled guide and the bearing housing. Compared with conventional slide rails, linear guides have a friction coefficient of only 1/50 and can withstand loads in all directions. These features, linear guideways, can achieve high precision and significantly improve movement accuracy.

Nomenclature Explanation of Ball Screw

Accuracy Grade

The method of accuracy grade for check and accept s according to Chinese standards Jb/T7175.2-93. This standard is equal to forcingmanufacture of the same line.1. The accuracy is classified as moving accuracy, and general accuracy six grades the items, and allowable error can see in the table.2. Since the tack on the railway is fixed on damp by screw before finish ground, there is an error when in space on the state of freedomBesides that, the track needs a screw to fix on the base element while.Operating. it is stipulated that the linear guideway should be fixed on a particular flat while accepting.3.W/hen there are more than two blocks on the benchmark railway, the variation value W1'of Blocks from beginning to end shouldaccording to the rule in the table and the value of W/1of media, the block should be smaller than that.

Moving Accuracy

General Accuracy

Basic Components of Linear Guides

Linear guides consist of two basic components: linear guides and bearing housings. They support moving parts and allow smooth movement along the X and Y axes. Additionally, they have a low friction coefficient, enabling them to carry heavy loads in a wide range of directions. Therefore, they provide high precision and enhanced movement accuracy. There are many types of linear guides, each with its characteristics. Choose the appropriate one for your application.

How to Make a Good Linear Guideway Selection?

When choosing a linear guide, the type of equipment used on the machine must be considered. This type of machine is used to move and store items. Linear guides are usually made of carbon steel or stainless steel. They can be made from various materials, but carbon and stainless steel are the most common.Choosing the right product for your application is an essential step in achieving the long-term sustainability of your design. There are many factors to consider, including cost and availability. Generally, the cost is the most significant consideration, but you must also consider other factors such as size, shape, and surface finish. If the product is designed to move large loads, weight and size should be considered.
